• ATF Refill System
  • adapters to connect to Ford, Toyota, BMW, Honda, Nissan, VW, Audi, Mercedes, and Volvo transmissions

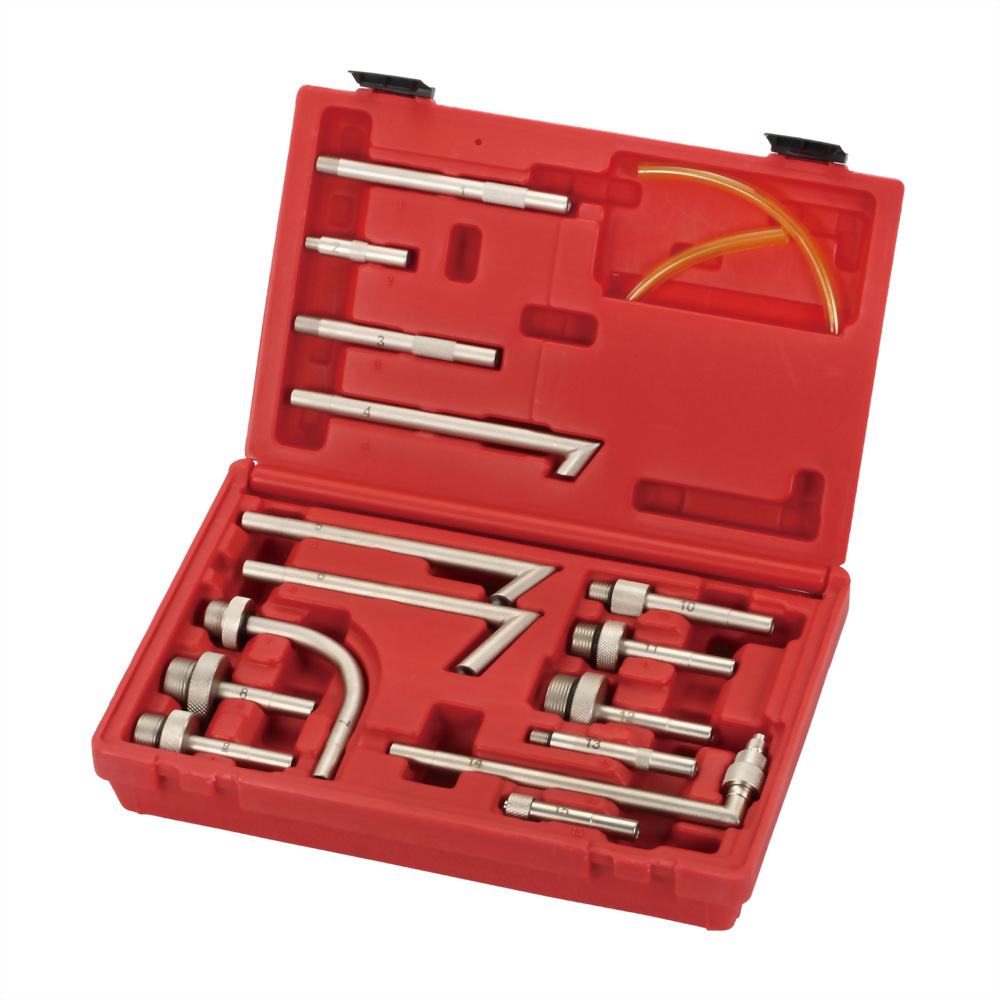

Transmission Fluid Refilling Adapter Set (15 pcs)

Model No.: SD-1580FR-ATA-C
• Set for fitting fill plug hole (or drain plug hole) on automatic transmissions with no dipstick

• Includes 15 different types of adapters for Audi, Chevrolet, Ford, Honda, Hyundai, Infiniti, Mercedes, Nissan, Toyota, Volkswagen, and Volvo

  Package   Blow molded case (red)
  Packing   10 sets in a master carton
  Weight per set   1.4 kg   3.1 lbs
  Net weight per carton   14.3 kg   31.5 lbs
  Gross weight per carton   15.3 kg   33.7 lbs

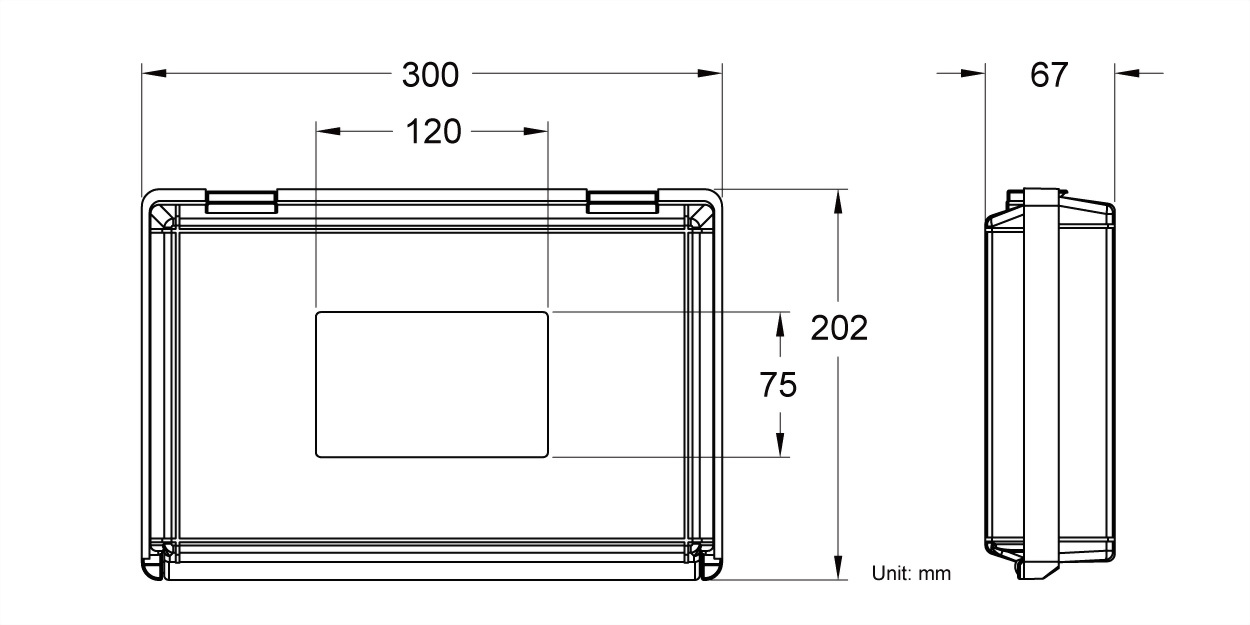

  Size per set   30.0 × 20.2 × 6.7 cm   11.8 × 8.0 × 2.6 inch
  Size per carton   39.0 × 32.0 × 31.5 cm   15.4 × 12.6 × 12.4 inch
  Volume per carton   0.039 CBM   1.4 CUFT
  Case label size        11.5 × 7.0 cm        4.5 × 2.7 inch

No. Image Cosda No. Description
1 No. 1 ATF Adapter 1/8” NPT SD-1580-TA MoreNo. 1 ATF Adapter 1/8” NPT
- Specifications

  Dimension              1.0 × 1.0 × 12.2 cm
  Weight   35.5 g


2 No. 2 ATF Adapter 5/16”-24 UNF SD-1580-TJ MoreNo. 2 ATF Adapter 5/16”-24 UNF
- Specifications

  Dimension              1.0 × 1.0 × 5.1 cm
  Weight   14.5 g


3 No. 3 ATF Adapter M10 × 1.00 SD-1580-TF MoreNo. 3 ATF Adapter M10 × 1.00
- Specifications

  Dimension              1.0 × 1.0 × 9.8 cm
  Weight   28.0 g


4 No. 4 ATF Adapter Short Hook SD-1580-TD MoreNo. 4 ATF Adapter Short Hook
- Specifications

  Dimension              1.0 × 1.8 × 15.2 cm
  Weight   48.5 g


5 No. 5 ATF Adapter Medium Hook SD-1580-TE MoreNo. 5 ATF Adapter Medium Hook
- Specifications

  Dimension              1.0 × 2.8 × 15.2 cm
  Weight   52.0 g


6 No. 6 ATF Adapter Long Hook SD-1580-TC MoreNo. 6 ATF Adapter Long Hook
- Specifications

  Dimension              1.0 × 4.5 × 14.1 cm
  Weight   54.0 g


7 No. 7 ATF Adapter M18 × 1.50 SD-1580-TB MoreNo. 7 ATF Adapter M18 × 1.50
- Specifications

  Dimension              9.0 × 9.0 × 2.5 cm
  Weight   76.2 g


8 No. 8 ATF Adapter M24 × 1.50 SD-1580-TG MoreNo. 8 ATF Adapter M24 × 1.50
- Specifications

  Dimension              3.4 × 3.4 × 6.9 cm
  Weight   114 g


9 No. 9 ATF Adapter M22 × 1.50 SD-1580-TH MoreNo. 9 ATF Adapter M22 × 1.50
- Specifications

  Dimension              2.9 × 2.9 × 7.3 cm
  Weight   91.8 g


10 No. 10 ATF Adapter M12 × 1.50 SD-1580-TI MoreNo. 10 ATF Adapter M12 × 1.50
- Specifications

  Dimension              1.7 × 1.7 × 8.7 cm
  Weight   42.2 g


11 No. 11 ATF Adapter M18 × 1.50 SD-1580-TL MoreNo. 11 ATF Adapter M18 × 1.50
- Specifications

  Dimension              2.4 × 2.4 × 7.5 cm
  Weight   63.0 g


12 No. 12 ATF Adapter M30 × 1.50 SD-1580-TM MoreNo. 12 ATF Adapter M30 × 1.50
- Specifications

  Dimension              3.6 × 3.6 × 7.5 cm
  Weight   149 g


13 No. 13 ATF Adapter M8 × 1.00 SD-1580-TN MoreNo. 13 ATF Adapter M8 × 1.00
- Specifications

  Dimension              1.0 × 1.0 × 7.5 cm
  Weight   22.8 g


14 No. 14 ATF Adapter M10 × 1.00 SD-1580-TO MoreNo. 14 ATF Adapter M10 × 1.00
- Specifications

  Dimension              1.8 × 5.5 × 6.2 cm
  Weight   83.5 g


15 No. 15 ATF Adapter with a 300 mm Flexible Hose SD-1580-TP MoreNo. 15 ATF Adapter with a 300 mm Flexible Hose
- Specifications

  Dimension              1.3 × 1.3 × 38.0 cm
  Weight   44.8 g


  Suggested HS code   82055990909
  MOQ with laser marking   20 sets
  MOQ without laser marking   2 sets
  Laser marking cost   + TWD 3 on each piece
