Mercedes 9G Tronic Transmission Drain and Refill Set

Model No.: SD-1583
• Designed for draining and refilling ATF on Mercedes-Benz 9-speed automatic transmissions (type 725.0)

• Special design for leak-free and spill-free ATF services

• Refill adapter shall be used with an ATF refill pump and tank

Mercedes-Benz 7252711801 plug change tool


Mercedes-Benz Transmission Pan 7252703707 oil change tool



  Package   White box
  Packing   50 sets in a master carton
  Weight per set   150 g   0.33 lbs
  Net weight per carton   6.9 kg   15.2 lbs
  Gross weight per carton   7.9 kg   17.4 lbs
  Size per set   14.6 × 9.1 × 8.5 cm   5.7 × 3.6 × 3.3 inch
  Size per carton   50.0 × 48.2 × 31.5 cm   19.7 × 19.0 × 12.4 inch
  Volume per carton   0.076 CBM   2.7 CUFT
  Label size        12.0 × 14.5 cm   4.7 × 5.7 inch


- Vehicle fitment
Make Model No. Year Category Remark
Mercedes-Benz C-Class A205 2016-2020 Transmission Refill AMG C 43, 63, C 180; C 200, 220, 300 D
Mercedes-Benz C-Class C205 2015-2020 Transmission Refill C 180, 300, 400; C 220, 300 D
Mercedes-Benz C-Class W205 2013-2020 Transmission Refill C 160, 180; C 200, 300 D, C 300 EQ Boost 9G tronic
Mercedes-Benz CLS C218 2011-2017 Transmission Refill CLS 63 AMG; CLS 220, 250, 350 BlueTec/d 9G tronic
Mercedes-Benz CLS C257 2017-2020 Transmission Refill CLS 220, 300, 350, 400 D
Mercedes-Benz E-Class A207 2010-2016 Transmission Refill E 220, 350 BlueTEC, E 350 BlueTec/d
Mercedes-Benz E-Class C207 2009-2016 Transmission Refill E 220, 350 BlueTEC, E 350 BlueTec/d
Mercedes-Benz E-Class C238 2016-2020 Transmission Refill E 180, 200, 250, 300; E 200, 220, 300, 350 D
Mercedes-Benz E-Class W212 2009-2016 Transmission Refill E 220, 350 BlueTEC, E 350 BlueTec/d
Mercedes-Benz E-Class W213 2016-2020 Transmission Refill E 200, 300, 400 4matic; E 220 D
Mercedes-Benz GLC C253 2016-2020 Transmission Refill AMG 63 4matic+; 200, 220, 300 D; 200 EQ Boost
Mercedes-Benz GLC X253 2015-2020 Transmission Refill AMG 63 4matic+; 200, 220, 300 D; 200 EQ Boost
Mercedes-Benz GLE C292 2015-2019 Transmission Refill 400, 500 4matic; 350 D 4matic
Mercedes-Benz GLE W166 2015-2018 Transmission Refill 320, 400, 500 4matic; 250, 350 D
Mercedes-Benz GLE W167 2018-2020 Transmission Refill GLE 300, 350, 400 D 4matic
Mercedes-Benz GLS X166 2015-2019 Transmission Refill 400, 500 4matic, AMG 63 4matic; 350, 400 D
Mercedes-Benz GLS X167 2019-2020 Transmission Refill 400, 500, AMG 63 4matic; 350, 400 D 4matic
Mercedes-Benz S-Class A217 2015-2020 Transmission Refill S 560, S 650 Maybach
Mercedes-Benz S-Class C217 2014-2020 Transmission Refill S 400, 450, 560 4matic
Mercedes-Benz S-Class W222 2013-2020 Transmission Refill S 320, 400, 560, 600; S 350, 400 D 9G tronic
Mercedes-Benz SL R231 2012-2020 Transmission Refill 400, 500 9G tronic
Mercedes-Benz SLC R172 2016-2020 Transmission Refill 180, 200, 300, AMG SLC 43
Mercedes-Benz SLK R172 2011-2020 Transmission Refill 200, 300; 250 CDi/d 9G tronic
Mercedes-Benz Sprinter 3-t 2006-2020 Transmission Refill 211 CDi, 214 CDi
Mercedes-Benz Sprinter 3.5-t 2006-2020 Transmission Refill 314 CDi, 316 CDi
Mercedes-Benz V-Class W447 2014-2020 Transmission Refill V 250; V 220, 250, 300 CDi/d 9G tronic
Mercedes-Benz Vito W447 2014-2020 Transmission Refill 109 CDi, 111 CDi, 114 CDi, 116 CDi; eVito 9G tronic
+ Show more
No. Image Cosda No. Description

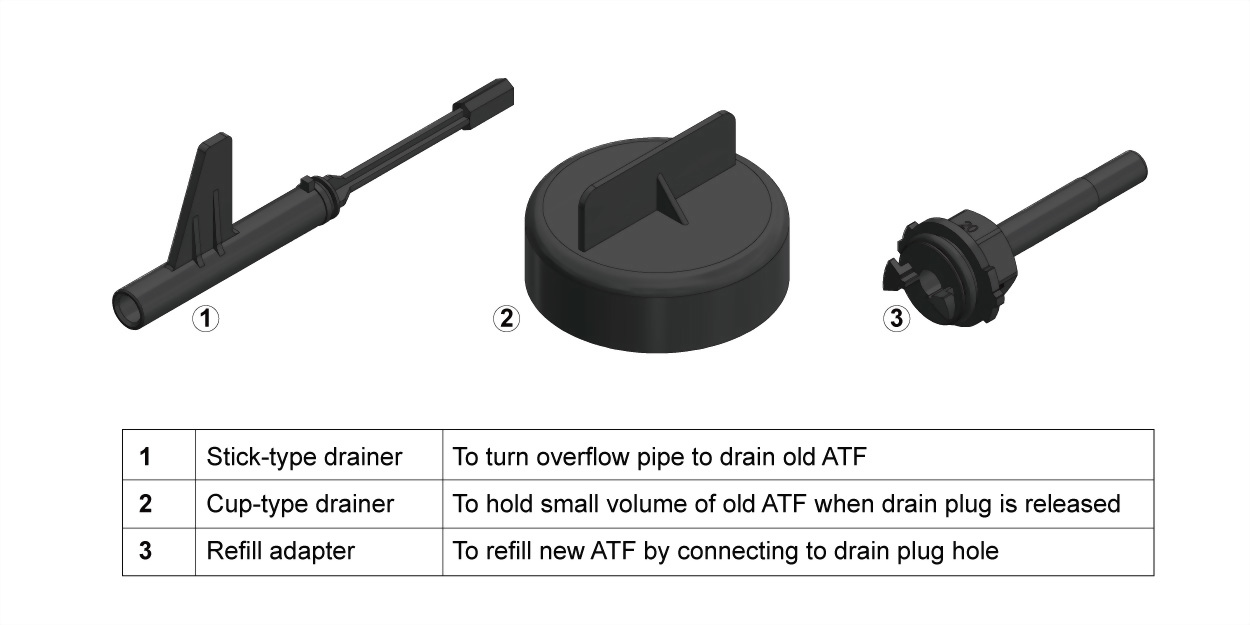

1 Cup-type Drainer SD-1583-01 MoreCup-type Drainer
- Specifications

  Dimension              7.3 × 7.3 × 5.1 cm
  Weight   31 g
  Used in   SD-1583 (1 pc)


2 Stick-type Drainer SD-1583-02 MoreStick-type Drainer
- Specifications

  Dimension              14.9 × 4.6 × 1.2 cm
  Weight   12 g
  Used in   SD-1583 (1 pc)


3 ATF Adapter No. 20 - Ear-clip Type SD-1582-TV MoreATF Adapter No. 20 - Ear-clip Type
- Specifications

  Dimension              4.0 × 4.0 × 6.8 cm
  Weight   15 g
  Used in (product 1)   SD-1582 (1 pc)
  Used in (product 2)   SD-1583 (1 pc)


  Suggested HS code   82055990909
  MOQ with logo printing   100 sets
  MOQ without logo printing   4 sets
  Logo printing tooling cost   + TWD 2,000
  Logo printing cost
   + TWD 3 on each piece
