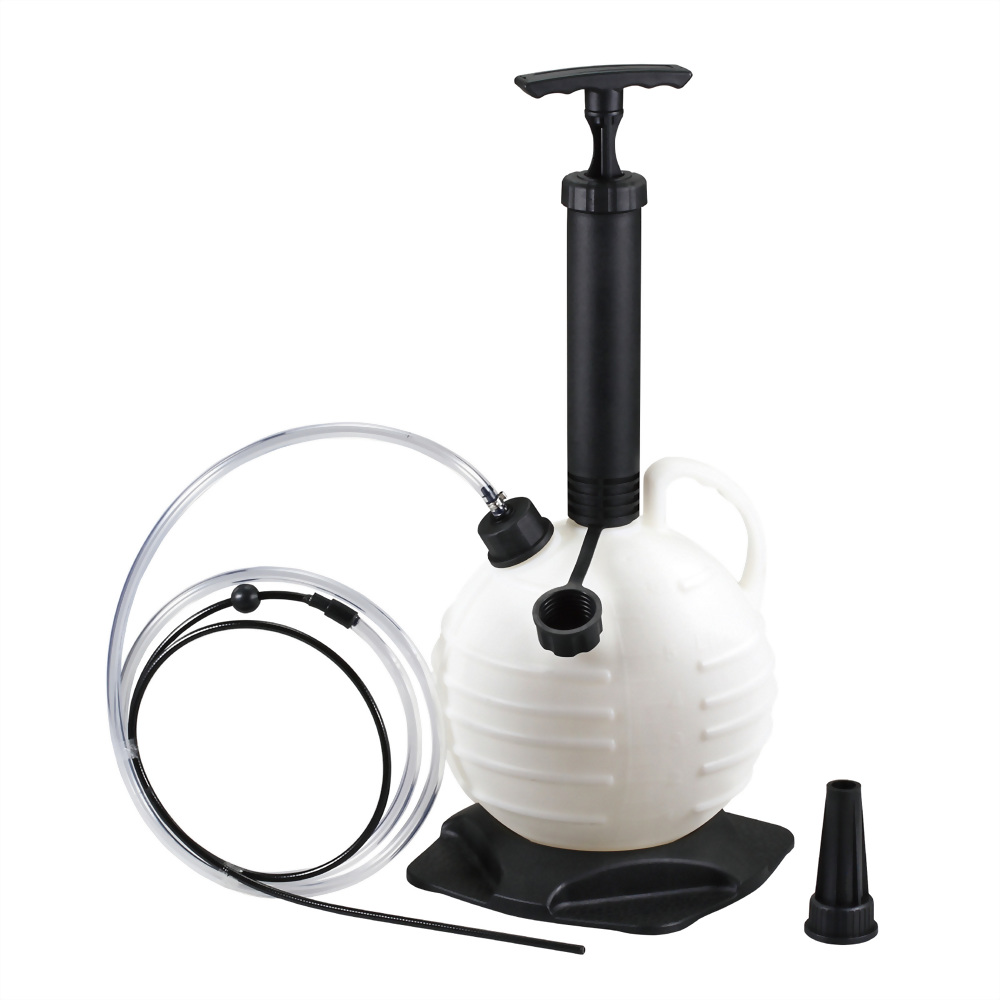

6L Fluid Extractor Set
• Tank capacity 6 liter / 1.5 gallon
• Tank base for feet to step on to stabilize the tank while pumping
• Transparent hose makes it easier for mechanics to check extracted engine oil quality
• Conical pour spout for spill-free waste oil discharge
6L Fluid Extractor Set for Oil Change | OEM Automotive Maintenance Tool
-
Suitable for Engine Oil, Brake Fluid, and Various Fluid Extraction
-
Manual Operation for Easy and Efficient Fluid Extraction
-
6L Capacity Design for Improved Working Efficiency
-
Ideal for Workshops, Service Centers, and Distributors
-
OEM and Custom Automotive Maintenance Tools Available
Changing engine oil is one of the most basic and entry-level tasks. Conventionally, we jack up the car, remove the bolts around the engine splash shield and that already takes about 10 minutes to do so. Locate the oil pan drain plug and remove the drain plug as fast as you can when you feel the oil is going out or when you feel that the bolt threads are nearly out to avoid physical contact of the hot engine oil. After draining the engine oil, connect the drain plug to pour new engine oil. When engine oil is filled with the adequate volume, jack up the car again to install the engine splash shield, and this is one of the least thing I like to do when changing engine oil because the splash shield is usually bulky and hard to control, and it's very tiring to keep your arms high up while you are aiming the hole to screw the bolts and fastening them one after another. This tiring process can have an alternative.

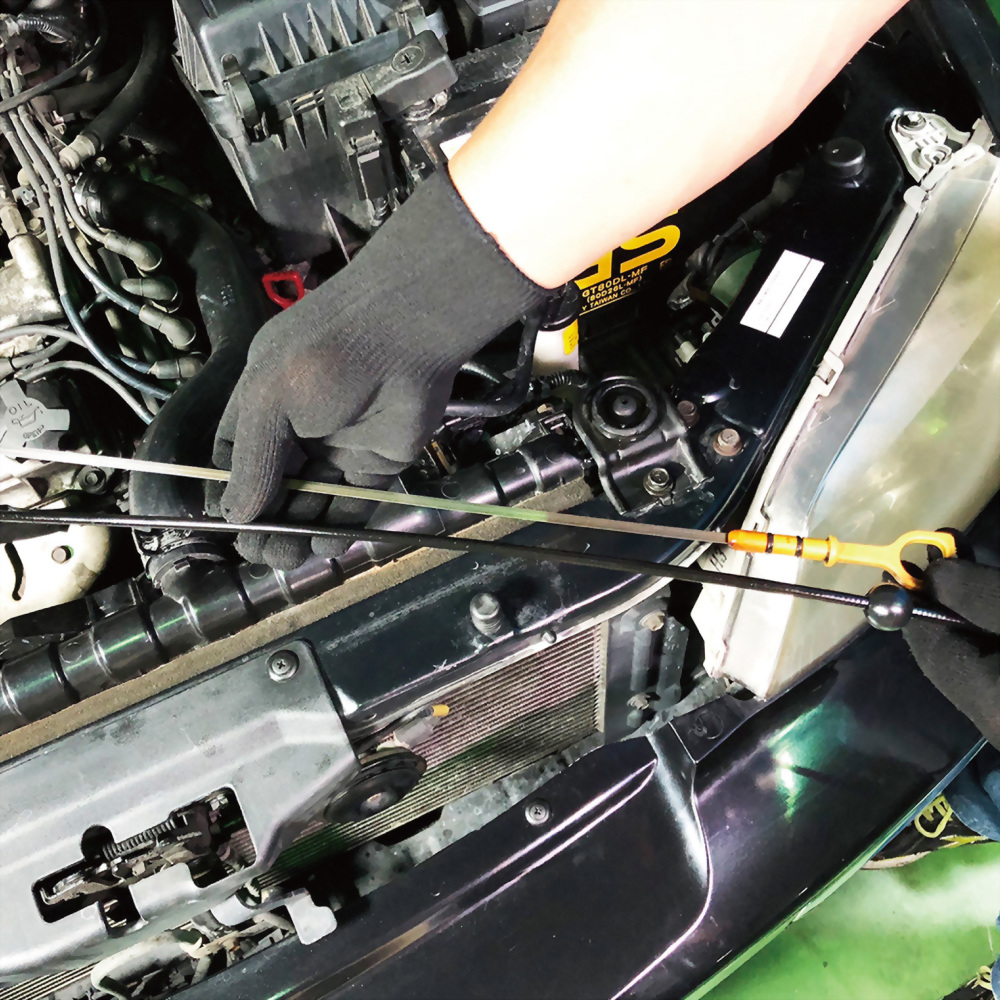

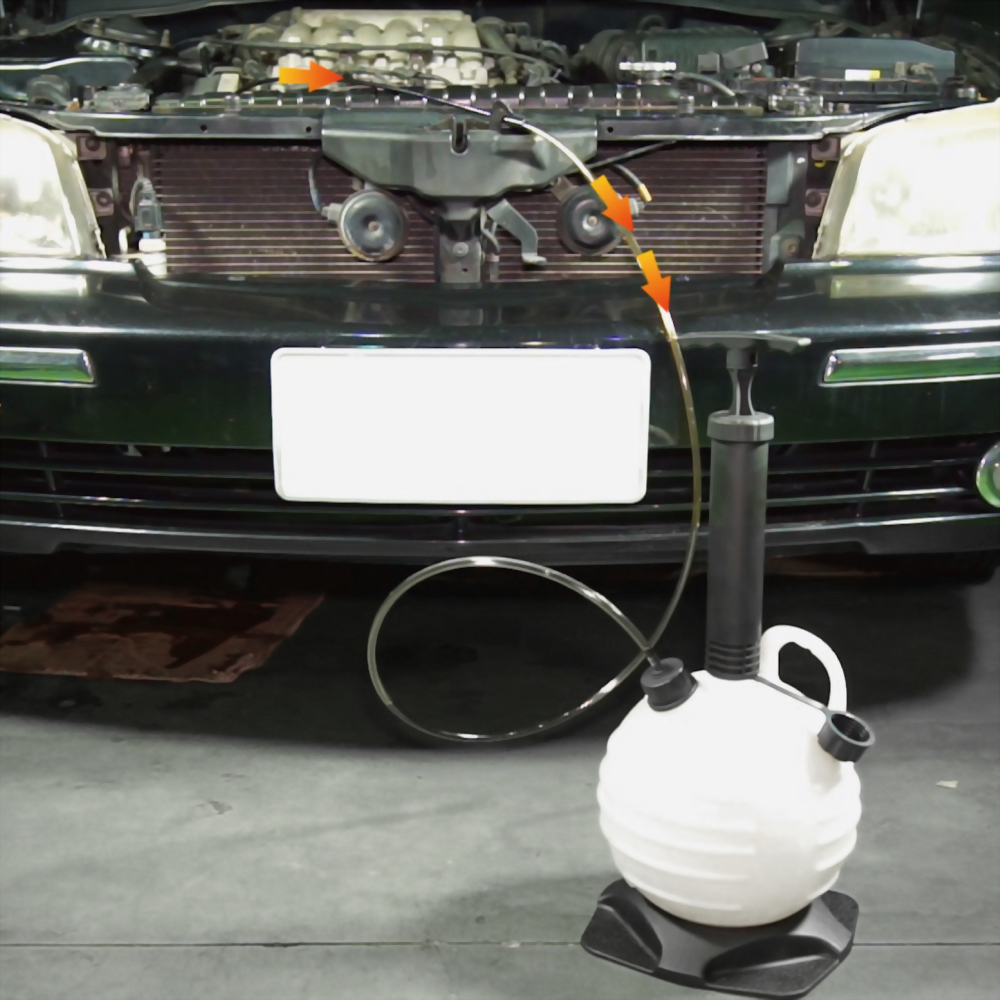

This vacuum oil extractor is able to extract engine oil directly from engine with the help of a thin tube that goes into the dipstick tube. You will no longer need to jack up the car, and remove the bolts one by one on the engine splash shield, and repeat for installation. To begin with, turn on the engine and run at idle for a while to let the engine reach to working temperature. If your car has been running on the street already, let it cool down to approximately 75°C or 167°F. After inserting the suction tube into the dipstick tube with the help of the marking ball so the tube does not go into too deep in the oil pan, place your feet on the foot base and start pumping. While pumping, the air inside the tank will gradually be removed, and a vacuum will be created subsequently. You will start to see that the dark-colored engine oil is slowly being transported into the tank. Just by pumping 40 strokes, the tank will be able to extract 4 liter or 1 gallon of warm engine oil in 8 minutes.

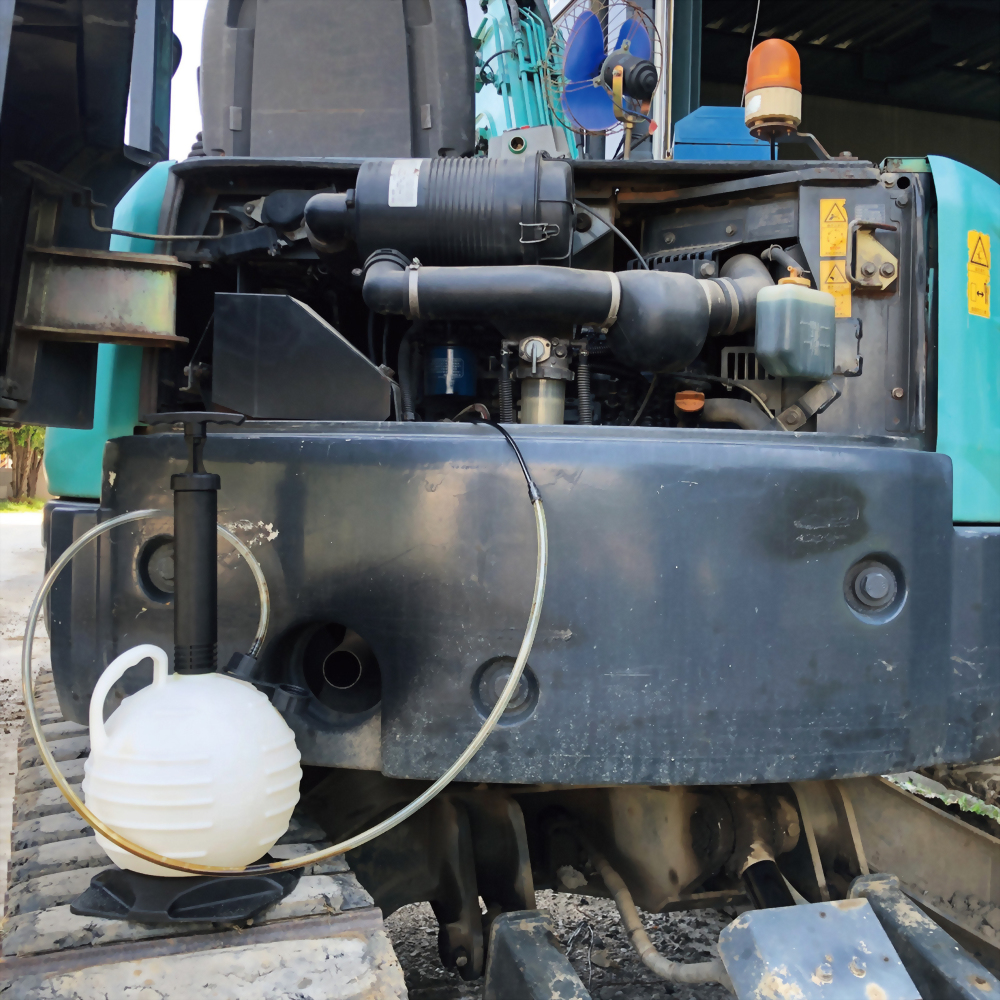

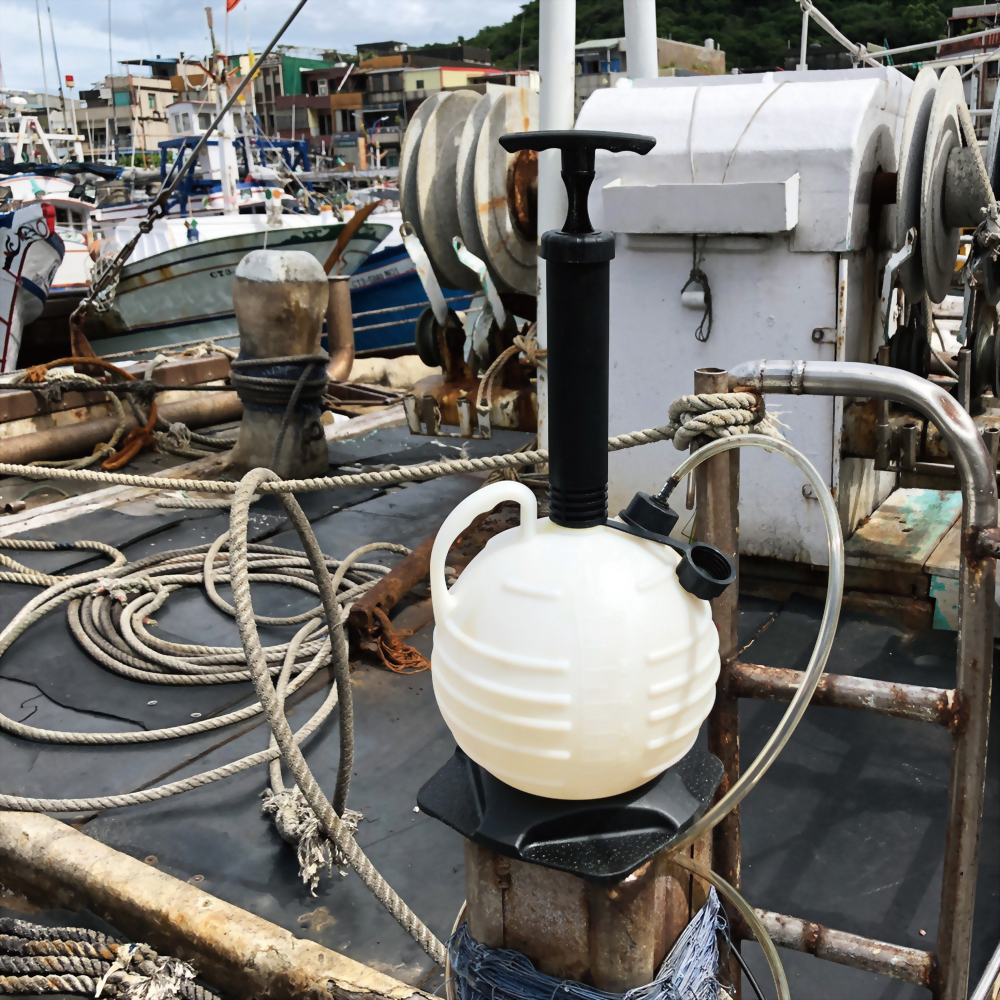

Not only does this oil extractor can work on regular passenger cars, but also is suitable for extracting engine oil on from lawn mower and heavy-duty vehicles to agricultural tractor or even marine boats. Apart from engine oil, you can also extract all the non-fuel liquids from a car, including brake fluid, coolant, ATF, and power steering fluid. It has a wild application range.
![]()
![]()
![]()
![]()
![]()
Key Features
1.No vehicle lifting required for oil extraction,
making routine service easier
Fluid can be extracted directly through the dipstick tube, reducing the need to
lift the vehicle, remove undercovers, or access the drain plug. This helps
improve efficiency in routine oil change service and makes the tool well suited
for quick service and general maintenance work.
2.Manual vacuum extraction with no need for power or
air supply
Built with a manual vacuum system, the unit operates without external
electricity or compressed air. This provides greater flexibility for mobile
service, general workshops, or workstations with simpler equipment setups.
3.6L capacity for both efficiency and daily
maintenance use
The 6-liter tank is suitable for common passenger vehicle maintenance needs.
Under warm oil conditions, about 40 pumps can extract approximately 4 liters of
engine oil in around 8 minutes, offering both practical capacity and clear
working efficiency.

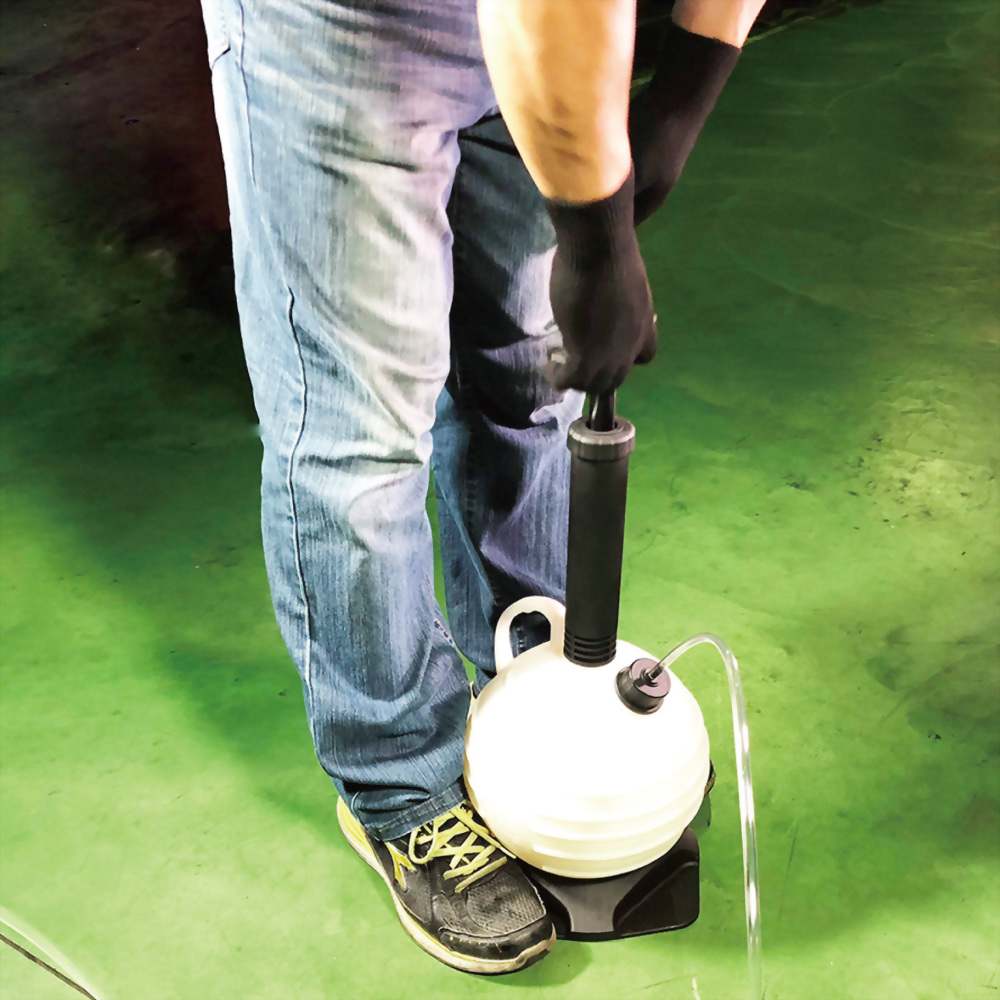

4.Foot base design keeps the tank stable during
operation
A foot-operated base helps
hold the tank in place during extraction. This improves pumping stability and
makes the unit easier to handle during service work.
5.Transparent hose for checking fluid condition and
extraction status
The transparent hose allows
users to observe fluid flow, oil color, and contamination level, while also
making it easier to confirm whether extraction is proceeding smoothly. This
supports faster judgment during operation and clearer communication on site.
6.Conical pour spout for cleaner waste oil discharge
The waste oil outlet uses a
conical pour spout to guide fluid more precisely during discharge. This helps
reduce dripping and spillage, keeps the workspace cleaner, and shortens cleanup
time.
7.Suitable for multiple
non-fuel fluids, increasing equipment utilization
In addition to engine oil,
the extractor can also be used for ATF, coolant, brake fluid, and power
steering fluid. One unit can cover multiple maintenance tasks, improving
equipment value for workshops and distributors.
Industry Background
Manual Vacuum Fluid Extractor — 6L
1.When to Use
● For extracting engine oil during oil changes.● Suitable for extracting ATF, coolant, and other automotive fluids.
● Ideal when underbody drain access is inconvenient.
● Useful for workshops aiming to improve service efficiency and cleanliness.
● Suitable when no vehicle lift is available.
【Source Reference】
Vacuum extraction systems are widely used in modern maintenance procedures to reduce underbody disassembly and drain plug wear.
Source:
Automotive Maintenance & Repair Association (AMRA)
2.Why You Need It
✔ Manual vacuum operation — no air compressor required
✔ Suitable for engine oil, ATF, coolant,
and similar fluids
✔ 6L / 1.5 gallon capacity for standard
passenger vehicles
✔ Foot-step tank base improves stability
while pumping
✔ Transparent hose allows oil condition
inspection
✔ Conical pour spout reduces spills
during waste oil discharge
3.Risks of Not Using It
● Additional labor removing underbody panels● Drain plug thread wear from repeated removal
● Higher risk of oil spills
● No visual inspection of extracted oil quality
● Reduced stability during extraction process
【Technical Reference】
Frequent drain plug removal may damage oil pan threads.
Source:
ASE Lubrication System Service Procedures
4.Benefits After Using It
✔ Faster maintenance workflow
✔ Cleaner working environment
✔ Better oil condition monitoring
✔ Improved operational stability
✔ Reduced drain plug and oil pan wear
Solutions
Solution 1 – Logo-Printed Fluid Extractors for Private Label Programs
Turn this 6 liter fluid extractor into a more recognizable private label oil extractor by adding your logo directly to the pump body for workshop brands, distributors, and automotive maintenance tool programs.
Key Benefits:
• The pump body can be printed with your logo, helping create a more professional branded fluid extractor for private label sales.
• This is a practical option for distributors and tool brands developing their own manual oil extractor product line.
• A logo-printed pump gives the product stronger brand visibility in workshop, retail, and aftermarket channels.
Solution 2 – Custom Color Box Packaging for Retail and Distribution
Use your own packaging design to turn this manual fluid extractor into a more complete OEM automotive maintenance tool for retail shelves, e-commerce, and distributor programs.
Key Benefits:
• The standard color box packaging can be replaced with your own custom-designed color box to better match your brand image.
• Custom packaging helps position the product as a more complete private label fluid extractor for retail and distribution markets.
• It is especially suitable for buyers who want stronger packaging presentation for workshop tools and automotive maintenance products.
Solution 3 – Multi-Language Manuals for Global Fluid Extractor Sales
Support international sales with a multi-language instruction manual, making this fluid extraction tool easier to understand and use in different countries.
Key Benefits:
• The instruction manual can be printed in your local language; you only need to provide the translated file.
• A localized manual makes this manual oil extractor easier for end users to understand and operate correctly.
• This is a practical solution for importers and distributors selling automotive fluid extractor tools in non-English-speaking markets.
Solution 4 – OEM Fluid Extractor Solutions for Automotive Tool Brands
Combine logo printing, custom packaging, and localized manuals to build a more complete OEM fluid extractor solution for your automotive tool brand or distributor program.
Key Benefits:
• This product already fits OEM and custom automotive maintenance tool programs, making it suitable for branded sales projects.
• Logo printing, custom color box packaging, and multi-language manuals can be combined into one more complete private label fluid extractor program.
• The core product stays consistent while the branding and packaging can be adjusted for different markets and sales channels.

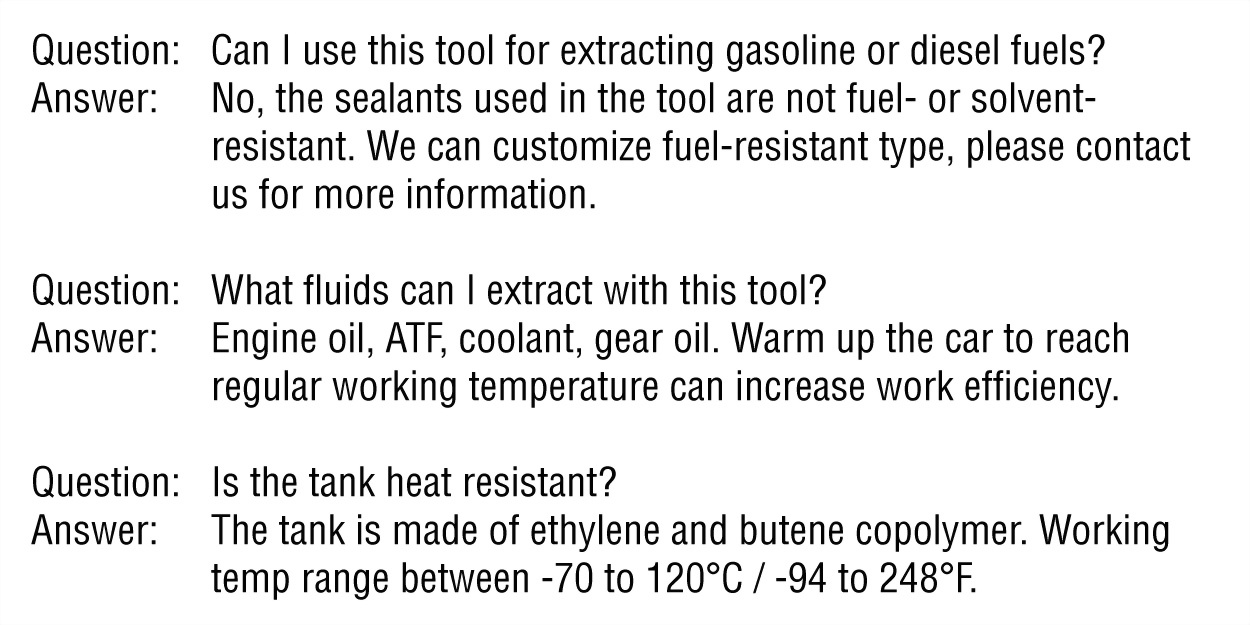

Q&A
Q1. What fluids can it extract? Is it only for engine oil?
A: It is not limited to engine oil. The page lists ATF and coolant, and further states that it can also extract brake fluid, power steering fluid, and other non-fuel liquids.
Q2. What is the extraction efficiency, and can it be used on regular passenger cars?
A: According to the page, after about 40 pump strokes, the tank can extract 4 liters / 1 gallon of warm engine oil in 8 minutes. It is also stated to be suitable not only for passenger cars, but also for lawn mowers, heavy-duty vehicles, agricultural tractors, and marine boats.
Q3. Are there any recommended conditions before use?
A: The page recommends warming the engine to operating temperature before extraction. If the vehicle has already been driven, it suggests allowing it to cool to about 75°C / 167°F before extracting the oil.
Q4. Is there a risk of inserting the suction tube too deep?
A: The page mentions a marking ball that helps control the insertion depth of the suction tube, preventing it from going too deep into the oil pan. Insert the tube gradually and adjust according to the vehicle’s dipstick tube path.
Q5. Is there a pneumatic version available?
A: Yes. For users who prefer air-powered operation, the related product SD-1581A|6L Pneumatic Fluid Extractor Set is available. SD-1581 is the manual version, suitable for users without compressed air or those who prefer a simpler setup.
| Package | Color box | |
| Packing | 4 sets in a master carton | |
| Weight per set | 1.8 kg | 4.0 lbs |
| Net weight per carton | 7.3 kg | 16.2 lbs |
| Gross weight per carton | 8.3 kg | 18.3 lbs |
| Size per set | 24.0 × 24.0 × 37.0 cm | 9.4 × 9.4 × 14.6 inch |
| Size per carton | 51.2 × 50.0 × 39.0 cm | 20.2 × 19.7 × 15.4 inch |
| Volume per carton | 0.01 CBM | 3.5 CUFT |
| Suggested HS code |
84132000001 |
| MOQ without logo printing | 12 sets |
| Logo printing cost | + TWD 6 with an MOQ of 150 sets |
| Logo printing tooling cost | + TWD 2,000 |
|
Not for sale in |
Japan (exclusivity) |
