• Pneumatic ATF Refill System
  • Automatic Transmission Fluid Pump Set with 15 Adapters
  • ATF Air and Manual Operation Tool
  • 12.5 Liter Manual ATF Refill System Dispenser

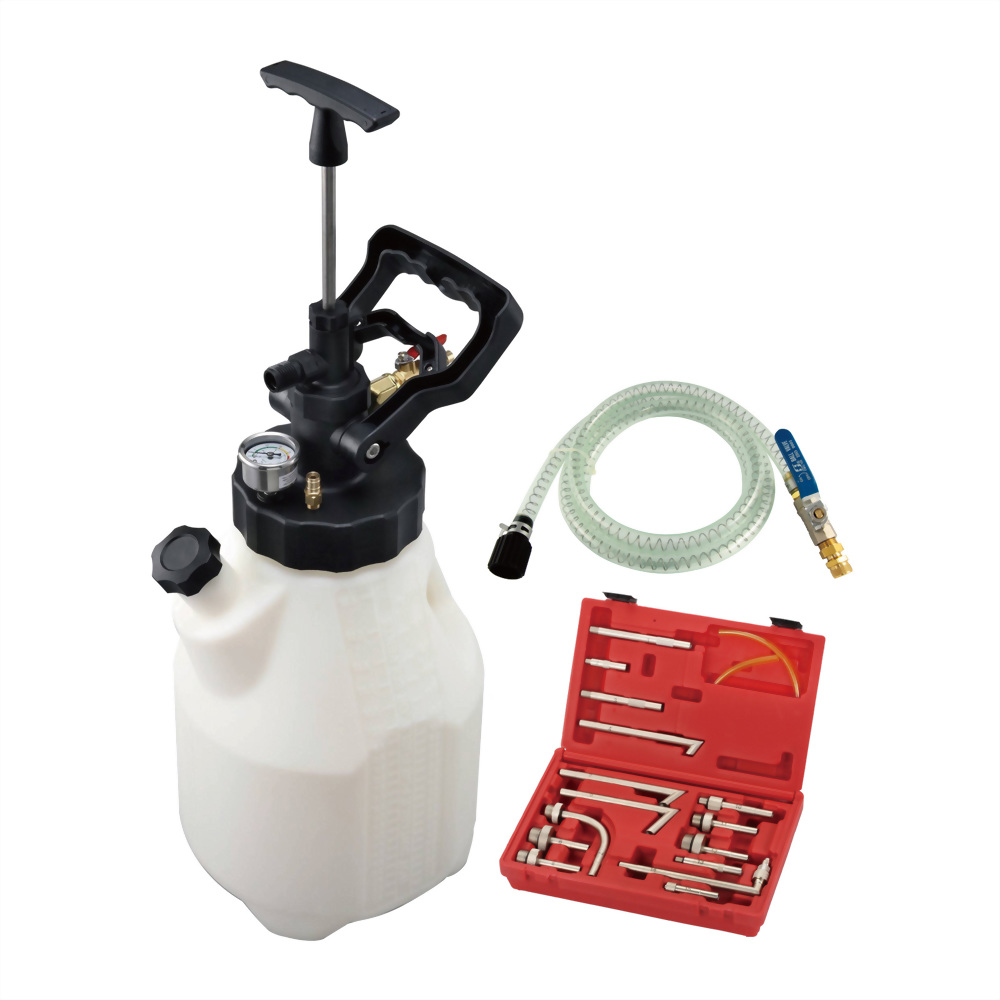

Fluid Refilling Set with 15 Adapters

Model No.: SD-1580FR-C
• Set for refilling fluids such as ATF, gear oil and differential oil

• Especially designed for vehicles without a transmission dipstick

• A combination of pneumatic and manual functions allow energy-saving work and precise refilling

• 12.5L large tank suitable for transmissions that require large refill volume

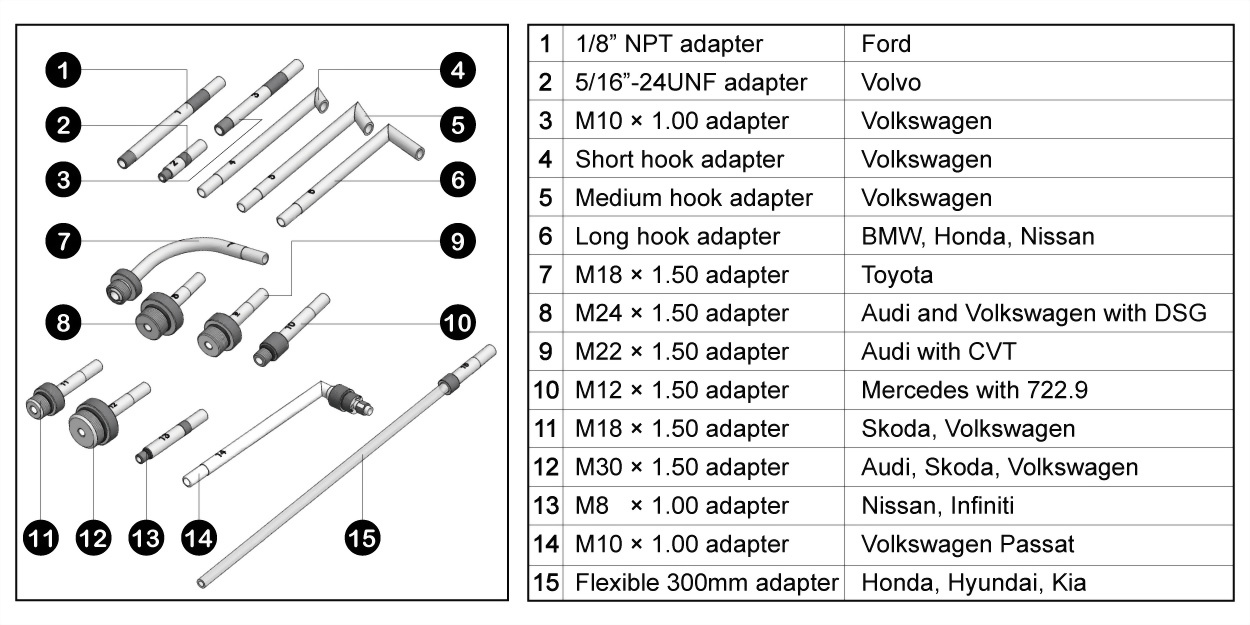

• Includes 15 different types of adapters for Audi, Ford, Honda, Hyundai, Infiniti, Mercedes, Nissan, Toyota, Volkswagen, and Volvo

Use to dispense the ATF fluid


transmission service tool manufacturer


auto special tool for ATF manufacturer


pneumatic ATF refill tank manufacturer


Air and Manual ATF Filler System Tool Set


Transmission Fluid Pump Tool for Automatic Transmission with System Adapters


Auto Transmission Fluid Oil and Liquid Refill Pump


Automatic Transmission Tool Producer and Manufacturer



  Package   Color box
  Packing   2 sets in a master carton
  Weight per set   3.1 kg   6.7 lbs
  Net weight per carton   6.1 kg   13.4 lbs
  Gross weight per carton   7.1 kg   15.6 lbs
  Size per set   36.6 × 29.7 × 64.0 cm   14.4 × 11.7 × 25.2 in
  Size per carton   51.5 × 30.3 × 64.0 cm   20.3 × 11.9 × 25.2 in
  Volume per carton   0.01 CBM   3.5 CUFT


- Vehicle fitment
Make Model No. Year Category Remark
Audi A3 2005-2020 Transmission Refill No. 8 adapter, 6-speed dual clutch
Audi A4 2002-2008 Transmission Refill No. 9 adapter, with CVT
Audi A4 2002-2009 Transmission Refill No. 12 adapter, 6-speed AT
Audi A5 2010-2017 Transmission Refill No. 9 adapter, with CVT
Audi A6 1998-2011 Transmission Refill No. 12 adapter, 6-speed AT
Audi A6 2006-2018 Transmission Refill No. 9 adapter, with CVT
Audi A7 2012-2018 Transmission Refill No. 9 adapter, with CVT
Audi A8 1997-2010 Transmission Refill No. 12 adapter, 6-speed AT
Audi A8 2004-2018 Transmission Refill No. 9 adapter, with CVT
Audi Q3 2015-2018 Transmission Refill No. 8 adapter, 6-speed dual clutch
Audi Q3 2015-2020 Transmission Refill No. 3 adapter, 6-speed AT
Audi Q7 2007-2010 Transmission Refill No. 3 adapter, 6-speed AT
Audi R8 2014-2015 Transmission Refill No. 8 adapter, 6-speed dual clutch
Audi TT 2003-2006 Transmission Refill No. 3 adapter, 6-speed AT
Audi TT 2004-2020 Transmission Refill No. 8 adapter, 6-speed dual clutch
Ford Explorer 2004-2010 Transmission Refill No. 1 adapter
Ford Mustang 2005-2010 Transmission Refill No. 1 adapter
Ford Thunderbird 2003-2005 Transmission Refill No. 1 adapter
Mercedes-Benz C-Class C204 2011-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz C-Class CL203 2005-2008 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz C-Class W203 2005-2007 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz C-Class W204 2007-2013 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz C-Class W205 2014-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz CLK C209 2002-2009 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz CLS C218 2011-2017 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz CLS C219 2004-2010 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz CLS X218 2012-2017 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz E-Class W211 2002-2008 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz E-Class W212 2009-2016 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz G-Class W463 1989-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz GL-Class X164 2006-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz GL-Class X166 2012-2015 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz M-Class W164 2005-2011 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz M-Class W166 2011-2015 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz R-Class W251 2006-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz S-Class W220 1998-2005 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz S-Class W221 2005-2013 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz S-Class W222 2013-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz SL R230 2001-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz SLK R172 2011-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz V-Class W447 2014-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Mercedes-Benz Vito W447 2014-2020 Transmission Refill No. 10 adapter, 7G-Tronic
Nissan 370Z 2009-2020 Transmission Refill No. 13 adapter
Nissan Armada 2017-2021 Transmission Refill No. 13 adapter
Nissan NV1500 2019-2019 Transmission Refill No. 13 adapter
Nissan NV2500 2019-2019 Transmission Refill No. 13 adapter
Nissan NV3500 2019-2019 Transmission Refill No. 13 adapter
Nissan Titan 2017-2021 Transmission Refill No. 13 adapter
Nissan Titan XD 2017-2021 Transmission Refill No. 13 adapter
Seat Cordoba 2002-2009 Transmission Refill No. 11 adapter
Skoda Octavia 2005-2010 Transmission Refill No. 9 adapter
Toyota 4Runner 2003-2020 Transmission Refill No. 7 adapter
Toyota FJ Cruiser 2007-2014 Transmission Refill No. 7 adapter
Toyota Land Cruiser 2003-2020 Transmission Refill No. 7 adapter
Toyota Sequoia 2004-2020 Transmission Refill No. 7 adapter
Toyota Tacoma 2005-2020 Transmission Refill No. 7 adapter
Toyota Tundra 2004-2020 Transmission Refill No. 7 adapter
Volvo S60 2006-2019 Transmission Refill No. 2 adapter
Volvo S80 2007-2016 Transmission Refill No. 2 adapter
Volvo S90 2017-2019 Transmission Refill No. 2 adapter
Volvo V60 2014-2018 Transmission Refill No. 2 adapter
Volvo V70 2006-2010 Transmission Refill No. 2 adapter
Volvo V90 2017-2019 Transmission Refill No. 2 adapter
Volvo XC40 2018-2019 Transmission Refill No. 2 adapter
Volvo XC60 2009-2019 Transmission Refill No. 2 adapter
Volvo XC70 2008-2016 Transmission Refill No. 2 adapter
Volvo XC90 2005-2019 Transmission Refill No. 2 adapter
VW Arteon 2017-2019 Transmission Refill No. 8 adapter
VW Atlas 2018-2019 Transmission Refill No. 3 adapter
VW Beetle 2002-2019 Transmission Refill No. 3 adapter, 6-speed AT
VW CC 2009-2017 Transmission Refill No. 3 adapter, 6-speed AT
VW CC 2012-2017 Transmission Refill No. 8 adapter, 6-speed dual clutch
VW EOS 2006-2015 Transmission Refill No. 11 adapter
VW EOS 2007-2016 Transmission Refill No. 8 adapter, 6-speed dual clutch
VW Golf 2006-2017 Transmission Refill No. 3 adapter, 6-speed AT
VW Golf 2006-2020 Transmission Refill No. 8 adapter, 6-speed dual clutch
VW Jetta 2005-2020 Transmission Refill No. 8 adapter, 6-speed dual clutch
VW Jetta 2014-2018 Transmission Refill No. 3 adapter, 6-speed AT
VW Passat 1998-2006 Transmission Refill No. 12 adapter, 6-speed AT
VW Passat 2006-2010 Transmission Refill No. 14 adapter, 6-speed AT
VW Passat 2009-2018 Transmission Refill No. 8 adapter, 6-speed dual clutch
VW Passat 2014-2019 Transmission Refill No. 14 adapter, 6-speed AT
VW Phaeton 2004-2006 Transmission Refill No. 12 adapter
VW Rabbit 2008-2009 Transmission Refill No. 8 adapter
VW T-Roc 2018-2019 Transmission Refill No. 8 adapter, 6-speed dual clutch
VW Tiguan 2009-2020 Transmission Refill No. 14 adapter, 6-speed AT
VW Tiguan 2012-2020 Transmission Refill No. 8 adapter, 6-speed dual clutch
VW Touareg 2002-2018 Transmission Refill No. 11 adapter
+ Show more
No. Image Cosda No. Description
1 ATF Refill Tank SD-1580-TANK MoreATF Refill Tank
- Specifications

  Dimension              23.0 × 22.0 × 61.0 cm
  Weight   3.3 kg


2 Side Cap for ATF Refill Tank SD-1580-01-01 MoreSide Cap for ATF Refill Tank
- Specifications

  Dimension              5.3 × 5.3 × 2.0 cm
  Weight   22.0 g


3 Ø12.5 × 2000L Hose SD-1580-RH MoreØ12.5 × 2000L Hose
- Specifications

  Dimension              2.5 × 2.5 × 212 cm
  Weight   420 g


4 Transmission Fluid Refilling Adapter Set (15 pcs) SD-1580FR-ATA-C MoreTransmission Fluid Refilling Adapter Set (15 pcs)
- Specifications

  Suggested HS code   84132000001
  MOQ without logo marking   20 sets
  MOQ with logo marking   40 sets
  Logo marking cost   + TWD 3 on each piece
  Not for sale in
   China and Ireland


This product is patented in Germany, Taiwan, the UK, and the USA
