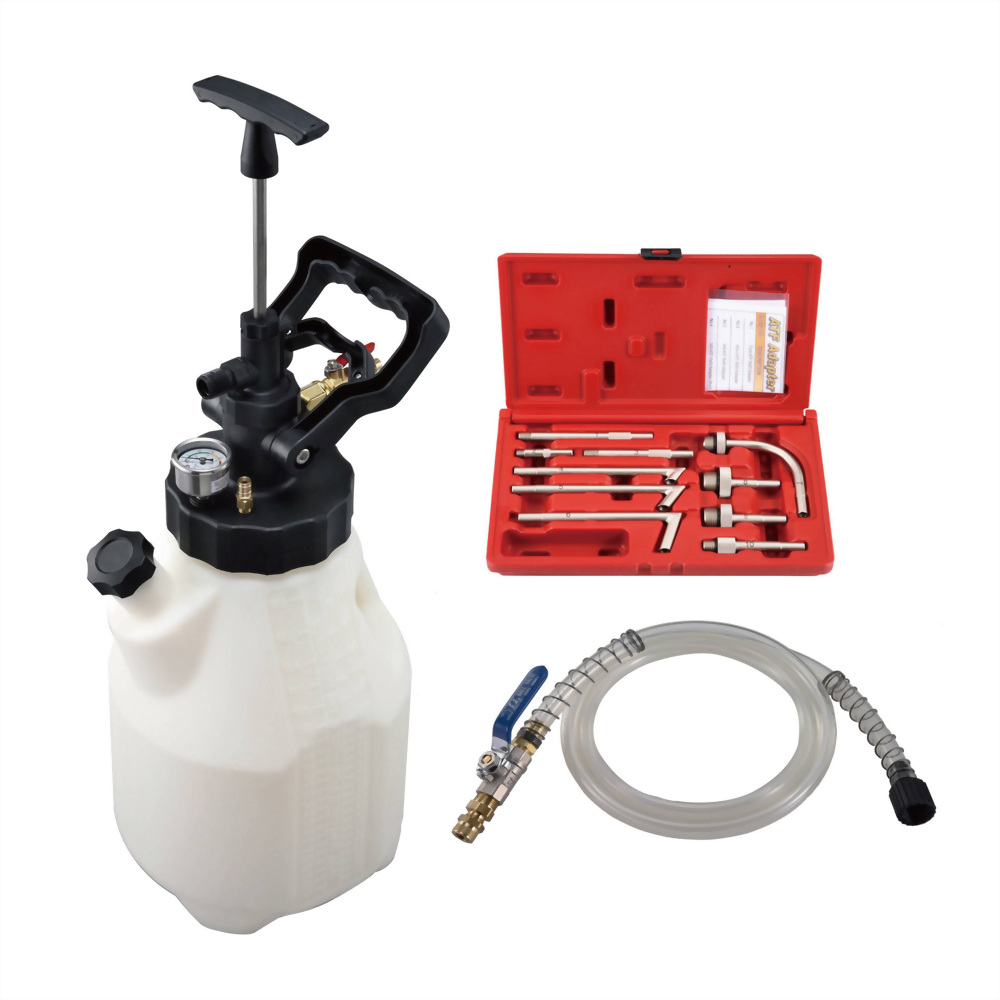

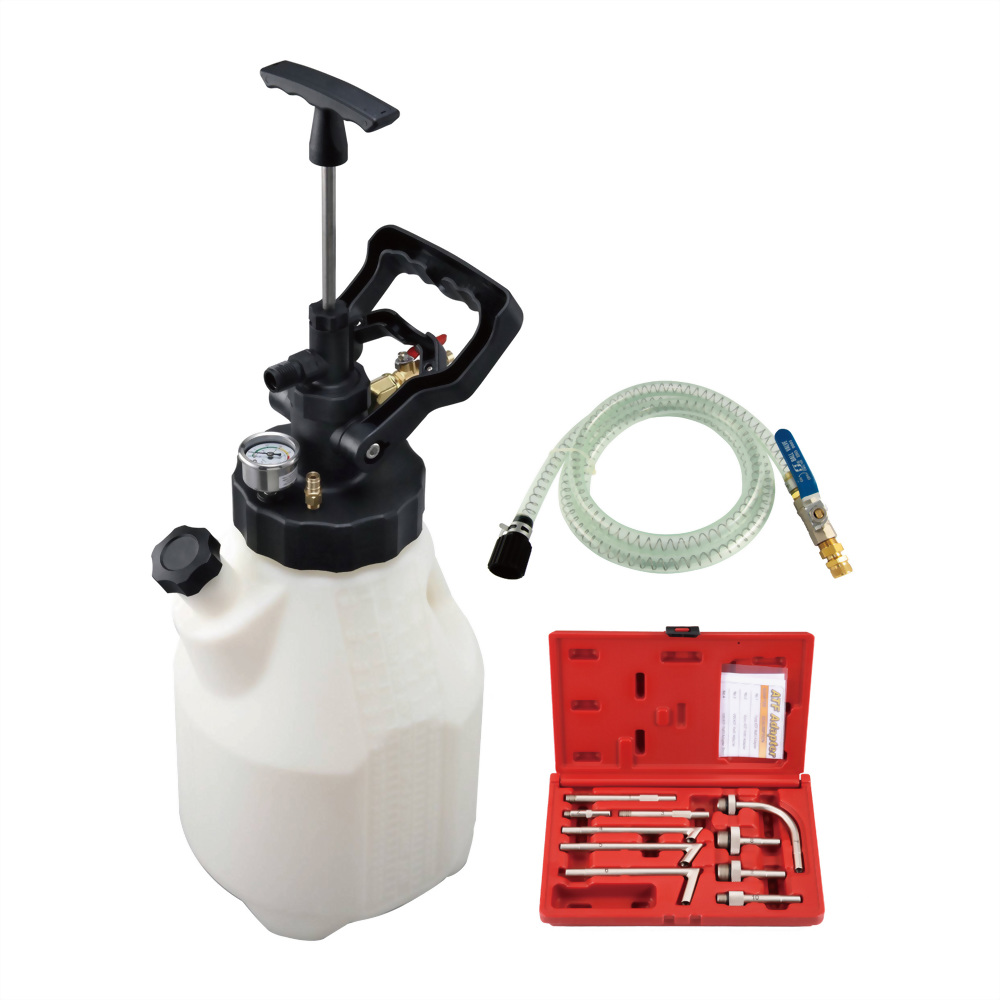

Fluid Refilling Set with 10 Adapters
• Especially designed for vehicles without a transmission dipstick
• A combination of pneumatic and manual functions allow energy-saving work and precise refilling
• 12.5L large tank suitable for transmissions that require large refill volume
• Includes 10 different types of adapters for Audi, Ford, Mercedes, Toyota, Volkswagen, and Volvo
Fluid Refilling Set with 10 Adapters for Automotive Oil Filling | OEM Service Tool
Key Features
1. Designed
for vehicles without a transmission dipstick, solving modern fluid filling
challenges
Many newer automatic
transmissions no longer use a traditional dipstick and must be filled through a
specified filling port with dedicated adapters. SD-1580FR helps technicians
perform ATF refilling and fluid filling in a more standardized way, reducing
service risks caused by poor fitment or incorrect filling methods.

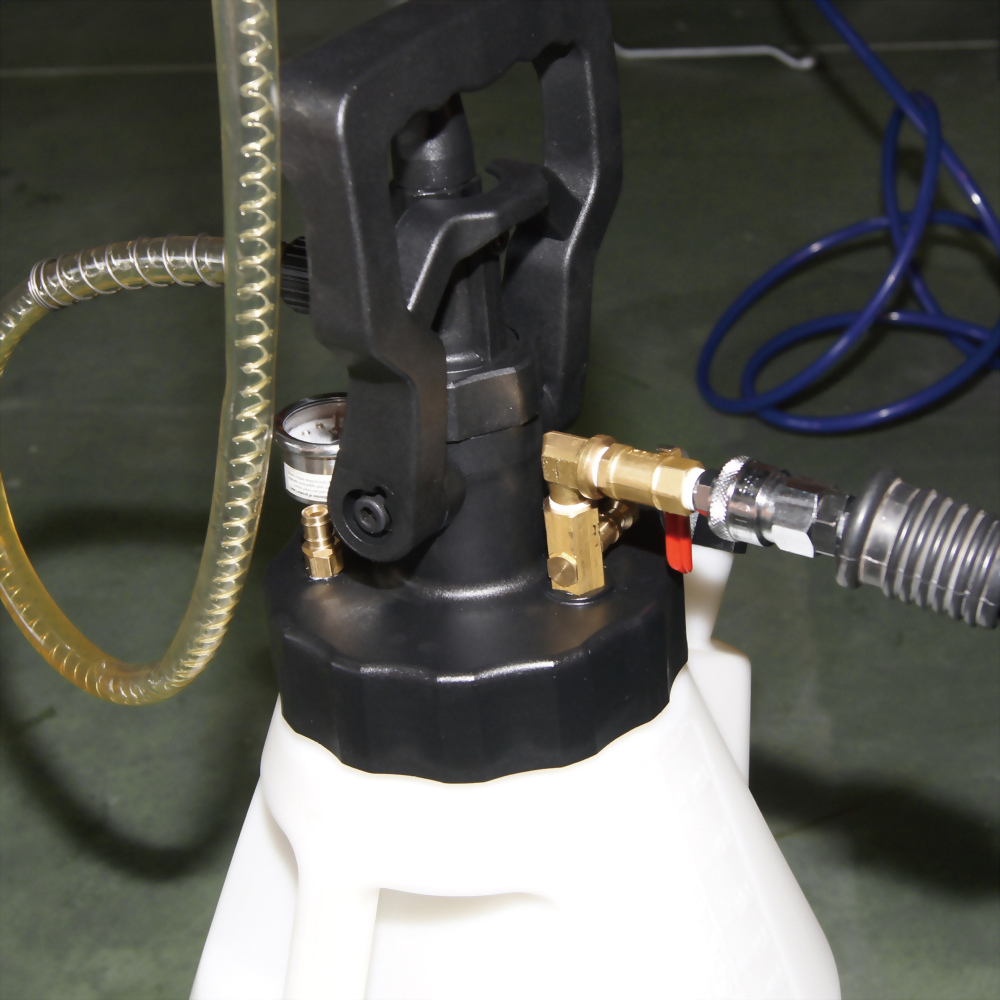

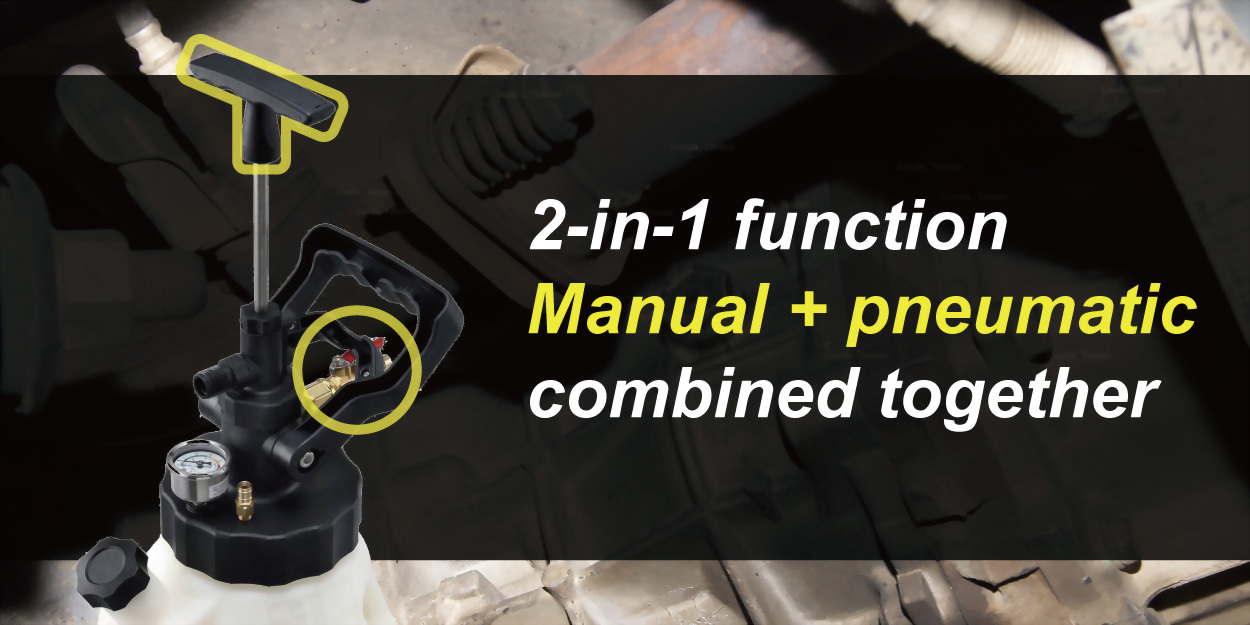

2. Integrated pneumatic and manual operation for both labor-saving and precise filling
Transmission fluid, gear oil, and differential oil are often more viscous, making long manual filling jobs tiring and less consistent. SD-1580FR combines pneumatic and manual operation, allowing users to choose a more labor-saving or more precise filling method based on the job. It is suitable for both large-volume refilling and fine fluid level adjustment.

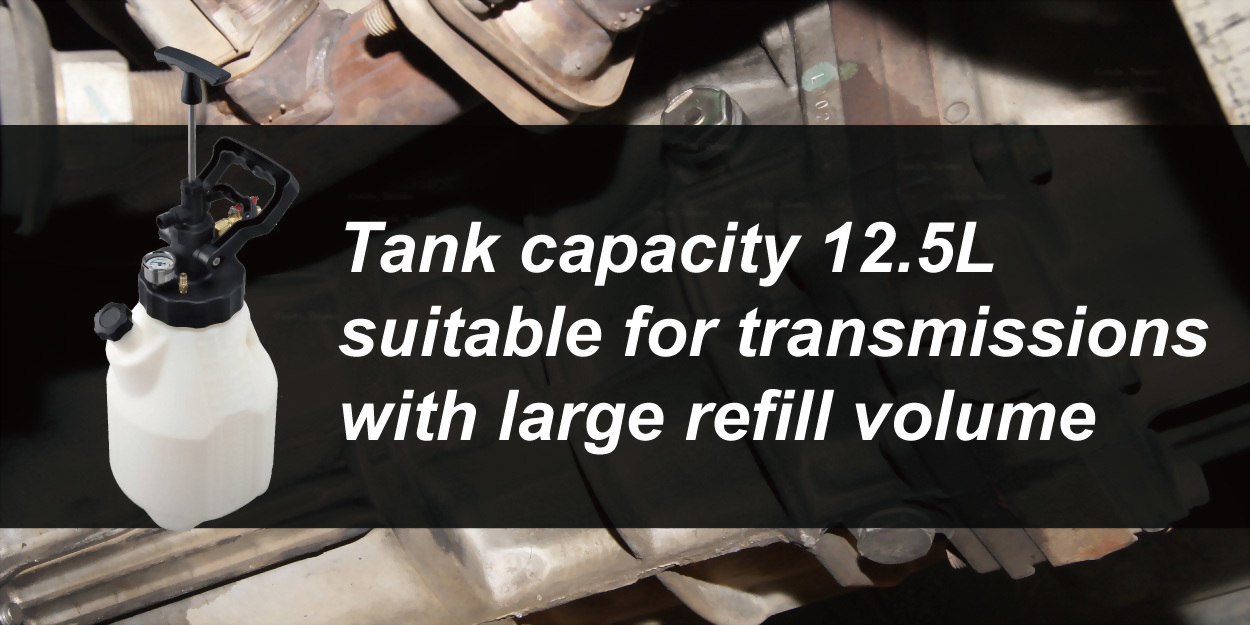

3. 12.5L large tank for high-volume fluid filling
The 12.5-liter tank supports high-volume refilling needs for transmissions, gearboxes, and differentials, reducing the need for frequent refills during service. For workshops, this helps maintain workflow continuity and improve service efficiency.
4. Supports ATF, gear oil, and differential oil for multi-purpose use
The unit can be used for ATF, gear oil, and differential oil filling, allowing one piece of equipment to support multiple drivetrain fluid service tasks. It is practical for repair shops, fleet maintenance teams, and tool distributors looking to improve equipment utilization.

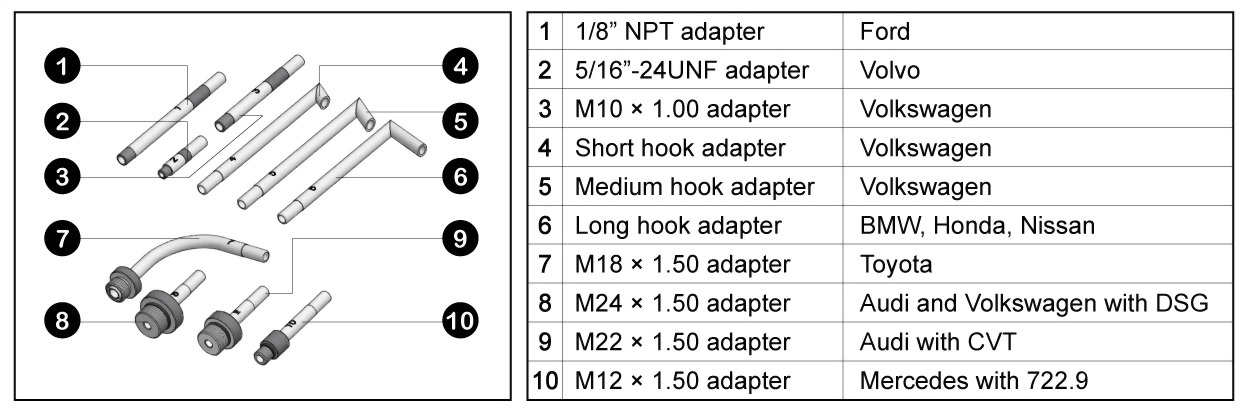

5. Includes 10 adapters for multi-brand filling ports
The set includes 10 adapters for common brands such as Audi, Ford, Mercedes, Toyota, Volkswagen, and Volvo. For multi-brand workshops, this helps reduce the risk of searching for adapters, modifying fittings, or delaying vehicle delivery.
6. Suitable for building a professional drivetrain fluid filling workstation
SD-1580FR can be used as a transmission fluid filling tool, oil filling system, and fluid transfer system. A standardized filling tool helps reduce underfilling, overfilling, spillage, and fluid contamination, supporting more consistent service quality.
7. Clear B2B specifications for easier distributor setup and OEM listing
The product fits categories such as automotive fluid service tools and OEM automotive tool manufacturing. Product pages can clearly list capacity, applications, adapter quantity, and compatible brands, making it easier for distributors, dealers, and OEM brands to set up product data, quotations, and listings.
Background Knowledge
1|When to Use
- For refilling automatic transmission fluid (ATF), gear oil, and differential oil.

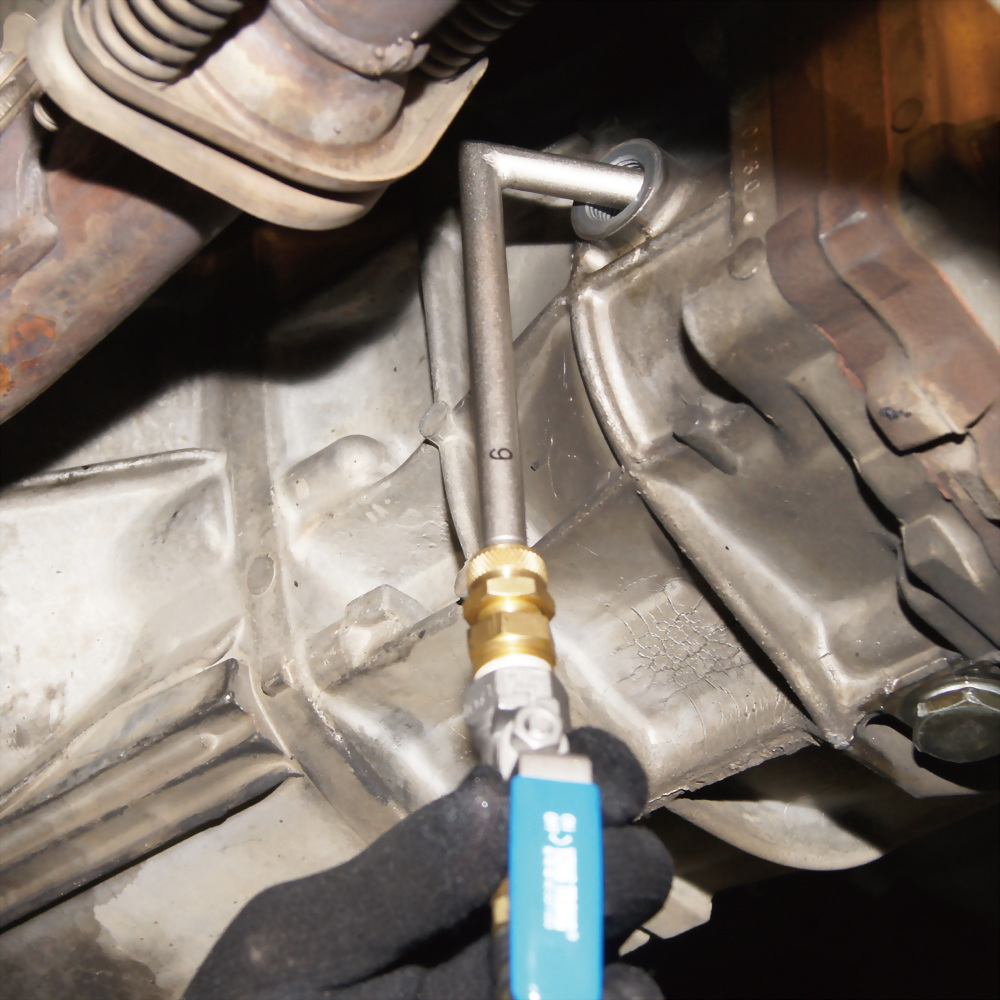

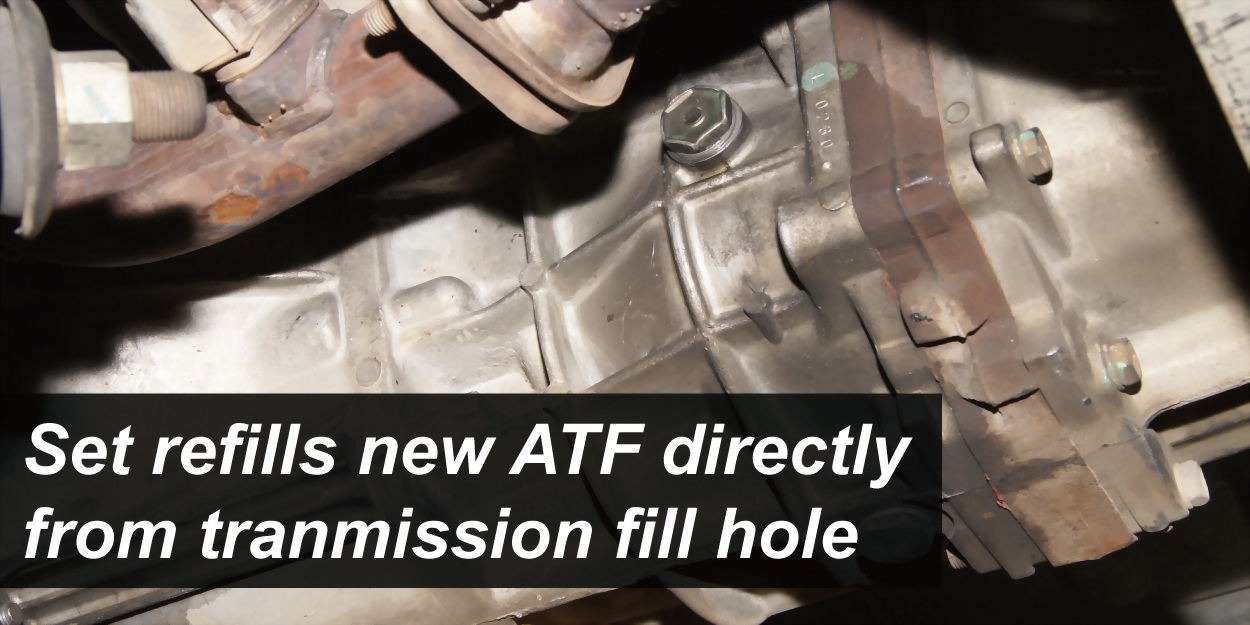

- Designed specifically for dipstick-less (sealed) transmissions that require filling through a dedicated service port.
- When precise fluid level control is required.
- Ideal for servicing SUVs, commercial vehicles, or transmissions requiring a large refill volume.
- Suitable for workshops servicing multiple vehicle brands with different transmission fittings.
Source Reference
Many modern vehicles use sealed automatic transmissions without dipsticks. Fluid must be refilled through a dedicated service port and adjusted according to the manufacturer's specified temperature and procedure.
Sources:
- ZF Friedrichshafen Automatic Transmission Service Information
- Aisin Automatic Transmission Service Manuals
2|Why You Need It
✔ Specifically designed for sealed transmissions
Ideal for modern dipstick-less transmission systems.
✔ Pneumatic and manual dual-operation modes
- Pneumatic mode for faster and less strenuous operation.

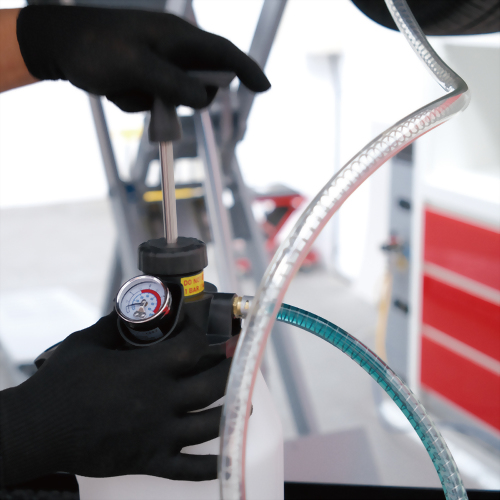

- Manual mode for environments without compressed air or when finer flow control is required.
✔ Large 12.5L capacity
Suitable for transmissions requiring a high refill volume and continuous service operations.
✔ Includes 21 adapters
Covers a wide range of transmission filling ports across various vehicle manufacturers.
✔ Compatible with multiple drivetrain fluids
Suitable for:
- Automatic Transmission Fluid (ATF)
- Gear Oil
- Differential Oil
3|Risks of Not Using It
- Difficulty servicing sealed transmissions correctly.
- Incorrect fluid level may affect lubrication, hydraulic control, and shifting performance.
- Manual filling is slower and less efficient.
- Incorrect adapters may cause leaks and fluid waste.
Source Reference
Improper transmission fluid levels may negatively affect lubrication, hydraulic operation, shift quality, and transmission durability.
Sources:
- ZF Friedrichshafen Automatic Transmission Service Information
- Aisin Automatic Transmission Service Manuals
4|Benefits After Using It
✔ Faster refilling with pneumatic operation
✔ Precise fluid level
adjustment using manual mode
✔ One tool set covers
multiple vehicle brands
✔ Large-capacity tank
reduces refill interruptions
✔ Standardized servicing
improves repair quality and customer confidence
Solutions
Solution 1 – Laser-Marked Adapters for Branded ATF Filling Tools
Add laser logo marking to the adapters to create a more professional branded transmission fluid filling tool for tool brands, distributors, and private label programs.
Key Benefits
· The adapter surfaces can be laser marked with your logo, giving the ATF filling adapter set a cleaner and more recognizable branded appearance.
· Laser marking is durable and suitable for adapters that are repeatedly handled in workshop environments.
· This is a practical option for brands developing their own transmission service tool range.
Solution 2 – Logo-Printed Fluid Refill Tanks for Private Label Programs
Print your logo directly on the tank to turn this 12.5 liter fluid refilling set into a more complete private label product for automotive tool brands and distributors.
Key Benefits
- The refill tank can be printed with your logo, helping create a more recognizable branded ATF refill system.
- A logo-printed tank improves brand visibility in workshops, catalogs, and distributor channels.
- MOQ for logo printing on the tank is 120 sets.
Solution 3 – Custom Case Labels for Fluid Refilling Sets
Use your own case label design to give this fluid refilling set with adapters a more complete branded presentation for retail and distribution.
Key Benefits
- The case label can be customized with your logo, product information, and preferred layout.
- If you do not have a finished design, we can provide free label design support.
- MOQ for custom case labels is 20 sets.
Solution 4 – Custom Case Colors for ATF Service Tool Sets
Customize the case color to make this ATF filling tool set easier to distinguish and better aligned with your existing product line.
Key Benefits
- The case can be produced in a custom color based on your supplied Pantone or color reference.
- The MOQ will be confirmed according to the selected color and production requirements.
- A custom case color helps create a more consistent presentation across your automotive fluid service tools.
Solution 5 – Multi-Language Manuals for Global Transmission Tool Sales
Support international distribution with a localized instruction manual, making this transmission fluid filling tool easier to understand and use in different markets.
Key Benefits
- The instruction manual can be printed in your local language; you only need to provide the translated file.
- Local-language instructions help users understand the manual and pneumatic filling functions more clearly.
- This is a practical option for importers and distributors selling ATF service tools in non-English-speaking markets.
Q&A
Q1. What is SD-1580FR and what is it used for?
A: SD-1580FR is a fluid refilling set designed for refilling fluids such as ATF, gear oil, and differential oil, making it suitable for automotive workshops and transmission service work.
Q2. Is this set pneumatic or manual?
A: This set combines pneumatic and manual functions, allowing energy-saving operation while maintaining precise refilling control for service work that requires both efficiency and accuracy.
Q3. What is the tank capacity? Is it suitable for transmissions with larger refill volume?
A: This set is equipped with a 12.5L large tank, making it suitable for transmissions that require larger refill volumes and helping reduce interruptions for refilling the tank during service.
Q4. How many adapters are included, and which brands can they cover?
A: The set includes 10 different adapters. The product page states coverage for Audi, Ford, Mercedes, Toyota, Volkswagen, and Volvo, and the image description also mentions many Ford, BMW, Honda, Nissan, VW, Porsche, Mini Cooper, Audi, and Mercedes transmissions. Actual compatibility should be confirmed with the vehicle fitment list.
Q5. Can this set extract old transmission fluid?

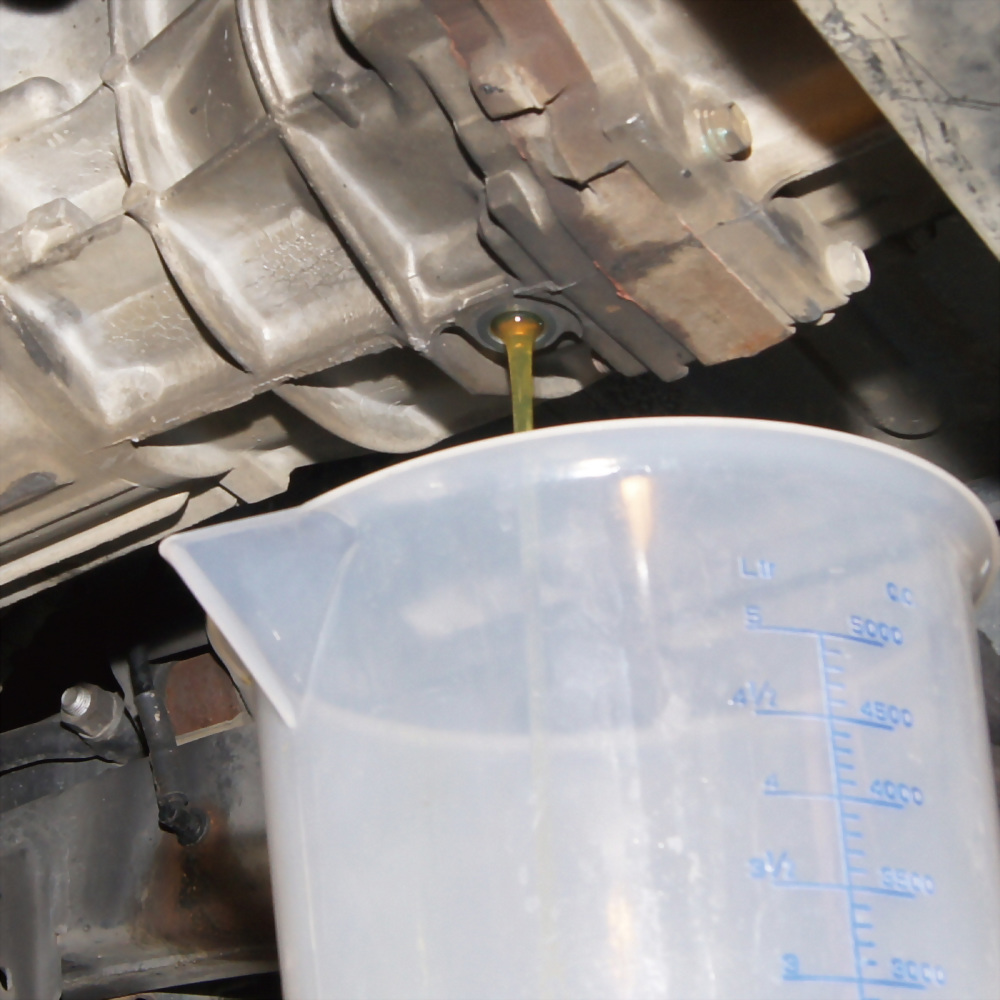

A: It is not recommended to use it as a fluid extractor. SD-1580FR is positioned as a fluid refilling set for ATF, gear oil, and differential oil. Old fluid should be drained according to the vehicle service procedure before using this set to refill new fluid.
| Package | Color box | |
| Packing | 2 sets in a master carton | |
| Weight per set | 5.3 kg | 11.7 lbs |
| Net weight per carton | 10.6 kg | 23.3 lbs |
| Gross weight per carton | 11.6 kg | 25.5 lbs |
| Size per set | 28.5 × 24 × 61 cm | 11.2 × 9.5 × 24 inch |
| Size per carton | 51.5 × 30.3 × 64.0 cm | 20.3 × 11.9 × 25.2 inch |
| Volume per carton | 0.10 CBM | 3.5 CUFT |
| No. | Image | Cosda No. | Description | |||||
|---|---|---|---|---|---|---|---|---|
| 1 | SD-1580-TANK | ATF Refill Tank | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||

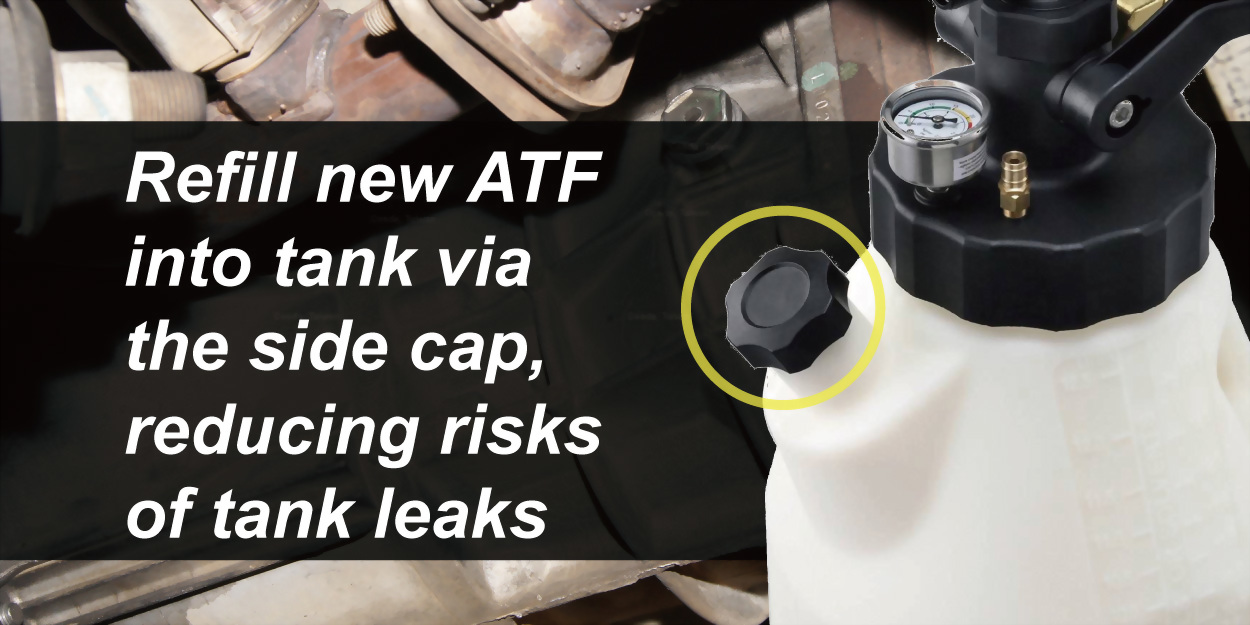

| 2 | SD-1580-01-01 | Side Cap for ATF Refill Tank | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||

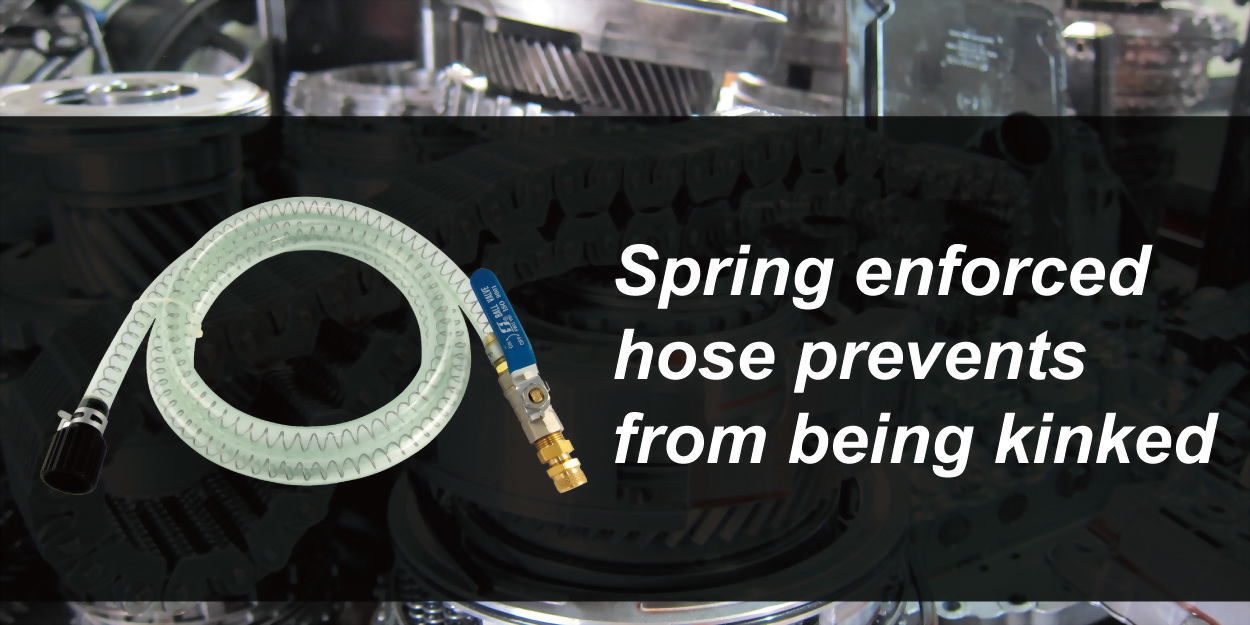

| 3 | SD-1580-RH | Ø12.5 × 2000L Hose | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 4 | SD-1580FR-ATA | Transmission Fluid Refilling Adapter Set (10 pcs) | More![]() |
|||||
|
- Specifications
|
||||||||
| Suggested HS code |
84132000001 |
| MOQ without logo marking | 20 sets |
| MOQ with logo marking | 40 sets |
| Logo marking cost | + TWD 3 on each piece |
|
Not for sale in |
China |
This product is patented in Germany, Taiwan, the UK, and the USA
