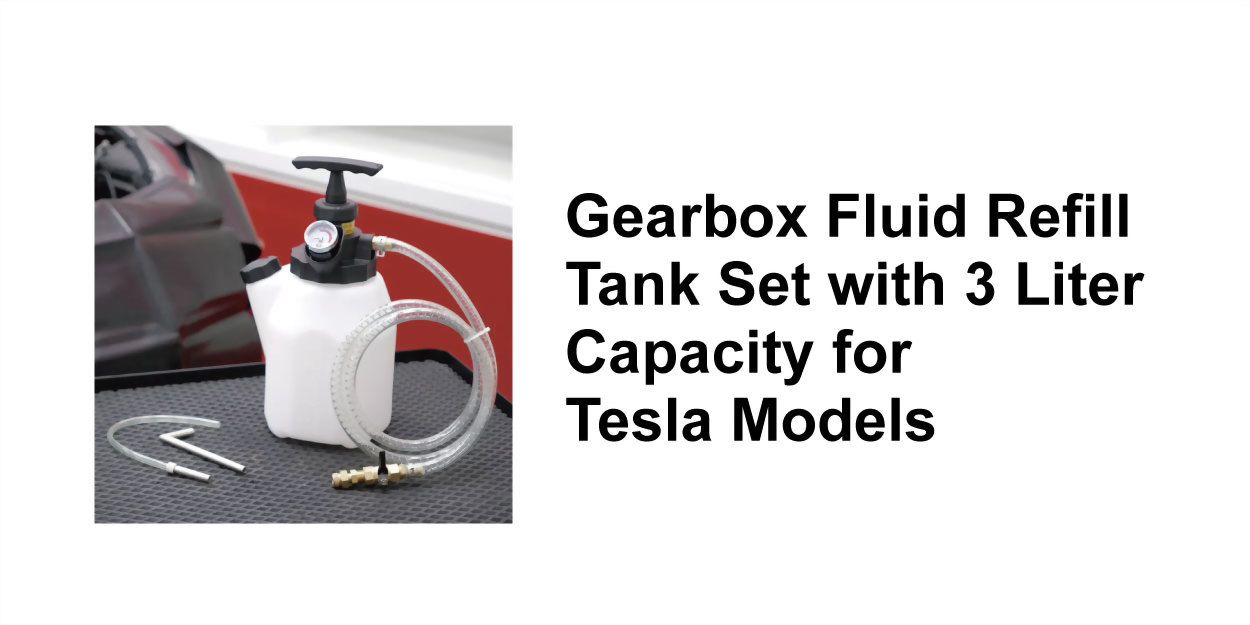

Tesla Gearbox Fluid Refill Set

Did you know that there are two transmissions on Teslas? The more correct term is Front or Rear Drive Unit, according to Tesla service manuals, but parts of the drive units function the same way as the regular transmissions or gearbox as we know it.

Servicing Tesla's drive units is pretty straightforward and not too different from regular dipstick-less transmissions. You'd want to remove the drain plug to begin with. After waiting for all the old ATF is drained, connect the drain plug back, and unfasten the fill plug, which is usually slightly above the drain plug regardless of what Tesla Model is. Introduce new ATF into the drive units with the adequate volume and follow the service manual steps to wrap up the service procedure.

Why is Cosda's SD-1587A suitable for refilling gearbox fluid on Tesla all models?

1. Suitable adapters

Tesla Model S - Model X and Model 3 - Model Y front and rear drive units have the fill plug opening on the side, so you can simply use the soft tube or the hook-type adapter to connect to the fill plug hole. It's just as recommended by the Tesla service manuals. Cosda SD-1587A includes these two types of adapter to provide you with flexibility to switching these two types of adapters.

2. Adequate volume

Tesla Models have front and rear drive units, which is different from using just one single big transmission on most of the passenger cars, changing gearbox fluid should be done twice, once for front, once for rear. Since there are two drive units, the capacity of the units are smaller than one single transmission. Nearly all Tesla Models accommodate gearbox fluid volume inferior to 3 liters, except Model S Performance and Model X Performance rear drive units with 3,750 ml capacity. The following table demonstrates an example of fluid volumes used on Tesla Models

With these two features, Cosda's SD-1587A is the perfect tool set for mechanics to service gearbox fluids on Tesla Models.

Other than the two features above mentioned, Cosda's SD-1587A has many features not only made with high quality but also with considerations.

Manual pump -  As the refilling capacity required is pretty small, using a manual pump makes you feel you have more control.

Pressure release button and the hose valve - these two features allow you to stop introducing more fluid when it's no longer necessary, and releasing the pressure within the tank system is also making the refill process safer, without risking the fluid spraying everywhere

Side cap - the side cap design allows you to pour new gearbox fluid into the tank without needing to open the major cap, and that avoids wear out and extra work for aligning the major cap to the tank.

Internal wire in the hose - the internal wire makes sure that the hose is constantly flexible, and prevents itself from being kinked, which in the long run will create leaks so the tank system cannot build up the pressure.

Contact us directly to learn more about the price and availability. Cosda ships worldwide and accepts online payment. B2B customers enjoy better rate when order in a big batch.

Package: Carton Box + Lebel

Packing: 4 sets in a master carton

Weight per set: 3.8 kg

Net weight per carton: 15.3 kg

Gross weight per carton: 16.3 kg

Size per set: 42.5 × 27.5 × 23.5 cm

Size per carton: 57.8 × 49.4 × 45 cm

Volume per carton: 4.6 CUFT

Suggested HS code: 84132000001

MOQ with logo printing: 8 sets

MOQ without logo printing: 100 sets

Logo printing cost: + TWD 10 each marking with TWD 2,500 tooling cost

Not for sale in: China and the UK (exclusivity)
