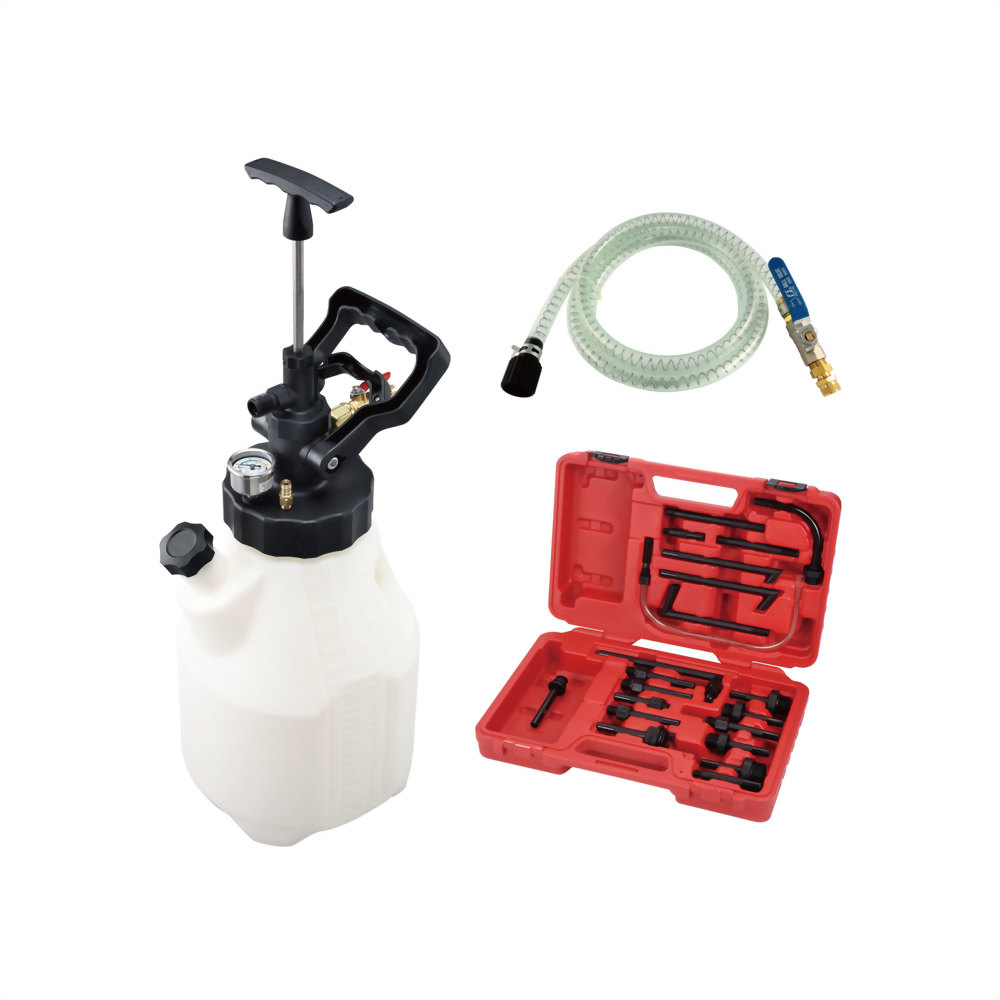

12.5L Pneumatic / Manual Fluid Refilling Tool Set with 21 Adapters

Model No.: SD-1585FR

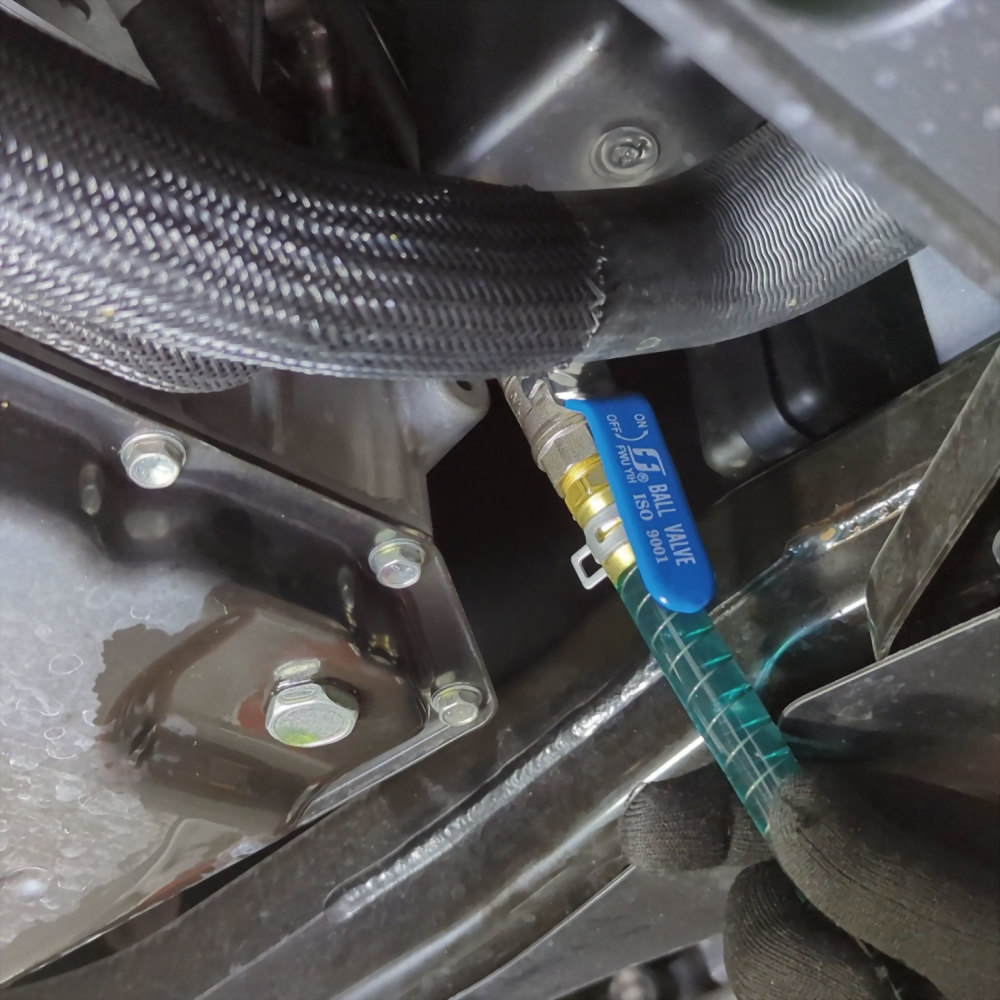

• Set for refilling fluids such as ATF, gear oil and differential oil

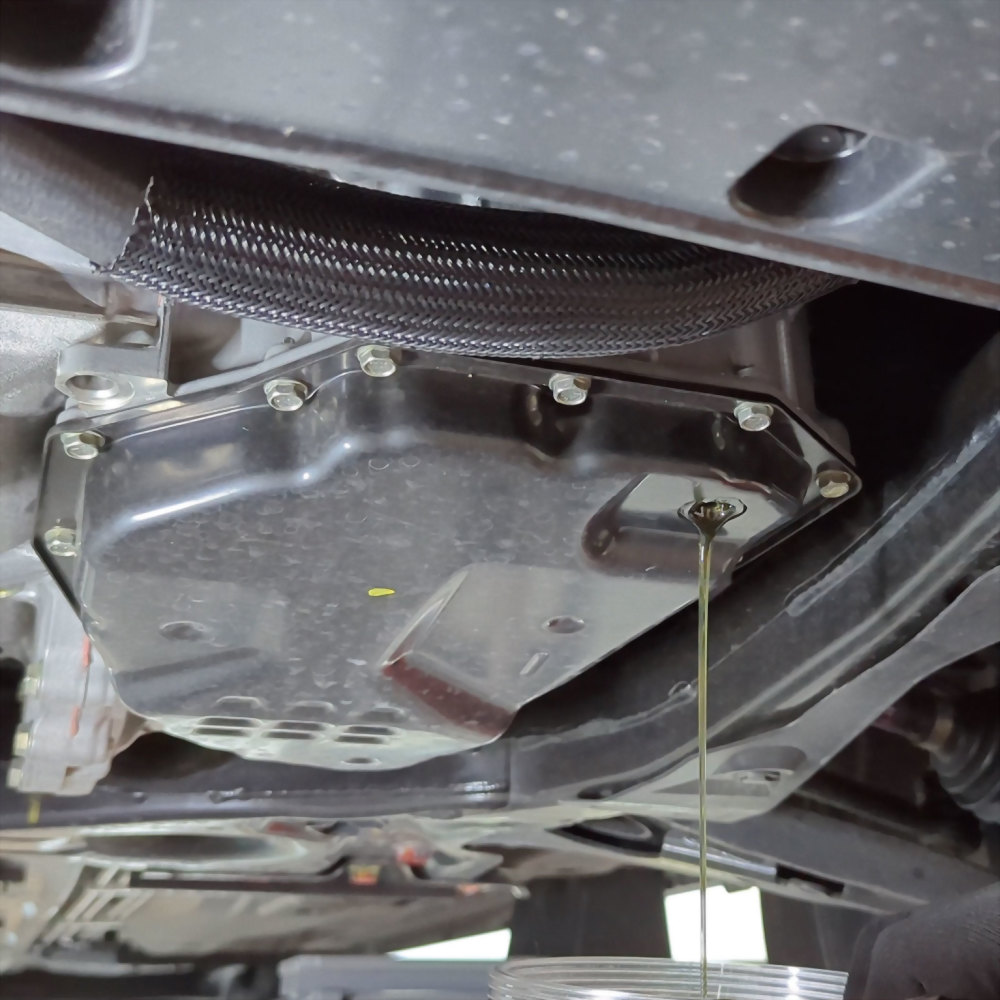

• Especially designed for vehicles without a transmission dipstick

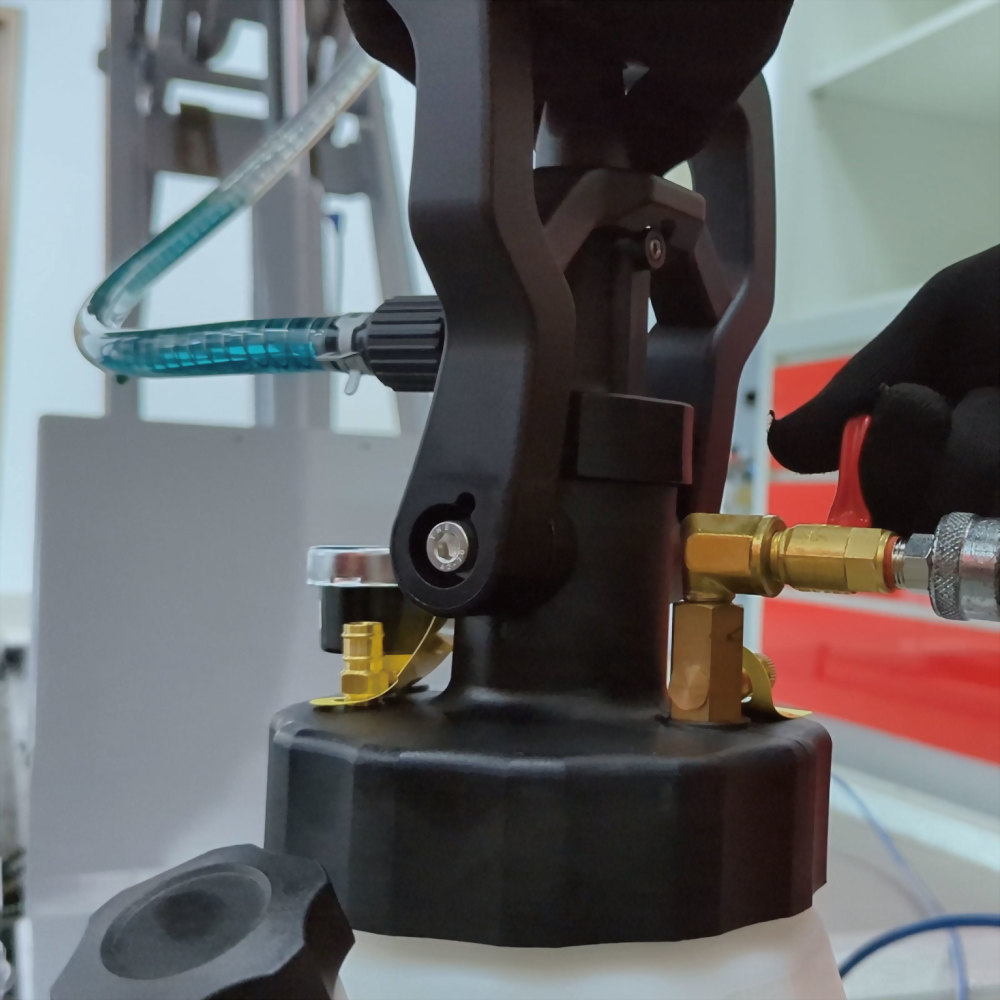

• A combination of pneumatic and manual functions allow energy-saving work and precise refilling

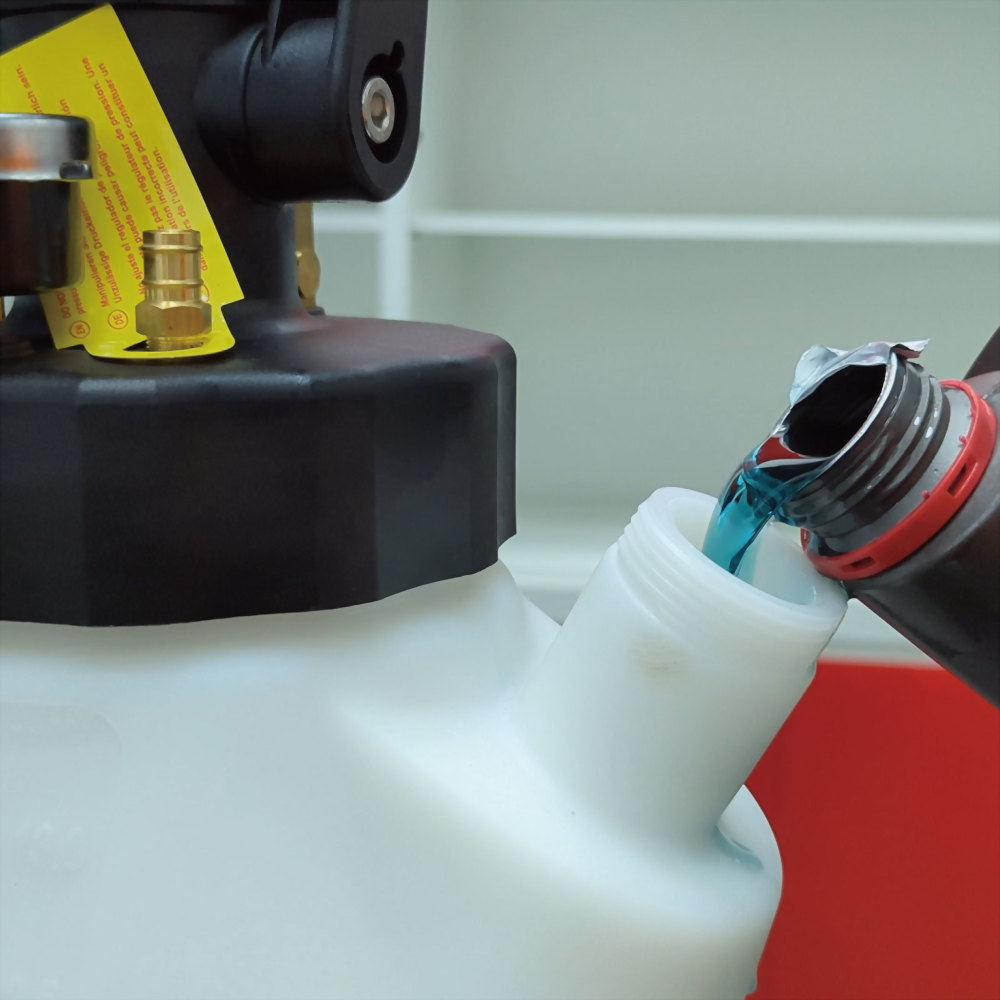

• 12.5L large tank suitable for transmissions that require large refill volume

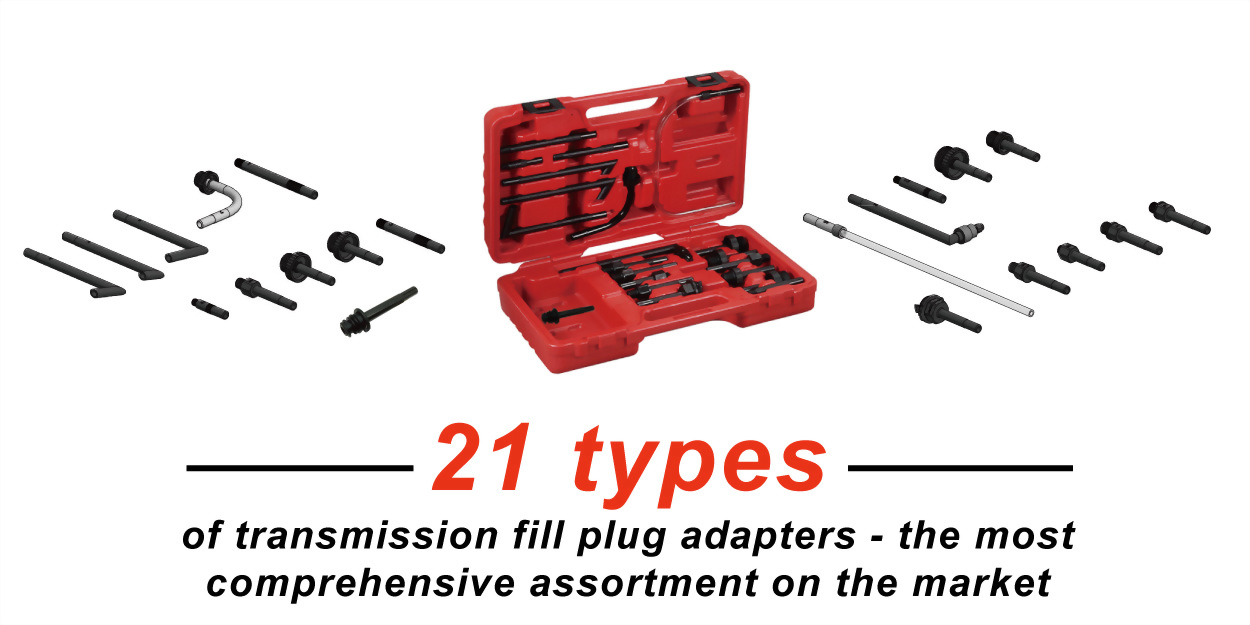

• Set includes 21 adapters

transmission service tool manufacturer

auto special tool for ATF manufacturer

pneumatic ATF refill tank manufacturer

Air and Manual ATF Filler System Tool Set

Transmission Fluid Pump Tool for Automatic Transmission with System Adapters

Auto Transmission Fluid Oil and Liquid Refill Pump




  Package   Color box
  Packing   2 sets in a master carton
  Weight per set   5.5 kg   12.1 lbs
  Net weight per carton   11 kg   24.2 lbs
  Gross weight per carton   12 kg   26.4 lbs
  Size per set   31.5 × 25.0 × 61.7 cm   12.4 × 9.8 × 24.3 inch
  Size per carton   33 × 52.5 × 63.5 cm   13 × 20.7 × 25 inch
  Volume per carton   0.11 CBM   3.9 CUFT


No. Image Cosda No. Description
1 ATF Adapter No. 1 - 1/8"-27 NPT SD-1582-TA MoreATF Adapter No. 1 - 1/8"-27 NPT
- Specifications
  Dimension              1.0 × 1.0 × 12.2 cm
  Weight   6.2 g


2 ATF Adapter No. 2 - 5/16”-24UNF SD-1582-TJ MoreATF Adapter No. 2 - 5/16”-24UNF
- Specifications
  Dimension              1.0 × 1.0 × 5.1 cm
  Weight   2.2 g


3 ATF Adapter No. 3 - M10 x 1.0 SD-1582-TF MoreATF Adapter No. 3 - M10 x 1.0
- Specifications
  Dimension              1.0 × 1.0 × 9.9 cm
  Weight   4.6 g


4 ATF Adapter No. 4 - Small Hook Type SD-1582-TD MoreATF Adapter No. 4 - Small Hook Type
- Specifications
  Dimension              1.0 × 1.8 × 15.0 cm
  Weight   7.5 g


5 ATF Adapter No. 5 - Medium Hook Type SD-1582-TE MoreATF Adapter No. 5 - Medium Hook Type
- Specifications
  Dimension              1.0 × 2.8 × 15.0 cm
  Weight   8 g


6 ATF Adapter No. 6 - Large Hook Type SD-1582-TC MoreATF Adapter No. 6 - Large Hook Type
- Specifications
  Dimension              1.0 × 4.5 × 14.0 cm
  Weight   8 g


7 ATF Adapter No. 7 - M18 × 1.50 SD-1582-TB MoreATF Adapter No. 7 - M18 × 1.50
- Specifications
  Dimension              9.0 × 2.5 × 9.0 cm
  Weight   52 g


8 ATF Adapter No. 8 - M24 × 1.50 SD-1582-TG MoreATF Adapter No. 8 - M24 × 1.50
- Specifications
  Dimension              3.3 × 3.3 × 7.2 cm
  Weight   14 g


9 ATF Adapter No. 9 - M22 × 1.50 SD-1582-TH MoreATF Adapter No. 9 - M22 × 1.50
- Specifications
  Dimension              3.3 × 3.3 × 7.2 cm
  Weight   12 g


10 ATF Adapter No. 10 - M12 × 1.50 SD-1582-TI MoreATF Adapter No. 10 - M12 × 1.50
- Specifications
  Dimension              1.7 × 1.7 × 8.7 cm
  Weight   7.2 g


11 ATF Adapter No. 11 - M18 × 1.50 SD-1582-TL MoreATF Adapter No. 11 - M18 × 1.50
- Specifications
  Dimension              2.4 × 2.4 × 7.2 cm
  Weight   9 g


12 ATF Adapter No. 12 - M30 × 1.50 SD-1582-TM MoreATF Adapter No. 12 - M30 × 1.50
- Specifications
  Dimension              3.5 × 3.5 × 7.2 cm
  Weight   15 g


13 ATF Adapter No. 13 - M8 × 1.0 SD-1582-TN MoreATF Adapter No. 13 - M8 × 1.0
- Specifications
  Dimension              1.0 × 1.0 × 7.6 cm
  Weight   3.5 g


14 ATF Adapter No. 14 - M10 × 1.0 SD-1582-TO MoreATF Adapter No. 14 - M10 × 1.0
- Specifications
  Dimension              0.7 × 2.3 × 16.0 cm
  Weight   39 g


15 ATF Adapter No. 15 - Flexible 300mm Hose SD-1582-TP MoreATF Adapter No. 15 - Flexible 300mm Hose
- Specifications
  Dimension              1.3 × 1.3 × 37.0 cm
  Weight   34 g


16 ATF Adapter No. 16 - M12 × 1.25 SD-1582-TQ MoreATF Adapter No. 16 - M12 × 1.25
- Specifications
  Dimension              2.0 × 2.0 × 8.7 cm
  Weight   7.2 g


17 ATF Adapter No. 17 - M14 × 1.50 SD-1582-TR MoreATF Adapter No. 17 - M14 × 1.50
- Specifications
  Dimension              2.0 × 2.0 × 8.7 cm
  Weight   7.6 g


18 ATF Adapter No. 18 - M10 × 1.5 SD-1582-TS MoreATF Adapter No. 18 - M10 × 1.5
- Specifications
  Dimension              1.7 × 1.7 × 6.6 cm
  Weight   6 g


19 ATF Adapter No. 19 - M12 × 1.75 SD-1582-TU MoreATF Adapter No. 19 - M12 × 1.75
- Specifications
  Dimension              2.0 × 2.0 × 8.7 cm
  Weight   7 g


20 ATF Adapter No. 20 - Ear-clip Type SD-1582-TV MoreATF Adapter No. 20 - Ear-clip Type
- Specifications

  Dimension              4.0 × 4.0 × 6.8 cm
  Weight   15 g
  Used in (product 1)   SD-1582 (1 pc)
  Used in (product 2)   SD-1583 (1 pc)


21 ATF Adapter No. 21 - Twist Type SD-1582-TW MoreATF Adapter No. 21 - Twist Type
- Specifications
  Dimension              2.3 × 2.3 × 8.6 cm
  Weight   26 g


  Suggested HS code   84132000001
  MOQ without logo printing   20 sets
  Logo printing cost   + TWD 6 with an MOQ of 150 sets
  Logo printing tooling cost   + TWD 2,000
  Not for sale in
   China


This product is patented in Germany, Taiwan, the UK, and the USA
