Screw Nut Extractor Tools to Remove Broken Bolts (15 pcs)

Model No.: SD-1037B
• Twisted with tapered head helps remove worn, broken, or stripped objects easily

• 12mm hex: 3mm, 1/8″, 4mm, 3/16″, 5mm, 5.5mm, 6mm, 1/4″, 8mm, 3/8″, 10mm

• 16mm hex: 11mm, 12mm, 1/2″, 14mm

• Tools to remove broken bolts or internal hex bolt nut by drilling a hole (drills not included)

• Product NOT designed for air/impact wrench operation

SCREW EXTRACTOR SET MULTI SPLINE REMOVE BROKEN STUDS PIPES SCREWS FITTINGS


Broken Stud Spanner Tool Damaged Bolt Screws Remover Extractor Drill Bits


Damaged Screw Stud Bolt Remover Puller Extractor Nut Splitter Tool Steel

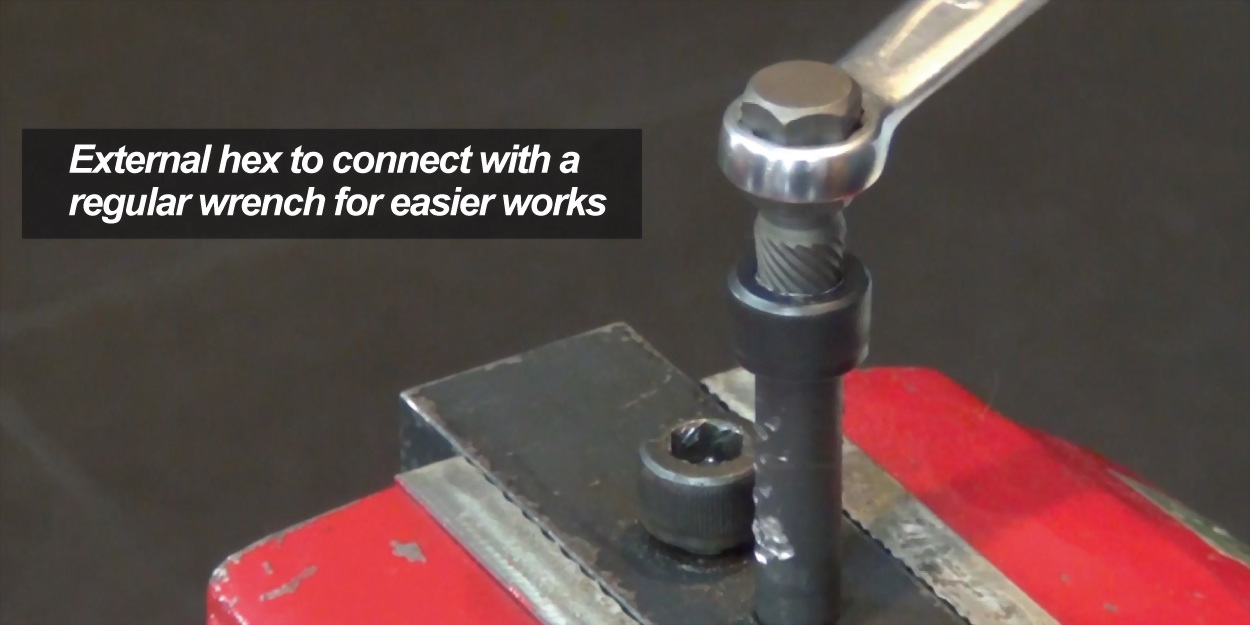

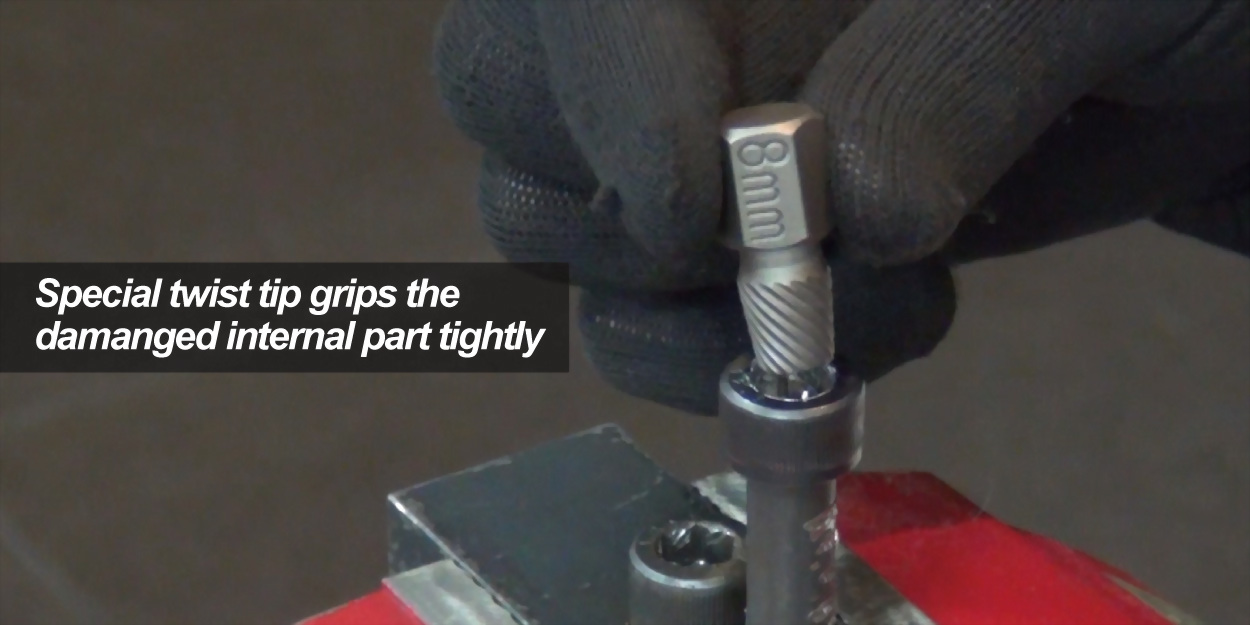

Damaged or broken screws or studs could be one of the most annoying things happens to a car mechanics because people don't know what to get them out of the place. But actually it's just simple - all we need is a tool called screw extractor. Don't panic when a stud is broken or the internal hex on the screw is stripped. Find a suitable sized drill and use it to create a hole on the broken stud or the stripped internal hex on the screw. Drill the hole deep enough so the screw extractor will have sufficient contact with the screw/stud. Finally insert a suitable-sized screw extractor and turn counter clockwise. The tip of the screw extractors have reverse threads, which means when you turn anticlockwise to remove the screw or stud, the reverse threads on the extractors will actually grab the object more tightly. The broke stud or stripped screw will then be removed very easily. In some cases that the fasteners' threads are very stubborn, making it very difficult to remove. You can spray some lubricant, such as WD-40, and wait up for 3-5 minutes, and then the fasteners can be removed as a breeze. The other side of the screw extractors are 12mm and 16mm external hex, so you can just use a box wrench or a socket for removal. But please pay attention that the extractors are, as the name suggests, to extract problematic fasteners. They are not design for installation.

This tool set is designed and manufactured by Cosda Manufacturing Company, a leading automotive specialty tool manufacturer located in Taiwan. We have been supplying high quality, low return rate auto tools to the prestigious tool brands around the world under private labeling services. If you are looking for a tool producer that can help you put your logo on the tools, Cosda will be your primary choice. Please feel free to contact us.

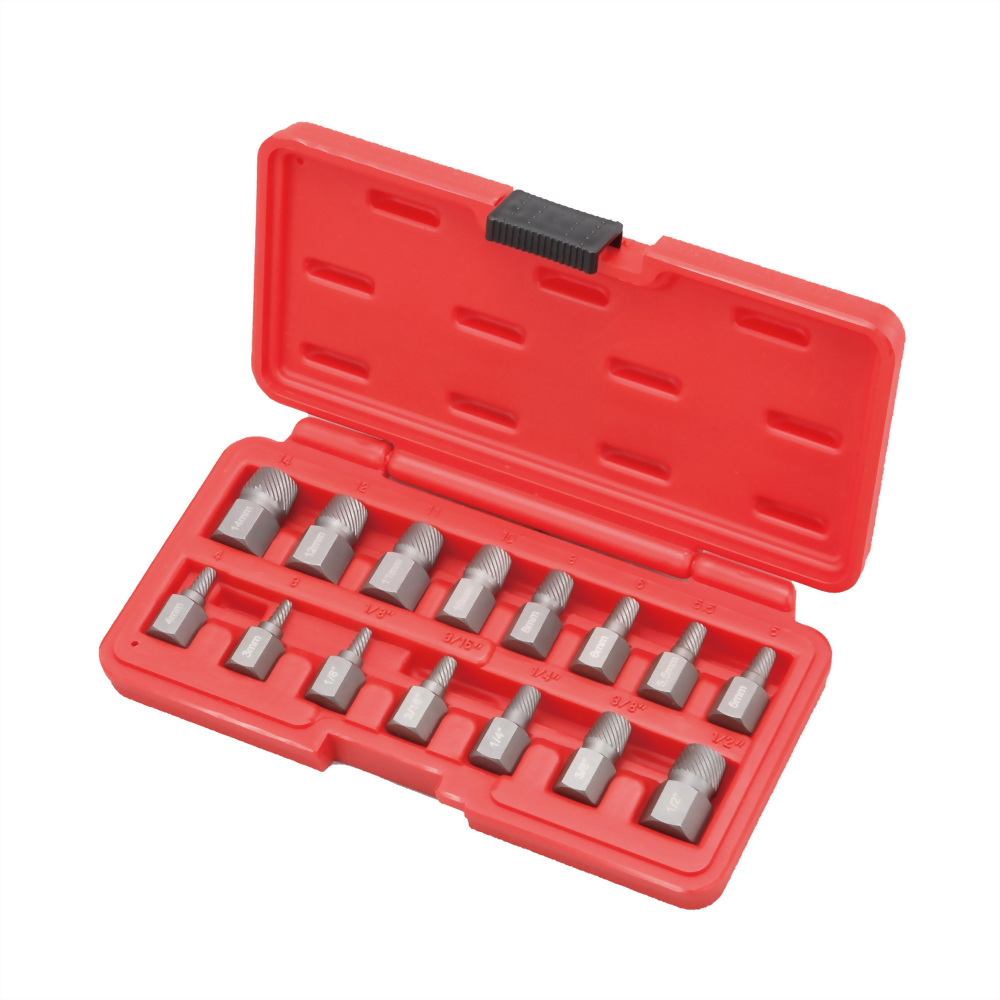

  Package   Blow molded case (red)
  Packing   20 sets in a master carton
  Weight per set   485 g   1.1 lbs
  Net weight per carton   9.7 kg   21.3 lbs
  Gross weight per carton   10.7 kg   23.5 lbs
  Size per set   20.0 × 11.0 × 3.0 cm   7.9 × 4.3 × 1.2 inch
  Size per carton   44.0 × 21.0 × 18.0 cm   17.3 × 8.3 × 7.1 inch
  Volume per carton   0.017 CBM   0.6 CUFT
  Case label size        8.5 × 3.5 cm        3.3 × 1.4 inch




No. Image Cosda No. Description

1 3mm-H12-29L Screw Extractor SD-1037B-01
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   15.8 g



2 1/8"-H12-29L Screw Extractor SD-1037B-02
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   16.0 g



3 4mm-H12-29L Screw Extractor SD-1037B-03
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   16.6 g



4 3/16"-H12-29L Screw Extractor SD-1037B-04
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   16.8 g



5 5mm-H12-29L Screw Extractor SD-1037B-05
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   17.0 g



6 5.5mm-H12-29L Screw Extractor SD-1037B-06
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   17.6 g



7 6mm-H12-29L Screw Extractor SD-1037B-07
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   18.0 g



8 1/4"-H12-29L Screw Extractor SD-1037B-08
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   18.2 g



9 8mm-H12-29L Screw Extractor SD-1037B-09
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   20.6 g



10 3/8"-H12-29L Screw Extractor SD-1037B-10
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   23.2 g



11 10mm-H12-29L Screw Extractor SD-1037B-11
- Specifications

  Dimension              1.2 × 1.2 × 2.8 cm
  Weight   24.0 g



12 11mm-H16-29L Screw Extractor SD-1037B-12
- Specifications

  Dimension              1.6 × 1.6 × 2.8 cm
  Weight   36.6 g



13 12mm-H16-29L Screw Extractor SD-1037B-13
- Specifications

  Dimension              1.6 × 1.6 × 2.8 cm
  Weight   38.6 g



14 1/2"-H16-29L Screw Extractor SD-1037B-14
- Specifications

  Dimension              1.6 × 1.6 × 2.8 cm
  Weight   40.2 g



15 14mm-H16-29L Screw Extractor SD-1037B-15
- Specifications

  Dimension              1.6 × 1.6 × 2.8 cm
  Weight   44 g


  Suggested HS code   82042000004
  MOQ with laser marking   40 sets
  MOQ without laser marking   20 sets
  Laser marking cost   + TWD 2 on each piece
