Cosda - Heavy Duty Twist Socket 1/2"

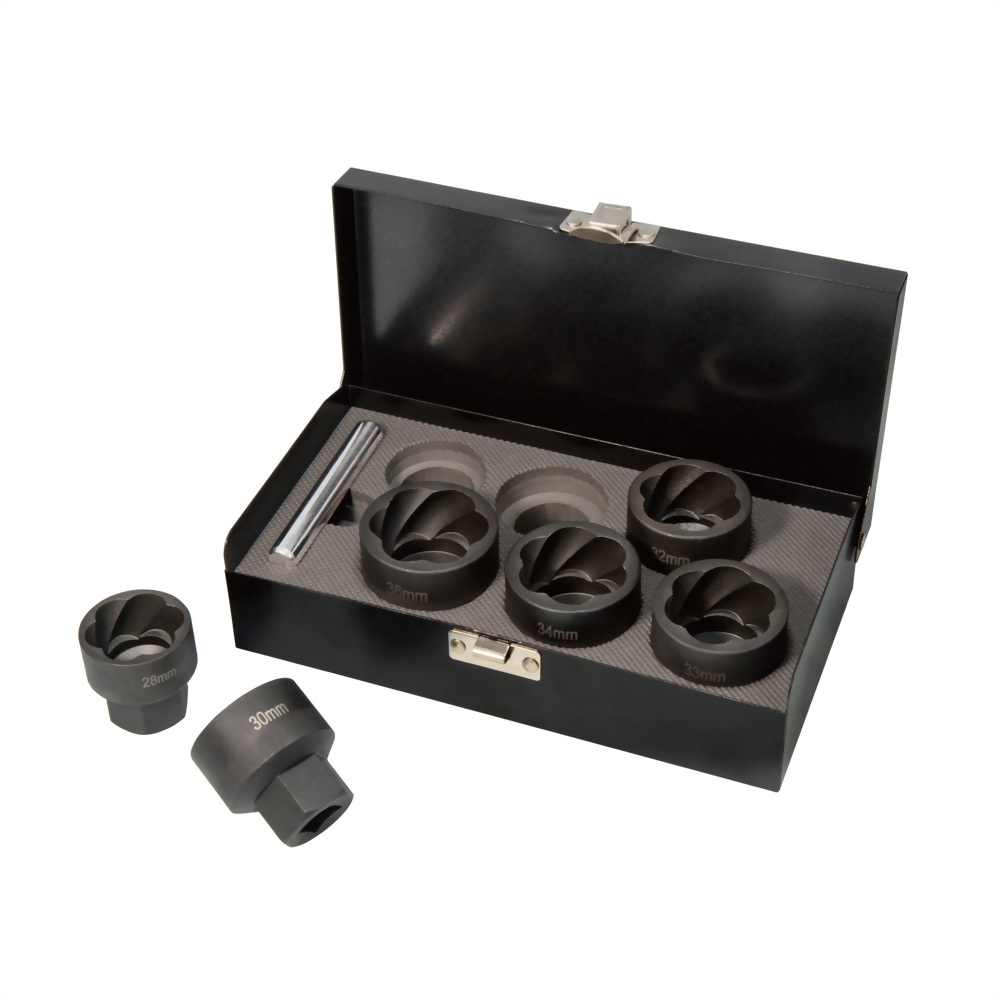

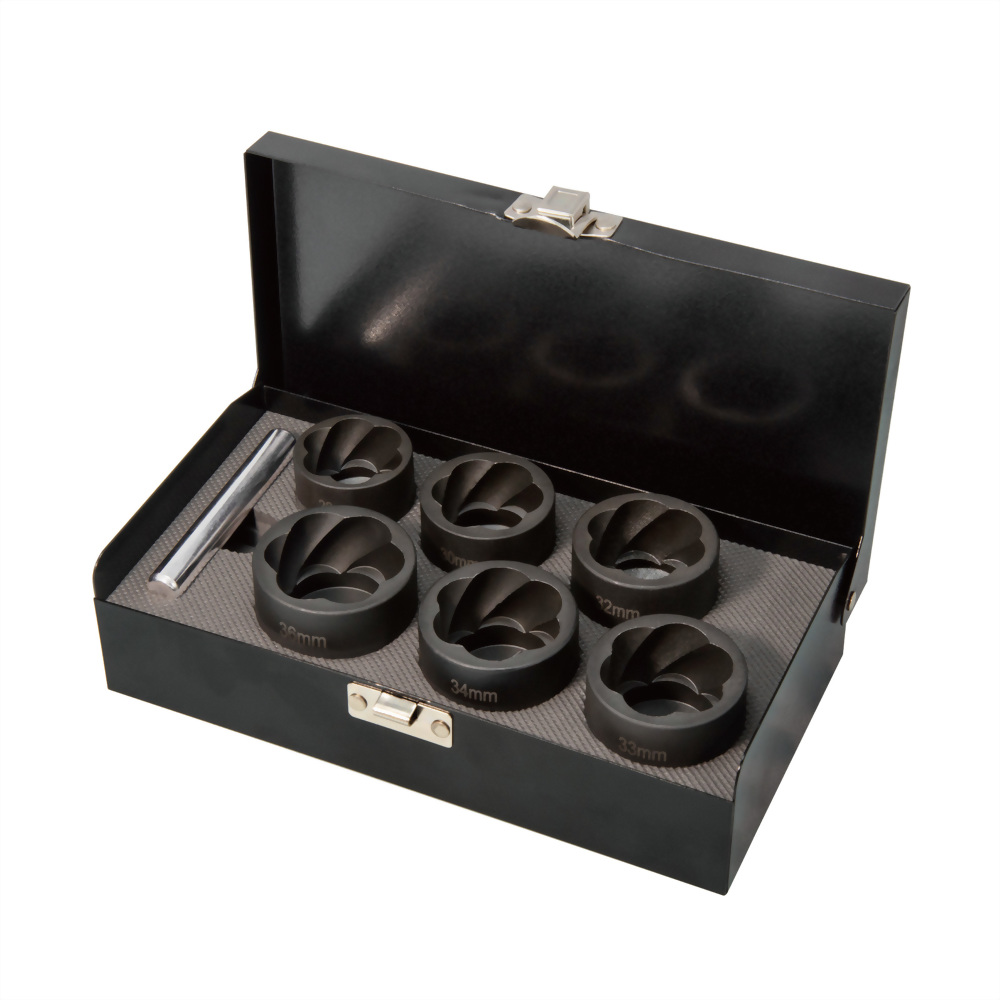

1/2"DR HGV Twist Socket (7 pcs)

Model No.: SD-1030T

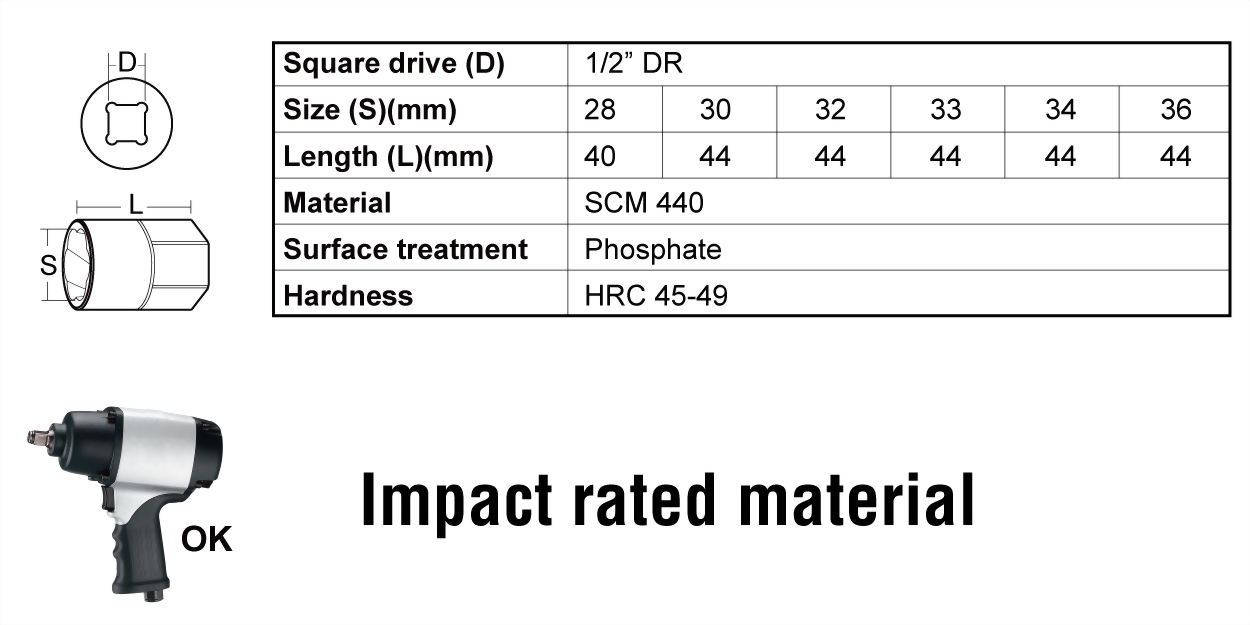

• Twist sockets for removing worn or rusty nuts

• Sizes: 28mm, 30mm, 32mm, 33mm, 34mm, 36mm

• Includes a punch bar to punch stuck bolts/nuts out of socket

• For removal only. Do not use twist sockets to install new nuts

• Product can be worked with an air/impact wrench

Package	Metal box + EVA foam
Packing	10 sets in a master carton
Weight per set	2.0 kg	4.4 lbs
Net weight per carton	20.0 kg	44.0 lbs
Gross weight per carton	21.0 kg	46.2 lbs
Size per set	21.5 × 12 × 5.5 cm	8.5 × 4.7 × 2.2 in
Size per carton	to be updated	to be updated
Volume per carton	to be updated	to be updated

No.


Cosda No.

Description

SD-1033D-28

1/2"-28mm-40L Twist Socket

- Specifications

Dimension	3.8 × 3.8 × 4.0 cm
Weight	131 g

SD-1033D-30

1/2"-30mm-44L Twist Socket

- Specifications

Dimension	4.2 × 4.2 × 4.4 cm
Weight	186 g

SD-1033D-32

1/2"-32mm-44L Twist Socket

- Specifications

Dimension	4.5 × 4.5 × 4.4 cm
Weight	276 g

SD-1033D-33

1/2"-33mm-44L Twist Socket

- Specifications

Dimension	4.6 × 4.6 × 4.4 cm
Weight	266 g

SD-1033D-34

1/2"-34mm-44L Twist Socket

- Specifications

Dimension	4.8 × 4.8 × 4.4 cm
Weight	276 g

SD-1033D-36

1/2"-36mm-44L Twist Socket

- Specifications

Dimension	5.0 × 5.0 × 4.4 cm
Weight	277 g

SD-1030-04

Punch Bar Ø12-80L

- Specifications

Dimension	1.2 × 1.2 × 8.0 cm
Weight	69 g

Suggested HS code	82042000004
MOQ with laser marking	20 sets
MOQ without laser marking	10 sets
Laser marking cost	+ TWD 2.5 on each piece

The sockets do not contain any substances of very high concern (SVHC) as per article 33(1) to regulation (EC) No. 1907/2006 (REACH).
Intertek report number TWNH00091443 is available upon request.
