• 1/4 - 1/2 spiral Socket Set
  • Jeu de douilles extracteur spirale 1/4

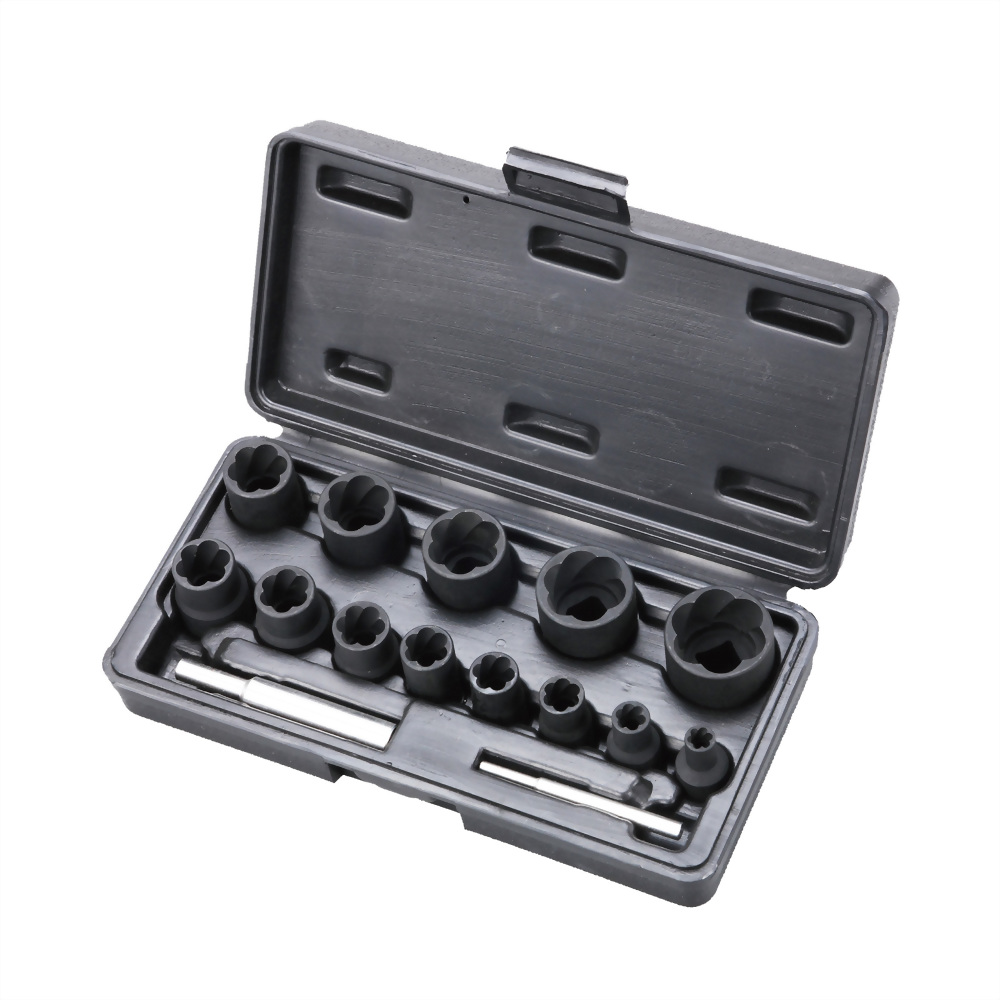

1/4”+1/2”DR Twist Socket Set (15 pcs)

Model No.: SD-1030E
• Twist sockets for removing worn or rusty nuts

• 1/4" sizes: 6, 8, 10, 11, 12 mm

• 1/2" sizes: 13, 14, 15, 17, 19, 21, 24, 27 mm

• Includes a punch bar to punch stuck bolts/nuts out of socket

• For removal only. Do not use twist sockets to install new nuts

Profil spécial écrous abîmés


Pour retirer les écrous abîmés


La douille à agrippe solidement toutes les têtes de vis hexagonales


Coffret de douilles spiralées 1/4 et 1/2


nous livrons partout dans le monde fabriqueur d'outils automobiles



  Package   Blow molded case (black)
  Packing   20 sets in a master carton
  Weight per set   1.1 g   2.4 lbs
  Net weight per carton   22.5 kg   49.5 lbs
  Gross weight per carton   23.5 kg   51.7 lbs
  Size per set   21.5 × 10.5 × 6.0 cm   22.4 × 9.3 × 9.2 in
  Size per carton   57.0 × 23.6 × 23.3 cm   20.2 × 10.5 × 6.9 in
  Volume per carton   0.031 CBM   1.1 CUFT

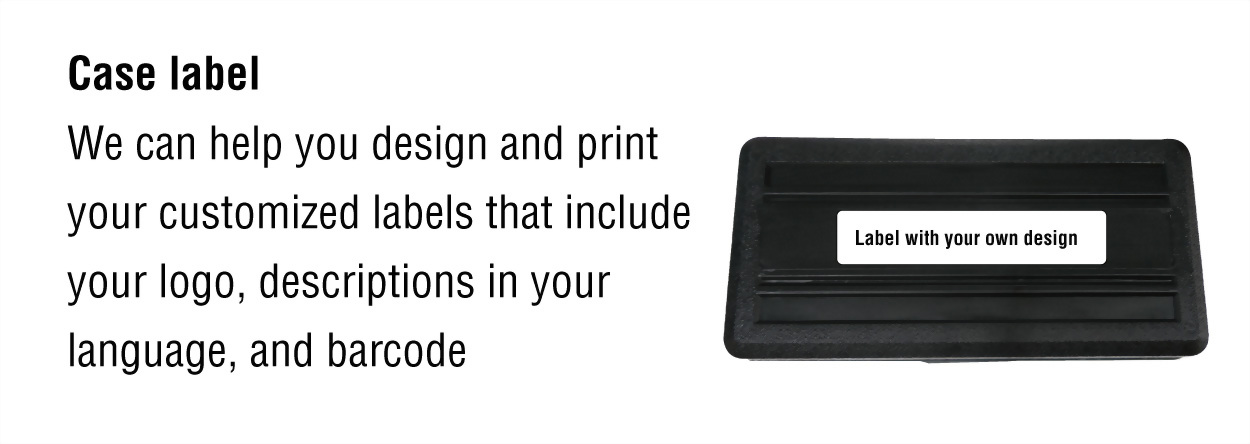

  Case label size        12.0 × 2.5 cm        4.7 × 1.0 in


No. Image Cosda No. Description

1 1/4"-6mm-32L Twist Socket SD-1030E-06
- Specifications

  Dimension              1.8 × 1.8 × 3.2 cm
  Weight   29.4 g



2 1/4"-8mm-32L Twist Socket SD-1030E-08
- Specifications

  Dimension              1.8 × 1.8 × 3.2 cm
  Weight   35.8 g



3 1/4"-10mm-32L Twist Socket SD-1030E-10
- Specifications

  Dimension              1.8 × 1.8 × 3.2 cm
  Weight   30.8 g



4 1/4"-11mm-32L Twist Socket SD-1030E-11
- Specifications

  Dimension              1.8 × 1.8 × 3.2 cm
  Weight   38.4 g



5 1/4"-12mm-32L Twist Socket SD-1030E-12
- Specifications

  Dimension              1.8 × 1.8 × 3.2 cm
  Weight   48.4 g



6 1/2"-13mm-34L Twist Socket SD-1030B-13
- Specifications

  Dimension              2.2 × 2.2 × 3.4 cm
  Weight   55.4 g



7 1/2"-14mm-34L Twist Socket SD-1030B-14
- Specifications

  Dimension              2.5 × 2.5 × 3.4 cm
  Weight   69.8 g



8 1/2"-15mm-34L Twist Socket SD-1030B-15
- Specifications

  Dimension              2.5 × 2.5 × 3.4 cm
  Weight   70.2 g



9 1/2"-17mm-34L Twist Socket SD-1030B-17
- Specifications

  Dimension              2.6 × 2.6 × 3.4 cm
  Weight   77.8 g



10 1/2"-19mm-34L Twist Socket SD-1030B-19
- Specifications

  Dimension              2.8 × 2.8 × 3.4 cm
  Weight   92.8 g



11 1/2"-21mm-34L Twist Socket SD-1030B-21
- Specifications

  Dimension              3.0 × 3.0 × 3.4 cm
  Weight   94.2 g



12 1/2"-24mm-34L Twist Socket SD-1030B-24
- Specifications

  Dimension              3.4 × 3.4 × 3.4 cm
  Weight   112 g



13 1/2"-27mm-34L Twist Socket SD-1030B-27
- Specifications

  Dimension              3.7 × 3.7 × 3.4 cm
  Weight   110 g



14 Ø4.5-Ø6-70L Punch Bar SD-1030-01
- Specifications

  Dimension              0.6 × 0.6 × 7.0 cm
  Weight   13.4 g



15 Ø7.5-Ø12-80L Punch Bar SD-1030-05
- Specifications

  Dimension              1.2 × 1.2 × 8.0 cm
  Weight   58 g


  Suggested HS code   82059000008
  MOQ with laser marking   40 sets
  MOQ without laser marking   20 sets
  Laser marking cost   + TWD 2.5 on each piece
