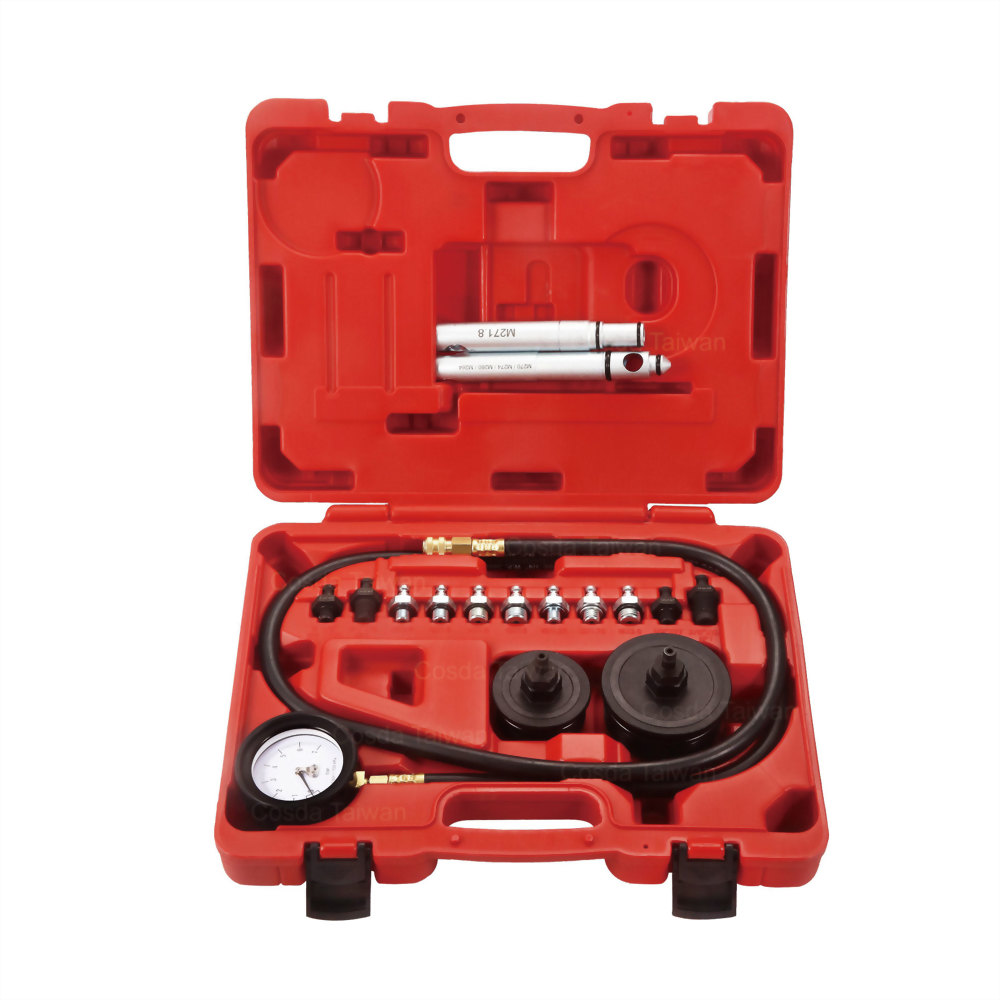

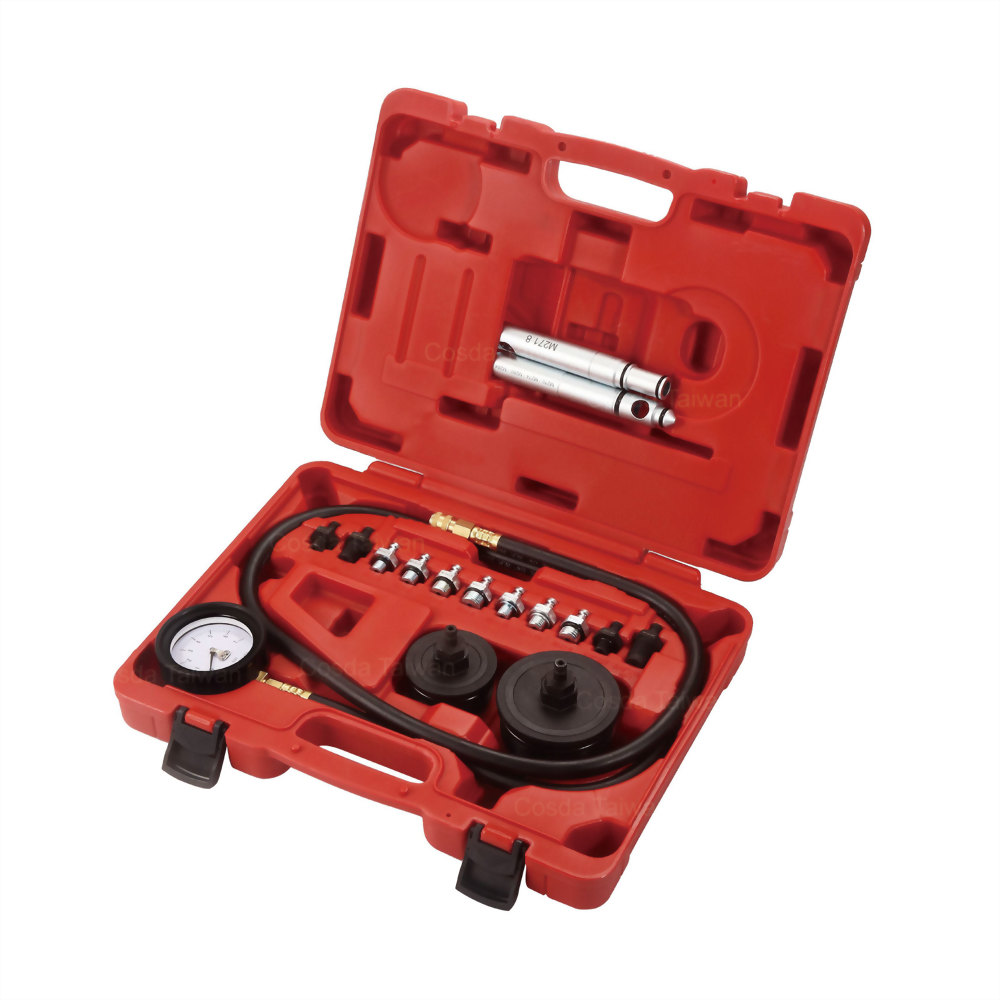

Oil Pressure Test Kit with Mercedes-Benz M271 & M274 Adapters (14 pcs)
Model No.:
SD-1161B
• Set for testing engine oil pressure
• Provided with 11 oil pressure switch adapters for the most comprehensive car application coverage on the market, including
- R 1/8” DIN adapter
- 1/8” x 27 NPT adapter
- 1/4” x 18 NPT adapter
- 3/8” x 18 NPT adapter
- M10 × P1.0 adapter
- M10 × P1.25 adapter
- M12 × P1.5 adapter
- M12 x P1.75 adapter
- M14 × P1.5 adapter
- M16 × P1.5 adapter
- M16 x P2.0 adapter

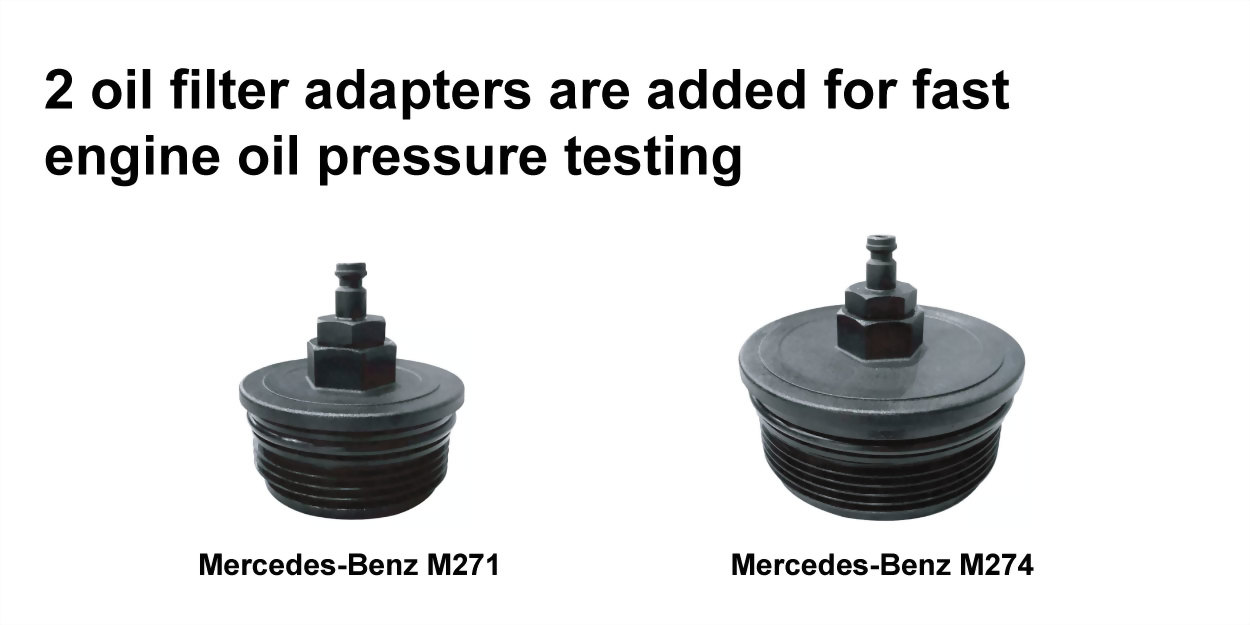

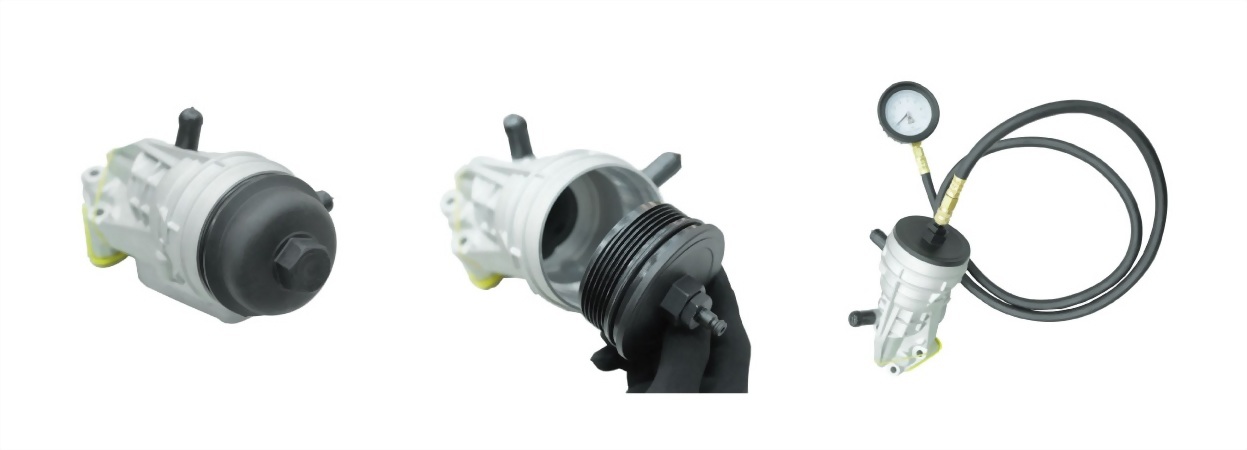

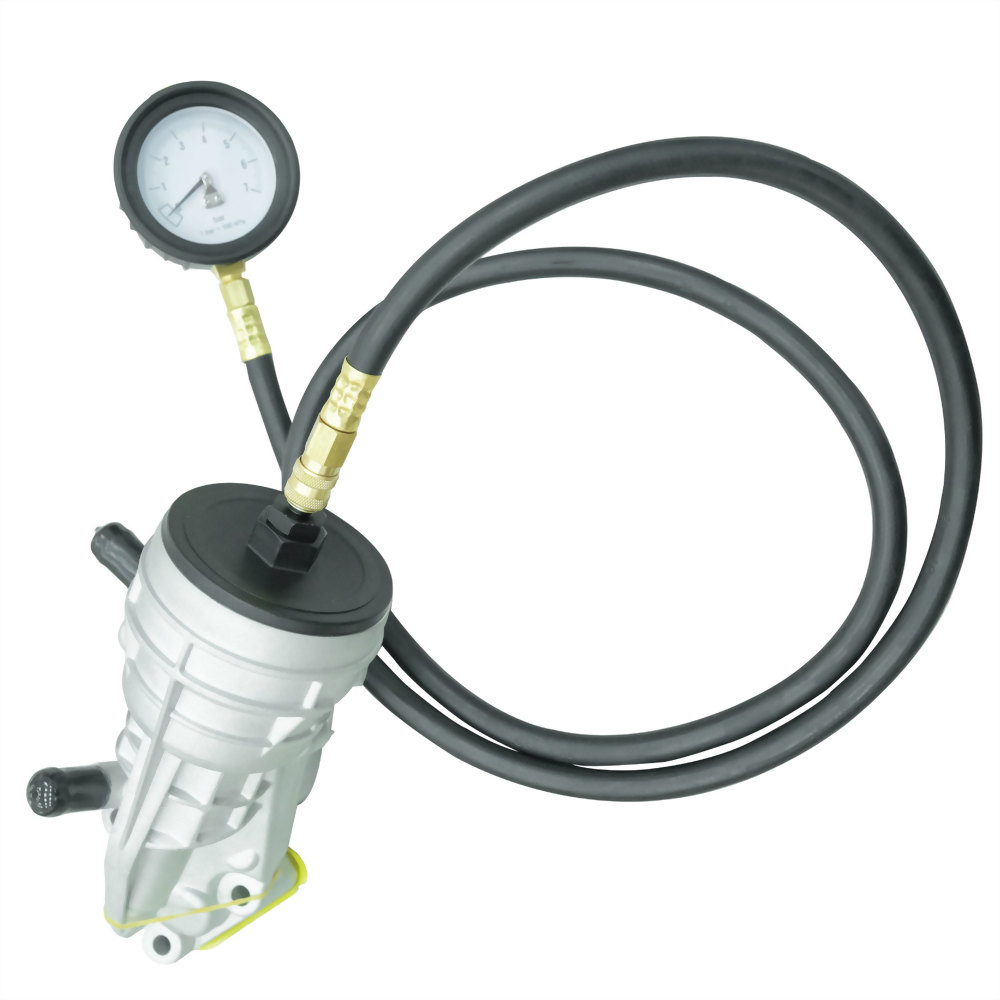

• Also including two oil filter adapters for Mercedes-Benz M271 and M274 when oil pressure switch is very hard to access to
• 1.5 meter long manometer hose makes it easier to connect to oil pressure switches in tight spaces
• Please check the Application tab below for reference. The list is partial - please contact us for more information
• Provided with 11 oil pressure switch adapters for the most comprehensive car application coverage on the market, including
- R 1/8” DIN adapter
- 1/8” x 27 NPT adapter
- 1/4” x 18 NPT adapter
- 3/8” x 18 NPT adapter
- M10 × P1.0 adapter
- M10 × P1.25 adapter
- M12 × P1.5 adapter
- M12 x P1.75 adapter
- M14 × P1.5 adapter
- M16 × P1.5 adapter
- M16 x P2.0 adapter
• Also including two oil filter adapters for Mercedes-Benz M271 and M274 when oil pressure switch is very hard to access to
• 1.5 meter long manometer hose makes it easier to connect to oil pressure switches in tight spaces
• Please check the Application tab below for reference. The list is partial - please contact us for more information
| Package | Blow molded case (red) | |
| Packing | 5 sets in a master carton | |
| Weight per set | 1.88 kg | 4.1 lbs |
| Net weight per carton | 9.4 kg | 20.7 lbs |
| Gross weight per carton | 10.4 kg | 22.9 lbs |
| Size per set | 38 × 28.2 × 8.5 cm | 15 × 11.1 × 3.3 inch |
| Size per carton | 44 × 39.4 × 29.7 cm | 17.3 × 15.5 × 11.7 inch |
| Volume per carton | 0.051 CBM | 1.8 CUFT |
| Case label size | 12.1 × 5.6 cm | 4.7 × 2.2 inch |
- Vehicle fitment
| No. | Image | Cosda No. | Description | |||||
|---|---|---|---|---|---|---|---|---|
| 1 |  |
SD-1161A-08 | Central Shaft for Mercedes-Benz M271 Oil Filter Housing Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 2 |  |
SD-1161A-09 | Central Shaft for Mercedes-Benz M274 Oil Filter Housing Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 3 |  |
SD-1161A-01 | Oil Pressure Gauge 0-7 bar | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 4 |  |
SD-1161A-02 | Oil Filter Housing Adapter for Mercedes-Benz M271 | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 5 |  |
SD-1161A-03 | Oil Filter Housing Adapter for Mercedes-Benz M274 | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 6 |  |
SD-1161-01 | 1/8” × 28 BSP Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 7 |  |
SD-1161-02 | 1/8” × 27 UNF Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 8 |  |
SD-1161-03 | 1/4” × 18 UNF Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 9 |  |
SD-1161-06 | M10 × P1.0 Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 10 |  |
SD-1161-07 | M12 × P1.5 Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 11 |  |
SD-1161-08 | M14 × P1.5 Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 12 |  |
SD-1161-09 | M16 × P1.5 Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 13 |  |
SD-1161-28 | M10 × P1.25 Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 14 |  |
SD-1161-29 | M12 × P1.75 Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 15 |  |
SD-1161-30 | M16 × P2.0 Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 16 |  |
SD-1161-31 | 3/8" × 18 NPT Oil Pressure Switch Adapter | More |
||||
|
- Specifications
|
||||||||
| Suggested HS code |
90262092007 |
| MOQ with laser marking | 20 sets + TWD 4 on each piece |
| MOQ without laser marking | 10 sets |
| Not for sale in | China, and Taiwan |
