Oil Pressure Test Kit (12 pcs)
• Provided with 11 oil pressure switch adapters for the most comprehensive car application coverage on the market, including
- R 1/8” DIN adapter
- 1/8” x 27 NPT adapter
- 1/4” x 18 NPT adapter
- 3/8” x 18 NPT adapter
- M10 × P1.0 adapter
- M10 × P1.25 adapter
- M12 × P1.5 adapter
- M12 x P1.75 adapter
- M14 × P1.5 adapter
- M16 × P1.5 adapter
- M16 x P2.0 adapter
• Long manometer hose (1.5 meter) makes it easier to connect to oil pressure switch located in hard to access locations
• Please check the Application tab below for reference. The list is partial - please contact us for more information
Oil Pressure Test Kit for Engine Diagnostics | OEM Automotive Tool Manufacturer
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Key Features
1. Designed for engine oil pressure
testing to help assess lubrication system condition

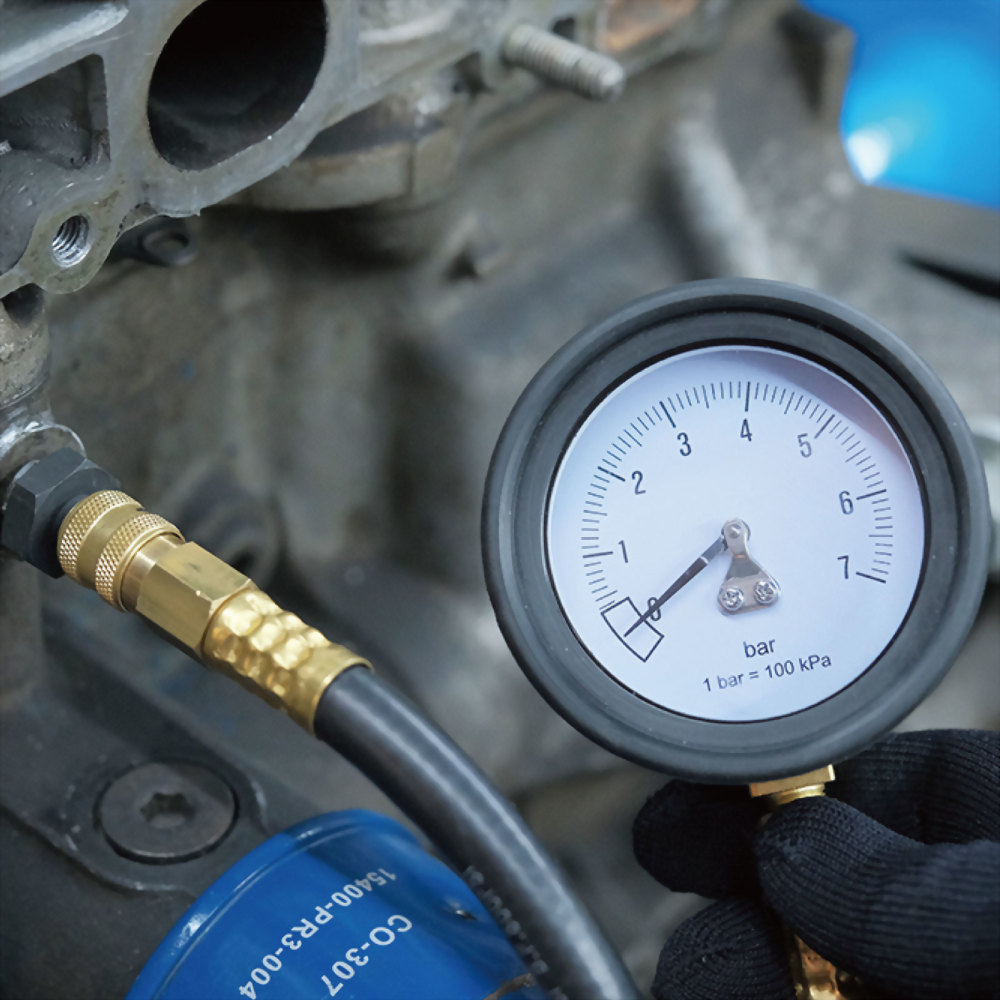

SD-1161A measures actual engine oil pressure, helping technicians
diagnose issues related to the oil pump, oil passages, oil pressure switch,
bearing clearance, or oil condition. Compared with relying only on dashboard
warning lights, it provides a more data-based reference and helps reduce
misdiagnosis or unnecessary parts replacement.
2. 12-piece set for multi-vehicle
oil pressure testing needs

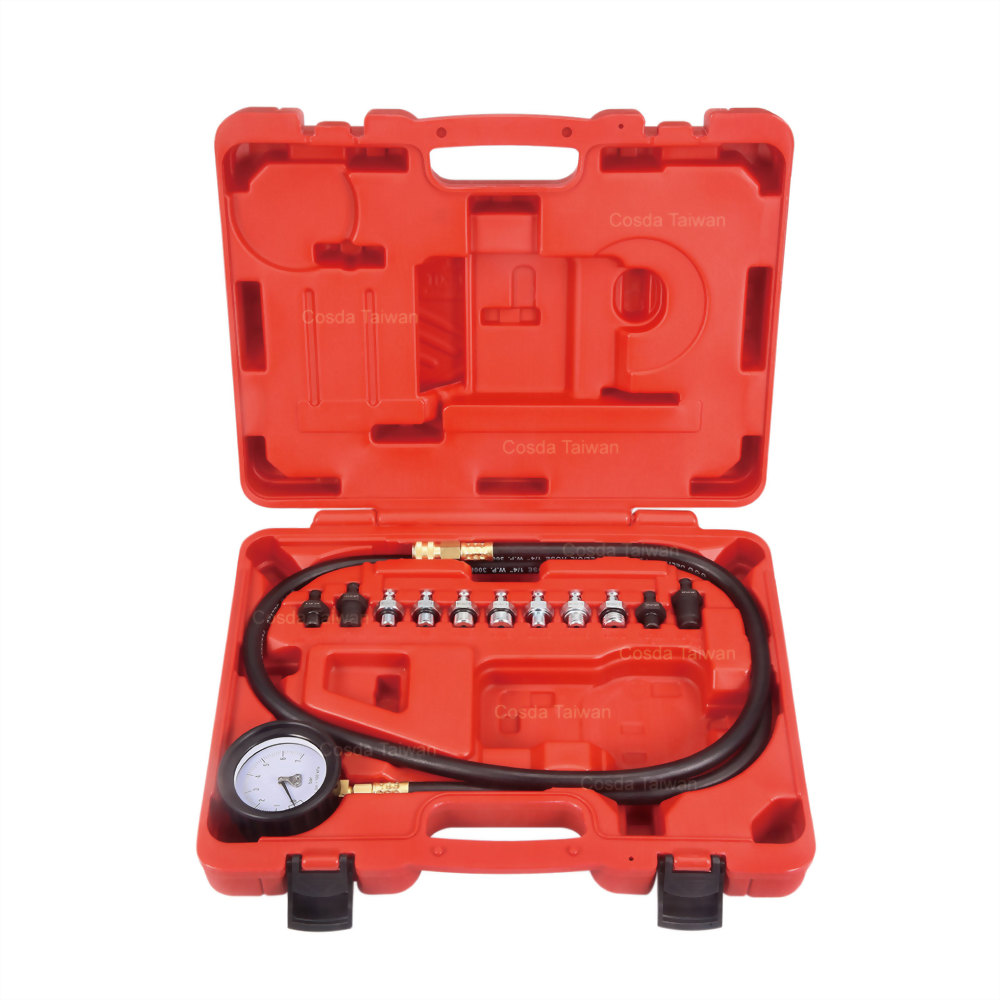

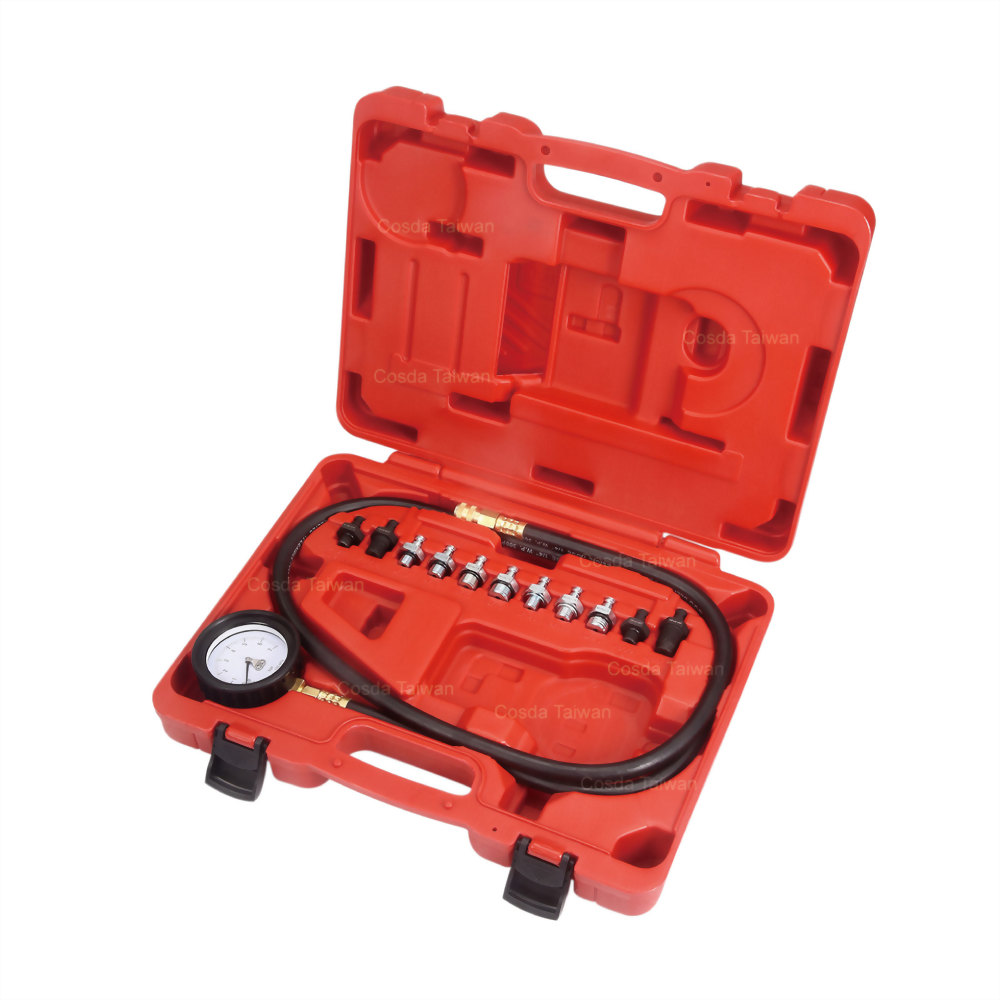

The set includes an oil pressure gauge and 11 oil pressure switch
adapters, supporting a wide range of common engine oil pressure testing
applications. It is suitable for multi-brand repair shops and helps improve
service efficiency and tool utilization.
3. 11 adapters covering common
imperial and metric thread sizes
Includes common thread specifications such as R 1/8” DIN, 1/8” ×
27 NPT, 1/4” × 18 NPT, 3/8” × 18 NPT, as well as M10, M12, M14, and M16 sizes.
Clearly listed adapter specifications help reduce testing interruptions caused
by thread mismatch and make fitment easier for purchasing teams to confirm.
4. 1.5 m pressure gauge hose for
easier engine bay operation
Oil pressure switches are often located on the side or lower area
of the engine, or in tight spaces. The 1.5 m hose allows technicians to read
the pressure gauge from a more convenient position, reducing hose interference
and installation difficulty.
5. Suitable for troubleshooting and
post-overhaul verification
When a vehicle shows an oil pressure warning light, engine noise,
unstable idle oil pressure, or has just been reassembled after an engine
overhaul, SD-1161A can be used to verify actual oil pressure. It is suitable
for pre-repair diagnosis, in-process checking, and final confirmation after
service.
6. Organized kit setup supports a
standard testing process
The oil pressure gauge, hose, and multiple adapters are integrated
into one kit, reducing tool preparation time and helping different technicians
follow the same testing method. It is suitable for repair shops, fleet
maintenance centers, and engine rebuilding workshops that need a consistent
inspection process.
7. Clear product category and
keywords for automotive channels and OEM listing
SD-1161A can be categorized as an oil pressure gauge kit, engine
oil pressure tester, automotive diagnostic tool, pressure testing equipment,
and engine troubleshooting tool. With its 12-piece configuration, 11 adapters,
and 1.5 m hose, it is suitable for B2B websites, tool distributors, and OEM/ODM
brand product listings.
PART 2 | Background Knowledge
1|When to Use
· When the engine oil pressure warning light illuminates or flashes and actual oil pressure needs to be verified.
· When diagnosing whether an oil pressure warning is caused by a faulty oil pressure switch/sensor or an actual lubrication system problem.
· When abnormal engine noise suggests insufficient lubrication, oil pump issues, or other oil system problems.
· After engine repair or lubrication system service when actual oil pressure needs to be checked against manufacturer specifications.
· When servicing different vehicle makes and models requiring different oil pressure switch adapters.
【Source Reference】

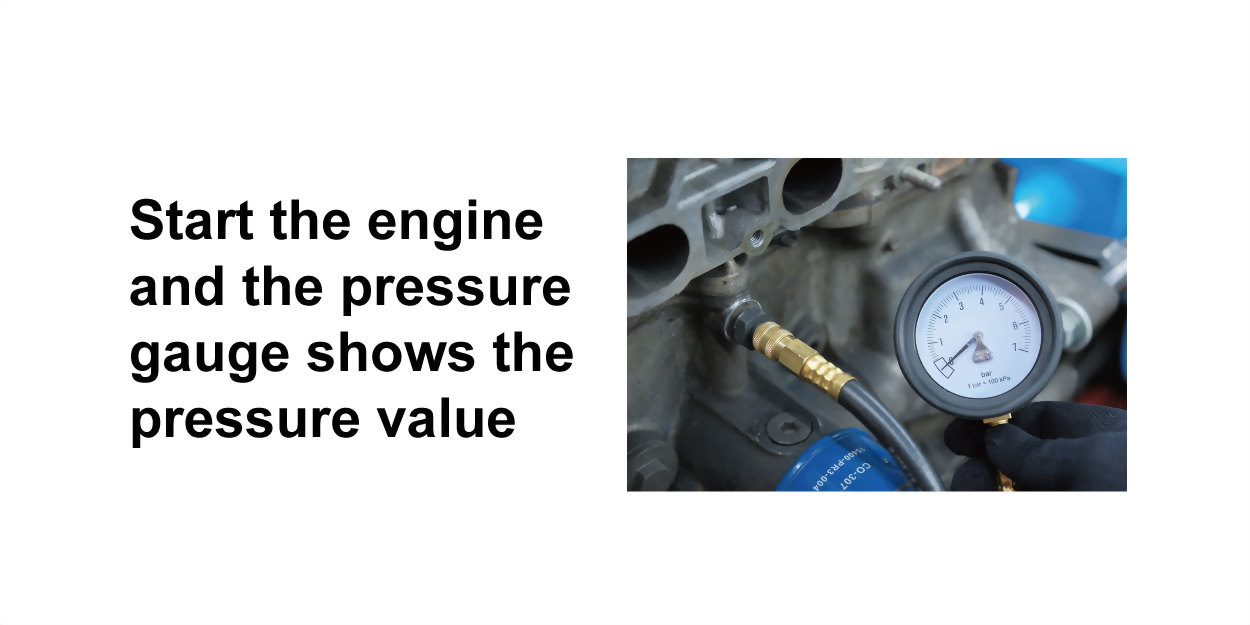

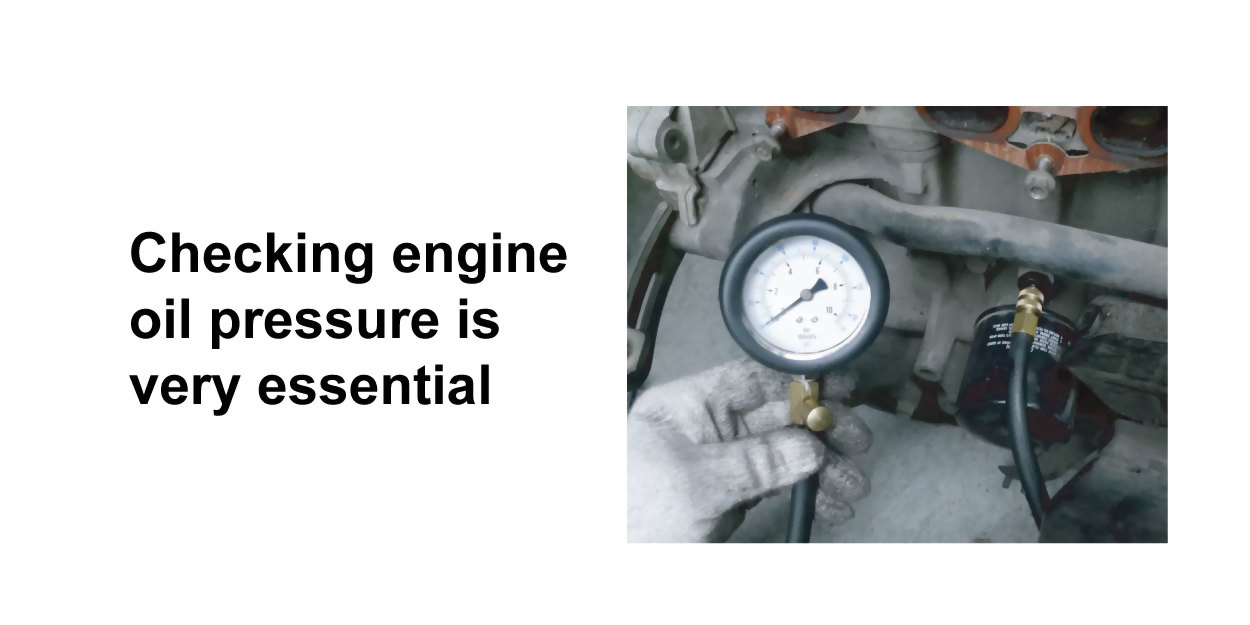

Actual engine oil pressure can be verified by connecting a mechanical pressure gauge at the oil pressure switch/sensor port. Test results should be compared with the vehicle manufacturer's specifications under the specified engine temperature and RPM conditions.
Reference: OEM Service Manuals — Engine Lubrication / Oil Pressure Inspection Procedures. Specifications vary by vehicle and engine.
2|Why You Need It
✔ Measures actual engine oil pressure
Provides a direct mechanical pressure reading for more accurate lubrication system diagnosis.

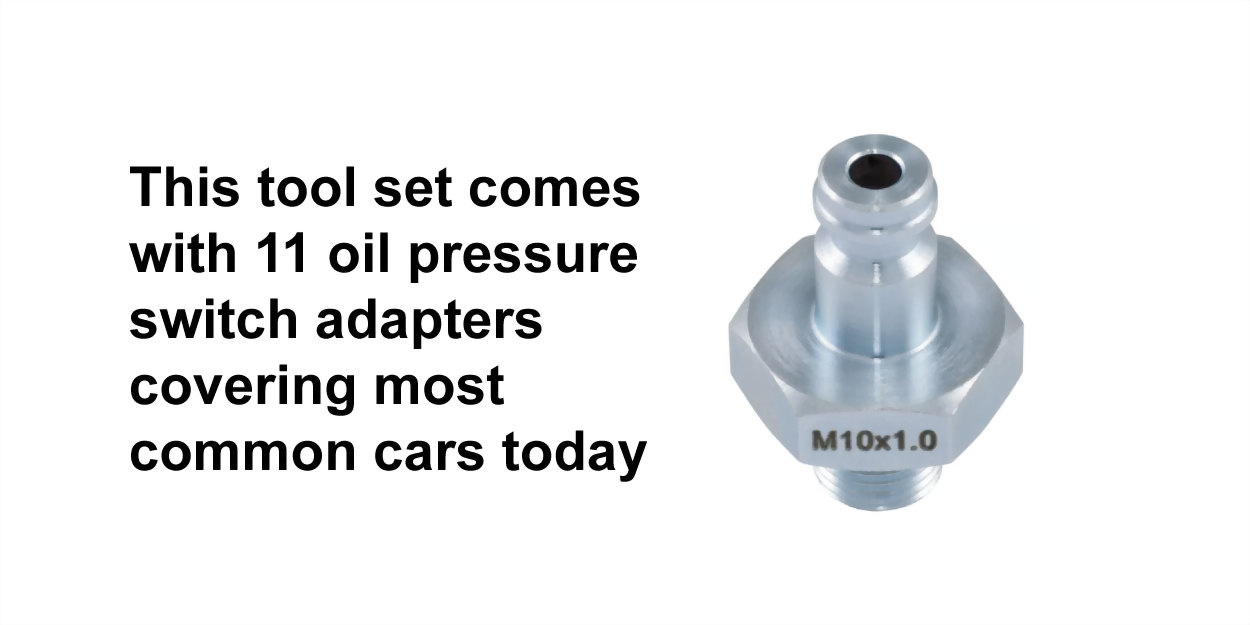

✔ Includes 11 oil pressure switch adapters
The 11 adapters provide broad vehicle application coverage for different oil pressure switch ports.
✔ 1.5-meter-long manometer hose
The extended hose makes it easier to connect and read the gauge when the oil pressure switch is located in a difficult-to-access area.
✔ Helps differentiate electrical and mechanical problems
Actual pressure measurement can help technicians further investigate possible issues involving:
· Oil pressure switch/sensor
· Oil pump
· Lubrication passages
· Other internal engine lubrication components
The final diagnosis should always follow the vehicle manufacturer's service procedures and specifications.
3|Risks of Not Using It
· Actual oil pressure cannot be directly verified.
· Misdiagnosis may lead to unnecessary parts replacement.
· Different vehicle applications may be difficult to test without the correct adapters.
· Short hoses may make testing difficult when the oil pressure switch is located deep inside the engine compartment.
4|Benefits After Using It
✔ More accurate fault diagnosis
Provides actual pressure readings for a more informed diagnosis.
✔ Broad vehicle coverage
11 adapters accommodate a wide variety of oil pressure switch connections.
✔ Easier access to difficult locations
The 1.5 m hose allows the gauge to be positioned where it can be connected and read more conveniently.
✔ Reduces unnecessary parts replacement
Verifying actual oil pressure first helps technicians determine the appropriate next diagnostic step.
✔ Supports a standardized diagnostic process
Measured pressure can be compared directly with OEM oil pressure specifications.
Solutions
Solution 1 – Laser Logo Marking for Oil Pressure Test Kits
Add laser logo marking to the tool components to create a more professional branded oil pressure test kit for tool brands, distributors, and private label programs.
Key Benefits:
• The tool surface can be laser marked with your logo, helping build a more
recognizable engine oil pressure tester under your own brand.
• Laser marking provides a clean and durable brand presentation for repeated
workshop use.
• MOQ for laser logo marking is 20 sets.
Solution 2 – Custom Case Labels for Private Label Oil Pressure Testers
Customize the blow molded case label with your own branding to make this oil pressure gauge kit more suitable for retail, distribution, and private label sales.
Key Benefits:
• The case label can be customized with your logo, product information, and
preferred layout.
• If you do not have a finished artwork, we can provide free label design
support.
• A branded case helps create a more complete presentation for engine
troubleshooting tools and workshop equipment.
Solution 3 – Multi-Language Manuals for Global Market Sales
Support international distribution with a localized instruction manual, making this engine oil pressure testing tool easier to understand and use in different markets.
Key Benefits:
• The instruction manual can be printed in your local language; you only need
to provide the translated file.
• Local-language instructions help end users understand the testing procedure and
adapter applications more clearly.
• This is a practical option for importers and distributors selling oil
pressure testing equipment in non-English-speaking markets.
Q&A
Q1. What is SD-1161A and what is it used for?
A: SD-1161A is a 12-piece engine oil pressure test kit designed for checking engine oil pressure and helping technicians diagnose lubrication system issues, abnormal oil pressure, or oil pressure switch-related problems.
Q2. What are the main components included in the kit?
A: The kit includes a 0–7 bar oil pressure gauge and 11 oil pressure switch adapters, allowing technicians to select the correct adapter for different vehicle oil pressure switch thread types.
Q3. What adapter sizes are included?
A: The 11 adapters listed include R 1/8” DIN, 1/8” x 27 NPT, 1/4” x 18 NPT, 3/8” x 18 NPT, M10 × P1.0, M10 × P1.25, M12 × P1.5, M12 × P1.75, M14 × P1.5, M16 × P1.5, and M16 × P2.0, providing broad vehicle coverage.
Q4. What basic precautions should be followed during use?

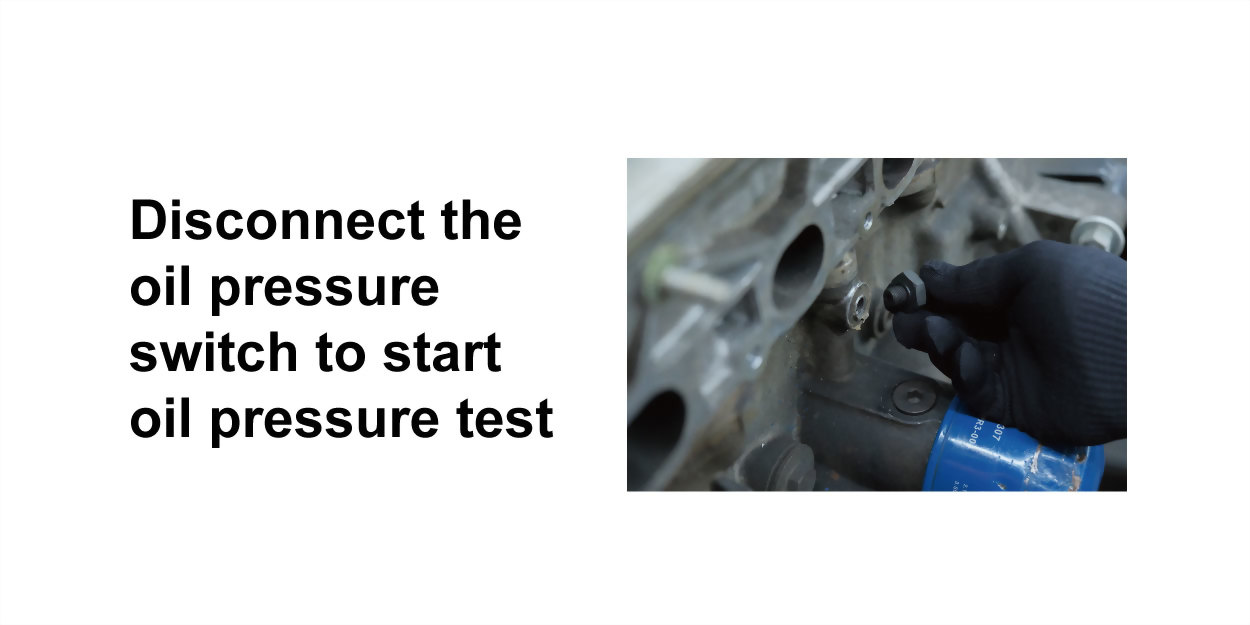

A: Before testing, confirm the engine condition and follow safety procedures. Locate the oil pressure switch according to the vehicle service manual, select the correct threaded adapter, and tighten it securely before testing. The measured pressure should be compared with OEM specifications rather than judged by a single value alone.
Q5. Which vehicle brands can this kit cover?
A: The Vehicle fitment list includes many makes and models, such as Alfa Romeo, Audi, BMW, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dodge, Fiat, Ford, GMC, Honda, Hyundai, Infiniti, Jaguar, Jeep, Kia, and VW. The manufacturer also notes that the list is partial and further confirmation may be needed.

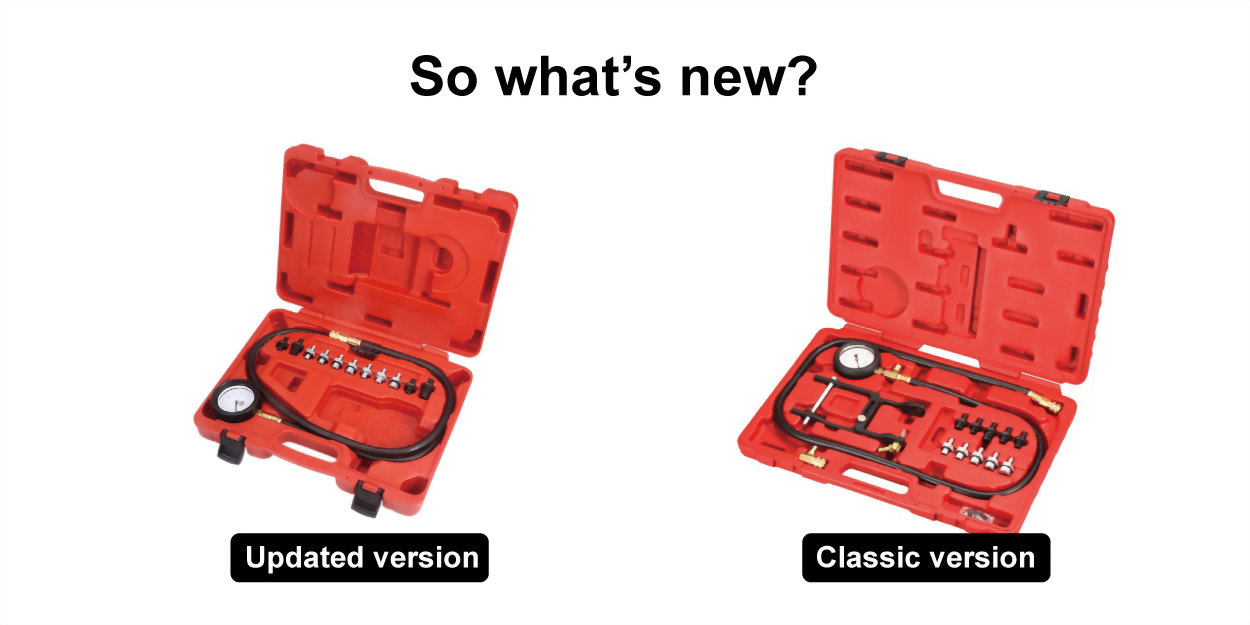

| Package | Blow molded case (red) | |
| Packing | 5 sets in a master carton | |
| Weight per set | 1.8 kg | 4 lbs |
| Net weight per carton | 9.2 kg | 20.2 lbs |
| Gross weight per carton | 10.2 kg | 22.4 lbs |

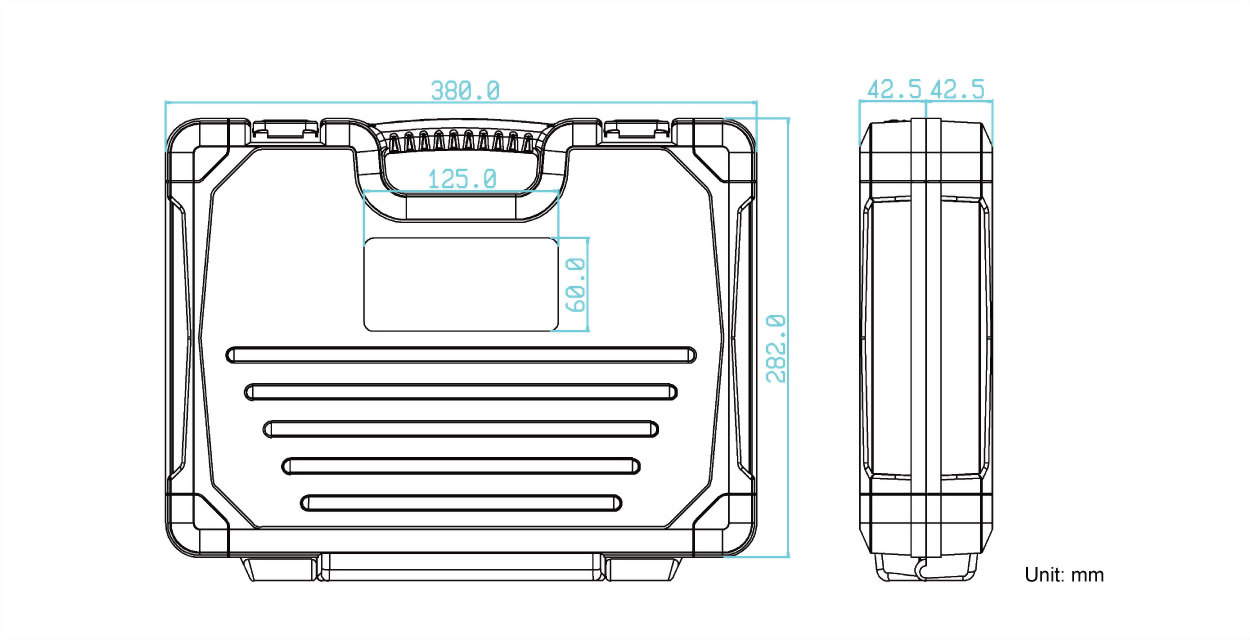

| Size per set | 38 × 28.2 × 8.5 cm | 15 × 11.1 × 3.3 inch |
| Size per carton | 44 × 39.4 × 29.7 cm | 17.3 × 15.5 × 11.7 inch |
| Volume per carton | 0.051 CBM | 1.8 CUFT |
| Case label size | 12.1 × 5.6 cm | 4.7 × 2.2 inch |
| No. | Image | Cosda No. | Description | |||||
|---|---|---|---|---|---|---|---|---|
| 1 | SD-1161A-01 | Oil Pressure Gauge 0-7 bar | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 2 | SD-1161-01 | 1/8” × 28 BSP Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 3 | SD-1161-02 | 1/8” × 27 UNF Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 4 | SD-1161-03 | 1/4” × 18 UNF Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 5 | SD-1161-06 | M10 × P1.0 Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 6 | SD-1161-07 | M12 × P1.5 Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 7 | SD-1161-08 | M14 × P1.5 Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 8 | SD-1161-09 | M16 × P1.5 Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||

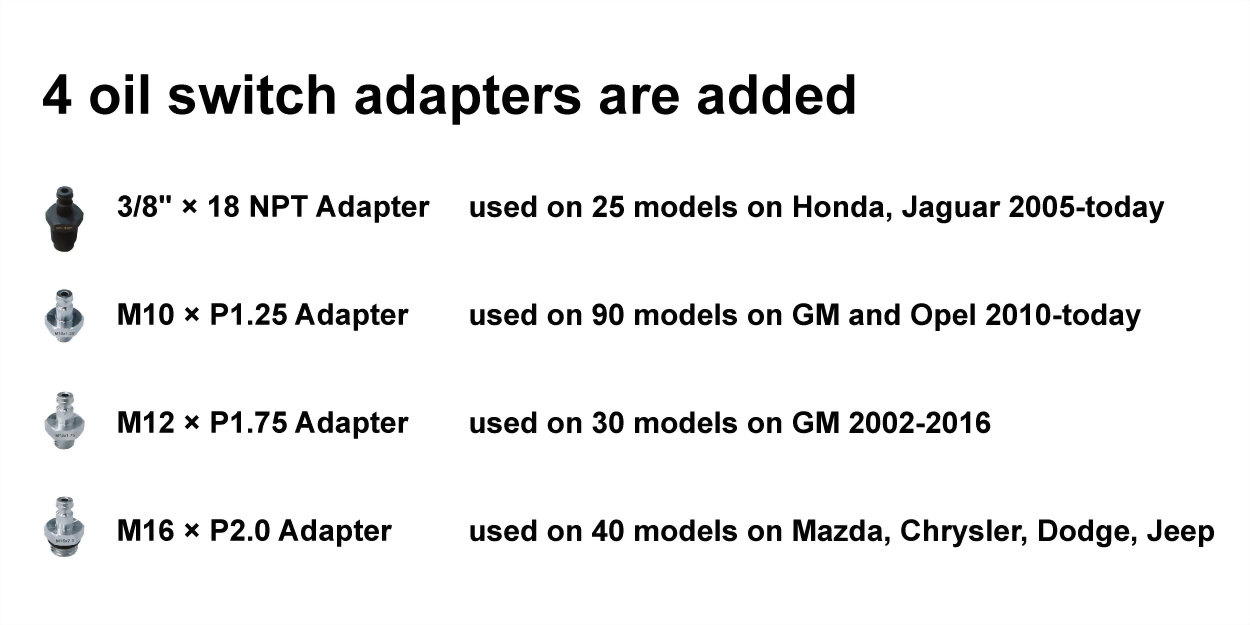

| 9 | SD-1161-28 | M10 × P1.25 Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 10 | SD-1161-29 | M12 × P1.75 Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 11 | SD-1161-30 | M16 × P2.0 Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 12 | SD-1161-31 | 3/8" × 18 NPT Oil Pressure Switch Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
| Suggested HS code |
90262092007 |
| MOQ with laser marking | 20 sets + TWD 4 on each piece |
| MOQ without laser marking | 10 sets |
| Not for sale in | China, and Taiwan |
