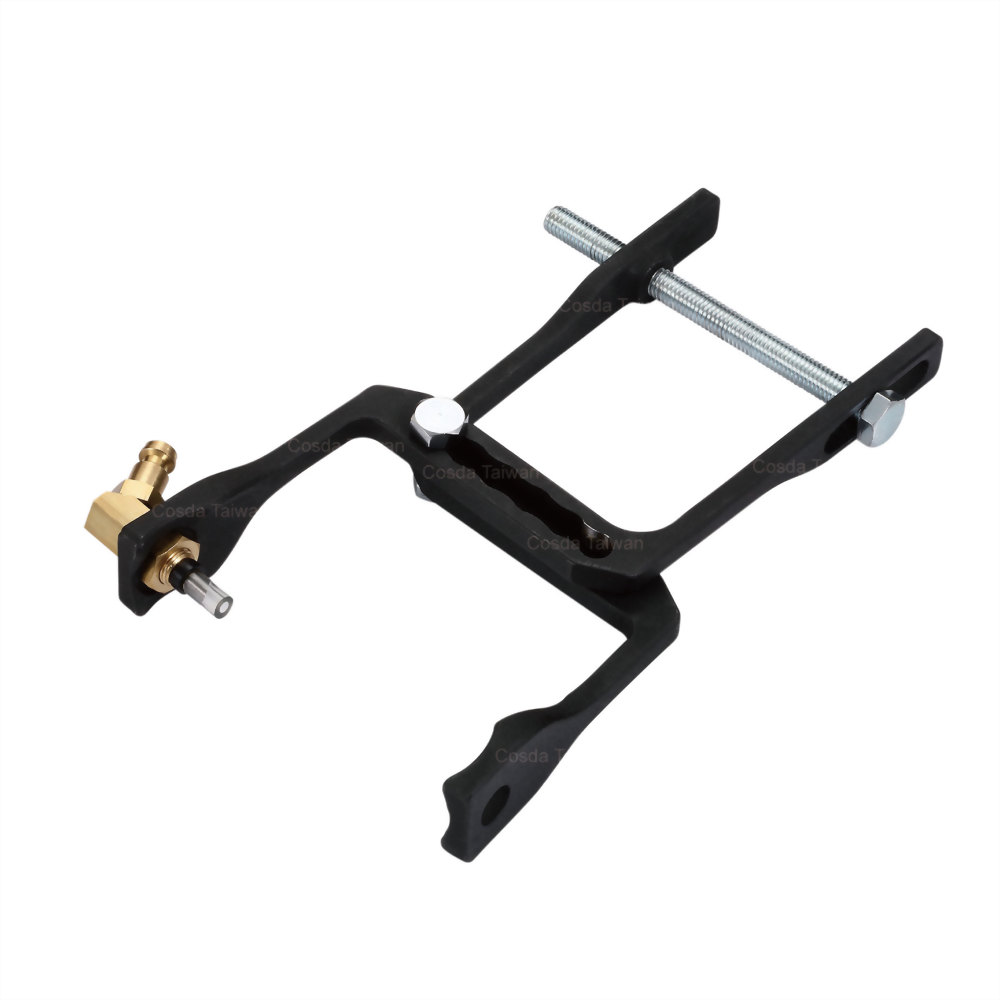

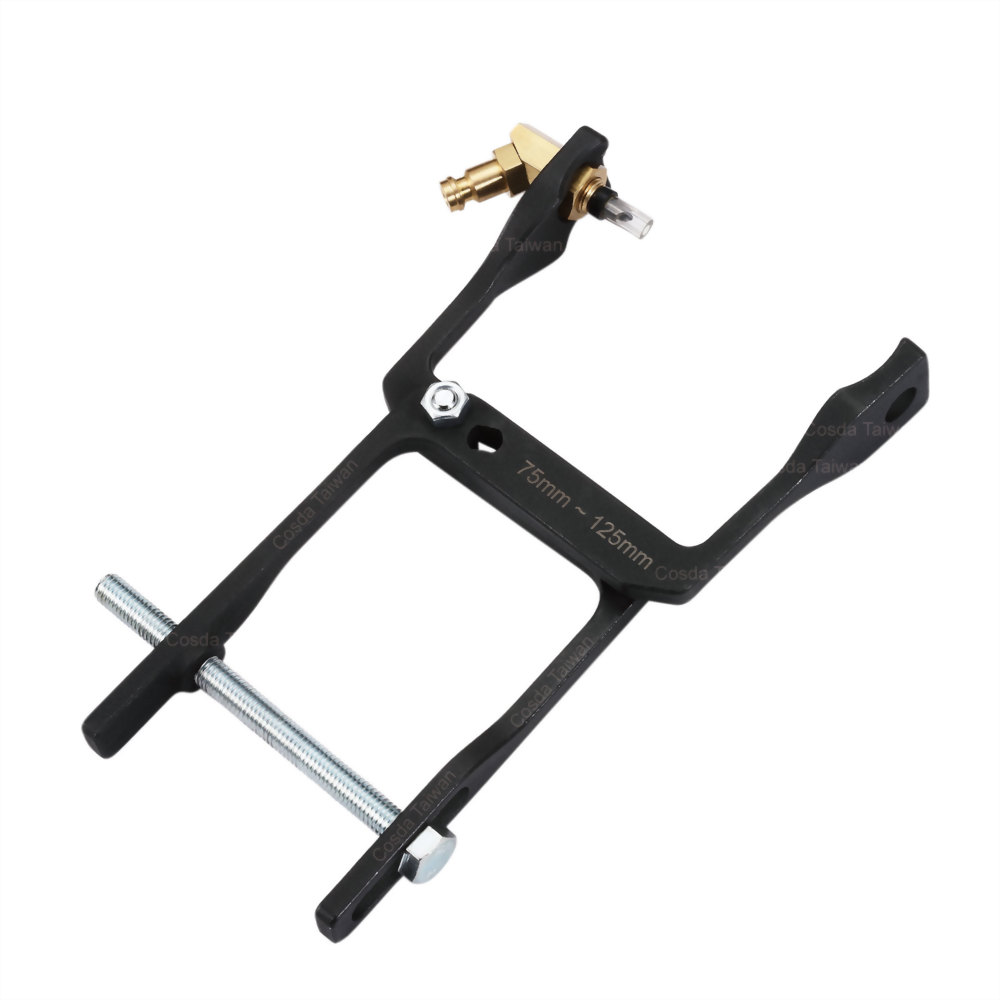

Clamping Device for Engine Oil Pressure Test
Model No.:
SD-1161D-1

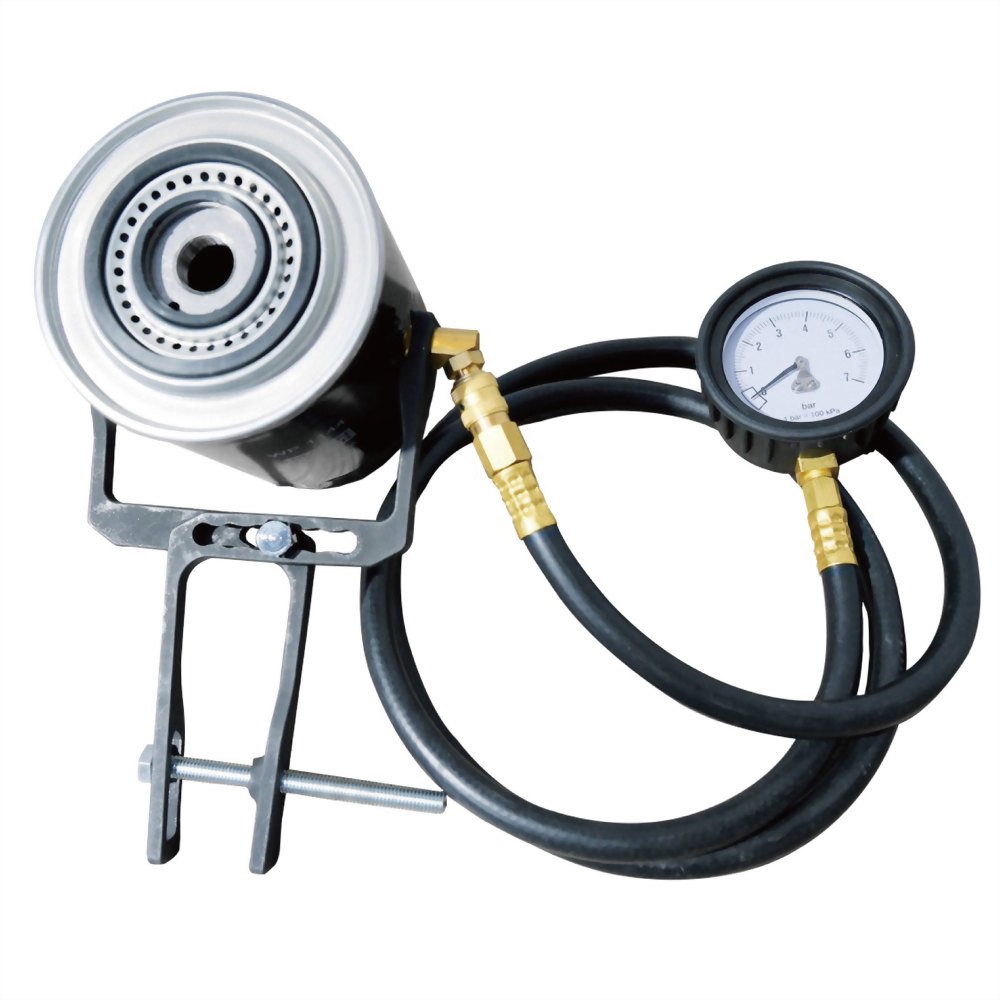

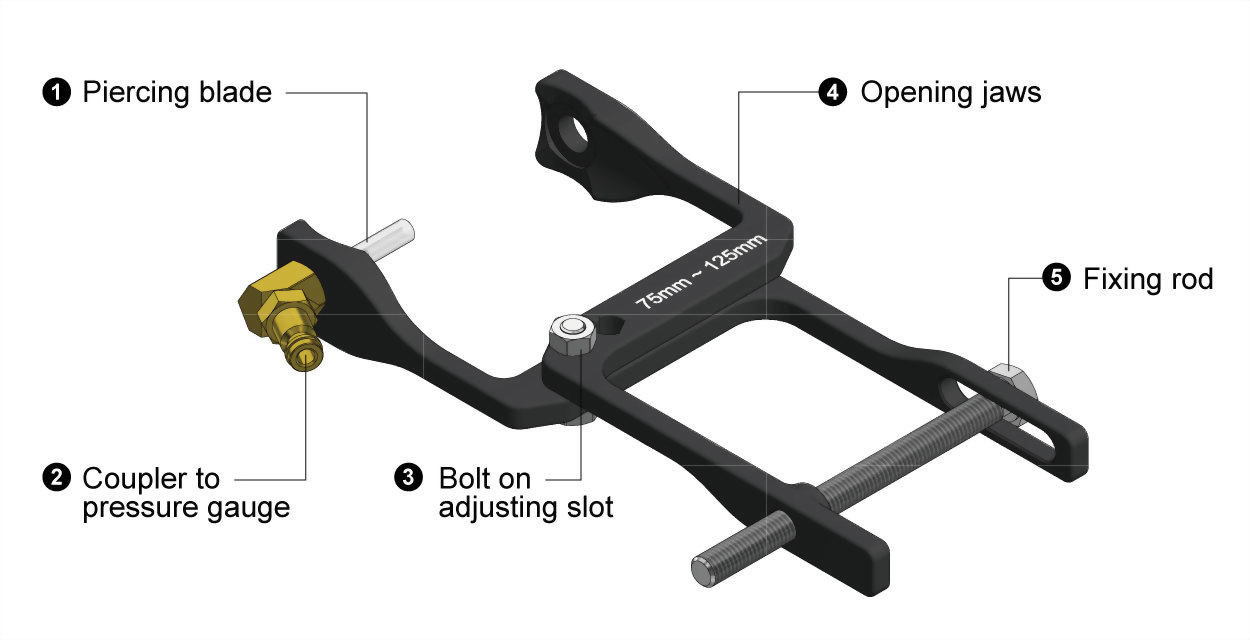

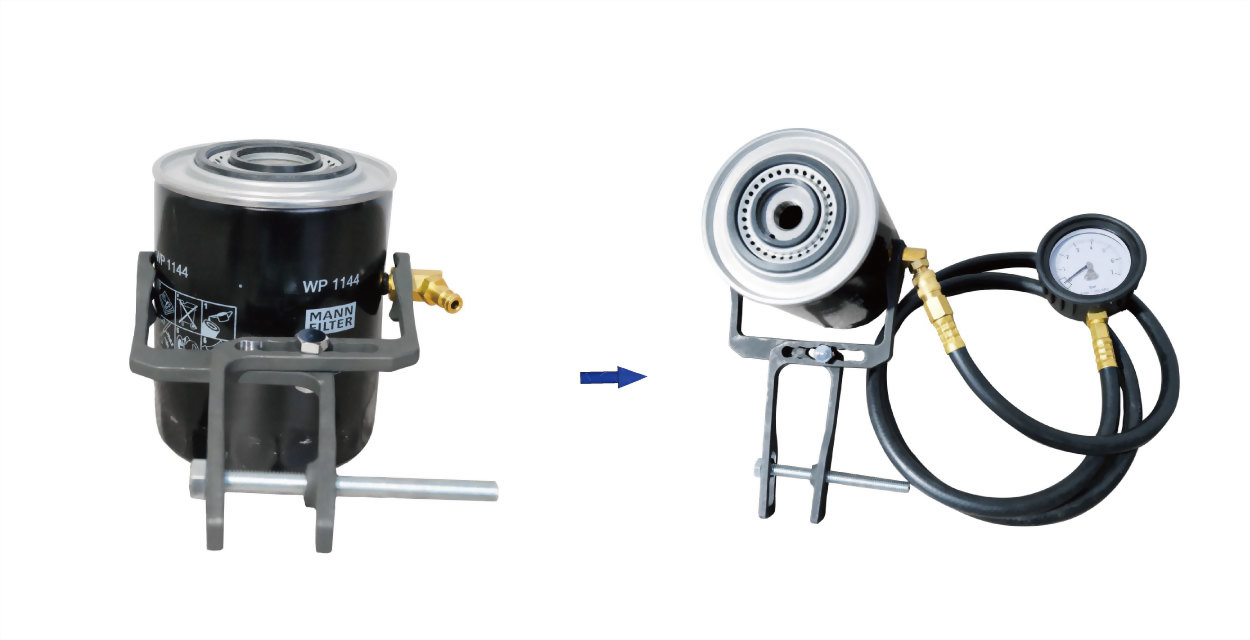

• Clamping device for connecting engine oil filter canisters by piercing through the surface for
oil pressure tests
• Especially helpful when oil pressure switch is situated at a hard-to-reach location

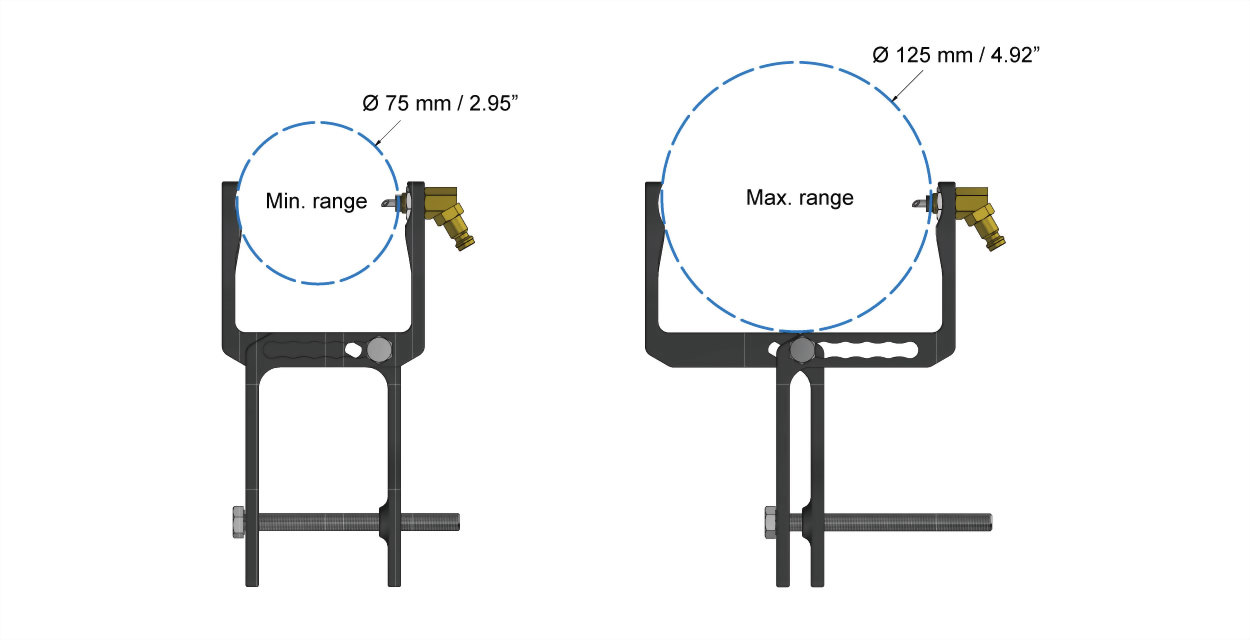

• Suitable for oil filter canisters with diameters between 75 and 125 mm / 2.95 and 4.92 inches
• Not suitable to work on cartridge style nylon oil filter housings
oil pressure tests
• Especially helpful when oil pressure switch is situated at a hard-to-reach location
• Suitable for oil filter canisters with diameters between 75 and 125 mm / 2.95 and 4.92 inches
• Not suitable to work on cartridge style nylon oil filter housings
| Package | Neutral white box | |
| Packing | 10 sets in a master carton | |
| Weight per set | 460 g | 1 lbs |
| Net weight per carton | 4.6 kg | 10.1 lbs |
| Gross weight per carton | 5.6 kg | 12.3 lbs |
| Size per set | 21.1× 15 × 4.6 cm | 8.3 × 5.9 × 1.8 inch |
| Size per carton | 32.5 × 23.0 × 25.5 cm | 12.8 × 9.1 × 10.0 inch |
| Volume per carton | 0.019 CBM | 0.7 CUFT |
| Suggested HS code |
82057000002 |
| MOQ with laser marking | 40 sets |
| MOQ without laser marking | 20 sets |
| Laser marking cost | + TWD 5 |
|
Not for sale in |
China, Taiwan |
