MacPherson Damper Spring Extractor with Replaceable Jaws (Impact Wrench)

Model No.: SD-1007A

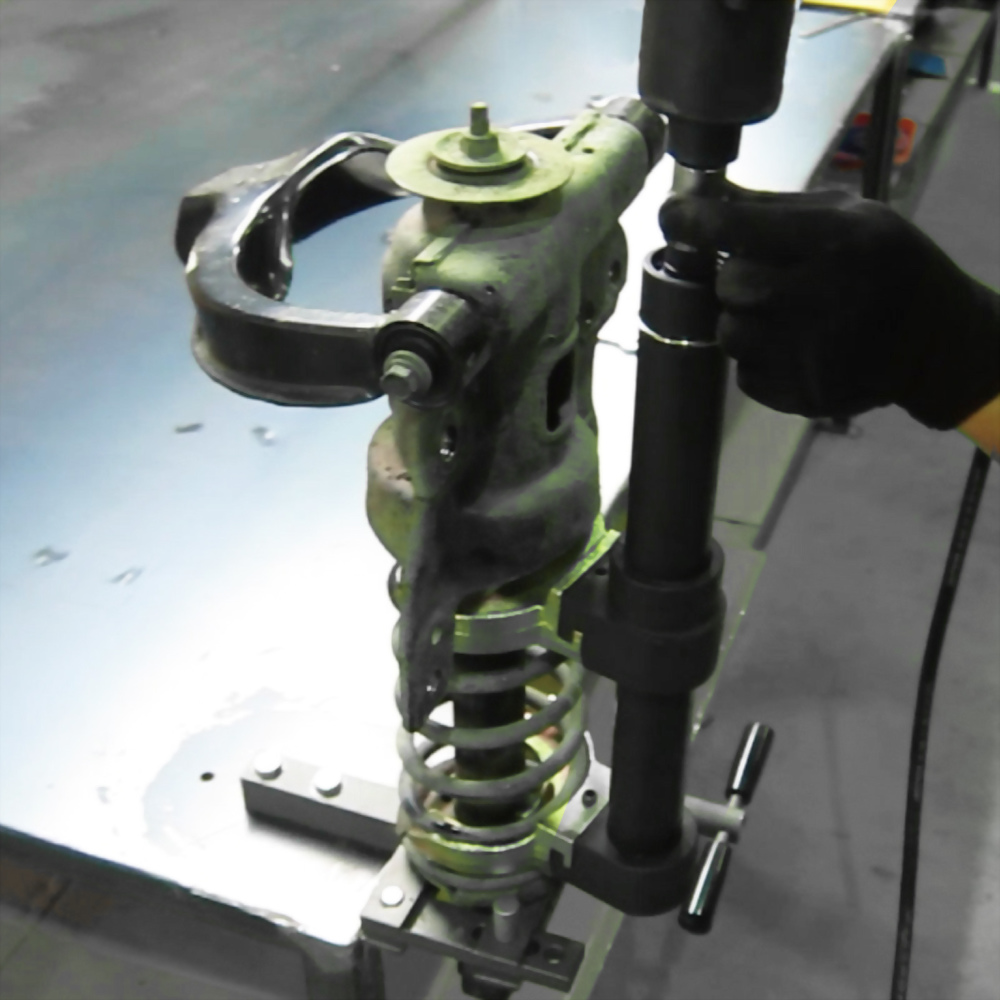

• Set for compressing MacPherson shock absorber coil springs

• Includes three pairs of C jaws for fitting various sizes

• Includes an extension bracket for conical springs

• Break point 4,275 kgf (about 41,900 N)

• Max. load 1,710 kgf (about 16,760 N)

• Provided with Product Liability Insurance








  Package   Blow molded case (red)
  Packing   1 set in a master carton
  Weight per set   14.5 kg   31.9 lbs
  Net weight per carton   14.5 kg   31.9 lbs
  Gross weight per carton   15.5 kg   34.1 lbs
  Size per set   52.8 × 43.4 × 12.6 cm   20.8 × 17.0 × 5.0 in
  Size per carton   53.3 × 44.2 × 13.3 cm   20.9 × 17.4 × 5.2 in
  Volume per carton   0.03 CBM   1.15 CUFT
  Case label size        16.8 × 6.8 cm        6.6 × 2.6 in


No. Image Cosda No. Description

1 Spring Compressor Tool Body (Impact) SD-1007A-1
- Specifications

  Dimension              45.7 × 7.8 × 6.4 cm
  Weight   5.2 kg
  Used in (product 1)   SD-1007A (1 pc)
  Used in (product 2)   SD-1007H (1 pc)



2 Small C Jaw (80-115 mm) SD-1007-08
- Specifications

  Dimension              13.0 × 10.0 × 4.2 cm
  Weight   865 g
  Used in (product 1)   SD-1007 (2 pcs)
  Used in (product 2)   SD-1007A (2 pcs)
  Used in (product 3)   SD-1007G (2 pcs)
  Used in (product 4)   SD-1007H (2 pcs)



3 Middle C Jaw (110-150 mm) SD-1007-09
- Specifications

  Dimension              16.2 × 12.6 × 4.6 cm
  Weight   1.2 kg
  Used in (product 1)   SD-1007 (2 pcs)
  Used in (product 2)   SD-1007A (2 pcs)
  Used in (product 3)   SD-1007G (2 pcs)
  Used in (product 4)   SD-1007H (2 pcs)



4 Large C Jaw (140-190 mm) SD-1007-10
- Specifications

  Dimension              21.0 × 14.3 × 4.7 cm
  Weight   1.4 kg
  Used in (product 1)   SD-1007 (2 pcs)
  Used in (product 2)   SD-1007A (2 pcs)
  Used in (product 3)   SD-1007G (2 pcs)
  Used in (product 4)   SD-1007H (2 pcs)



5 Extension Bracket SD-1007-12
- Specifications

  Dimension              6.4 × 4.5 × 4.0 cm
  Weight   592 g
  Used in (product 1)   SD-1007 (1 pc)
  Used in (product 2)   SD-1007A (1 pc)
  Used in (product 3)   SD-1007G (1 pc)
  Used in (product 4)   SD-1007H (1 pc)



6 Internal Hex Bolt - M6×P1.0×25L SD-1007-12-01
- Specifications

  Dimension              3.1 × 0.6 × 0.6 cm
  Weight   7 g
  Used in (product 1)   SD-1007 (3 pcs)
  Used in (product 2)   SD-1007A (3 pcs)
  Used in (product 3)   SD-1007G (3 pcs)
  Used in (product 4)   SD-1007H (3 pcs)


  Suggested HS code   82055990909
  MOQ with laser marking   10 sets
  MOQ without laser marking   2 sets
  Laser marking cost   + TWD 8 on tool body


Certificates of Product Liability Insurance and CE certificate are shown below
