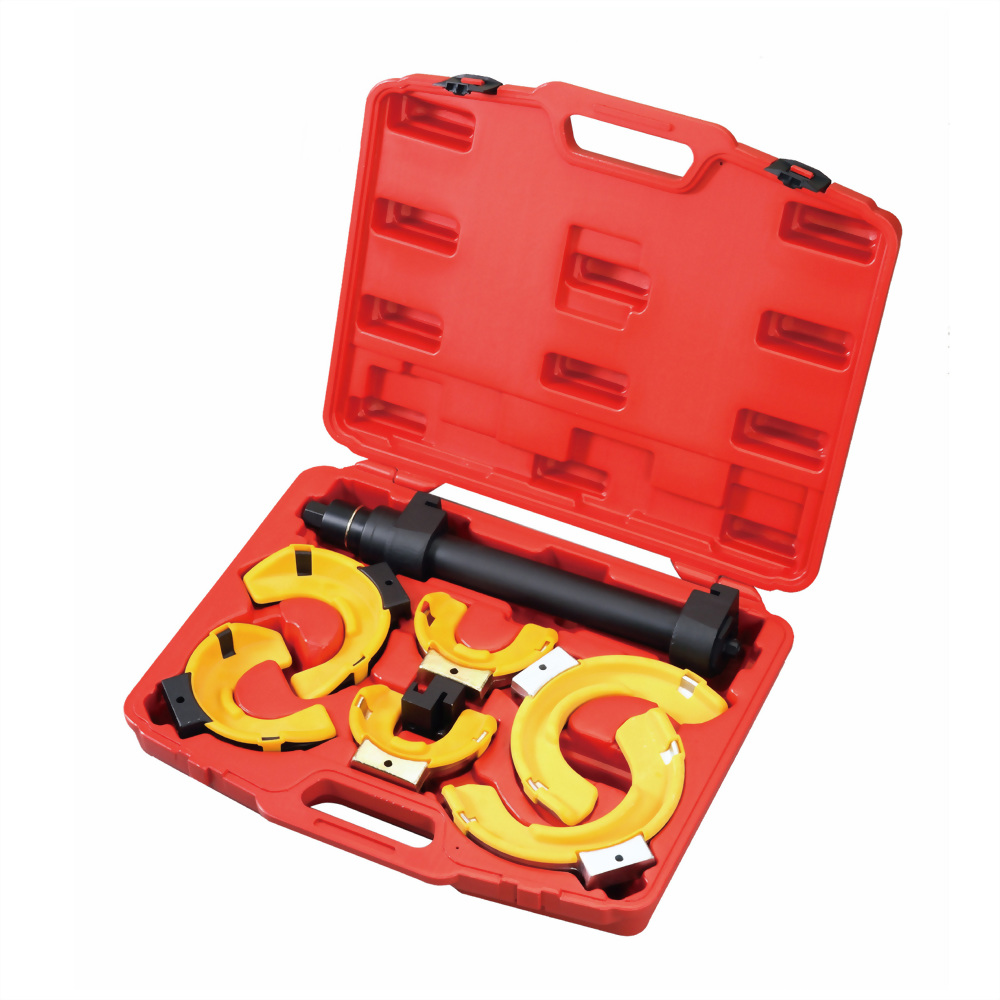

MacPherson Damper Spring Extractor with Replaceable Jaws and Plastic Cover (Manual)

Model No.: SD-1007G

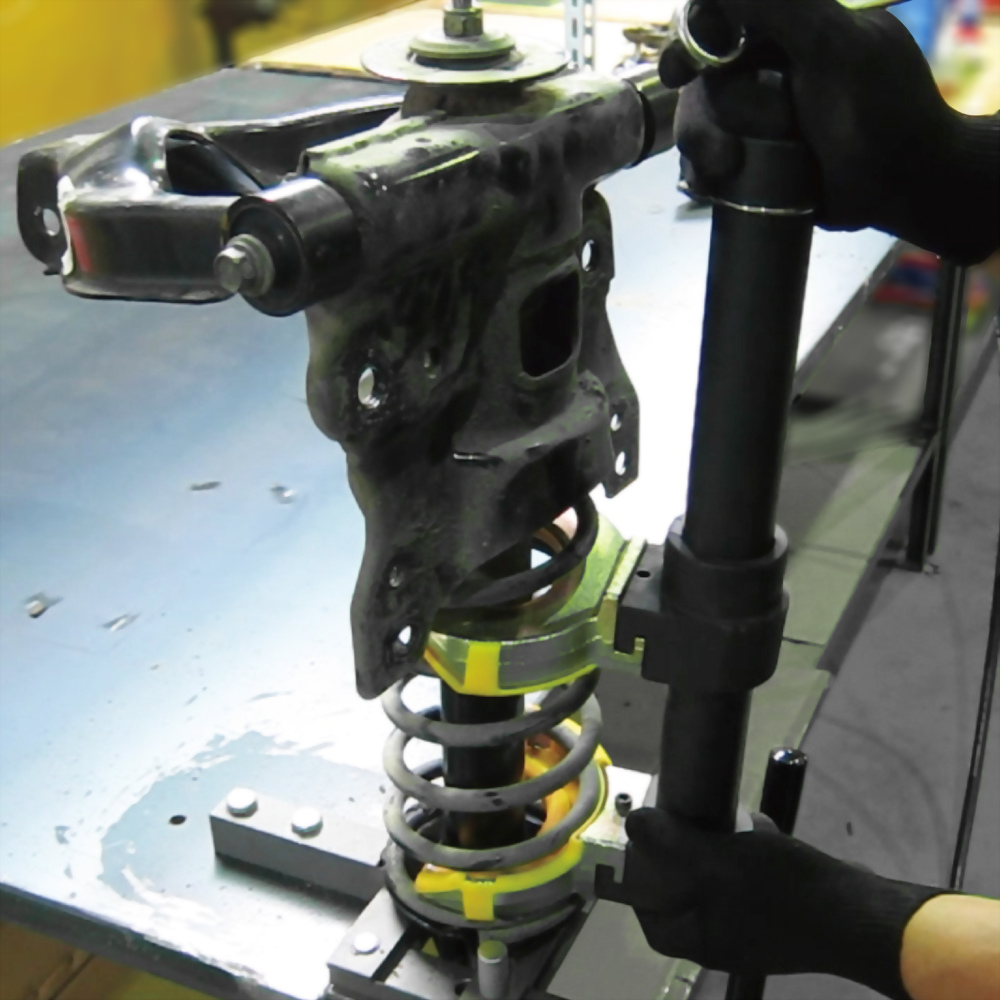

• Set for compressing MacPherson shock absorber coil springs

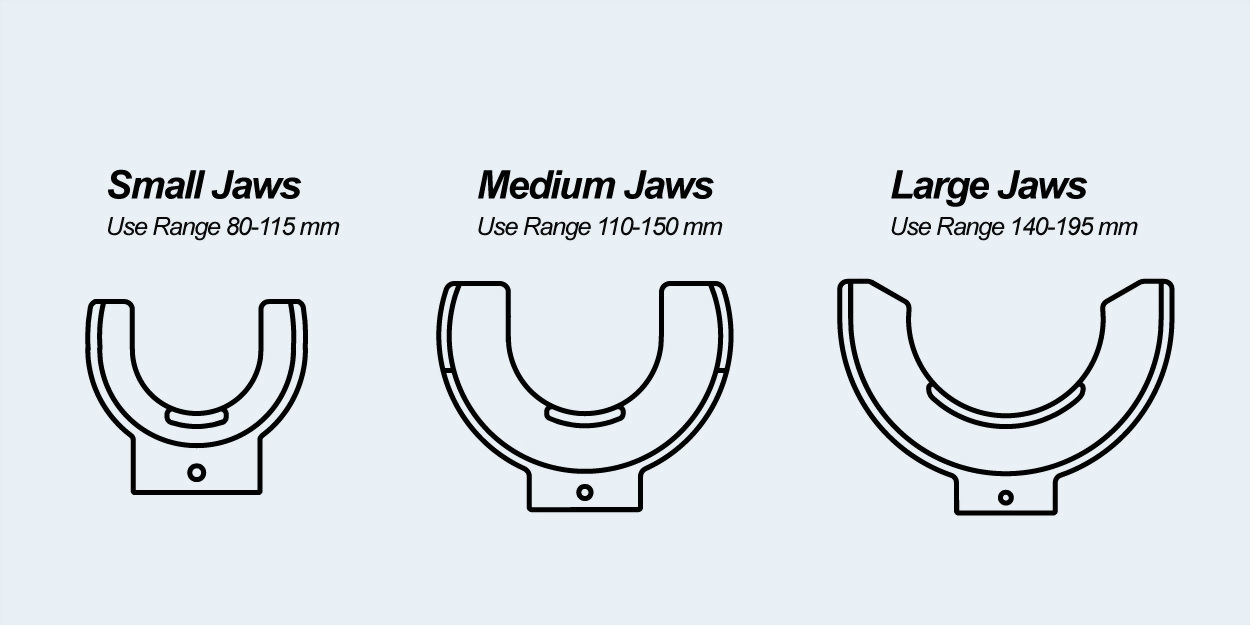

• Includes three pairs of C jaws for fitting various sizes

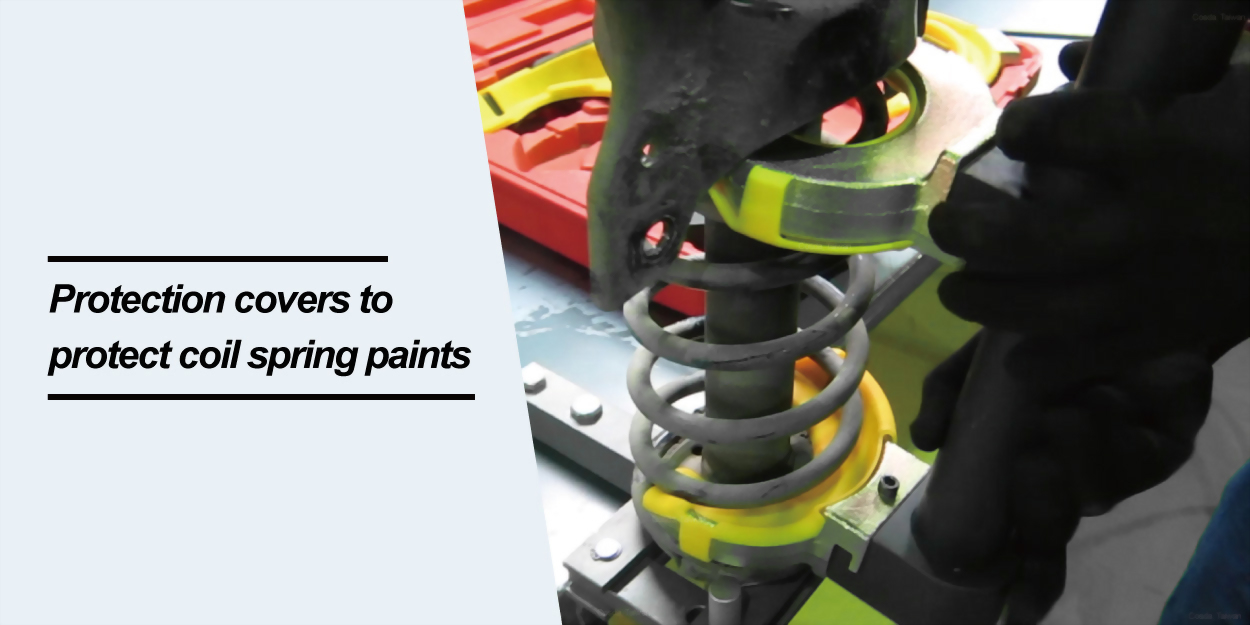

• Jaw covers are RoHS certified, containing no SVHC materials

• Includes an extension bracket for conical springs

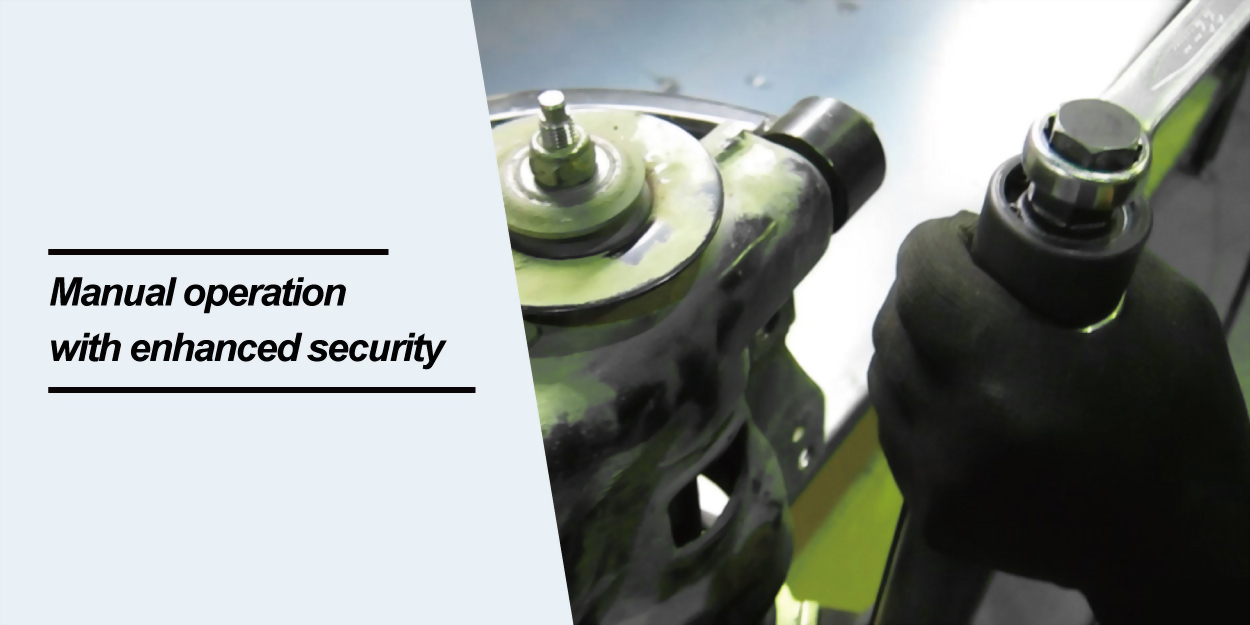

• Manual operation only

• Break point 4,275 kgf (about 41,900 N)

• Max. load 1,710 kgf (about 16,760 N)

• Provided with Product Liability Insurance

Coil Strut Spring Compressor Remover Installer Suspension Tool


Coil Spring Compressor Twin Hook Clamp Suspension Struts


Macpherson Strut Spring Compressor


External coil spring compressor


Ford Hyundai Mitsubishi front suspension spring compressor


suspension special tool manufacturer

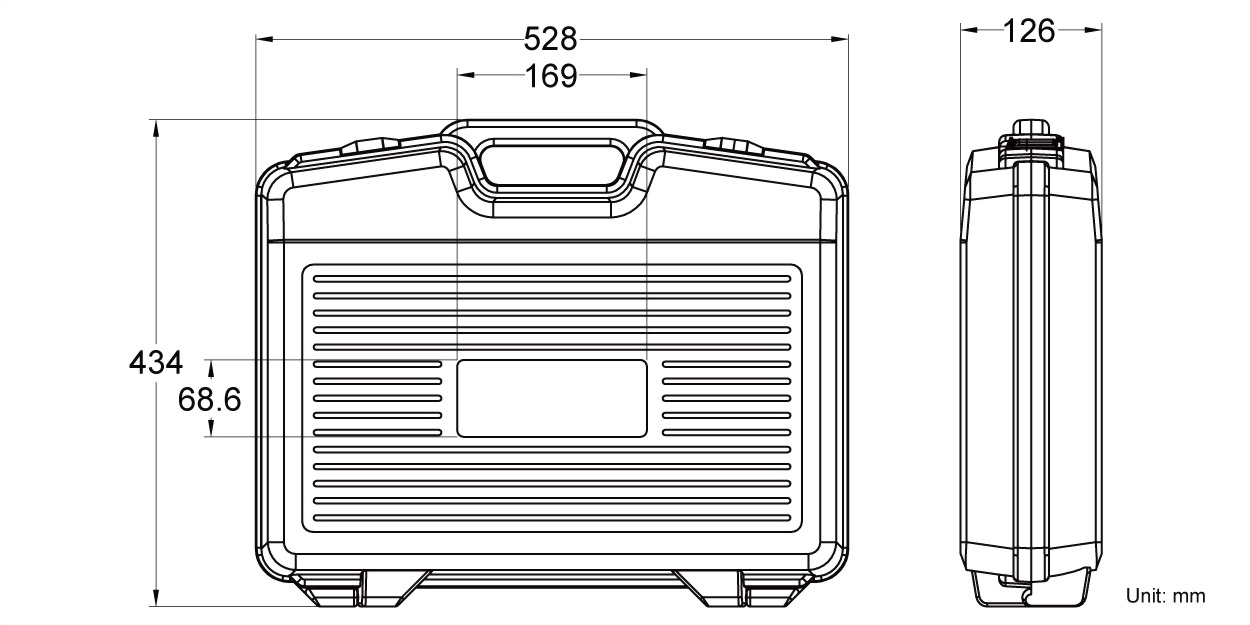

  Package   Blow molded case (red)
  Packing   1 set in a master carton
  Weight per set   14.5 kg   31.9 lbs
  Net weight per carton   14.5 kg   31.9 lbs
  Gross weight per carton   15.5 kg   34.1 lbs
  Size per set   52.8 × 43.4 × 12.6 cm   20.8 × 17.0 × 5.0 in
  Size per carton   53.3 × 44.2 × 13.3 cm   20.9 × 17.4 × 5.2 in
  Volume per carton   0.03 CBM   1.15 CUFT
  Case label size        16.8 × 6.8 cm        6.6 × 2.6 in


No. Image Cosda No. Description

1 Spring Compressor Tool Body (Manual) SD-1007-1
- Specifications

  Dimension              45.7 × 7.8 × 6.4 cm
  Weight   5.2 kg
  Used in (product 1)   SD-1007 (1 pc)
  Used in (product 2)   SD-1007G (1 pc)



2 Small C Jaw (80-115 mm) SD-1007-08
- Specifications

  Dimension              13.0 × 10.0 × 4.2 cm
  Weight   865 g
  Used in (product 1)   SD-1007 (2 pcs)
  Used in (product 2)   SD-1007A (2 pcs)
  Used in (product 3)   SD-1007G (2 pcs)
  Used in (product 4)   SD-1007H (2 pcs)



3 Middle C Jaw (110-150 mm) SD-1007-09
- Specifications

  Dimension              16.2 × 12.6 × 4.6 cm
  Weight   1.2 kg
  Used in (product 1)   SD-1007 (2 pcs)
  Used in (product 2)   SD-1007A (2 pcs)
  Used in (product 3)   SD-1007G (2 pcs)
  Used in (product 4)   SD-1007H (2 pcs)



4 Large C Jaw (140-190 mm) SD-1007-10
- Specifications

  Dimension              21.0 × 14.3 × 4.7 cm
  Weight   1.4 kg
  Used in (product 1)   SD-1007 (2 pcs)
  Used in (product 2)   SD-1007A (2 pcs)
  Used in (product 3)   SD-1007G (2 pcs)
  Used in (product 4)   SD-1007H (2 pcs)



5 Small C Jaw Cover SD-1007-08-01
- Specifications

  Dimension              13.6 × 8.7 × 3.2 cm
  Weight   30 kg
  Used in (product 1)   SD-1007G (2 pcs)
  Used in (product 2)   SD-1007H (2 pcs)



6 Medium C Jaw Cover SD-1007-09-01
- Specifications

  Dimension              16.3 × 10.6 × 3.8 cm
  Weight   45 kg
  Used in (product 1)   SD-1007G (2 pcs)
  Used in (product 2)   SD-1007H (2 pcs)



7 Large C Jaw Cover SD-1007-10-01
- Specifications

  Dimension              21.5 × 12.5 × 2.8 cm
  Weight   52.5 kg
  Used in (product 1)   SD-1007G (2 pcs)
  Used in (product 2)   SD-1007H (2 pcs)



8 Extension Bracket SD-1007-12
- Specifications

  Dimension              6.4 × 4.5 × 4.0 cm
  Weight   592 g
  Used in (product 1)   SD-1007 (1 pc)
  Used in (product 2)   SD-1007A (1 pc)
  Used in (product 3)   SD-1007G (1 pc)
  Used in (product 4)   SD-1007H (1 pc)



9 Internal Hex Bolt - M6×P1.0×25L SD-1007-12-01
- Specifications

  Dimension              3.1 × 0.6 × 0.6 cm
  Weight   7 g
  Used in (product 1)   SD-1007 (3 pcs)
  Used in (product 2)   SD-1007A (3 pcs)
  Used in (product 3)   SD-1007G (3 pcs)
  Used in (product 4)   SD-1007H (3 pcs)


  Suggested HS code   82055990909
  MOQ with laser marking   10 sets
  MOQ without laser marking   2 sets
  Laser marking cost   + TWD 8 on tool body


Certificates of Product Liability Insurance and CE certificate are shown below
