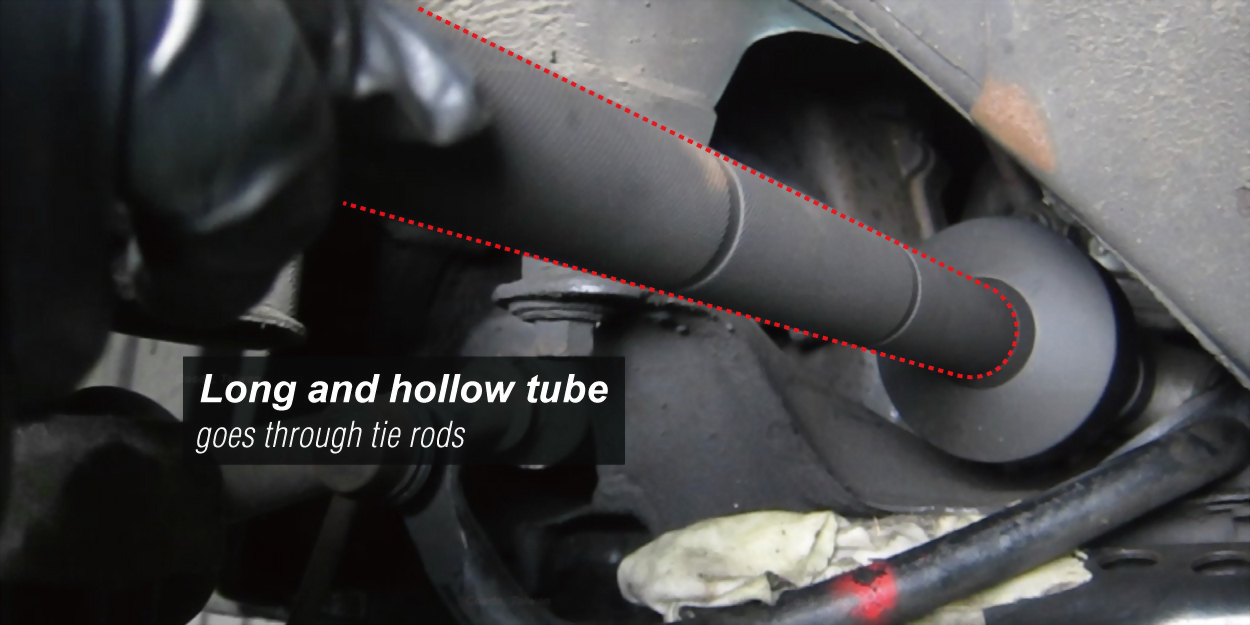

  • Can remove inner tie rod without removing the outer tie rod
  • Inner Tie Rod Removal Set

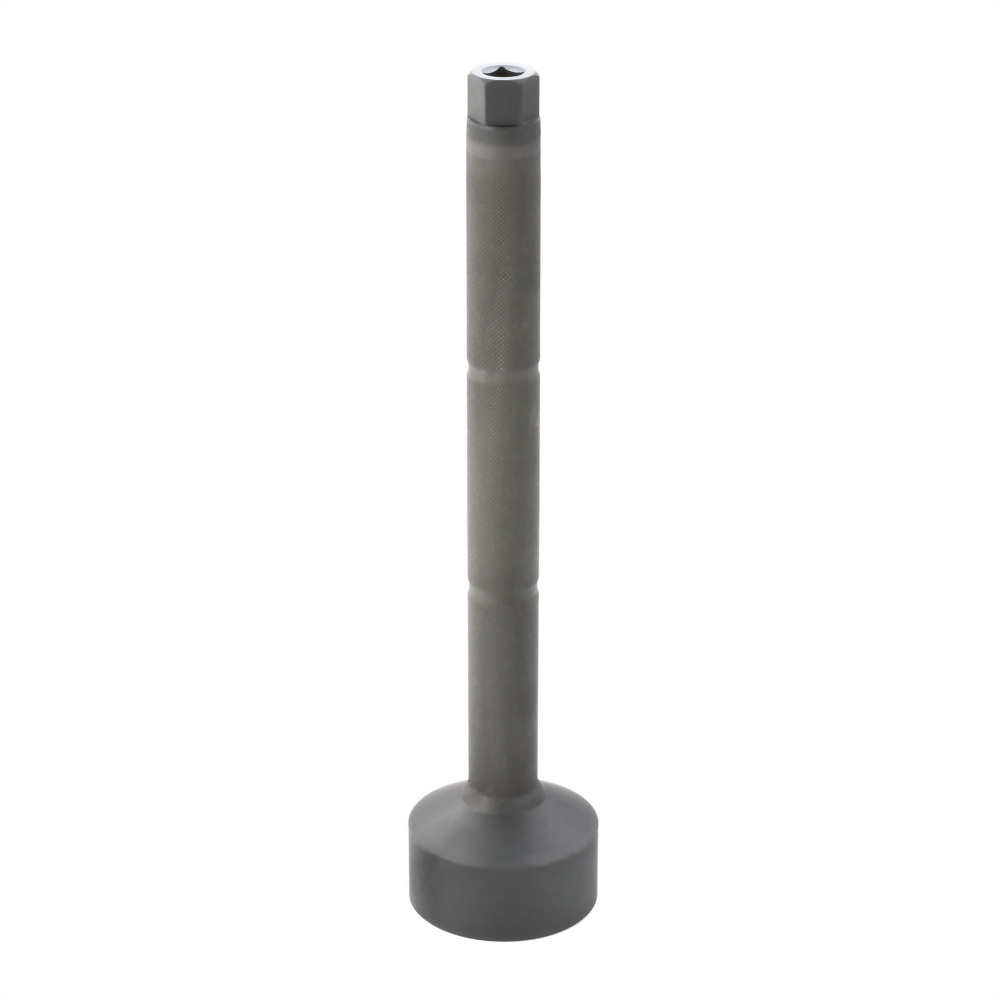

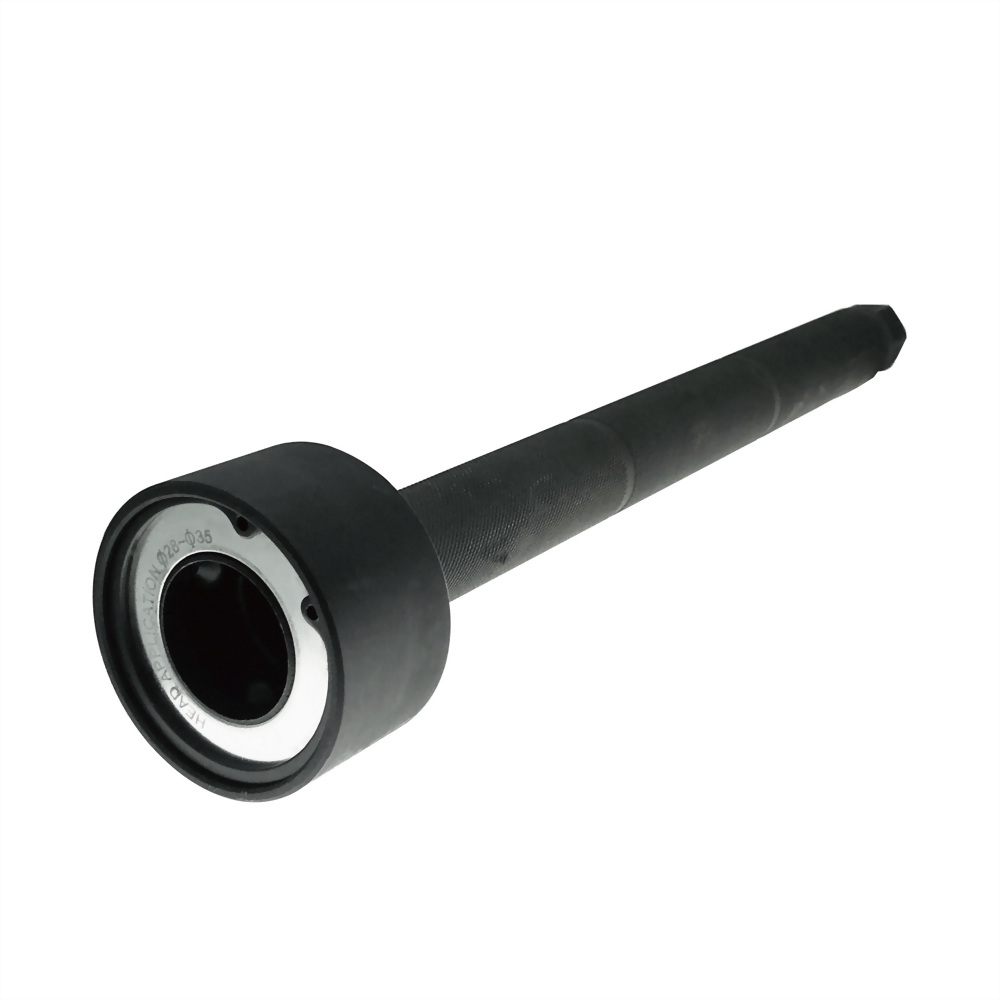

Inner Tie Rod Tool (Ø28-35mm)

Model No.: SD-1091B

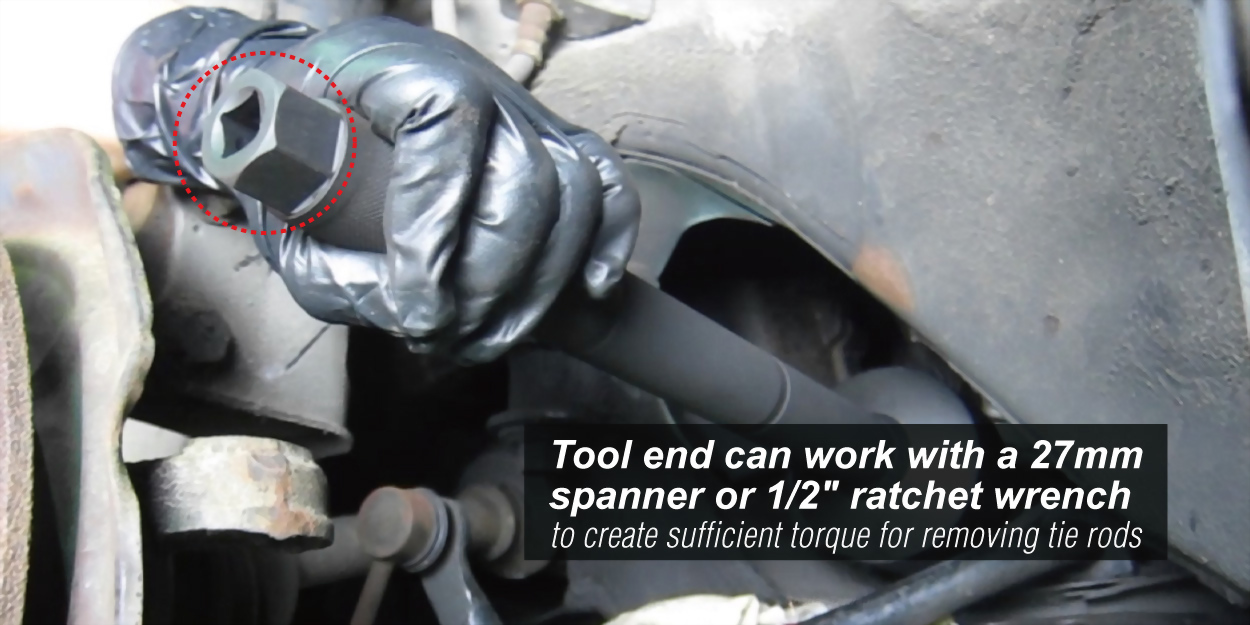

• To remove fast and easily worn tie rods and install new tie rods with a 27mm spanner or 1/2″ ratchet wrench

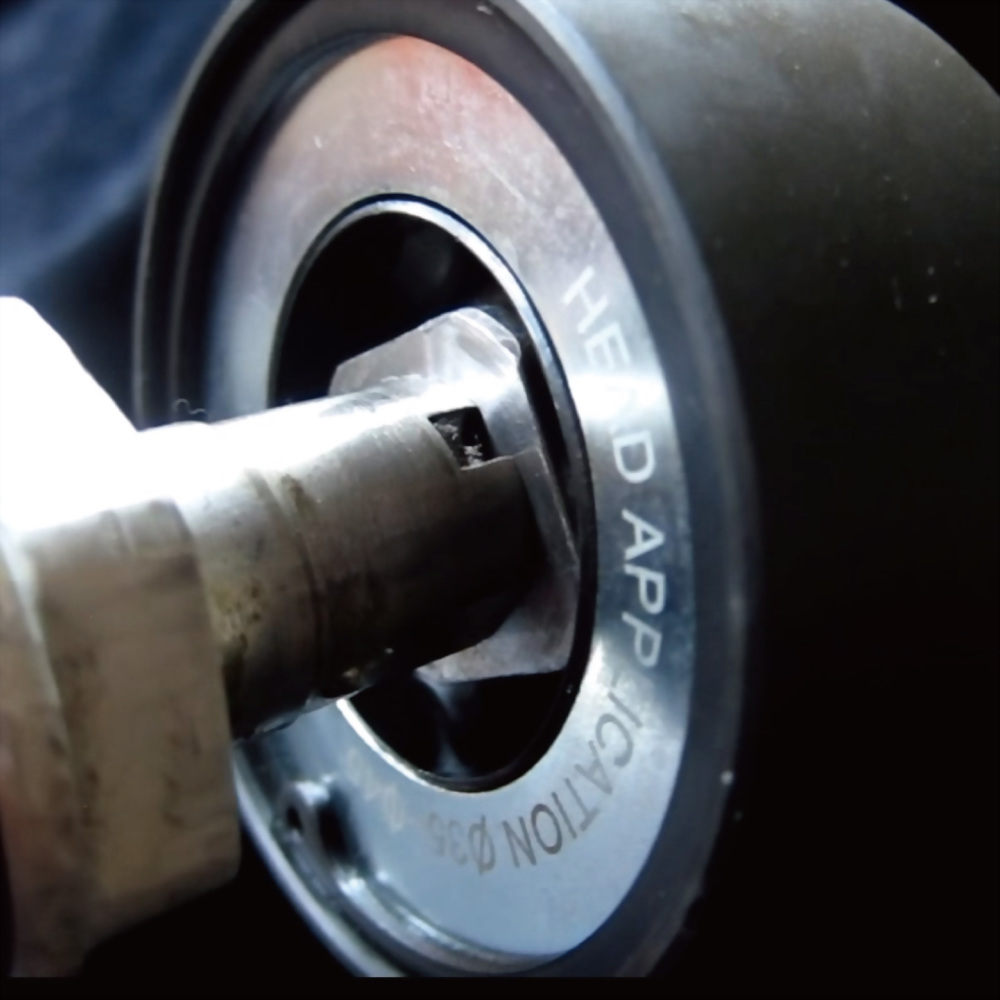

• Special head design grips tie rod end firmly by turning clockwise and anti-clockwise

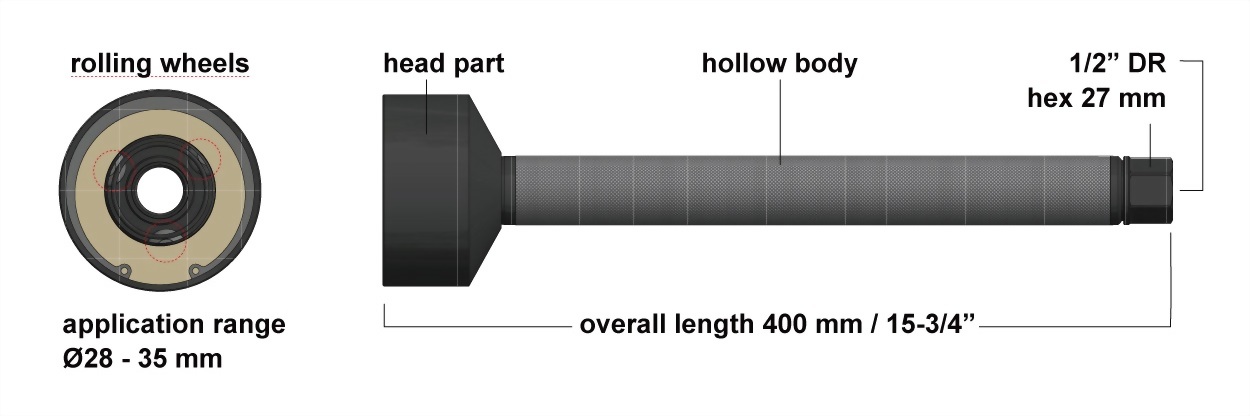

• Application range Ø28-35 mm, suitable for small European and Japanese cars

• Tool NOT designed to be used with an air/impact wrench

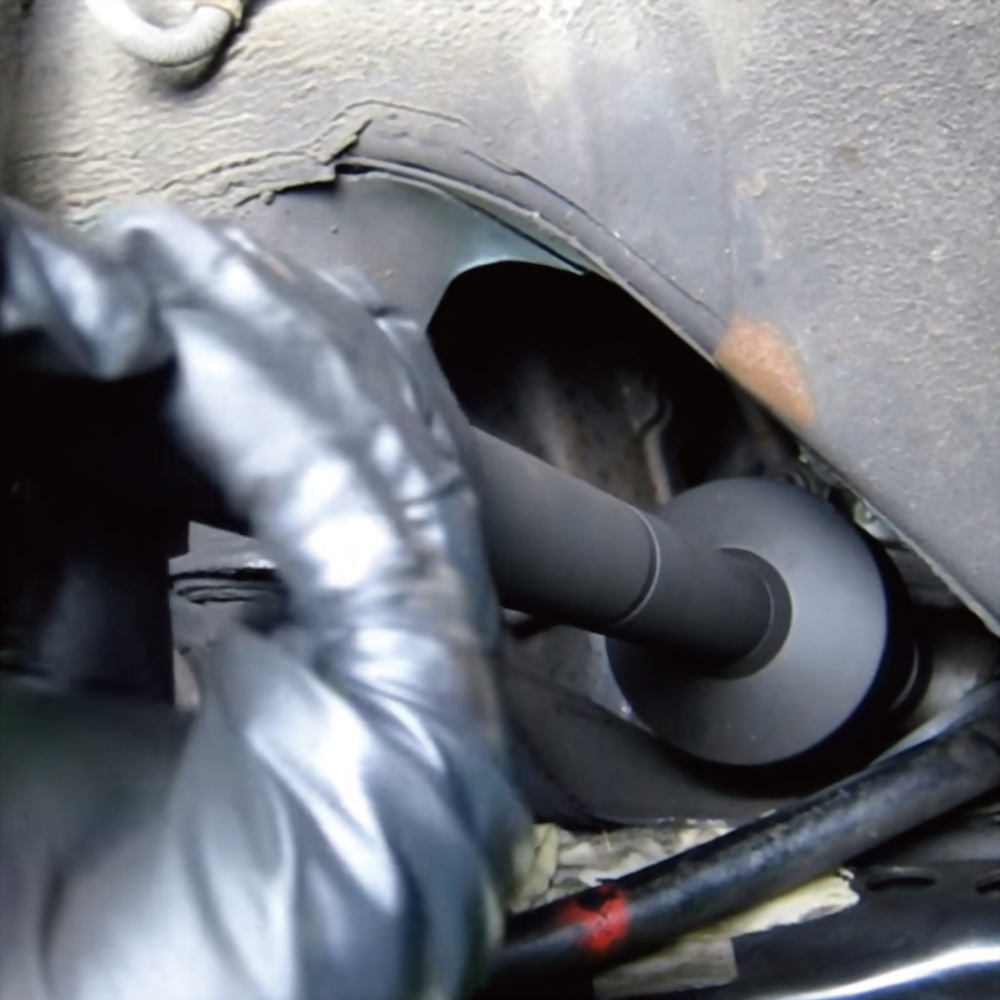

to replace inner tie rods without removing the rack


tie rod Forged steel construction for durability


Steering Tool Tie Rod Tool


Tie Rod End Tool

steering tool tie rod maintenance

steering system tool manufacturer

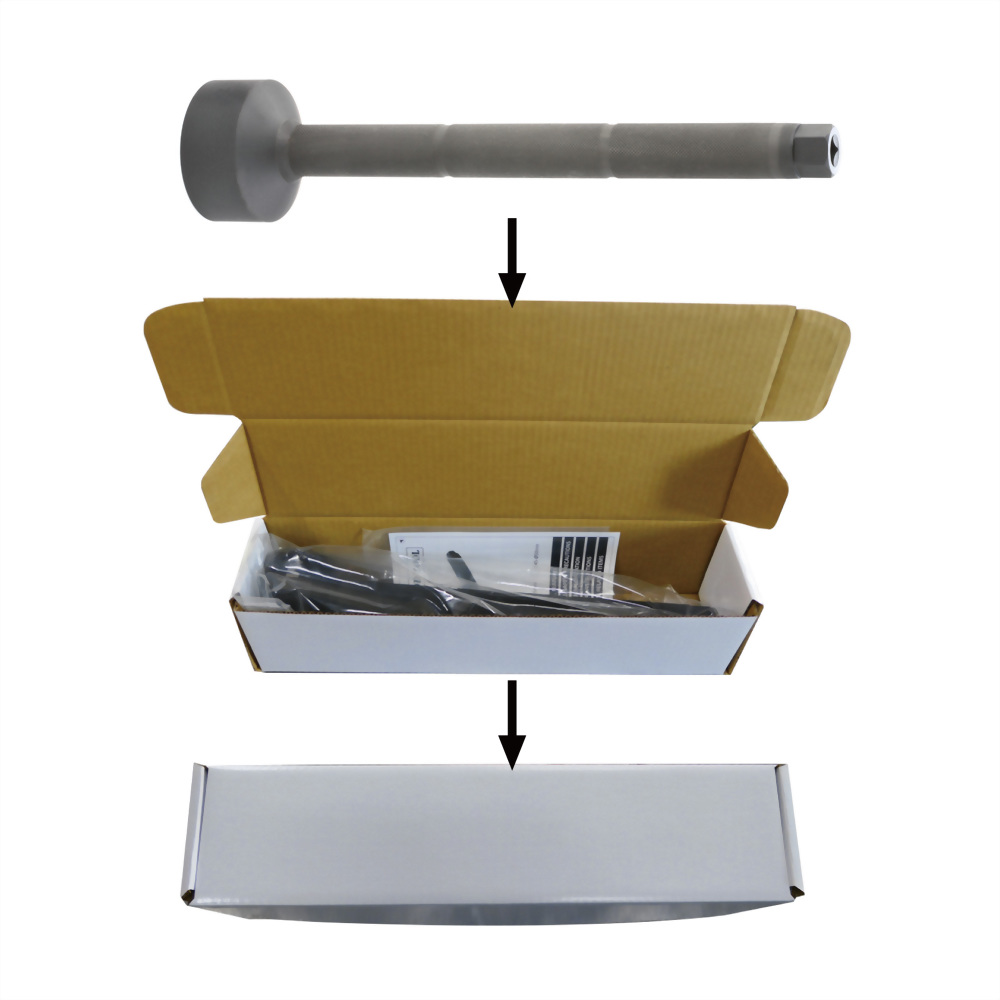

  Package   White box
  Packing   10 set in a master carton
  Weight per set   1.8 kg   4.0 lbs
  Net weight per carton   17.5 kg   38.5 lbs
  Gross weight per carton   18.5 kg   40.7 lbs

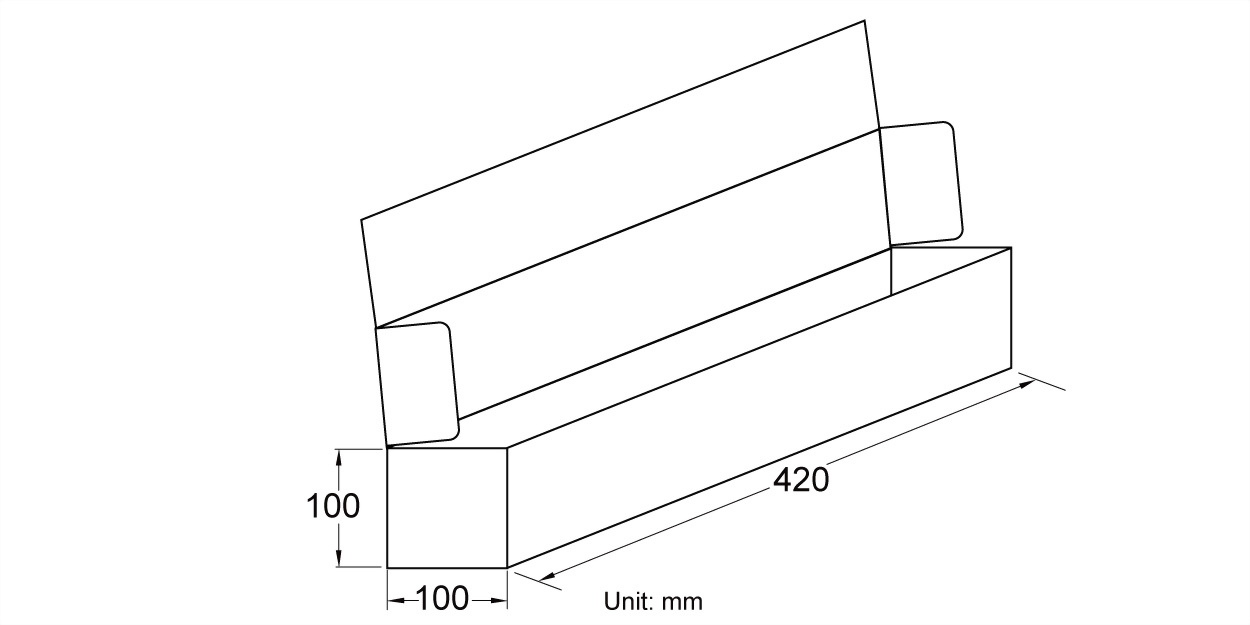

  Size per set   10.0 × 10.0 × 42.0 cm   3.9 × 3.9 × 16.5 in
  Size per carton   44.2 × 21.5 × 50.0 cm   17.4 × 8.5 × 19.7 in
  Volume per carton   0.05 CBM   1.7 CUFT

  Suggested HS Code   82055990909
  MOQ with laser marking   20 sets
  MOQ without laser marking   10 sets
  Laser marking cost   + TWD 4 on head part
