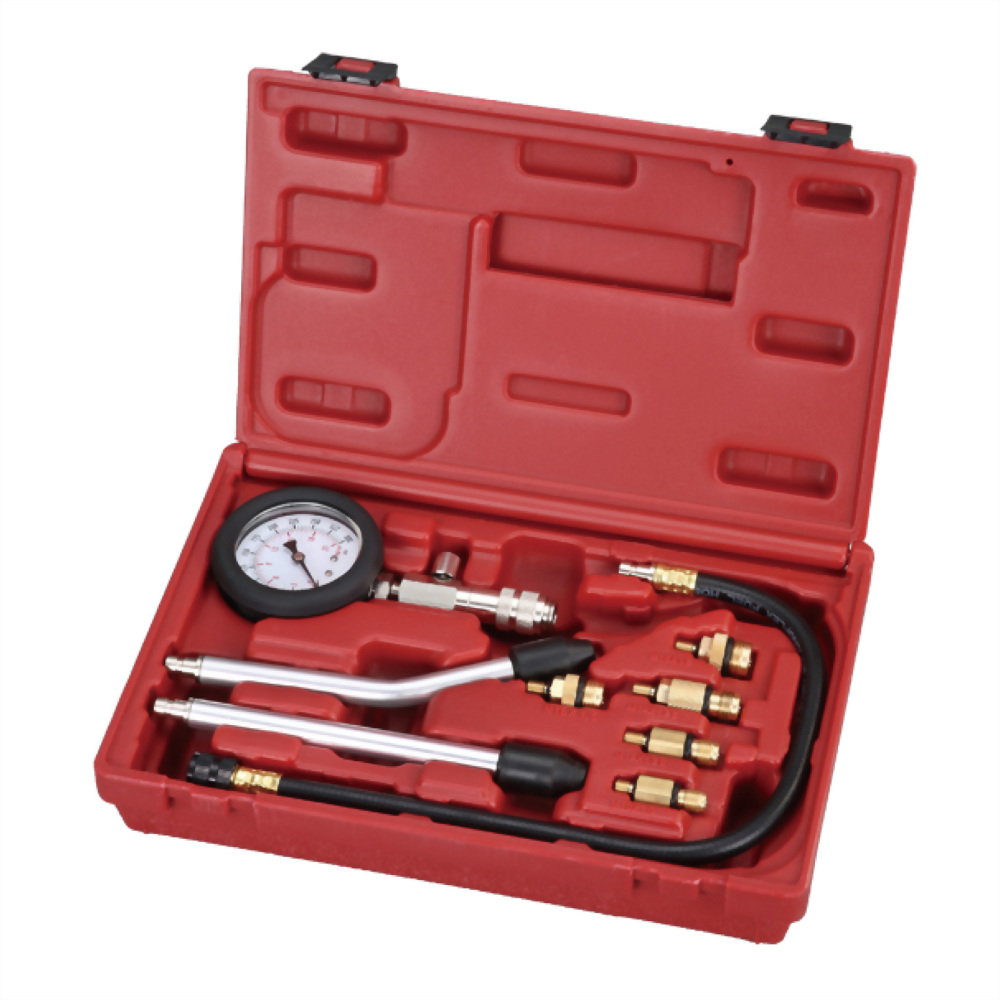

Gasoline Compression Tester (9 pcs)

Model No.: SD-1028_B
• Set for testing cylinder compression pressure on gasoline engines

• Provided with mostly common used spark plug adapters, sizes are M10 × 1.00, M12 × 1.25, M14 × 1.25, M16 × 1.50, M18 × 1.50

• Includes aluminum test tubes, fitting in-line and V-shape engines

• Rubber tube equipped with an enhance locking design, preventing the adapter from being left on the spark plug hole when disconnecting the rubber tube

Compression Tester Kit for Gasoline Engines


Gasoline Engine Compression Tester Kit With Adapters for Ford Triton


Compression Tester Kit for Gasoline Motorcycle Boat Small Engines Car Truck


Cylinder Compression Tester Gas Petrol Engine Gauge Kit for Car


Gas Cylinder Compression Gauge Tester


Special adapter for Ford F-150 M16


Compression Tester Gauge Kit For Automotive Petrol engine




Compression tester kit for petrol engines 0-300psi






  Package   Blow molded case (red)
  Packing   10 sets in a master carton
  Weight per set   1.2 kg   2.6 lbs
  Net weight per carton   12.0 kg   26.4 lbs
  Gross weight per carton   13.0 kg   28.6 lbs
  Size per set   30.0 × 20.2 × 6.7 cm   11.8 × 8.0 × 2.6 inch
  Size per carton   42.0 × 36.0 × 31.5 cm   16.5 × 14.2 × 12.4 inch
  Volume per carton   0.048 CBM   1.7 CUFT
  Case label size   19.5 × 7.0 cm   7.6 × 2.7 inch


No. Image Cosda No. Description

1 Pressure Gauge Assembly SD-1028-1
- Specifications

  Dimension              7.7 × 3.9 × 15.2 cm
  Weight   270 g



2 High Pressure Soft Hose SD-1028-2
- Specifications

  Dimension              1.8 × 1.8 × 45.0 cm
  Weight   70.2 g



3 Spark Plug Hole Straight Tube SD-1028-3
- Specifications

  Dimension              2.0 × 2.0 × 18.6 cm
  Weight   59 g



4 Spark Plug Hole Angled Tube SD-1028-4
- Specifications

  Dimension              2.0 × 4.8 × 18.6 cm
  Weight   59 g



5 M10 × P1.00 spark plug adapter SD-1028-M10
- Specifications

  Dimension              1.3 × 1.3 × 3.5 cm
  Weight   25.5 g



6 M12 × P1.25 spark plug adapter SD-1028-M12
- Specifications

  Dimension              1.3 × 1.3 × 4.0 cm
  Weight   29.5 g



7 M14 × P1.25 spark plug adapter SD-1028-M14
- Specifications

  Dimension              1.6 × 1.6 × 4.6 cm
  Weight   45 g



8 M16 × P1.50 spark plug adapter SD-1028-M16
- Specifications

  Dimension              1.7 × 1.7 × 3.3 cm
  Weight   32.5 g



9 M18 × P1.50 Spark Plug Adapter SD-1028-M18
- Specifications

  Dimension              1.9 × 1.9 × 3.3 cm
  Weight   38.5 g


  Suggested HS code   90262092007
  MOQ with laser marking   20 sets
  MOQ without laser marking   10 sets
  Laser marking cost   + TWD 3
