Diesel Engine Compression Tester Kit with Hydraulic Gauge Glow Plug Injector Adapters
• High quality hydraulic pressure gauge provides accurate reading and prevents damages on gauge due to high pressure

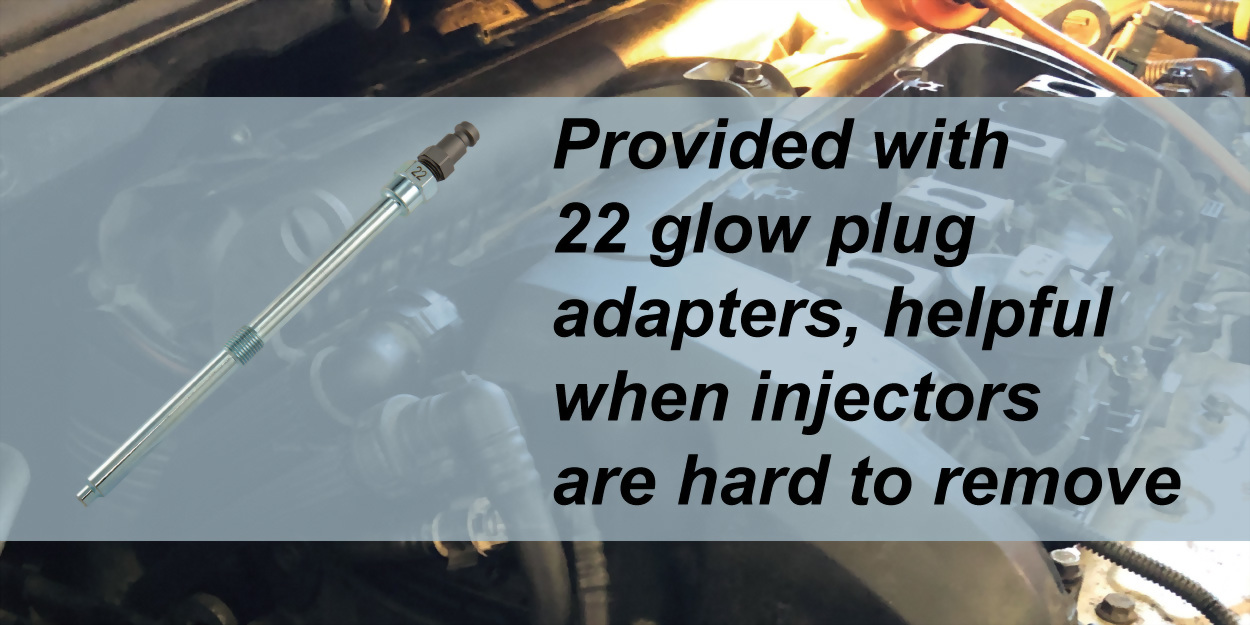

• Glow plug adapters are helpful when diesel injectors are difficult to remove because of carbon deposits
• Provided with a 90-degree adapter for fitting gauge to injector (or glow plug) adapter in limited spaces
• Includes 4 injector adapters and a universal injector adapter kit (contained in small box). The clamp-on adapters offer more applications on truck, van, bus, marine, and agricultural machinery
Diesel Compression Tester for Engine Diagnostics | OEM Automotive Tool Manufacturer

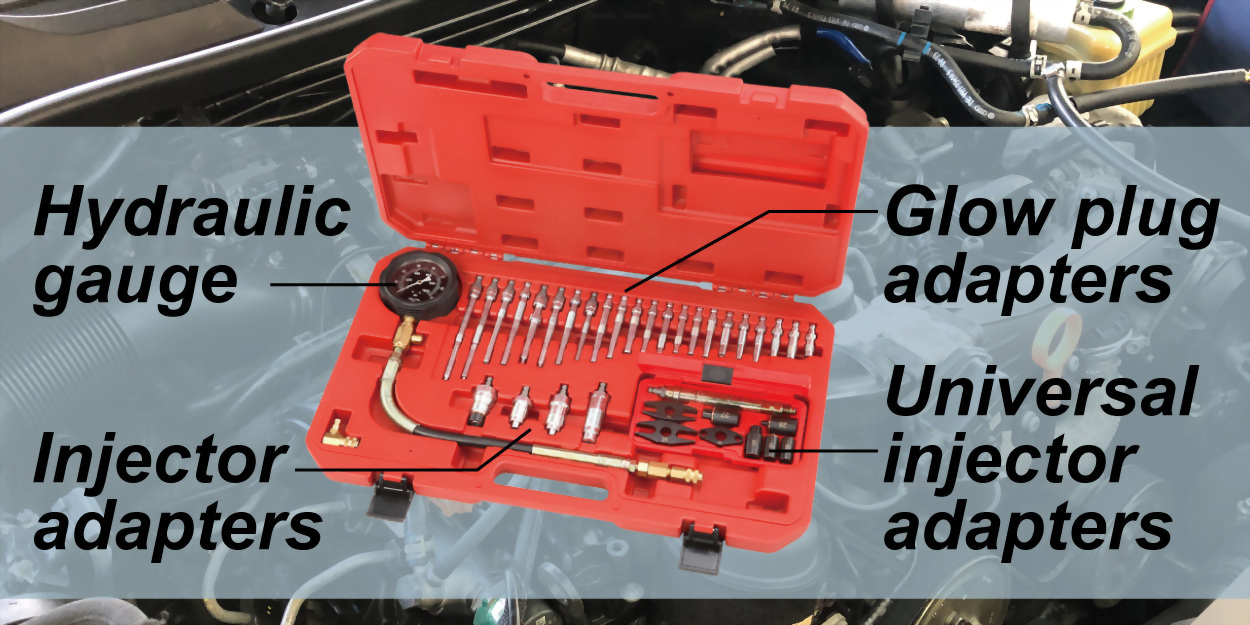

This big set for testing diesel engine compression pressure with several adapters is definitely worth it. To begin with, the gauge has a big pressure range, from 0 to 70 bar, or 0 to 1000 psi. When you take a closer look, you might see that there is fluid filled inside the gauge, and that's glycol. The purpose of filling this fluid in the gauge is to protect the gauge reader. In some cases, when the diesel engine compression pressure is very high, the gauge reader may be damaged by a sudden jump, so the glycol is able to slow down the pace for the reader to go up. As you can see in the instruction video below, the reader goes up slowly just like you are watching a second needle ticking on a traditional clock. The gauge has a rubber boot that can also protect the gauge in case that the gauge falls to the ground, and the rubber boot gives a sturdy and robust hand held feeling. Of course, do not forget to release the pressure once the compression pressure test is done.

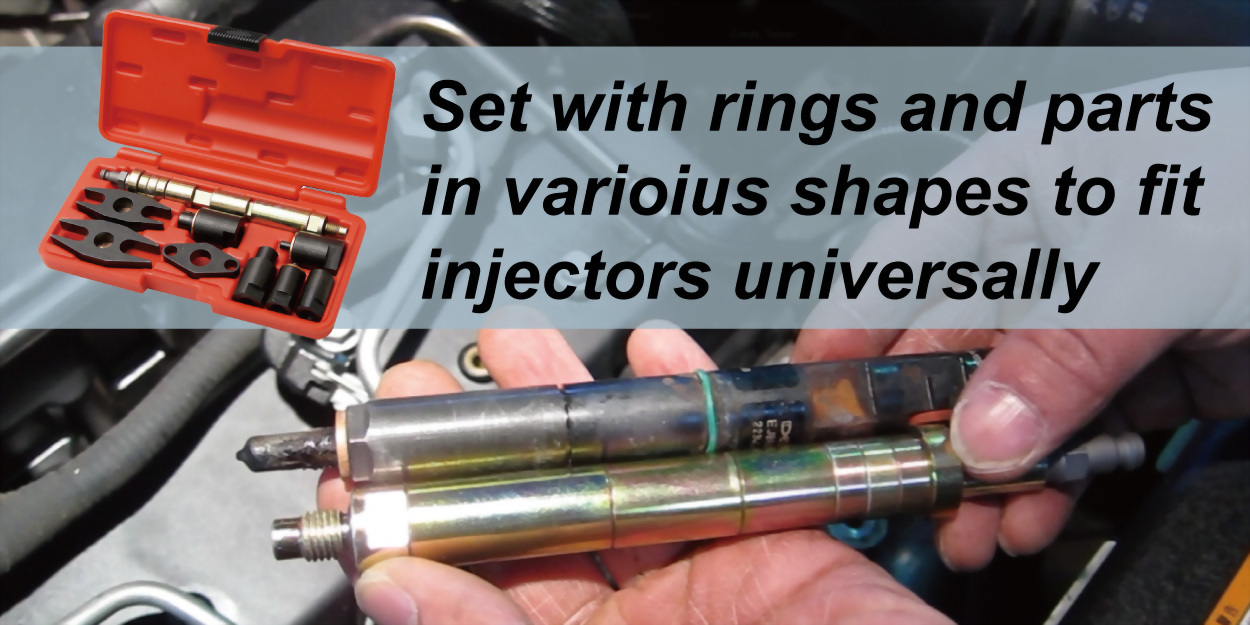

The small case in this big set is a universal adapter for diesel engine injectors. The rings and attachments in the small case can be inserted into the central shaft. Once you remove the diesel injector, try to mimic the injector's shape with the rings and attachments, and finally make a comparison to make sure that the shapes are similar. There are also seat holders provided in the small case that can fit onto the injector to the engine with the original bolts from the engine.
On some occasions, the diesel injectors are seriously stuck because of the carbon buildup and removing the injectors may break or create minor damages to the injectors. You may want to remove the glow plugs as an alternative way to get access to the combustion chamber. This big set includes 22 glow plug adapters that literally cover the majority of the diesel engines on the market. Simply screw the glow plug adapter into the engine and connect the quick coupler on the gauge and we can proceed to the next step.
Each engine compartment has different configurations, and the glow plugs may be situated on the sides of the engine and that may create a space problem when we try to hook up the gauge to the glow plug adapters. Thus, a 90 degree adapter is included in this big set so you may still be able to get every part connected even in an engine bay with limited access.

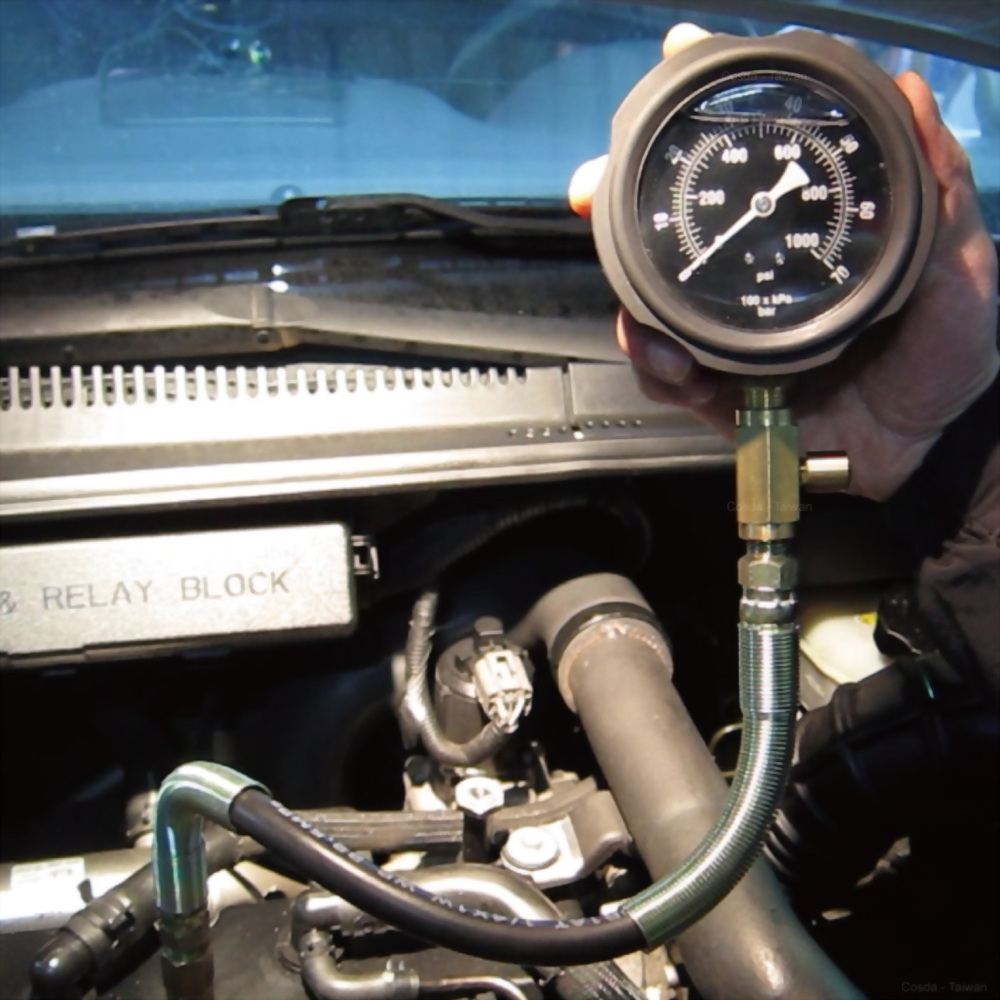

Once all parts are securely connected, remove the fuel pump relay before turning on the engine. We just want to check the compression pressure, but we don't want to actually test the explosion inside the combustion chamber. Let the engine run for a few seconds, and the pressure will slowly build up and can be read on the gauge. Check the automotive manufacturer's service manual for the standard compression pressure values, and take the proper steps as suggested by the service manual if incorrect compression pressure values are found.
This tool is developed and manufactured by Cosda Manufacturing Company, a leading tool manufacturer in the city of Taichung, Taiwan. Cosda has over 40 years of manufacturing experience in the tool and machining industry, and focuses on B2B trading with tool brands around the world looking for private branding services. Cosda has been working with major tools brands in Australia, the EU countries, Japan, the UK, and the US. We also welcome new opportunities for expanding our market. If you have any ideas but you are not able to find someone to turn your idea into actual products, please talk to us and we will see if we can find a solution.
Key Features
1. Designed
for diesel engine compression testing to help assess combustion condition
SD-8003 is designed for
diesel engine compression pressure testing, helping technicians inspect
cylinder sealing, piston rings, valves, and combustion chamber condition. When
a vehicle has hard starting, unstable idling, power loss, or abnormal smoke, it
provides a clearer diagnostic reference.
2. 0–70 bar / 0–1000 psi high-range pressure gauge for diesel compression testing
Diesel engines operate with higher compression pressure, so the tester requires a sufficient pressure range. SD-8003 is equipped with a 0–70 bar / 0–1000 psi pressure gauge, allowing technicians to compare test results with the vehicle manufacturer’s service specifications.
3. Liquid-filled pressure gauge for more stable readings
The liquid-filled gauge helps reduce pointer vibration caused by sudden high-pressure impact, making readings smoother and easier to interpret. For diesel repair environments, this improves durability and supports more stable diagnosis.
4. Supports injector and glow plug testing routes for greater service flexibility
If the injector is difficult to remove due to heavy carbon buildup, technicians can perform compression testing through the glow plug port instead. SD-8003 includes both injector and glow plug adapters, making it suitable for different engine conditions and limited-access service areas.
5. Includes 4 injector adapters and a universal injector adapter set
The kit includes 4 injector adapters and a small-box universal injector adapter set to fit more diesel engine interfaces. It is suitable for servicing diesel trucks, vans, buses, marine engines, and agricultural machinery.
6. 90° adapter improves connection in tight spaces
When access around the injector port or glow plug port is limited, the 90° adapter helps improve the connection angle between the hose and pressure gauge. This reduces forced connections, interference, and installation difficulty during service.
7. Rubber-protected pressure gauge for better workshop durability
The pressure gauge is fitted with a rubber protective cover to reduce the risk of damage from daily impact or accidental drops. For high-use repair shops and diesel service teams, this helps extend tool life and reduce maintenance costs.
8. Suitable for diesel passenger cars, commercial vehicles, and heavy-duty equipment
SD-8003 supports compression testing for diesel passenger cars, trucks, vans, buses, marine engines, and agricultural machinery. One kit can cover multiple diesel engine applications, improving B2B purchasing value and workshop utilization.
Background Knowledge
1|When to Use
- When a diesel engine experiences hard starting, power loss, rough running, or abnormal combustion, and cylinder compression pressure needs to be checked.
- When comparing compression pressure between cylinders as part of diesel engine mechanical diagnosis.
- When diesel injectors are difficult to remove due to carbon deposits, and compression testing can instead be performed through an applicable glow plug port.
- When limited space around an injector or glow plug requires a 90-degree adapter for gauge connection.
- When servicing a wide variety of diesel applications, including trucks, vans, buses, marine engines, and agricultural machinery.
Source Reference
Diesel engine compression testing can be used as part of the diagnostic process to evaluate cylinder sealing and mechanical condition. Actual pressure specifications, test conditions, and allowable cylinder-to-cylinder variation should always be determined according to the engine manufacturer's service specifications.
References:
- Bosch, Diesel-Engine Management — Diesel Engine Diagnosis and Compression Principles
- OEM Service Manuals — Compression Pressure Inspection Procedures
2|Why You Need It
✔ Designed for diesel compression testing
Diesel engines operate with high compression pressure. The high-quality hydraulic pressure gauge provides stable readings while helping protect the gauge against damage caused by high pressure.
✔ Glow plug adapters provide an alternative testing method
When injectors are difficult to remove because of carbon deposits or installation conditions, an applicable glow plug adapter may allow compression testing without removing the injector.
✔ 90-degree adapter for limited spaces
The 90-degree adapter makes it easier to connect the gauge when space around the injector or glow plug port is restricted.
✔ Multiple injector adapter options
The kit includes:
- 4 injector adapters
- 1 universal injector adapter kit
- Clamp-on adapters
This provides greater flexibility across different diesel engine applications.
✔ Extended application coverage
The universal clamp-on adapters expand applications beyond passenger vehicles to trucks, vans, buses, marine engines, and agricultural machinery.
3|Risks of Not Using It
- Actual cylinder compression cannot be directly verified.
- Symptoms alone may make it difficult to distinguish between fuel-system and internal mechanical problems.
- Misdiagnosis may lead to unnecessary component replacement.
- Removing heavily carboned injectors unnecessarily may increase service difficulty.
- A standard pressure gauge may not be suitable for the high compression pressure of diesel engines.
- Limited access may make gauge installation difficult without a 90-degree adapter.
Source Reference
Low cylinder compression can be associated with mechanical conditions involving valves, pistons/piston rings, cylinder wear, or cylinder-head sealing. Compression testing is one part of the diagnostic process, and additional inspection may be required to identify the root cause.
References:
- Bosch, Diesel-Engine Management
- OEM Diesel Engine Diagnostic / Service Procedures
4|Benefits After Using It
✔ More efficient diesel engine diagnosis
Directly measures and compares cylinder compression pressure.
✔ Better protection for high-pressure testing
The hydraulic gauge is designed to provide stable readings while reducing the risk of gauge damage under high compression pressure.
✔ Flexible testing options
Depending on engine design, testing can be performed through either the injector port or glow plug port.
✔ Easier operation in restricted spaces
The 90-degree adapter improves gauge connection where access is limited.
✔ Broader diesel application coverage
Multiple injector adapters and the universal clamp-on adapter kit support passenger, commercial, marine, and agricultural diesel applications.
✔ More informed repair decisions
Measured compression readings can be compared with OEM specifications to determine the appropriate next diagnostic step.
Solutions
Solution 1 – Laser Logo Marking for Diesel Compression Tester Kits
Add laser logo marking to the tool, gauge, or adapter surface to create a more professional branded diesel compression tester for tool brands, distributors, and private label programs.
Key Benefits
- The available tool surface can be laser marked with your logo to strengthen brand recognition.
- Laser marking provides a clean and durable finish suitable for professional diesel diagnostic tools.
- This is a practical option for brands developing their own diesel compression testing tool range.
Solution 2 – Custom Case Labels for Private Label Diesel Diagnostic Tools
Customize the blow molded case label to give this diesel compression test kit a more complete branded presentation.
Key Benefits
- The case label can be customized with your logo, product information, and preferred layout.
- A branded case helps create a more professional presentation for retail, distribution, and private label sales.
- If needed, we can also support label artwork preparation based on your branding requirements.
Solution 3 – Custom Case Colors for Diesel Compression Test Kits
Customize the blow molded case color to make this diesel compression tester kit more distinctive and better aligned with your existing tool range.
Key Benefits
- The case color can be changed according to your preferred Pantone or color reference.
- MOQ can be confirmed based on the selected color and production requirements.
- A custom case color helps create a more consistent appearance across your automotive diagnostic tool line.
Solution 4 – Multi-Language Manuals for Global Diesel Tool Sales
Support international distribution with a localized instruction manual, making this diesel engine compression tester easier to understand and use in different markets.
Key Benefits
- The instruction manual can be printed in your local language; you only need to provide the translated file.
- Local-language instructions help users understand the testing procedure and adapter applications more clearly.
- This is a practical option for importers and distributors selling diesel engine diagnostic tools in non-English-speaking markets.
Q&A
Q1: What is a diesel engine compression tester used for?
A: A diesel engine compression tester is used to measure cylinder compression pressure and help diagnose engine problems such as low compression, worn piston rings, valve leakage, or cylinder sealing issues.
Q2: What is the pressure range of this diesel compression tester?
A: This diesel compression tester features a pressure range of 0–70 bar / 0–1000 PSI, making it suitable for professional diesel engine compression testing and automotive diagnostics.
Q3: Can this diesel compression tester be used in tight engine compartments?
A: Yes. The kit includes an angled adapter that helps connect the compression tester in tight or limited-access engine compartments, making diesel engine testing easier
Q4: Can this diesel compression tester be supplied with OEM or private label service?
A: Yes. COSDA is a Taiwan automotive tool manufacturer offering OEM, ODM, and private label services for professional automotive tools, distributors, importers, and tool brands.
Q5. How do I know if my diesel engine has low compression?
A: Common signs of low diesel engine compression include hard starting, loss of power, rough idle, excessive smoke, and poor fuel efficiency. A diesel compression tester can help confirm cylinder pressure and identify possible engine problems.
| Package | Blow molded case (red) | |
| Packing | 4 sets in a master carton | |
| Weight per set | 2.6 kg | 5.8 lbs |
| Net weight per carton | 10.5 kg | 23.1 lbs |
| Gross weight per carton | 11.5 kg | 25.3 lbs |

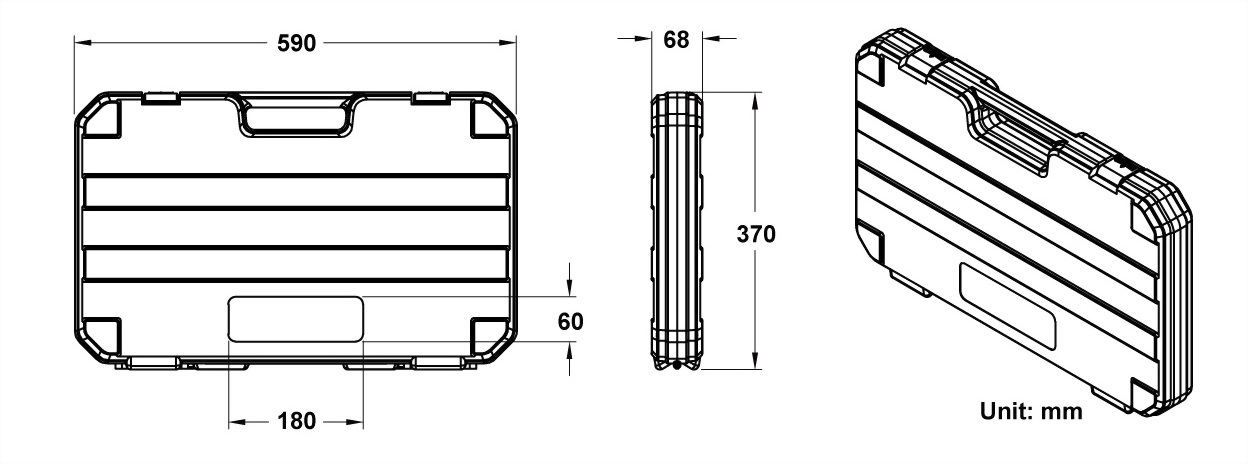

| Size per set | 59.0 × 37.0 × 6.8 cm | 23.2 × 14.6 × 2.7 inch |
| Size per carton | 60.5 × 38.5 × 29.0 cm | 23.8 × 15.2 × 11.4 inch |
| Volume per carton | 0.068 CBM | 2.4 CUFT |
| Case label size | 18.0 × 6.0 cm | 7.1 × 2.3 inch |
| No. | Image | Cosda No. | Description | |||||
|---|---|---|---|---|---|---|---|---|
| 1 | SD-8003-36(NPT) | Hydraulic Pressure Gauge | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 2 | SD-8003-1 | No. 1 Glow Plug Adapter M12 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 3 | SD-8003-2 | No. 2 Glow Plug Adapter M12 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 4 | SD-8003-3 | No. 3 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 5 | SD-8003-4 | No. 4 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 6 | SD-8003-5 | No. 5 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 7 | SD-8003-6 | No. 6 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 8 | SD-8003-7 | No. 7 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 9 | SD-8003-8 | No. 8 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 10 | SD-8003-9 | No. 9 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 11 | SD-8003-10 | No. 10 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 12 | SD-8003-11 | No. 11 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 13 | SD-8003-12 | No. 12 Glow Plug Adapter M12 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 14 | SD-8003-13 | No. 13 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 15 | SD-8003-14 | No. 14 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 16 | SD-8003-15 | No. 15 Glow Plug Adapter M8 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 17 | SD-8003-16 | No. 16 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 18 | SD-8003-17 | No. 17 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 19 | SD-8003-18 | No. 18 Glow Plug Adapter (Unthreaded) | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 20 | SD-8003-19 | No. 19 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 21 | SD-8003-20 | No. 20 Glow Plug Adapter M9 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 22 | SD-8003-21 | No. 21 Glow Plug Adapter M10 × P1.25 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 23 | SD-8003-22 | No. 22 Glow Plug Adapter M10 × P1.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 24 | SD-8003-23 | No. 23 Injector Adapter M22 × P1.50 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 25 | SD-8003-24 | No. 24 Injector Adapter M24 × P1.50 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 26 | SD-8003-25 | No. 25 Injector Adapter M20 × P1.50 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 27 | SD-8003-26 | No. 26 Injector Adapter M24 × P2.00 | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 28 | SD-8003-27 | No. 27 Universal Injector Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 29 | SD-8003-28 | No. 28 Universal Injector Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 30 | SD-8003-29 | No. 29 Universal Injector Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 31 | SD-8003-30 | No. 30 Universal Injector Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 32 | SD-8003-31 | No. 31 Universal Injector Adapter | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 33 | SD-8003-32 | Universal Injector with Rings | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 34 | SD-8003-33 | No. 33 Adapter Seat | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 35 | SD-8003-34 | No. 34 Adapter Seat | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 36 | SD-8003-35 | No. 35 Adapter Seat | More![]() |
|||||
|
- Specifications
|
||||||||
|
|
||||||||
| 37 | SD-1085-18 | 90º Connector | More![]() |
|||||
|
- Specifications
|
||||||||
| Suggested HS code |
90262092007 |
| MOQ | 4 sets |
| Laser marking | Not available |
