Diesel Low Pressure Diagnosis Set

Model No.: SD-1845

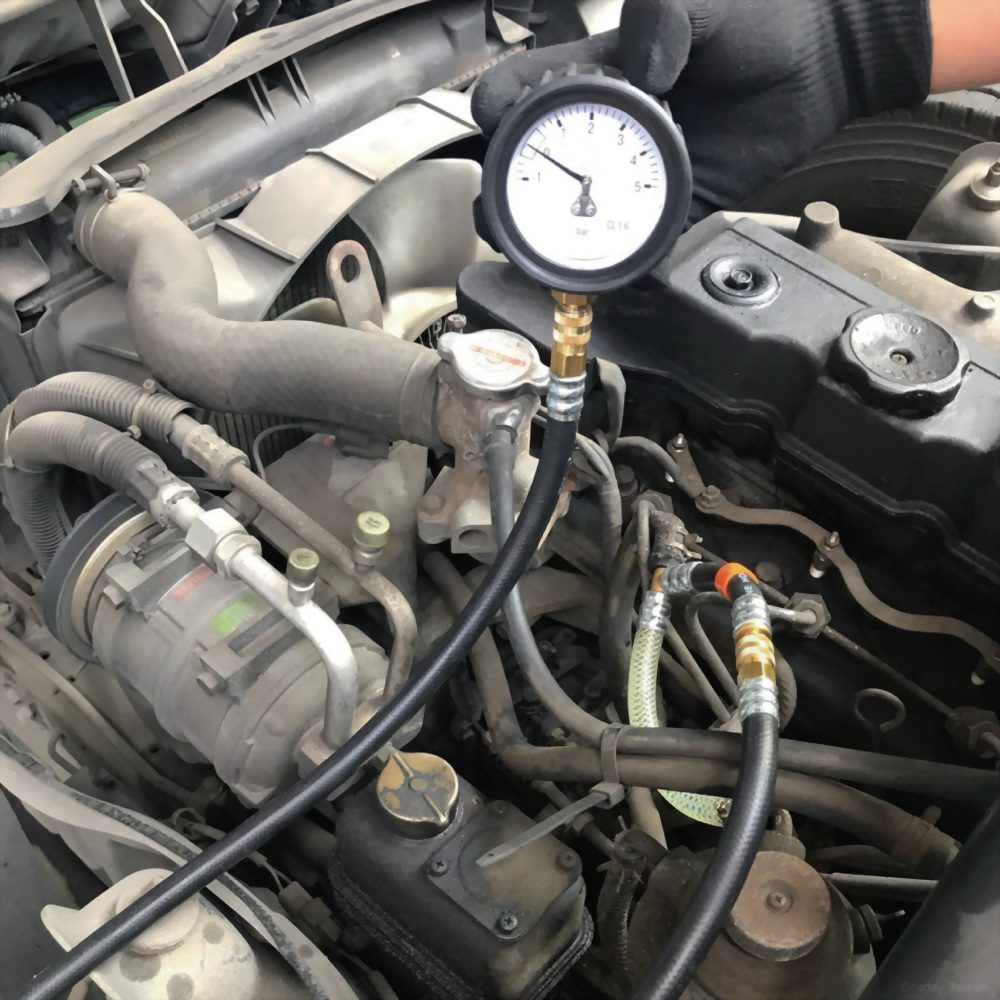

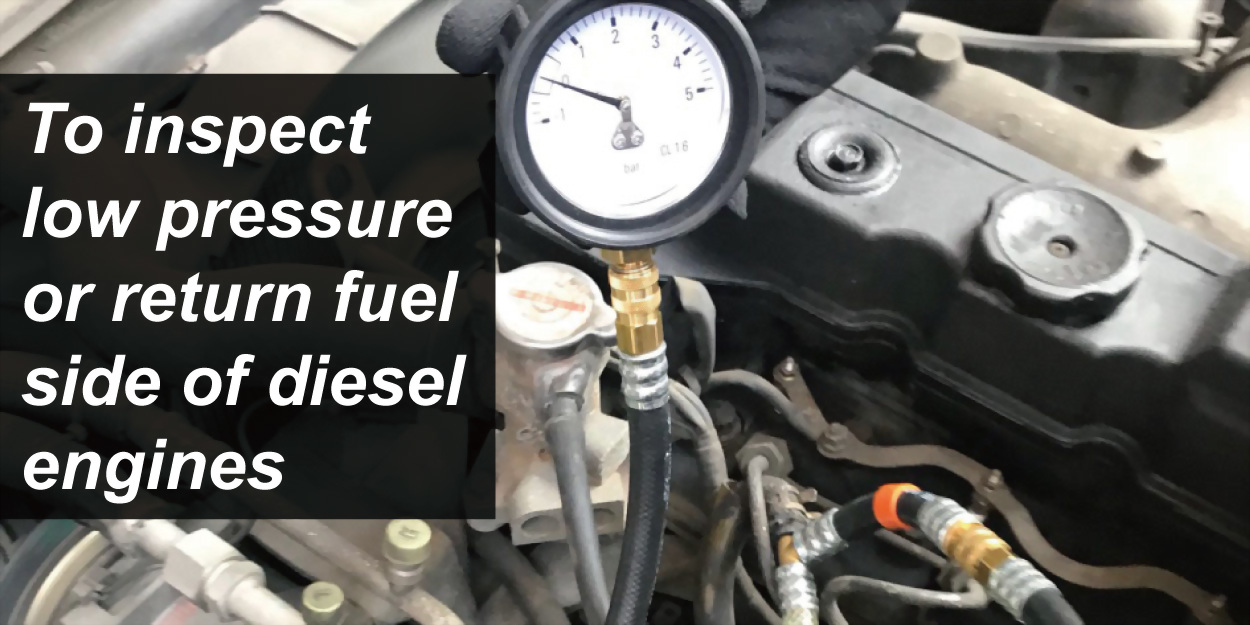

• This diagnostic set is to inspect low pressure or return fuel side of diesel engines

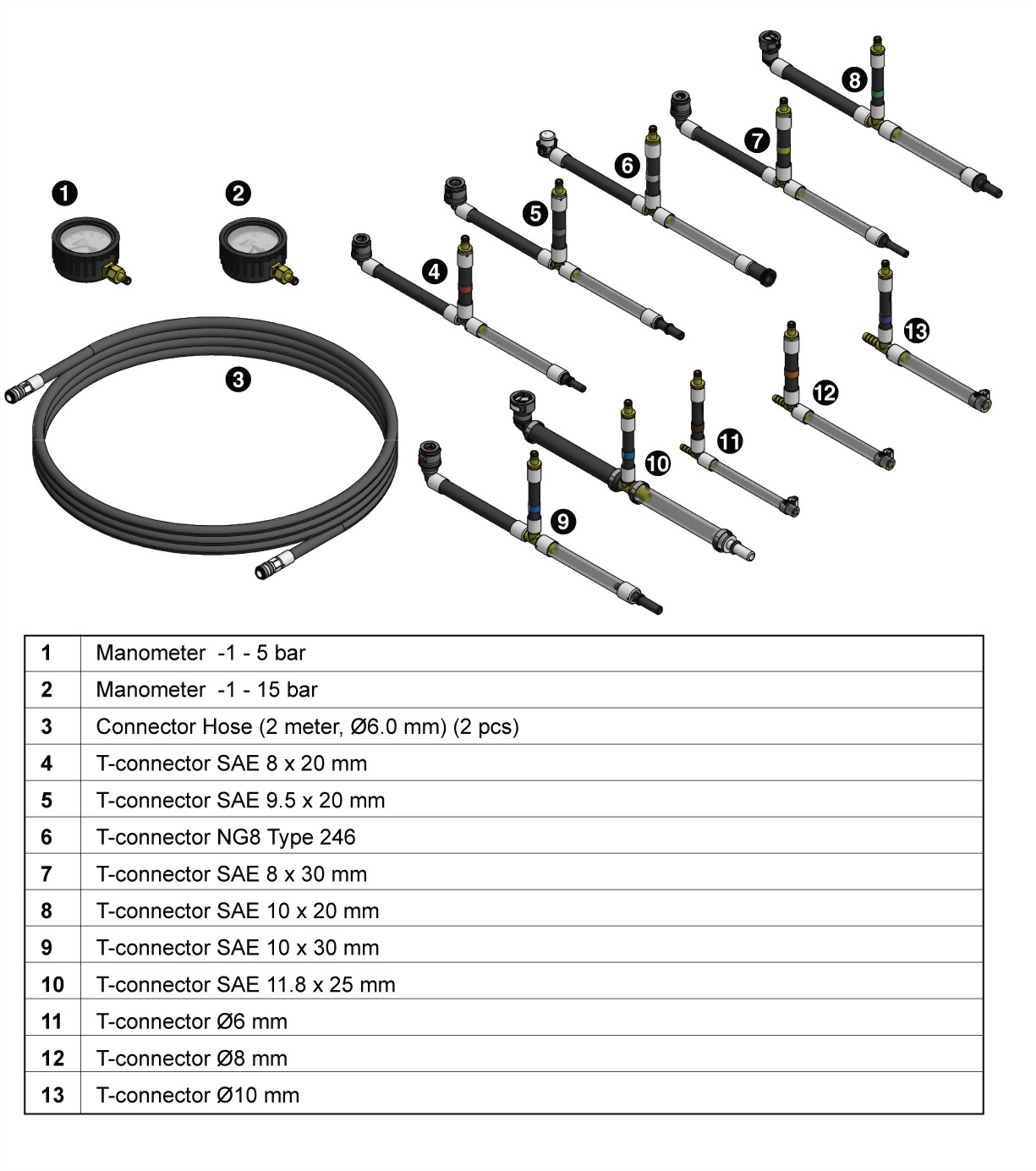

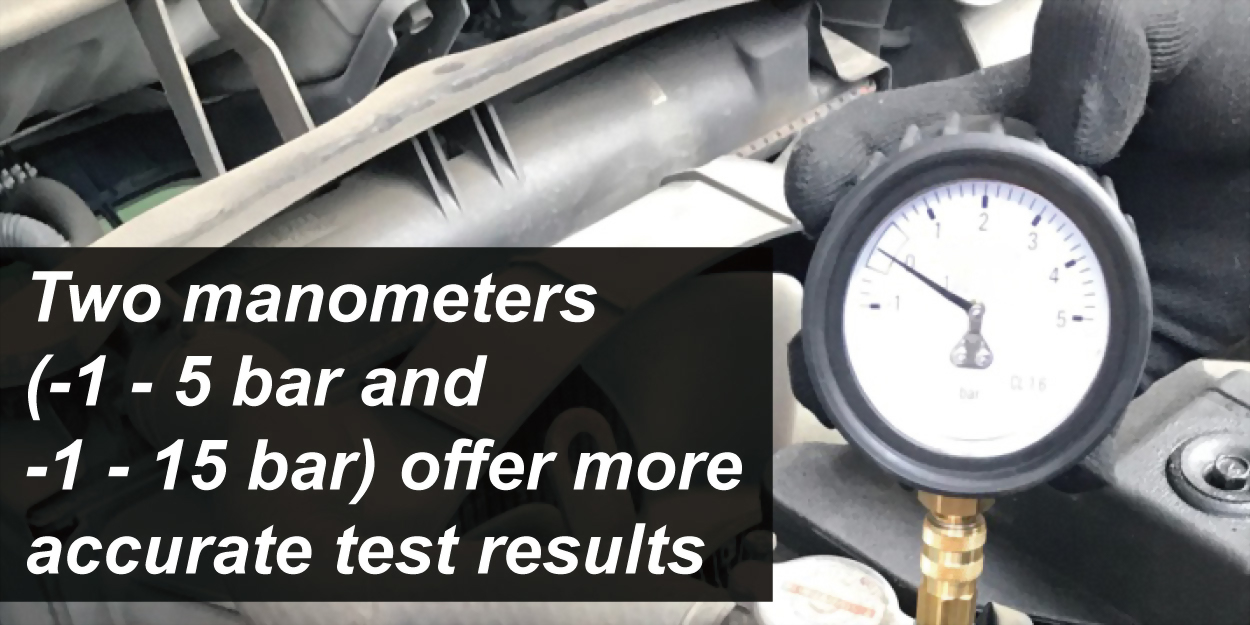

• Two manometers with different scales (-1 - 5 bar and -1 - 15 bar) offer more accurate test results

• Ten fuel line adapters cover a wide range of diesel engines and car makes

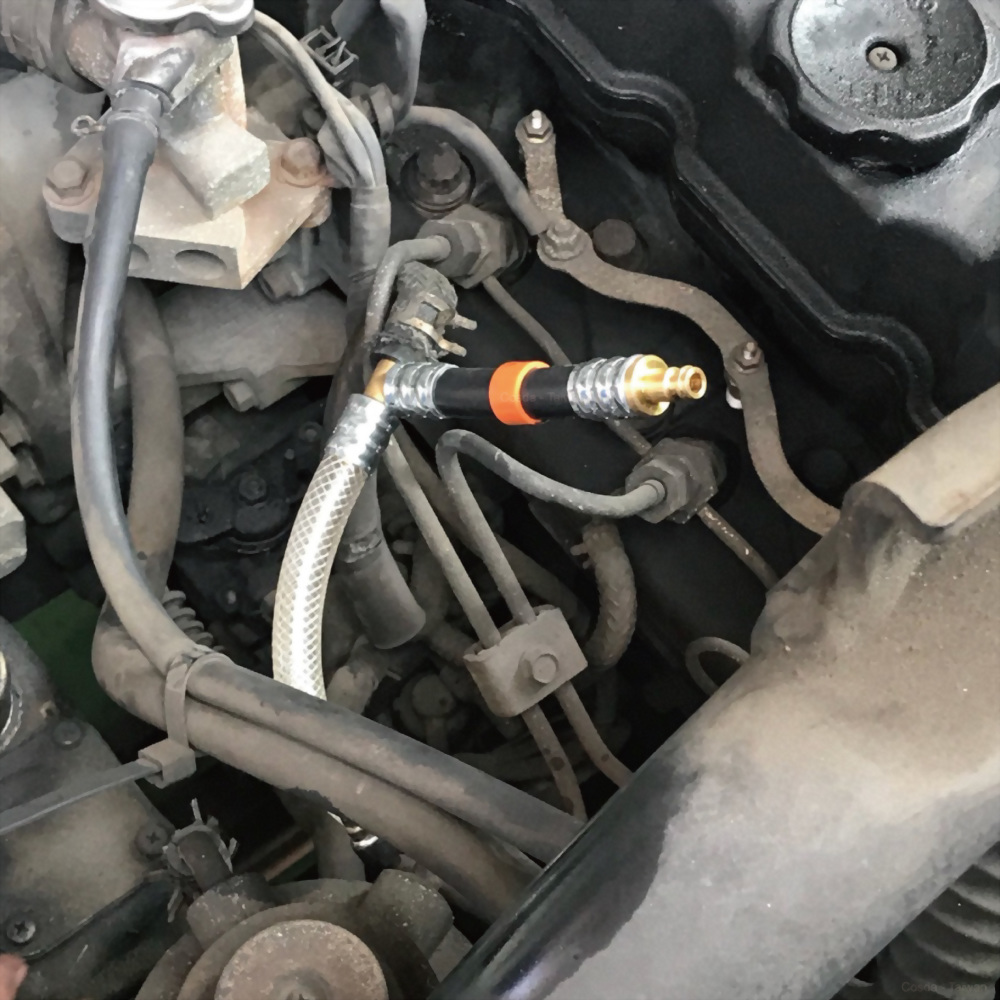

• Translucent tube on adapters help observe impurities and bubbles in the fuel

• 2 meter long hoses help connections in confined areas in engine compartment

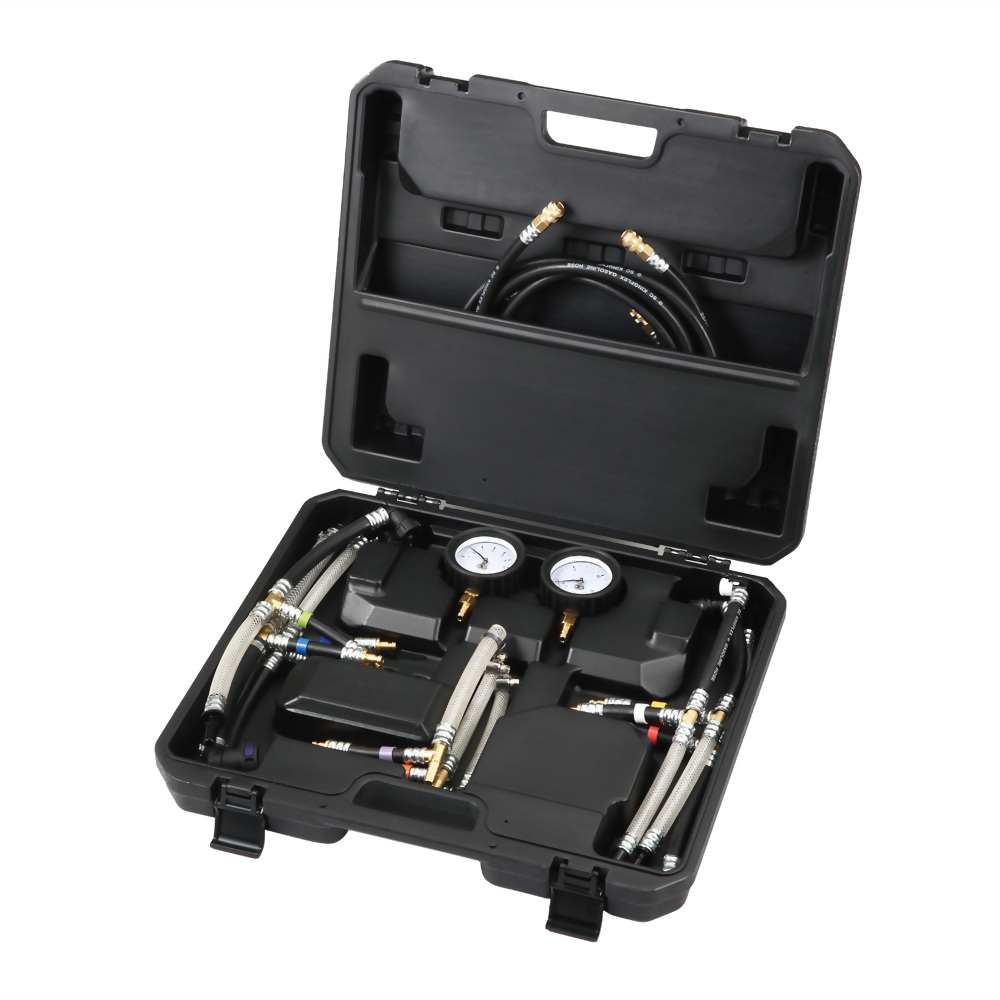

  Package   Blow molded case (black)
  Packing   2 sets in a master carton
  Weight per set   4.3 kg   9.4 lbs
  Net weight per carton   8.5 kg   18.7 lbs
  Gross weight per carton   9.5 kg   20.9 lbs
  Size per set   48.0 × 41.7 × 11.0 cm   18.9 × 16.4 × 4.3 in
  Size per carton   48.5 × 44.0 × 23.0 cm   19.1 × 17.3 × 9.1 in
  Volume per carton   0.049 CBM   1.7 CUFT
  Case label size        7.5 × 5.7 cm        3.0 × 2.4 in


  Suggested HS code   90262092007
  MOQ   2 sets
  Logo marking   Not available
  Not for sale in   China
