• Universal Radiator Pressure Test Kit (9 pcs)
  • Universal Radiator Pressure Test Kit (9 pcs)

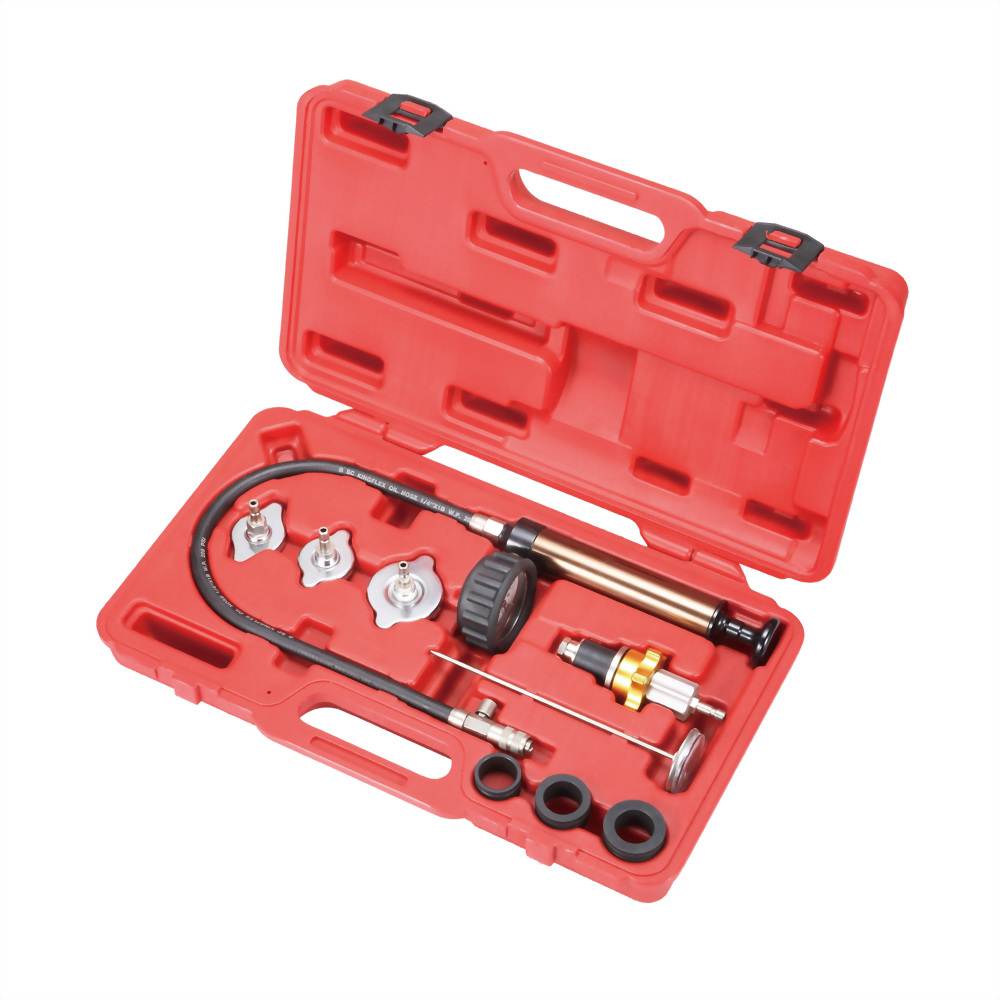

Universal Radiator Pressure Test Kit (9 pcs)

Model No.: SD-1018A

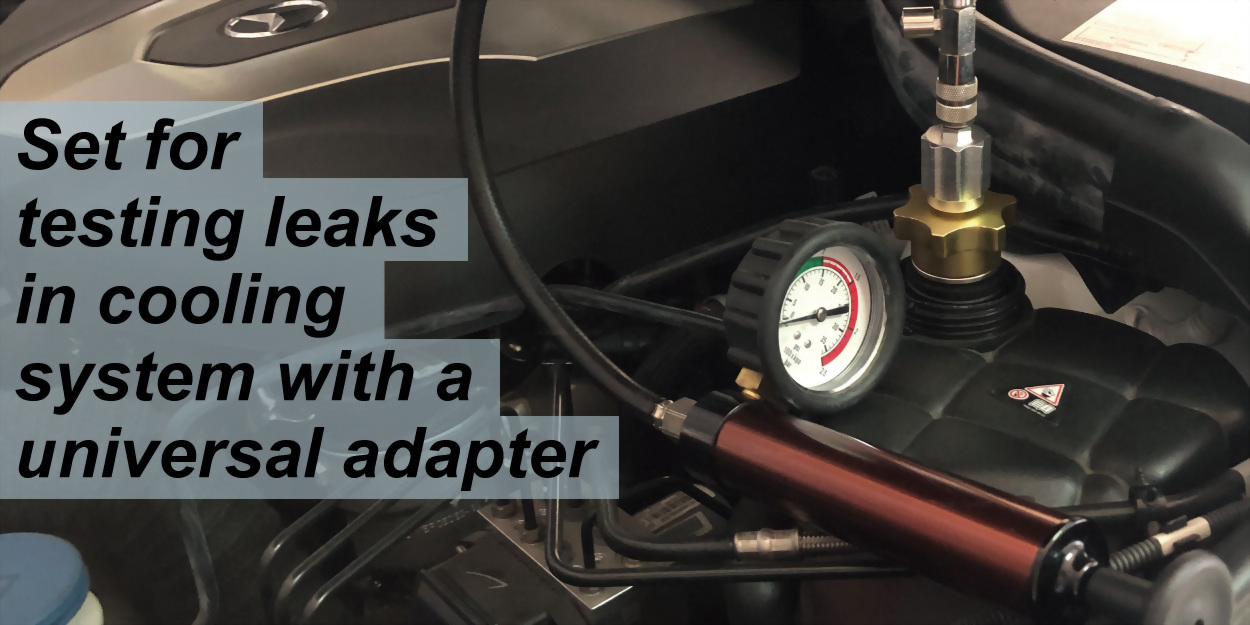

• Set for testing leaks in automotive cooling system

• Cap-type test adapters for American, Japanese and Korean vehicles

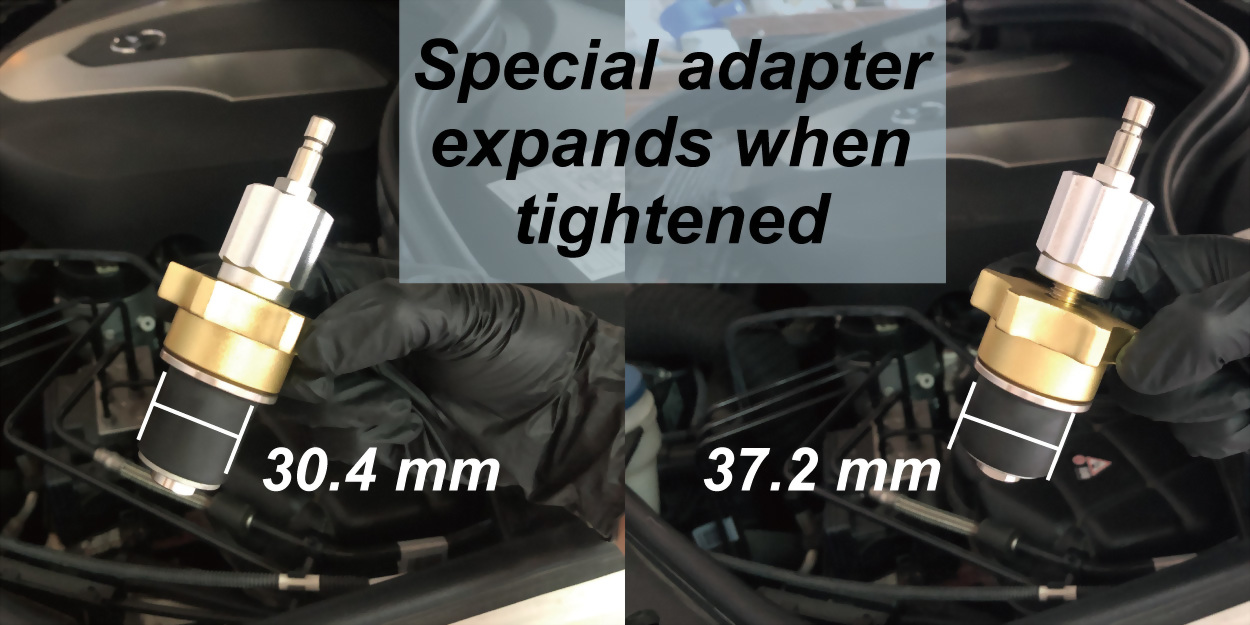

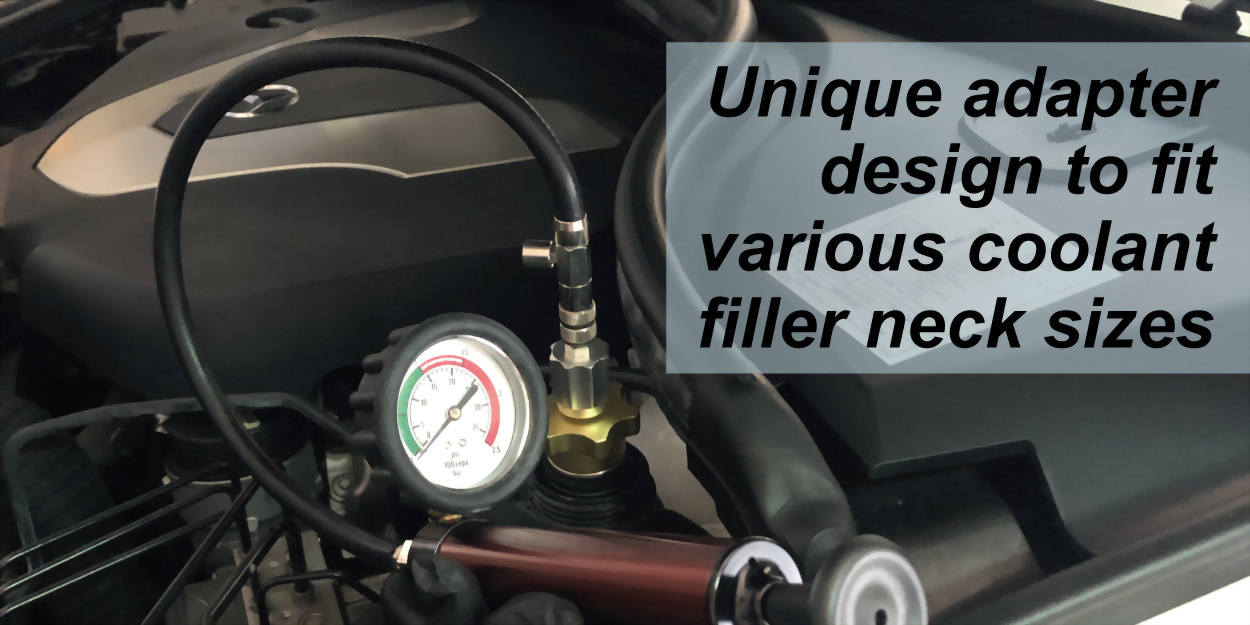

• Adapter with a golden rotor with expansion rubber is for threaded-type coolant filler necks, mainly found on European vehicles

• Pump body is made of sturdy aluminum material









  Package   Blow molded case (red)
  Packing   4 sets in a master carton
  Weight per set   2.3 kg   5.1 lbs
  Net weight per carton   9.3 kg   20.5 lbs
  Gross weight per carton   10.3 kg   22.7 lbs
  Size per set   48.9 × 30.2 × 9.0 cm   19.2 × 11.9 × 3.5 in
  Size per carton   51.0 × 37.5 × 32.0 cm   20.1 × 14.8 × 12.6 in
  Volume per carton   0.06 CBM   2.2 CUFT
  Case label size        22.0 × 11.0 cm        8.7 × 4.3 in


No. Image Cosda No. Description

1 Cooling System Pressure Pump with Aluminum Tube SD-1018-1
- Specifications

  Dimension              Not measurable
  Weight   573 g



2 No. 3 Test Cap SD-1018-3
- Specifications

  Dimension              7.9 × 6.0 × 6.2 cm
  Weight   106 g



3 No. 4 Test Cap SD-1018-4
- Specifications

  Dimension              6.2 × 4.5 × 6.5 cm
  Weight   81 g



4 No. 5 Test Cap SD-1018-5
- Specifications

5 Universal Adapter (Golden Rotor) SD-1018A-2
- Specifications

  Dimension              12.5 × 5.8 × 5.8 cm
  Weight   200 g

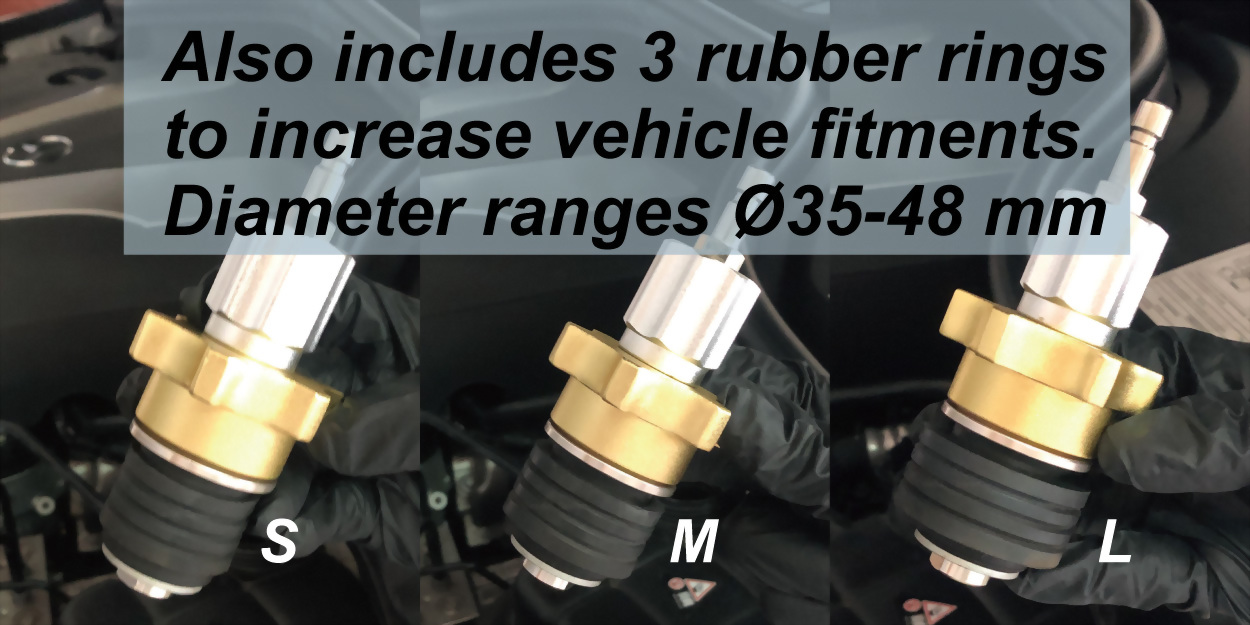

6 OD35 × ID30 Rubber Ring SD-1012-02-01
- Specifications

  Dimension              3.5 × 3.5 × 2.0 cm
  Weight   5.6 g



7 OD39.5 × ID30 Rubber Ring SD-1012-02-02
- Specifications

  Dimension              4.0 × 4.0 × 2.0 cm
  Weight   13 g



8 OD44 × ID30 Rubber Ring SD-1012-02-03
- Specifications

  Dimension              4.4 × 4.4 × 2.0 cm
  Weight   20 g



9 Thermometer SD-1018-0
- Specifications

  Dimension              21.0 × 5.3 × 5.3 cm
  Weight   26.5 g


  Suggested HS code   90262092007
  MOQ with laser marking   8 sets
  MOQ without laser marking   4 sets
  Laser marking cost   + TWD 3 on each radiator test cap
