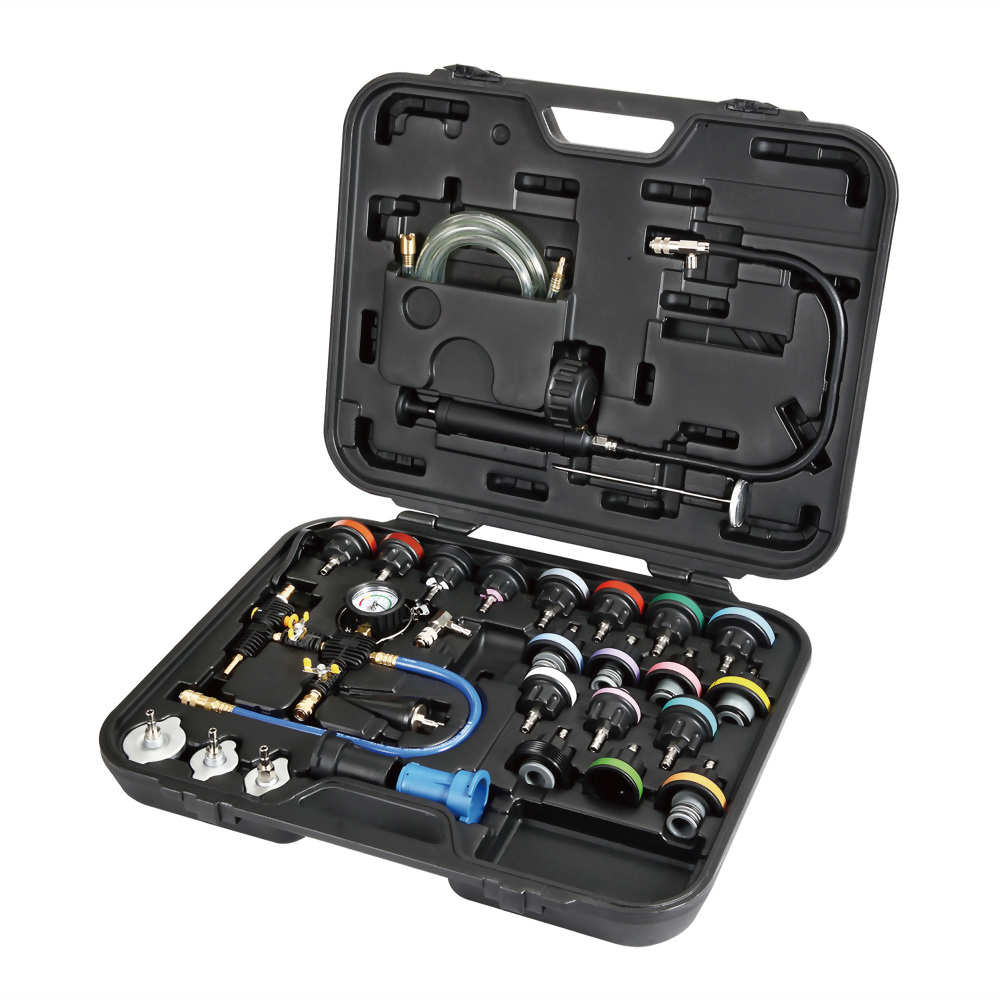

Cooling System Leakage Tester and Vacuum-Type Coolant Refilling Kit (31 pcs)

Model No.: SD-1019D

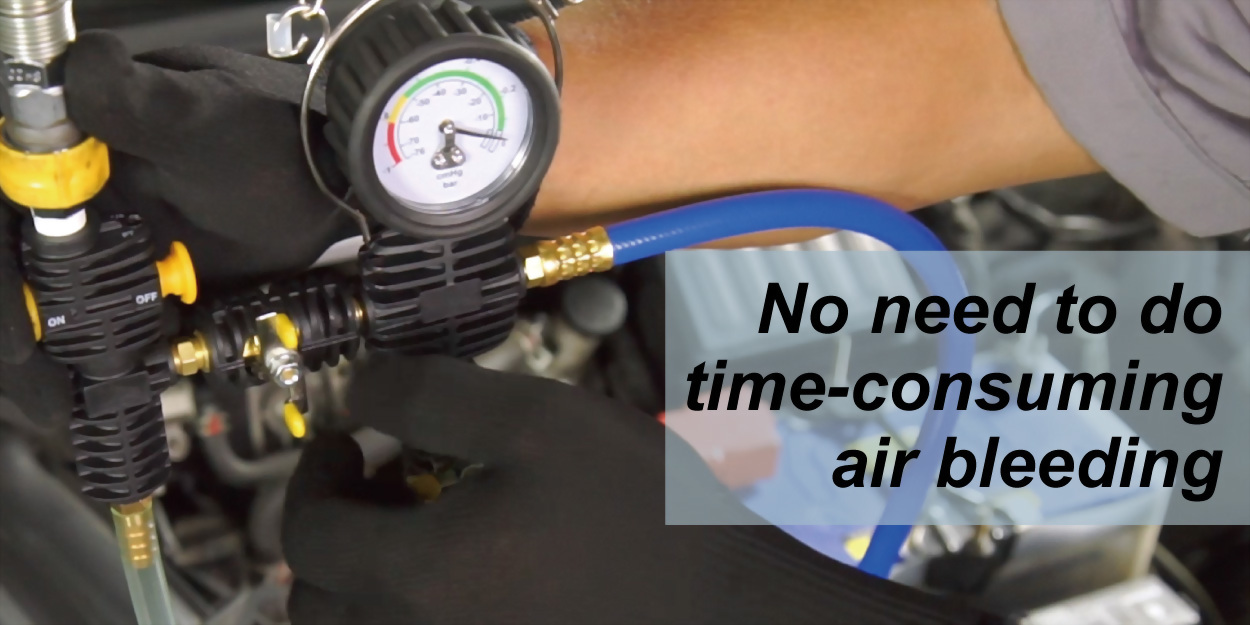

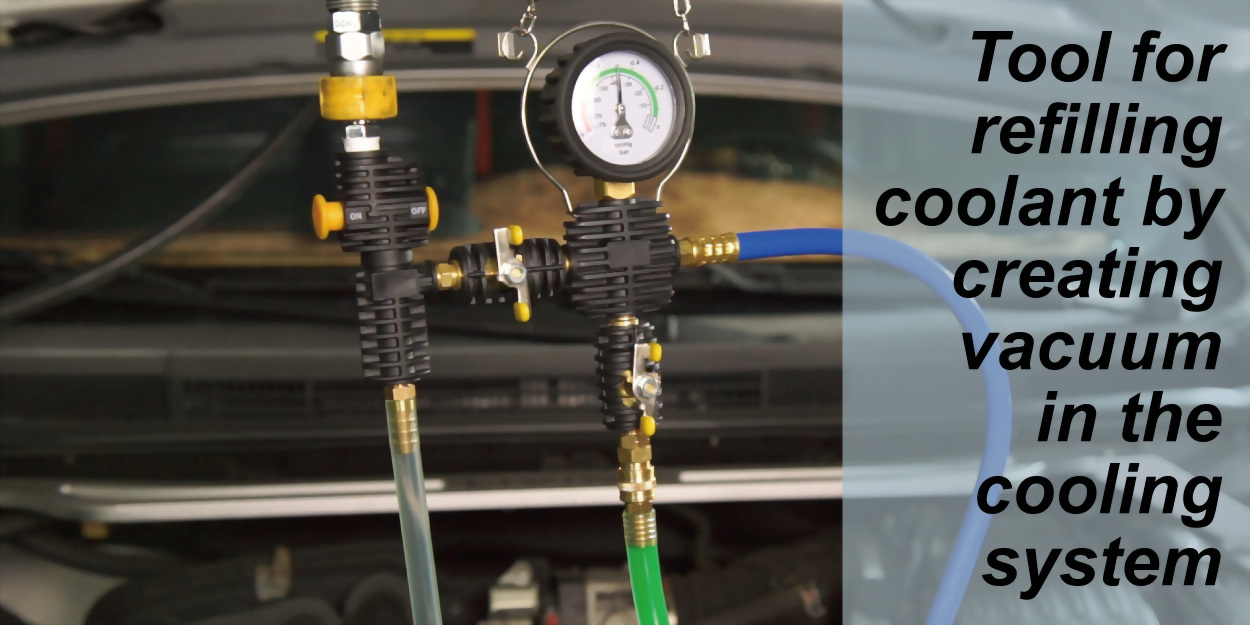

• Set for testing leaks in automotive cooling system and refill new coolant by creating a vacuum in cooling system

• Includes 21 adapters (No. 3 - 23) for major car makes on the market

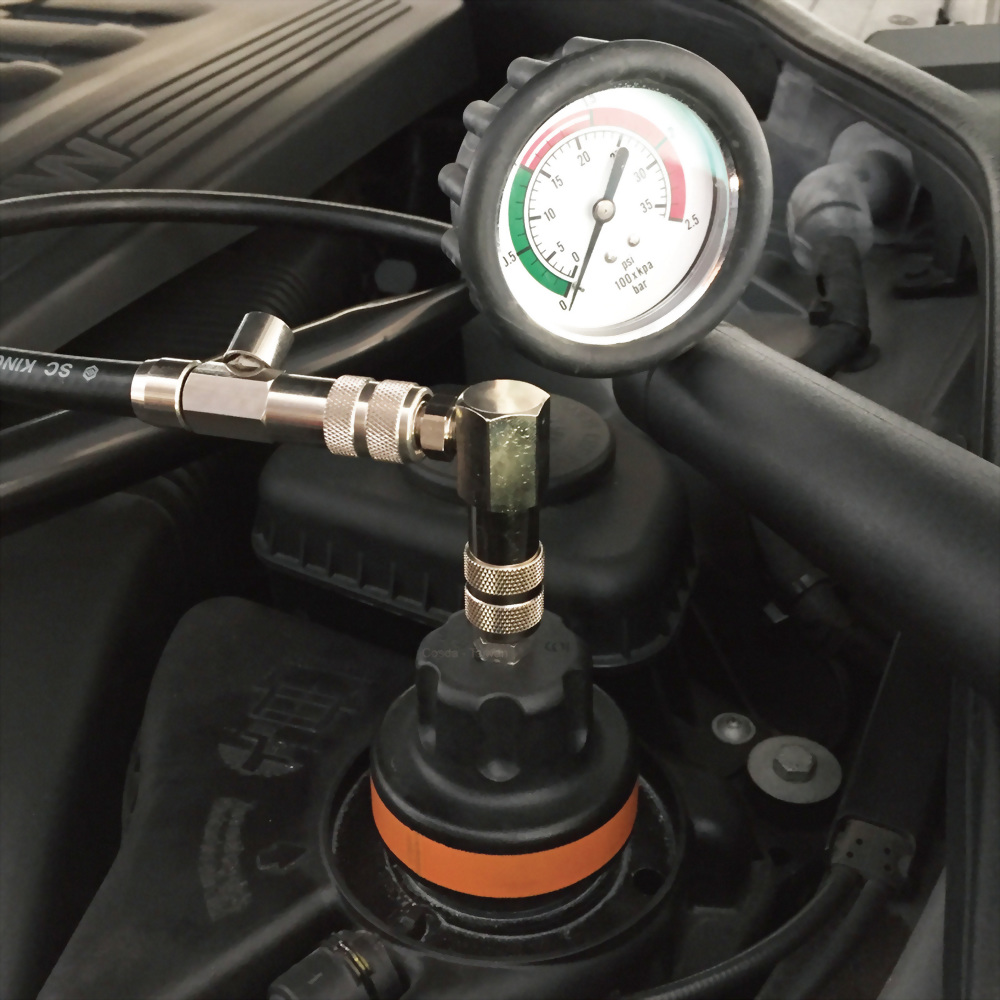

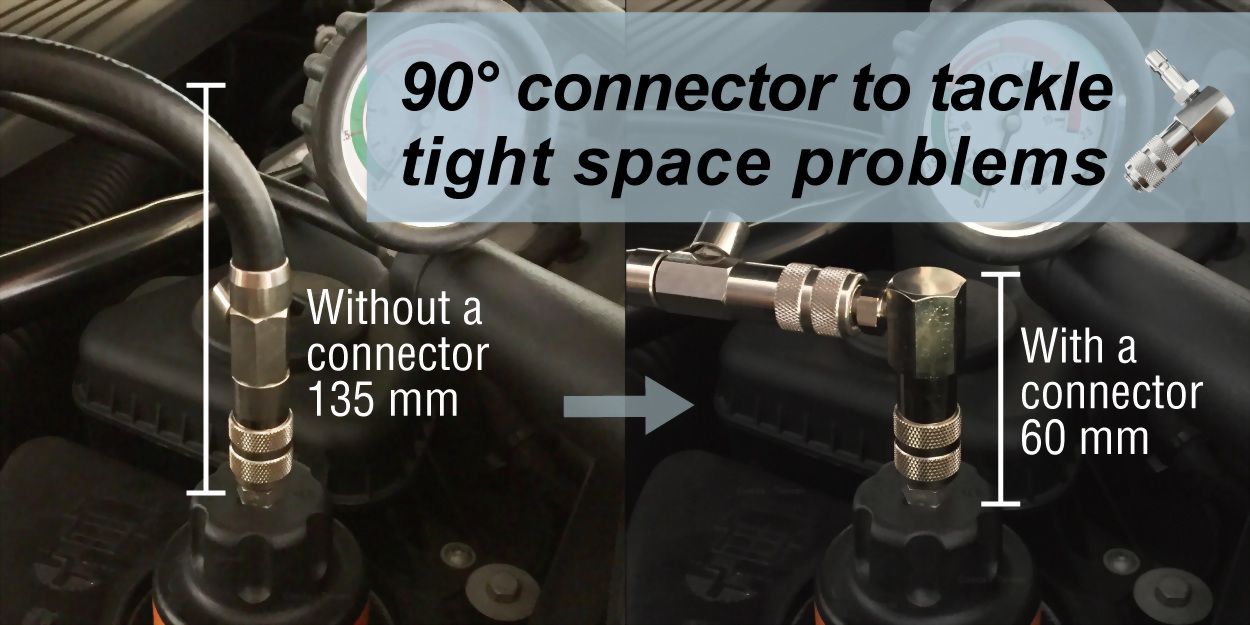

• Special 90° connector for fitting on recovery tanks located deep in the engine compartment

• Adapters and pump are made of light weight nylon 6-6

• Connectors (blue and black) are for testing pressure caps

Mercedes Benz TANK A 246 500 00 49 coolant refill pressure test


BMW Tank 17 13 7 542 986 coolant refill pressure test tool


Tesla Model X Ford Transit Fiesta Focus Mondeo Cap 7370374 Coolant Refill Pressure Test


Jaguar Land Rover Lincoln Mazda C2P27700 coolnat refill pressure test tool set


Ford KA Cap 1559509 cooling system refill pressure test


Land Rover Cap LR010965 coolant refill pressure test set


Tesla Model X 7370374 coolant refill pressure test tool set



cooling system repair tool manufacturer


  Package   Blow molded case (black)
  Packing   2 sets in a master carton
  Weight per set   5.8 kg   12.7 lbs
  Net weight per carton   11.5 kg   25.3 lbs
  Gross weight per carton   12.5 kg   27.5 lbs

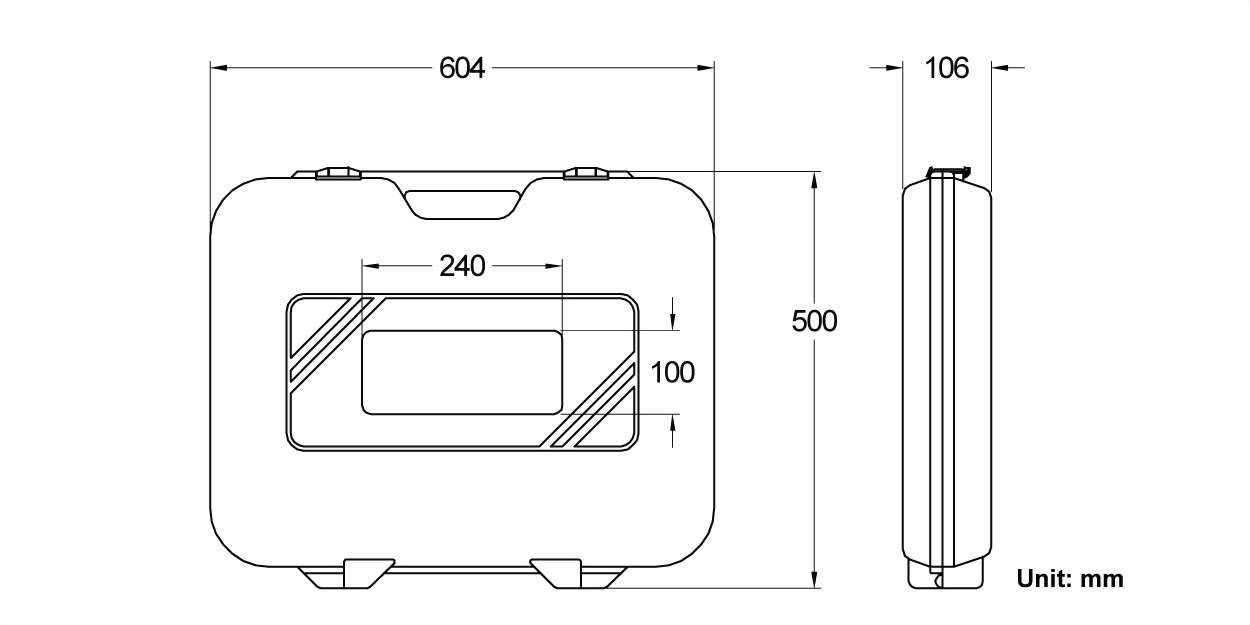

  Size per set   60.4 × 50 × 10.6 cm   23.8 × 19.7 × 4.2 in
  Size per carton   61.5 × 22.4 × 52.4 cm   24.2 × 8.8 × 20.6 in
  Volume per carton   0.072 CBM   2.5 CUFT
  Case label size        24.0 × 10.0 cm        9.4 × 3.9 in

No. Image Cosda No. Description

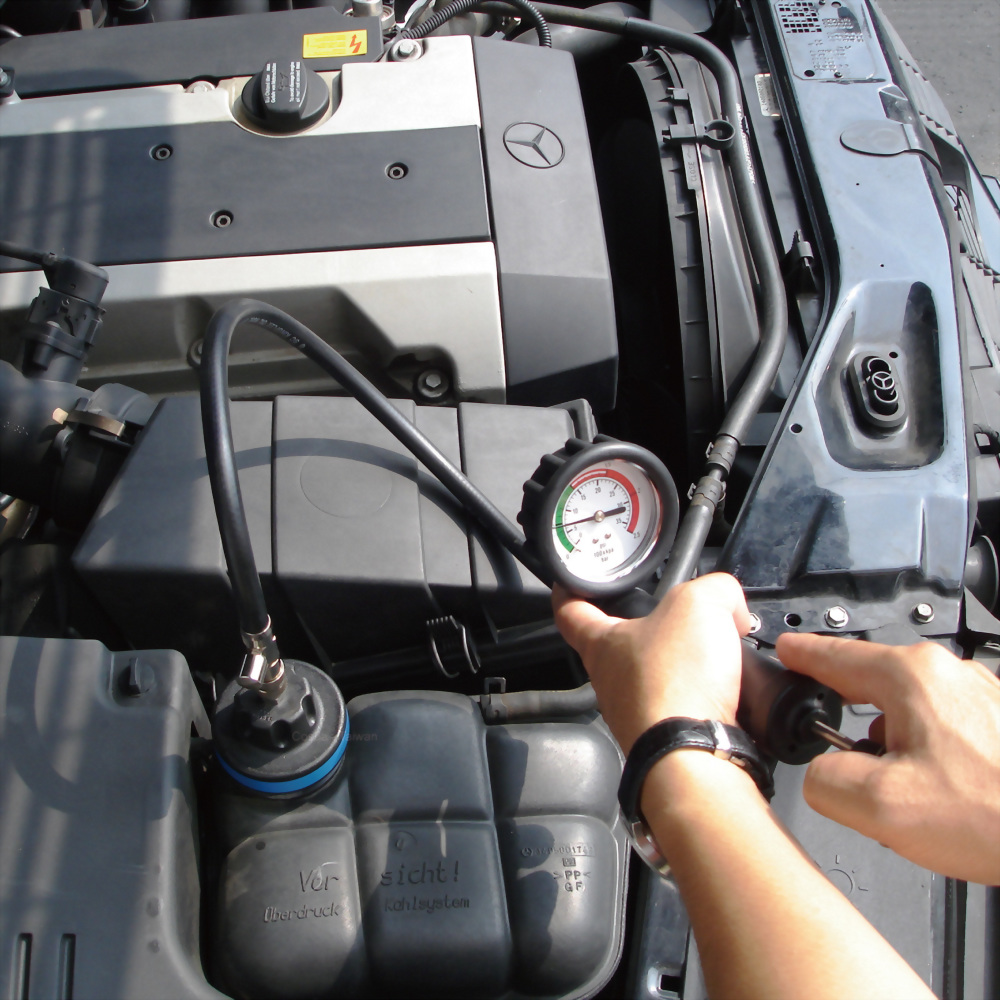

1 Cooling System Pressure Pump with Nylon Tube SD-1017-1
- Specifications

  Dimension              Not measurable
  Weight   453 g

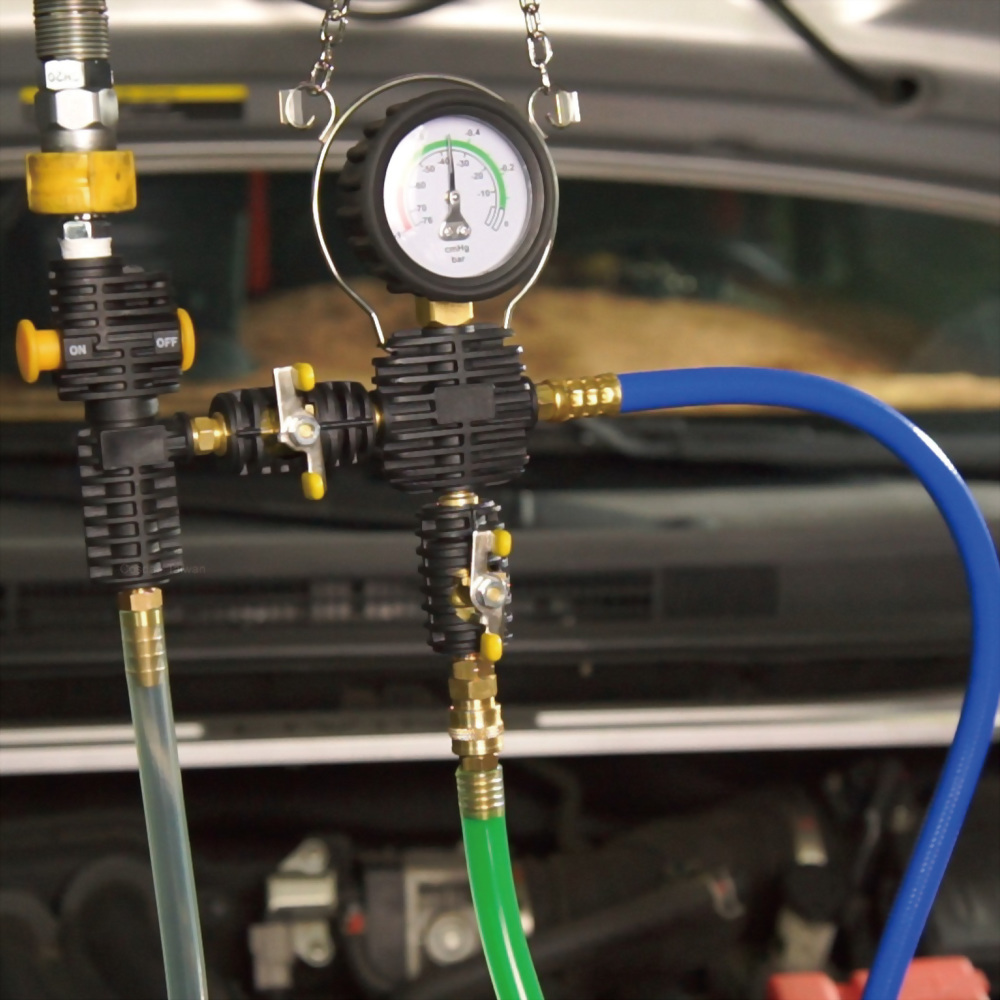

2 Vacuum Pump and Refiller SD-1013-1
- Specifications

  Dimension              Not measurable
  Weight   610 g



3 No. 3 Test Cap SD-1018-3
- Specifications

  Dimension              7.9 × 6.0 × 6.2 cm
  Weight   106 g



4 No. 4 Test Cap SD-1018-4
- Specifications

  Dimension              6.2 × 4.5 × 6.5 cm
  Weight   81 g



5 No. 5 Test Cap SD-1018-5
- Specifications

6 No. 6 Test Cap SD-1017A-6
- Specifications

  Dimension              6.2 × 6.2 × 7.2 cm
  Weight   62 g



7 No. 7 Test Cap SD-1017A-7
- Specifications

  Dimension              5.5 × 5.5 × 8.8 cm
  Weight   68 g



8 No. 8 Test Cap SD-1017A-8
- Specifications

  Dimension              5.7 × 5.7 × 7.2 cm
  Weight   70 g



9 No. 9 Test Cap SD-1017A-9
- Specifications

  Dimension              6.2 × 6.2 × 7.1 cm
  Weight   75 g



10 No. 10 Test Cap SD-1017A-10
- Specifications

  Dimension              6.1 × 6.1 × 8.8 cm
  Weight   83 g



11 No. 11 Test Cap SD-1017A-11
- Specifications

  Dimension              5.7 × 5.7 × 7.2 cm
  Weight   57 g



12 No. 12 Test Cap SD-1017A-12
- Specifications

  Dimension              6.2 × 6.2 × 8.5 cm
  Weight   88 g



13 No. 13 Test Cap SD-1017A-13
- Specifications

  Dimension              7.0 × 7.0 × 8.2 cm
  Weight   90 g



14 No. 14 Test Cap SD-1017A-14
- Specifications

  Dimension              6.5 × 6.5 × 9.1 cm
  Weight   94 g



15 No. 15 Test Cap SD-1017A-15
- Specifications

  Dimension              5.7 × 5.7 × 8.9 cm
  Weight   76 g



16 No. 16 Test Cap SD-1017A-16
- Specifications

  Dimension              5.4 × 5.4 × 8.8 cm
  Weight   70 g



17 No. 17 Test Cap SD-1017A-17
- Specifications

  Dimension              6.2 × 6.2 × 9.4 cm
  Weight   86 g



18 No. 18 Test Cap SD-1017A-18
- Specifications

  Dimension              5.5 × 5.5 × 8.0 cm
  Weight   66 g



19 No. 19 Test Cap SD-1017A-19
- Specifications

  Dimension              5.1 × 5.1 × 8.2 cm
  Weight   51 g



20 No. 20 Test Cap SD-1017A-20
- Specifications

  Dimension              5.5 × 5.5 × 7.0 cm
  Weight   54 g



21 No. 21 Test Cap SD-1017A-21
- Specifications

  Dimension              6.2 × 6.2 × 9.4 cm
  Weight   87 g



22 No. 22 Test Cap SD-1017A-22
- Specifications

  Dimension              5.4 × 5.4 × 7.0 cm
  Weight   49 g



23 No. 23 Test Cap SD-1017A-23
- Specifications

  Dimension              6.2 × 6.2 × 7.4 cm
  Weight   75 g



24 Black Radiator Cap Tester SD-1018B-2A
- Specifications

  Dimension              7.4 × 5.7 × 5.7 cm
  Weight   45 g



25 Blue Radiator Cap Tester SD-1018B-2B
- Specifications

  Dimension              7.4 × 5.7 × 5.7 cm
  Weight   45 g



26 90° Connector for Pressure Pump SD-1018-QA
- Specifications

  Dimension              5.4 × 4.5 × 2.0 cm
  Weight   120 g



27 Thermometer SD-1018-0
- Specifications

  Dimension              21.0 × 5.3 × 5.3 cm
  Weight   26.5 g



28 Radiator Test Cap Wrench SD-1017-HAND
- Specifications

  Dimension              9.5 × 5.7 × 1.4 cm
  Weight   15 g



29 Conical Rubber Adapter SD-1013-2
- Specifications

  Dimension              4.5 × 4.5 × 10.4 cm
  Weight   90 g



30 Coolant Hose SD-1013-3
- Specifications

  Overall Length   1200 mm
  Weight   137 g



31 Drain Hose SD-1013-P05
- Specifications

  Dimension              Ø8 × 12 × 600 mm
  Weight   49 g


  Suggested HS code   84818090006
  MOQ with laser marking   10 sets
  MOQ without laser marking   2 sets
  Laser marking cost   + TWD 3 on No. 3, 4, or 5 radiator test cap
  Logo printing cost
  + TWD 3 on nylon pump with TWD 2,000 printing tooling cost
  Logo printing MOQ   100 sets
