Pulsating Cooling System Flush Tool

Model No.: SD-1290
• Powerful flush cleans impurities in cooling system with a pulsating effect

• Adjustable trigger to provide pulsate flush and regular consistent-pressure flush functions

• Includes a conical adapter for fitting radiator filler necks

• 5/8” and 1/2” heater hose adapters and a small conical adapter for flushing heater side

• Connects to air compressor and garden hose for flushing the cooling system

• Special back pressure one-way valve to avoid excessive pressure accumulated in water hose

cooling system tool for flushingspecialty tool for cooling system

professional cooling system maintenance tool


engine water pocket cleaning debris and impuritiesradiator scale build up limescale debris cleaningthermostat removal for cooling systemheater cleaning for cars and engines

This beautiful tool set not only provides a highly professional and sensational look, but also caters to what you are looking for when carrying out maintenance for the cooling system. As time goes by, the efficiency of the cooling system may decrease, and contaminants and debris will build-up naturally. But there are several other factors that can lead to the problem of an inefficient cooling system prematurely. One of the most common reason is that the car owner used a mixture of incompatible antifreeze or coolants that eventually lead to the additives fighting against each other, and the additives are losing their ability to guard the auto parts against corrosion, cavitation, and limescale buildup. Another common reason is the sludge, which is caused by the presence of engine oil in the cooling system. But why would engine oil go into the cooling system? The most possible reason is a result of the worn head gasket that leads the engine oil leaking into the water passages in the engine. The last reason, which is very common in the climate zones where frost or snow doesn't fall, is that the car owner poured tap water into the cooling system. The minerals in the tap water react with the internal parts of the cooling system that eventually generates rusts through the cooling system.

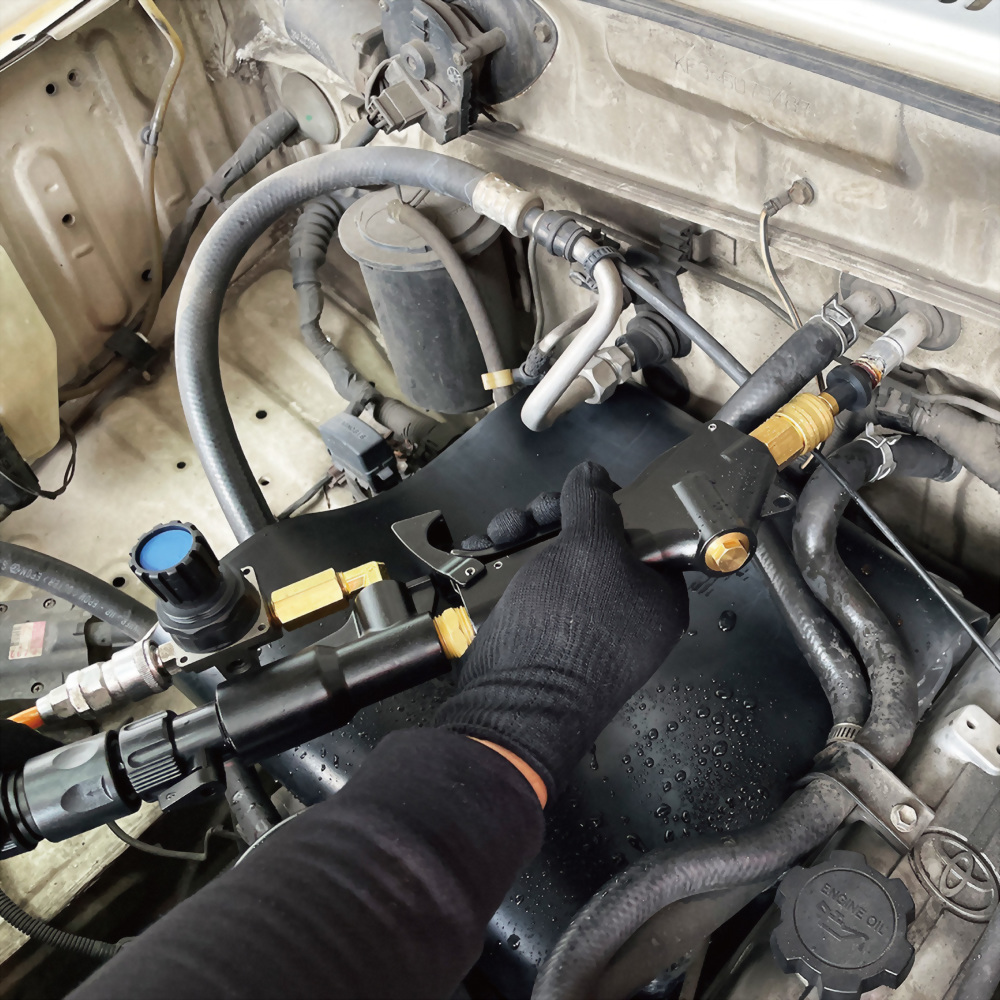

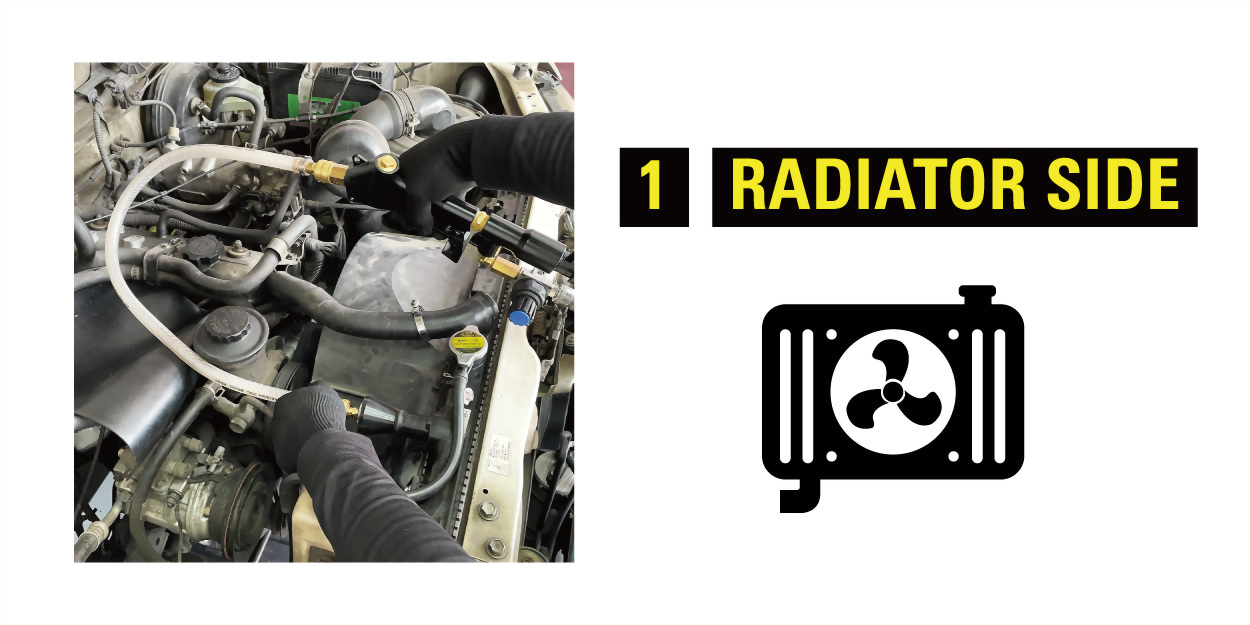

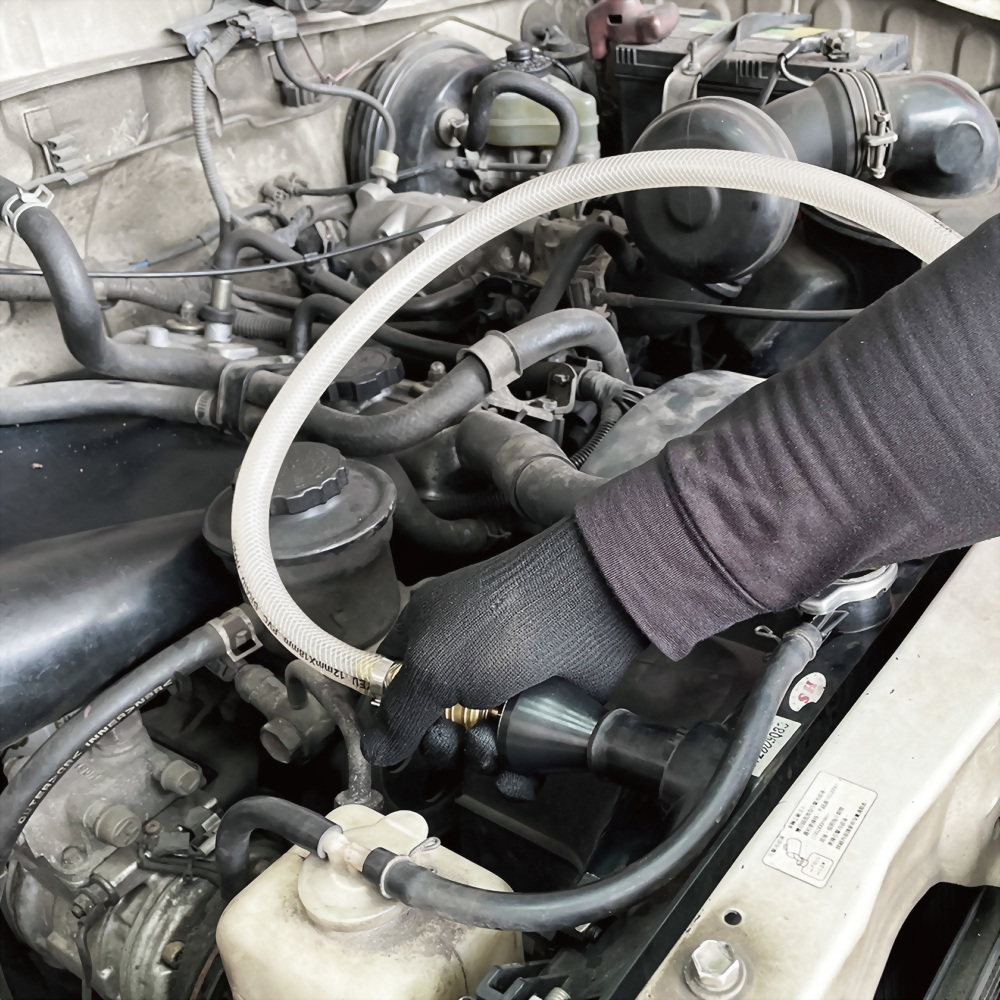

The contaminants, debris, scale, or sludge block the coolant passages inside the cooling system, so those areas can no longer be cooled down by the coolant, and that causes engine overheating or malfunctions on certain parts in the engine compartment. Fortunately, such a problem can be fixed. This cooling system flush tool designed and manufactured by Cosda can help you solve the problem. After draining the coolant from the cooling system, hook up the parts provided in this professional set. The attachments can be fitted to the radiator or expansion tank filler neck, upper or lower hose, and heater core. The conical rubber adapter is able to fit a big range of the diameters of the upper/lower hoses. Connect the main tool to the air compressor and water hose, a regular garden hose is fine, and turn on the air and water supply, and a powerful stream of water can be created. What's more, this tool is able to create a powerful water stream with pulses, and the pulses are the key to remove or even eliminate the undesired debris and scales in the cooling system. If the pulse function is not needed, the tool has a second gear that allows constant, stable, and powerful water shoot.

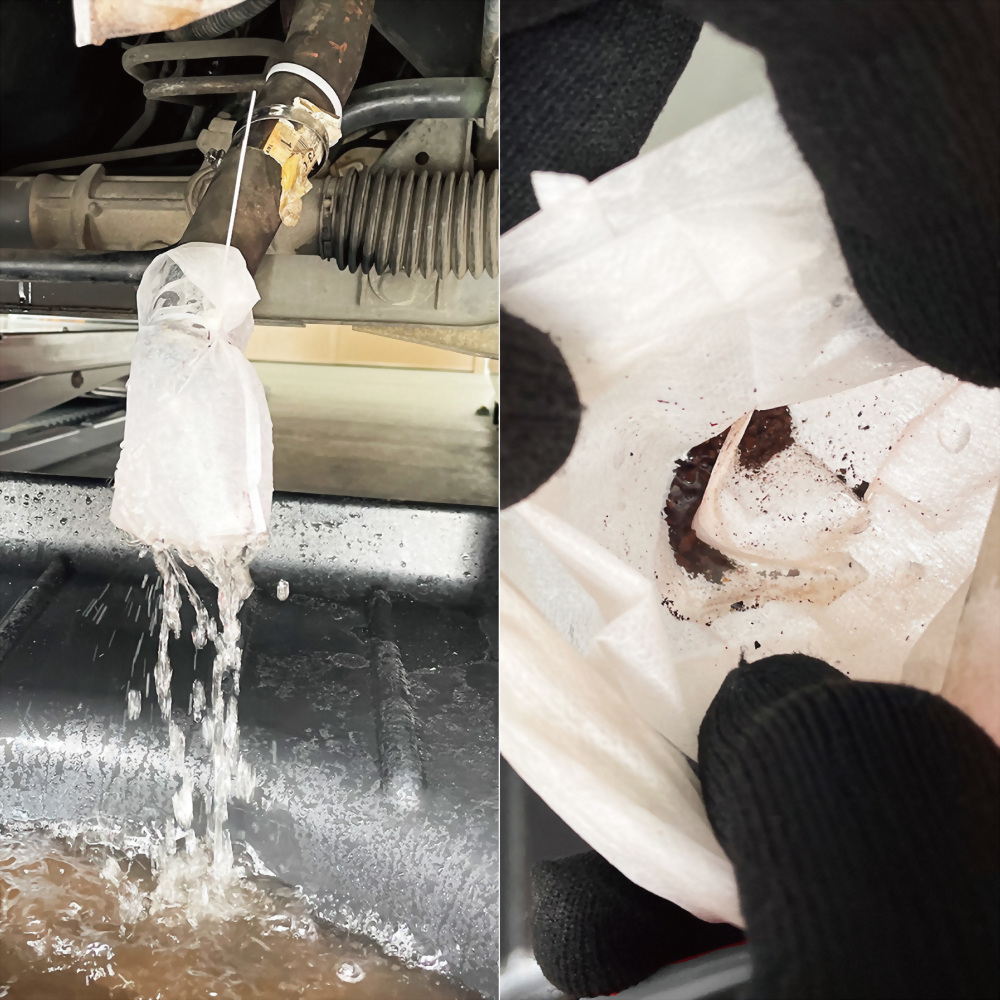

We always recommend our customers to use a piece of cheese cloth or a used white sock fixed at the water exit, which is usually the lower hose, and when the flushing job is done, we can unfold the cloth/sock to see what has been flushed out of the system, and that is a very satisfying moment. And from the things that have been pushed out of the cooling system, an experienced car mechanic is able to tell what caused the problem and take actions fixing what should be fixed.

This tool set is designed and developed by Cosda Manufacturing Company, a pioneering automotive specialty tool manufacturer in Taiwan, and we provide private labeling services for the majority of tool brands in the world. If you are interested in introducing some of our products into your product range with your logo, this is the right place for you. Simply drop us a line and we can discuss more in detail. Feel free, and hope to hear from you soon!

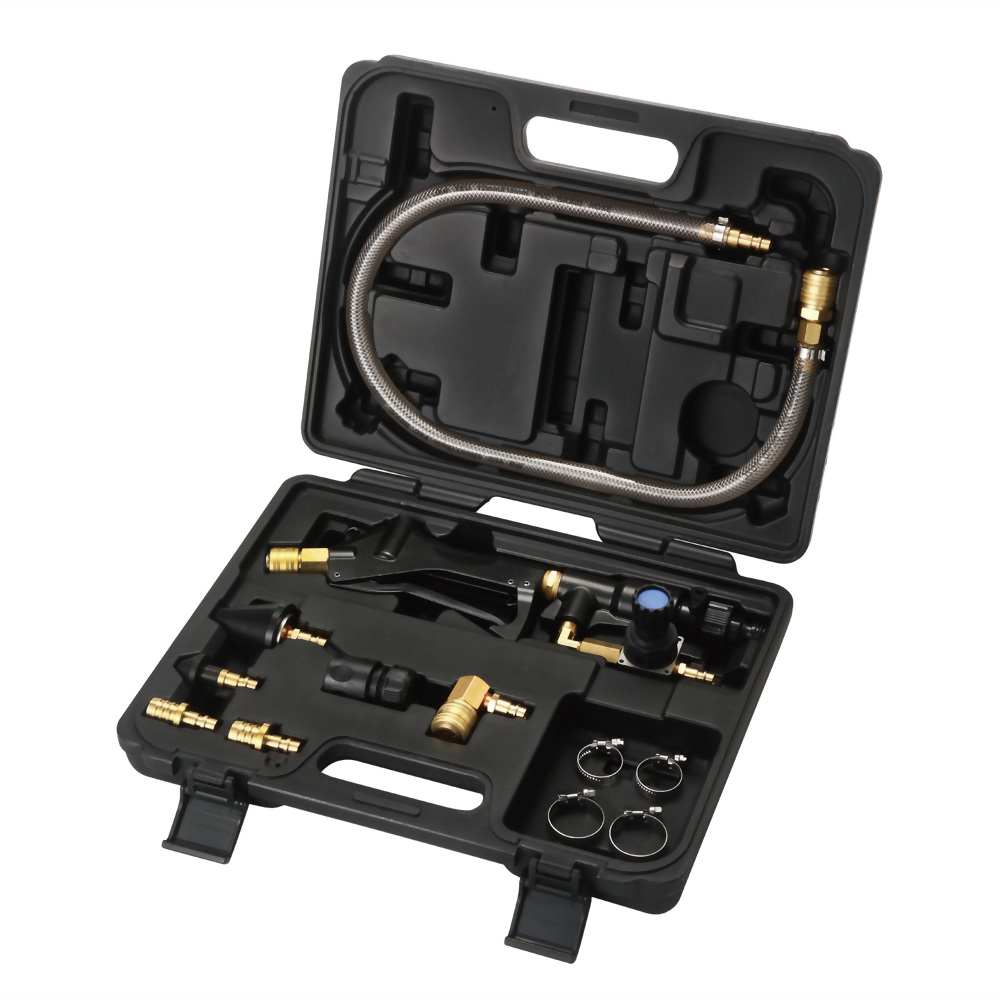

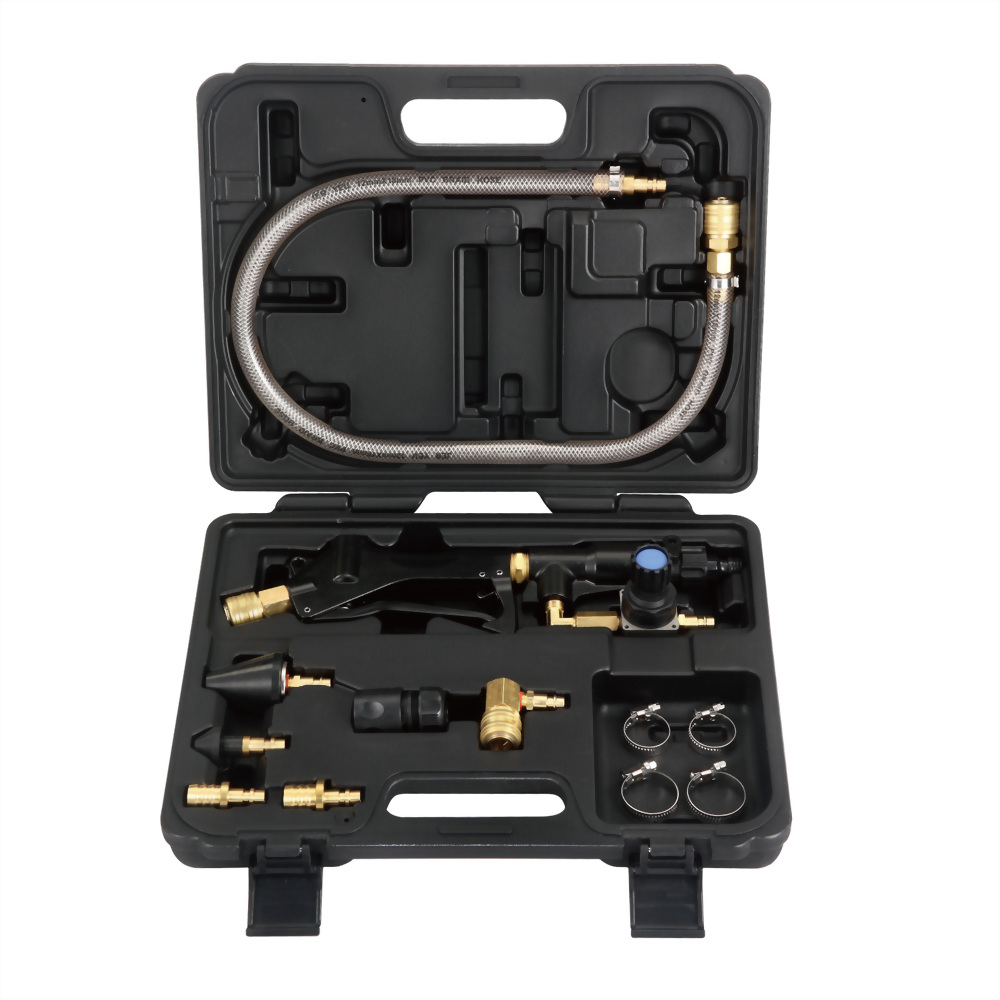

  Package   Blow molded case (black)
  Packing   5 sets in a master carton
  Weight per set   2.7 kg   5.9 lbs
  Net weight per carton   13.3 kg   29.3 lbs
  Gross weight per carton   14.3 kg   31.5 lbs
  Size per set   39.0 × 31.6 × 9.8 cm   15.4 × 12.4 × 3.9 inch
  Size per carton   52.5 × 40.0 × 33.0 cm   20.7 × 15.7 × 13.0 inch
  Volume per carton   0.07 CBM   2.4 CUFT
  Case label size        12.4 × 4.8 cm        4.9 × 1.9 inch

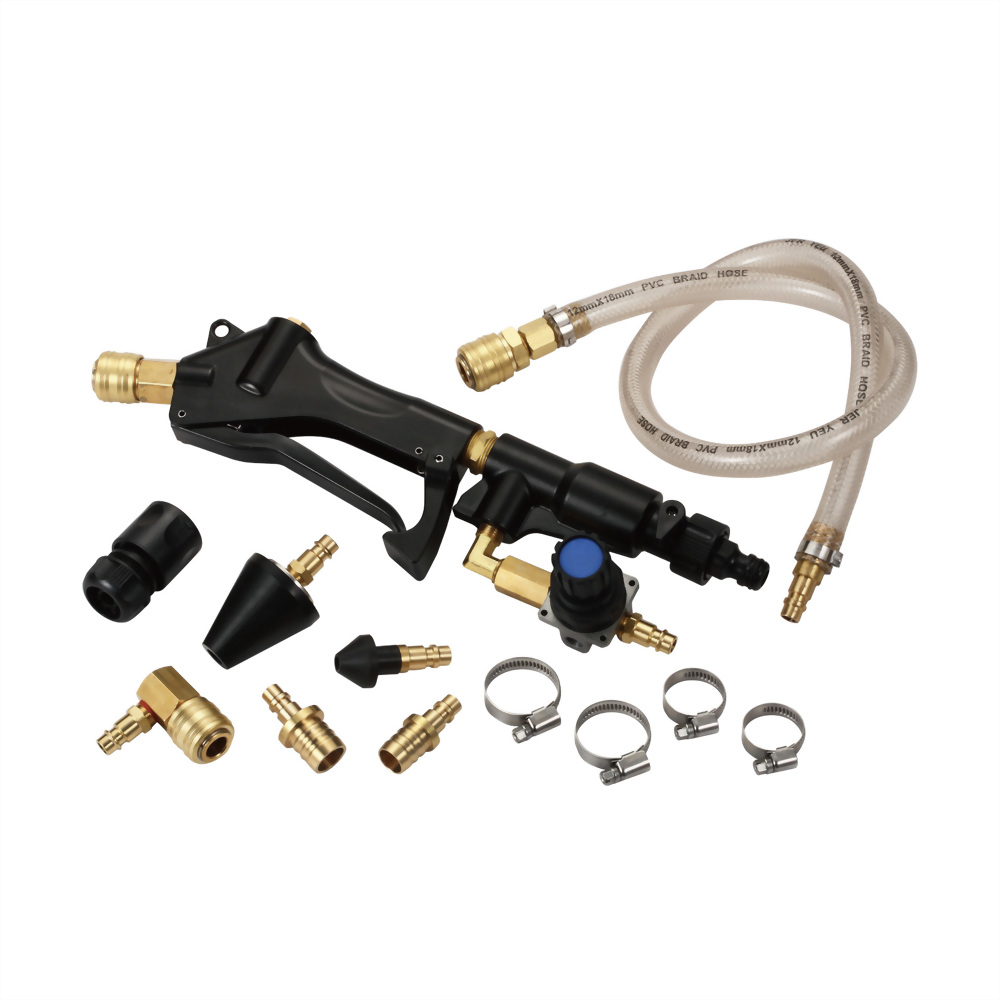

No. Image Cosda No. Description

1 Coolant Flush Hose SD-1290-HOSE
- Specifications

  Dimension              88.5 × 2.7 × 2.7 cm
  Weight   290 g



2 Pulsating Flush Tool SD-1290-GUN
- Specifications

  Dimension              36.0 × 10.0 × 8.3 cm
  Weight   980 g



3 Conical Adapter 18-45 mm SD-1290-CA1
- Specifications

  Dimension              8.2 × 4.5 × 4.5 cm
  Weight   83 g



4 Conical Adapter 9.7 - 25.7 mm SD-1290-CA2
- Specifications

  Dimension              5.7 × 2.6 × 2.6 cm
  Weight   31 g



5 Heater core adapter Ø5/8” SD-1290-HC1
- Specifications

  Dimension              4.7 × 2.0 × 2.0 cm
  Weight   31 g



6 Heater core adapter Ø1/2” SD-1290-HC2
- Specifications

  Dimension              4.7 × 2.4 × 2.4 cm
  Weight   44 g



7 1/2" Garden Hose Connector SD-1290-24
- Specifications

  Dimension              5.5 × 3.4 × 3.4 cm
  Weight   24 g



8 90° Standard Euro Type Quick Release Connector QL-EUM-EUF
- Specifications

  Dimension              5.5 × 5.0 × 2.5 cm
  Weight   136 g



9 Zebra Hose Clamp 16-27 mm SD-1011A-13
- Specifications

  Dimension              3.8 × 3.0 × 1.3 cm
  Weight   11.5 g



10 Zebra Hose Clamp 20-32 mm SD-1011A-14
- Specifications

  Dimension              4.4 × 3.7 × 1.2 cm
  Weight   13.5 g


  Suggested HS code   84671990000
  MOQ with laser marking   40 sets
  MOQ without laser marking   20 sets
  Laser marking cost   + TWD 3 on each piece
  Not for sale in
  China, and Taiwan (exclusivity)
