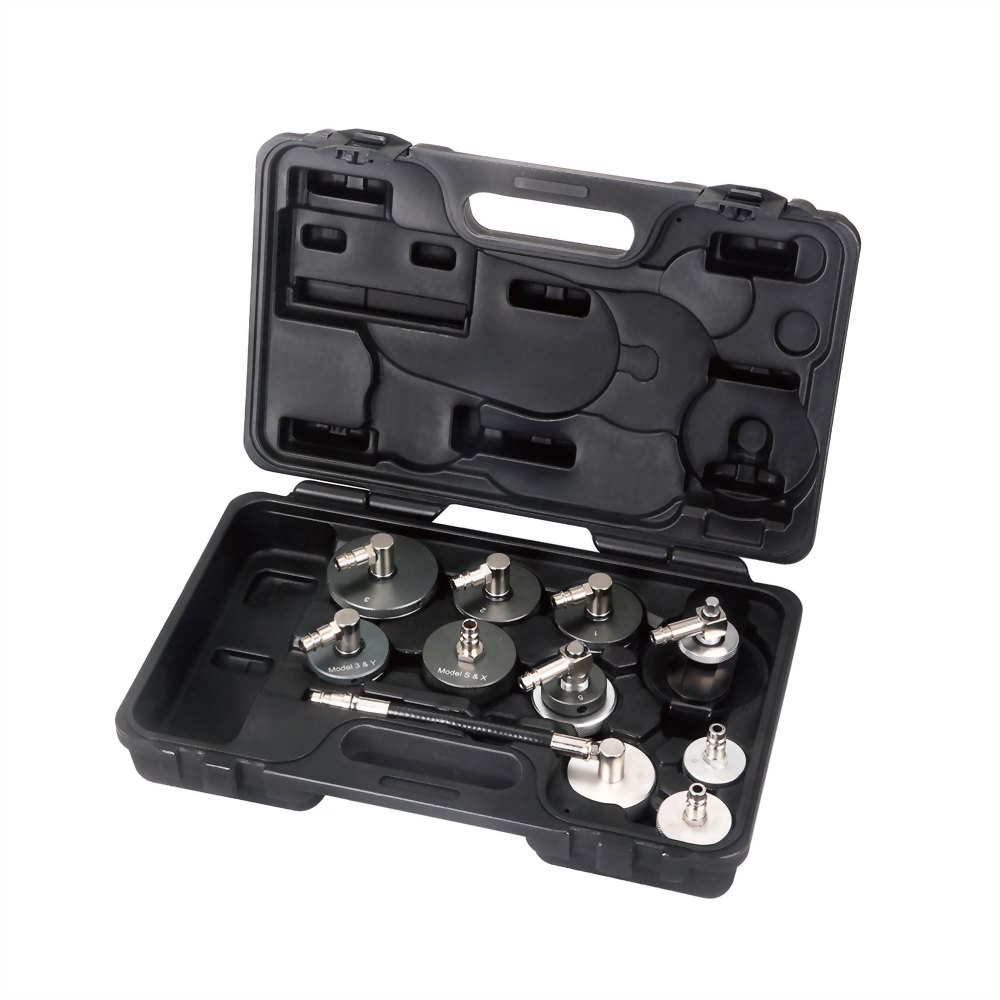

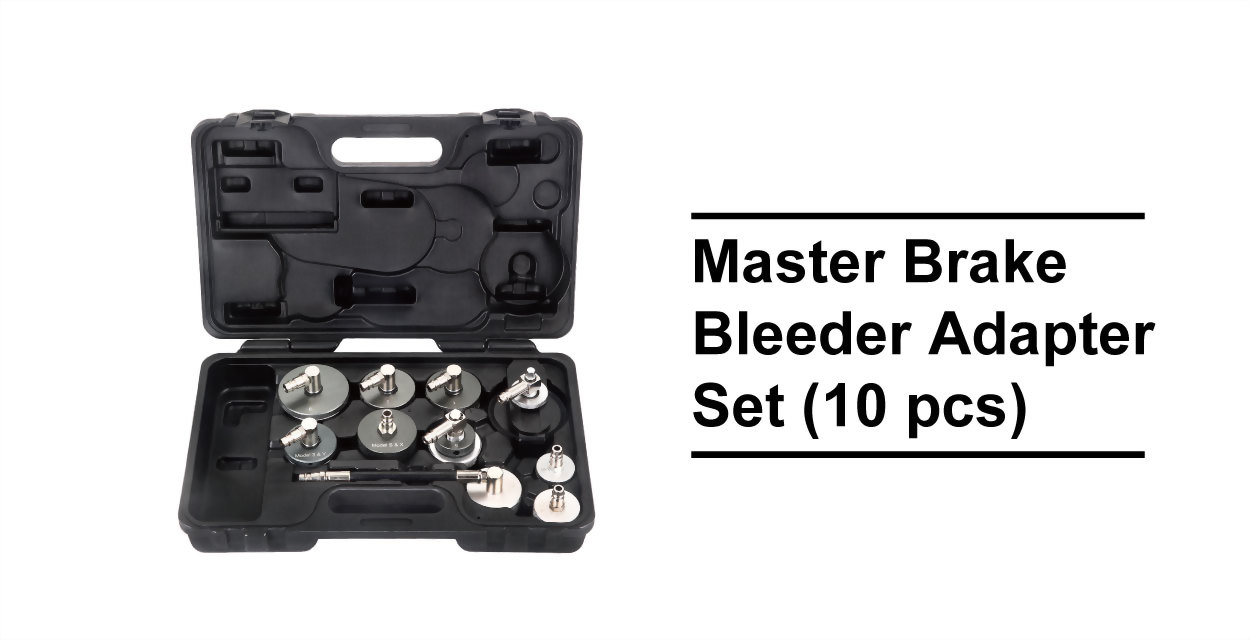

Master Brake Bleeder Adapter Set

Model No.: SD-1209B
• Designed for applications on master cylinder reservoirs from 2001 to today

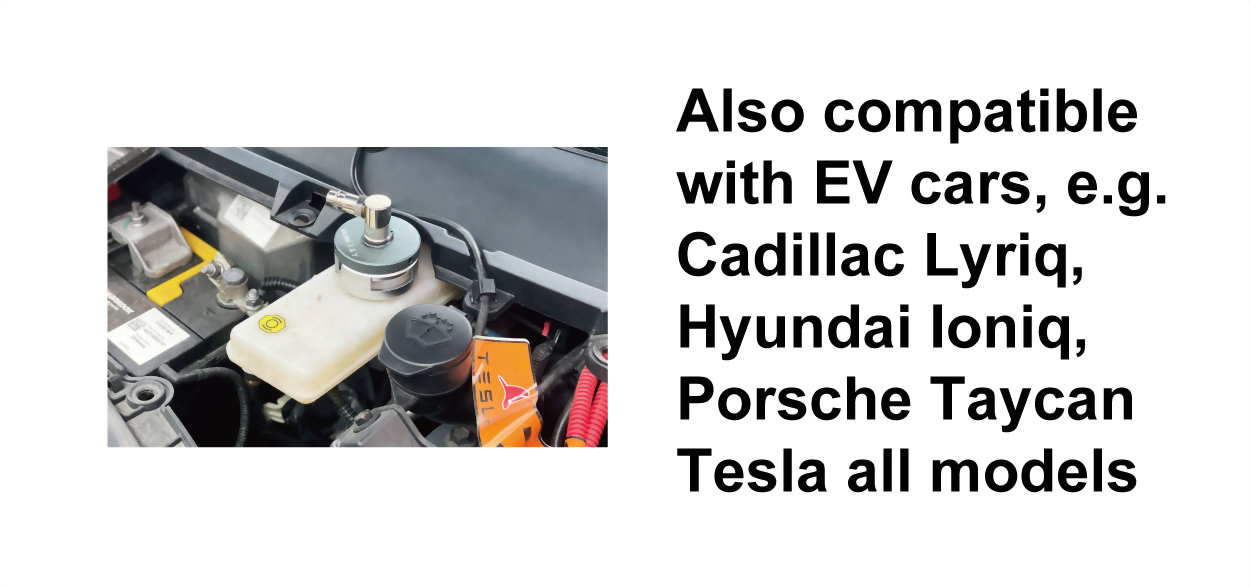

• Covers almost all the common vehicles on the market

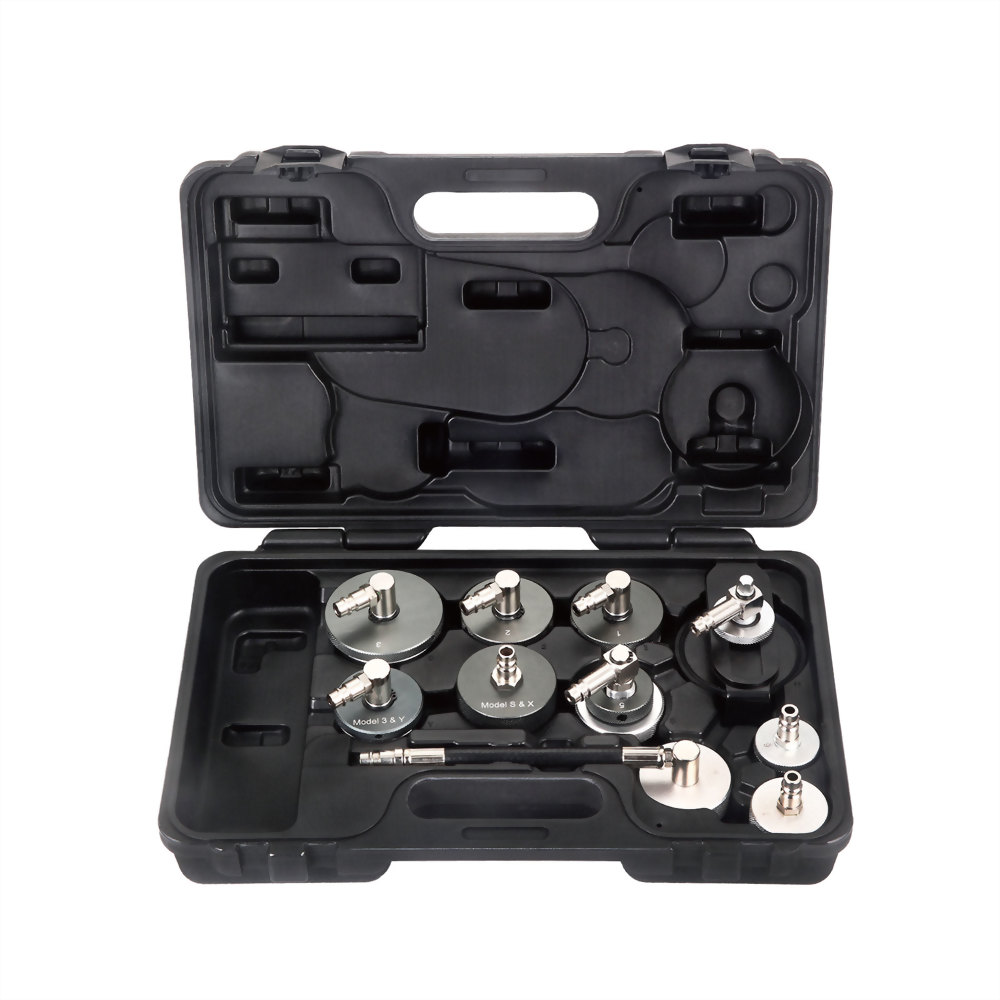

• Includes 9 vehicle-specific adapters and 1 clamp-on style universal adapter

• Most adapters have a swivel 90° fitting to tackle limited space problems

• Aluminum-made adapter holds high pressure, suitable for most pressure bleeding works that require 2 bar / 30 psi

• Suitable for changing DOT 3 and DOT 4 brake fluids, but NOT SUITABLE for changing DOT 5.1







sd-1209b-inst5.jpgsd-1209b-inst6.jpgsd-1209b-inst7.jpgsd-1209b-inst8.jpgsd-1209b-inst9.jpg

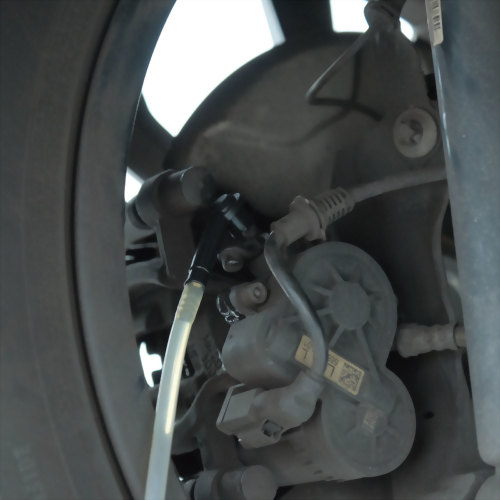

Pressure brake bleeding offers several benefits compared to traditional methods. Here are some key advantages:


1. Efficiency: Pressure bleeding can remove air from the brake lines more quickly, often requiring less time to complete the process.


2. Thorough Air Removal: It ensures that all air is expelled from the brake system, which can lead to a more effective brake performance.


3. Less Manual Labor: Unlike the pump-and-hold method, pressure bleeding reduces the need for a helper to pump the brake pedal, making the process easier for a single technician.


4. Consistent Fluid Flow: It maintains a steady flow of brake fluid, preventing the introduction of air during the bleeding process.


5. Reduced Risk of Contamination: The pressurized system helps minimize the exposure of brake fluid to air, which can reduce the risk of moisture absorption and contamination.


6. Improved Brake Feel: By ensuring that all air is removed, pressure bleeding can improve the pedal feel and overall braking performance.


7. Versatility: Pressure bleeding equipment can often be used on various types of brake systems, including ABS, making it a useful tool for mechanics.


Pressure bleeding is generally suitable for most cars from 2001 onward. Most modern vehicles are designed to accommodate various brake bleeding methods, including pressure bleeding. However, there are a few considerations:


1. Brake System Design: Some cars with advanced brake systems, like those equipped with ABS or electronic stability control, may have specific procedures for bleeding to ensure that all components are properly purged of air.


2. Manufacturer Recommendations: Always check the vehicle's service manual for any specific guidelines or restrictions regarding brake bleeding. Some manufacturers may recommend certain methods or equipment.


3. Brake Fluid Type: Ensure that the right type of brake fluid is used, as modern vehicles often require specific formulations.


4. Equipment Compatibility: Ensure that your pressure bleeding equipment is compatible with the vehicle’s brake system and can handle the required pressure levels.


Overall, as long as these considerations are taken into account, pressure bleeding can be an effective method for most vehicles from 2001 and later.


The typical pressure range for brake pressure bleeding is usually between 10 to 20 psi (pounds per square inch). Here are some key points to keep in mind:


1. Manufacturer Specifications: Always refer to the vehicle’s service manual for any specific pressure recommendations, as some manufacturers may have particular requirements.


2. Too High Pressure: Exceeding recommended pressure can risk damaging brake components or causing fluid leaks, so it’s important to stay within the advised range.


3. Pressure Bleeder Equipment: Ensure that the pressure bleeder you’re using is calibrated to maintain the correct pressure consistently during the bleeding process.


Following these guidelines will help ensure effective and safe brake bleeding.




  Package   Blow molded case (black)
  Packing   5 sets in a master carton
  Weight per set   3 kg   6.6 lbs
  Net weight per carton   15 kg   33 lbs
  Gross weight per carton   16 kg   35.2 lbs

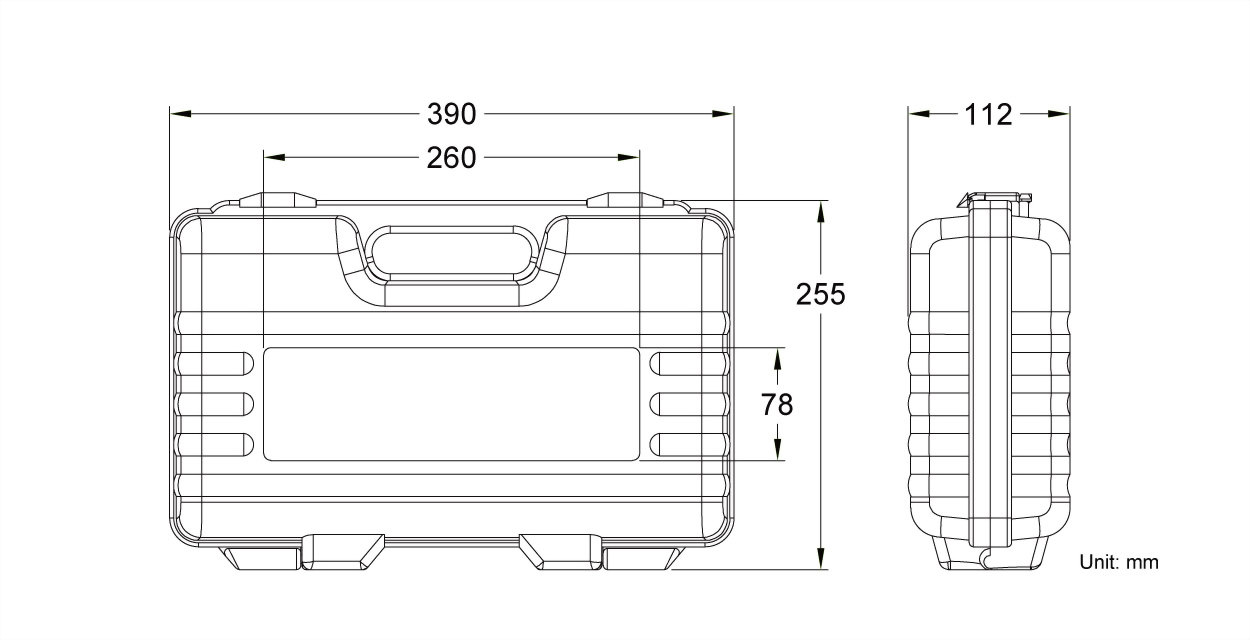

  Size per set   39.0 × 25.5 × 11.2 cm   15.3 × 10 × 4.4 inch
  Size per carton   59.4 × 40.6 × 27.8 cm   23.4 × 16 × 10.9 inch
  Volume per carton   0.067 CBM   2.4 CUFT
  Case label size        26.0 × 7.8 cm        10.2 × 3 inch


No. Image Cosda No. Description

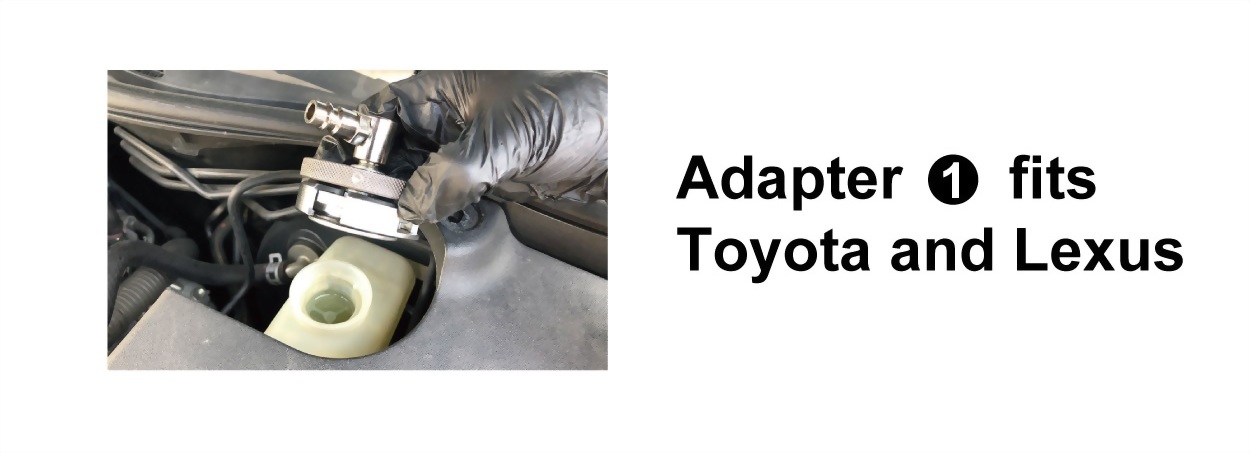

1 Brake Bleeder Adapter for Toyota SD-1209-1
- Specifications

  Dimension              5.3 × 5.3 × 5.1 cm
  Weight   205 g

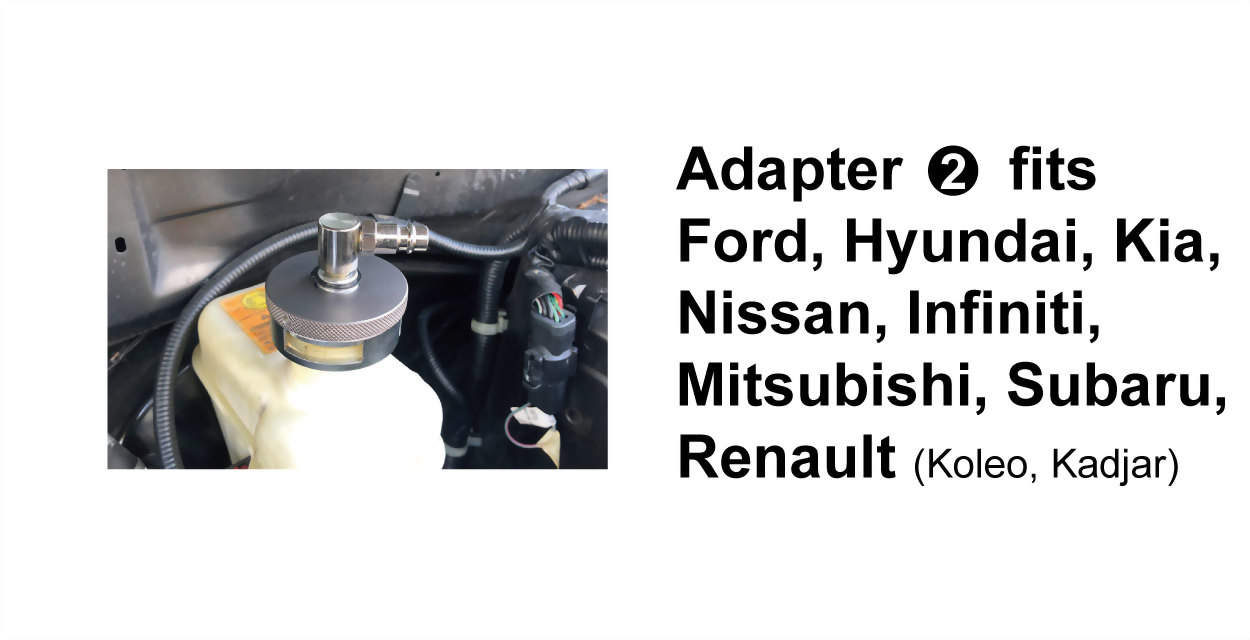

2 Brake Bleeder Adapter for Ford, Hyundai, Mazda, Mitsubishi, Nissan, Subaru SD-1209-2
- Specifications

  Dimension              5.3 × 5.3 × 5.1 cm
  Weight   215 g

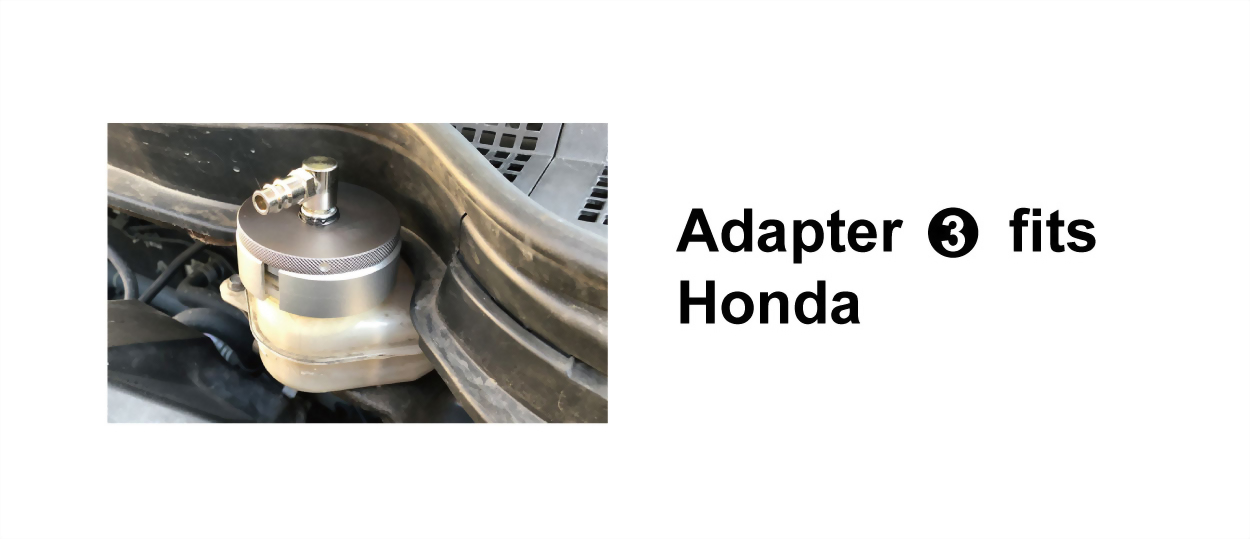

3 Brake Bleeder Adapter for Honda SD-1209-3
- Specifications

  Dimension              6.7 × 6.7 × 5.8 cm
  Weight   375 g

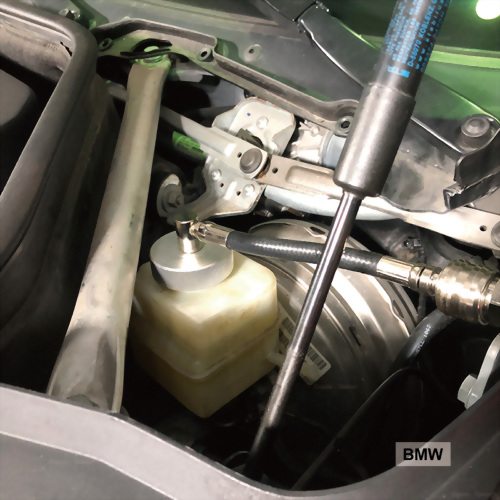

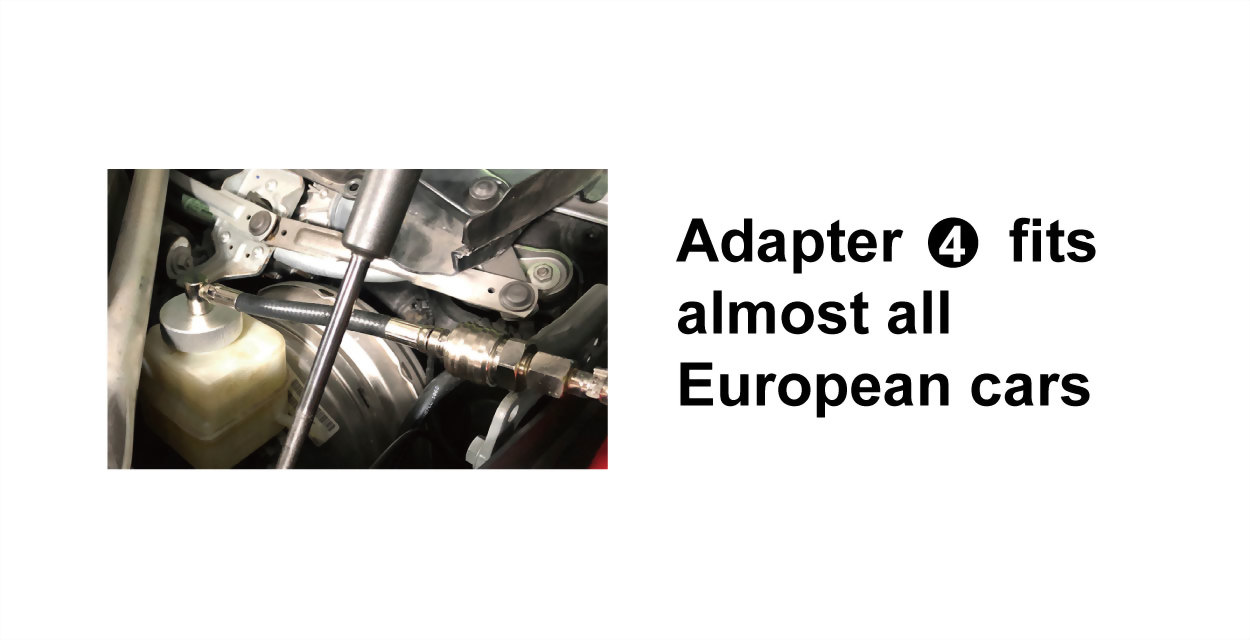

4 Brake Bleeder Adapter for European Vehicles SD-1209-4
- Specifications

  Dimension              21.5 × 5.0 × 4.0 cm
  Weight   150 g

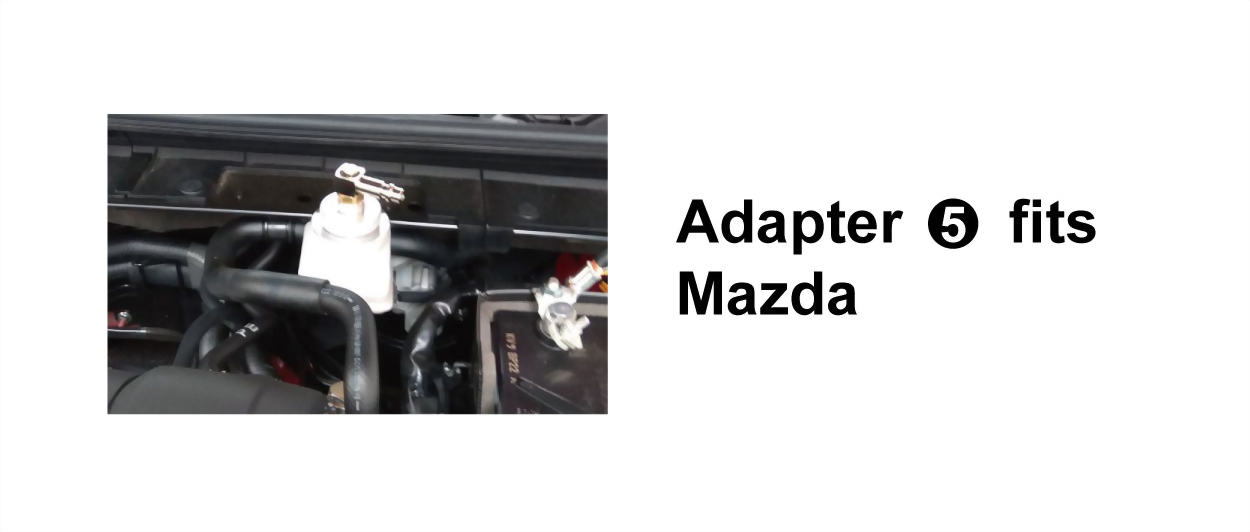

5 Brake Bleeder Adapter for Mazda and Suzuki SD-1209-5
- Specifications

  Dimension              6.0 × 6.0 × 4.5 cm
  Weight   175 g

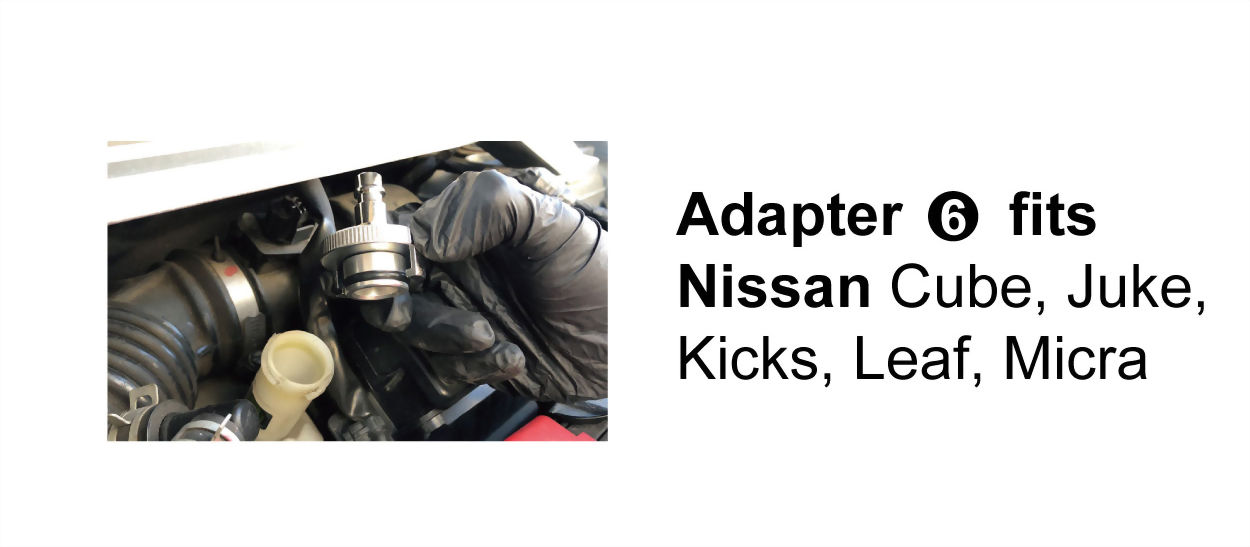

6 Brake Bleeder Adapter for Nissan SD-1209-6
- Specifications

  Dimension              3.5 × 3.5 × 4.3 cm
  Weight   75 g

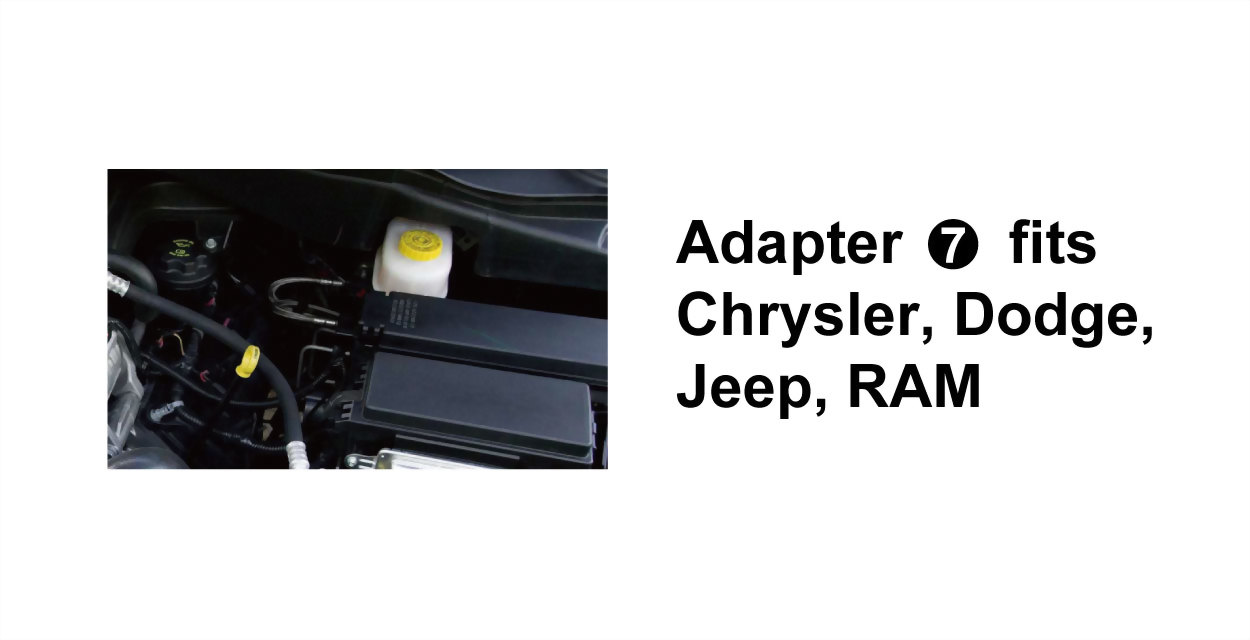

7 Brake Bleeder Adapter for Chrysler, Dodge, Jeep and Ram SD-1209-7
- Specifications

  Dimension              4.4 × 4.4 × 4.1 cm
  Weight   58 g

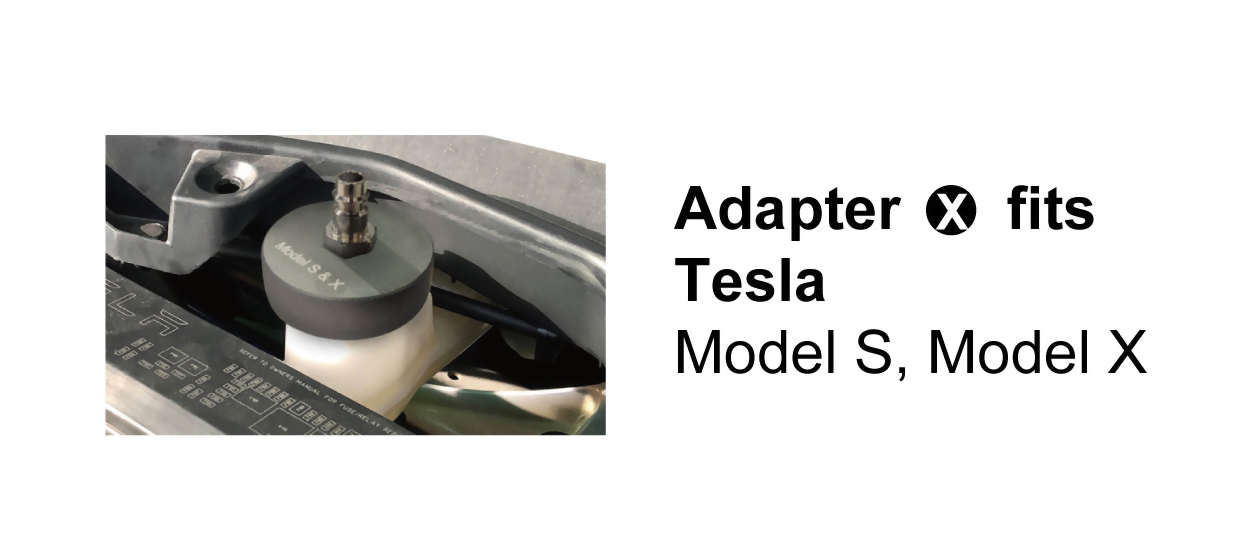

8 Brake Bleeder Adapter for Tesla Model S and X SD-1209-SX
- Specifications

  Dimension              6.1 × 6.1 × 4.6 cm
  Weight   140 g

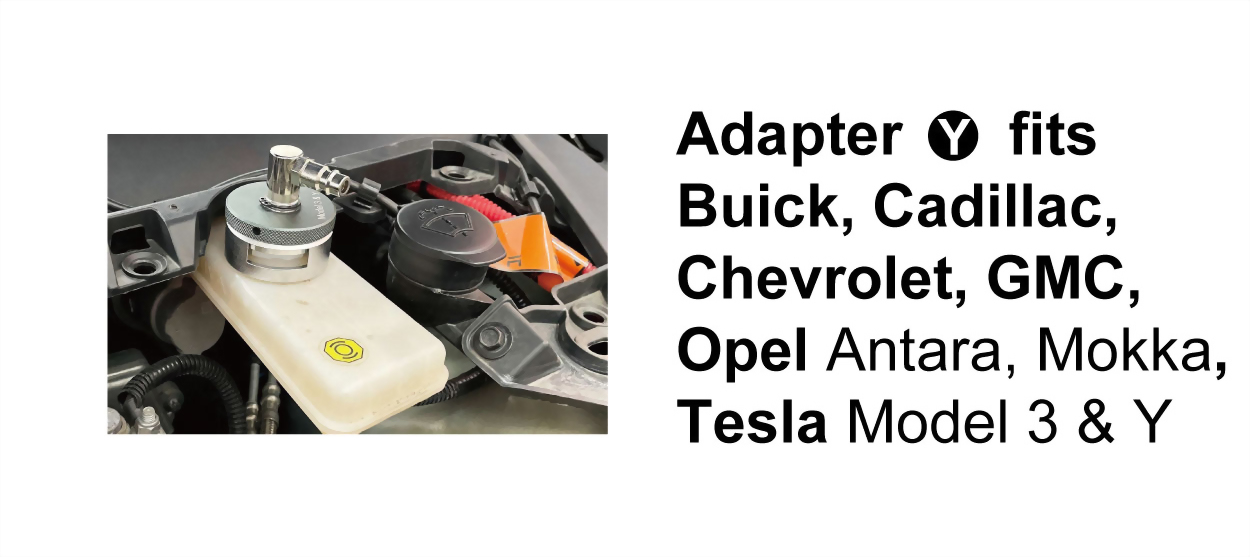

9 Brake Bleeder Adapter for GM and Tesla Model 3 and Y SD-1209-9
- Specifications

  Dimension              6.1 × 5.8 × 5.4 cm
  Weight   155 g

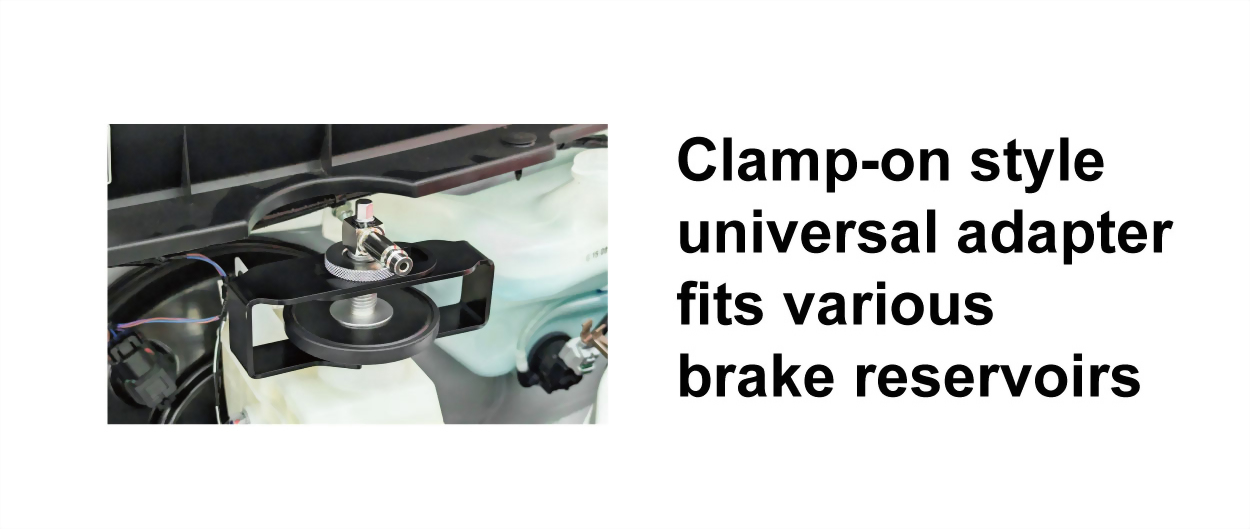

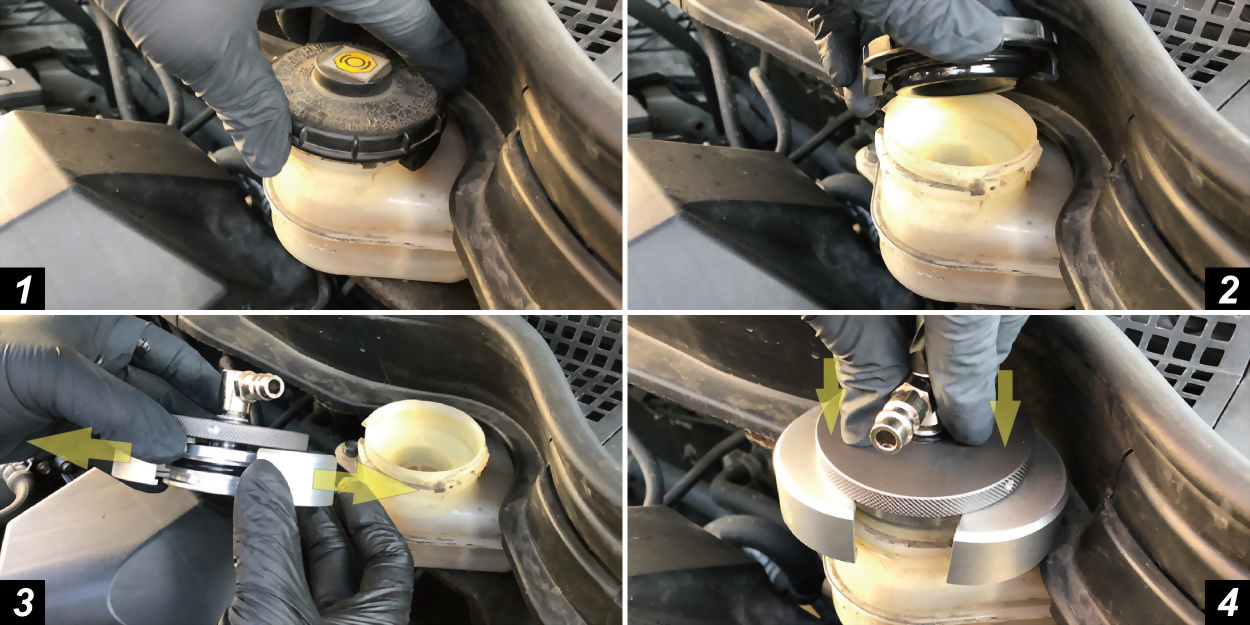

10 Universal Brake Pressure Bleeder Adapter with Adjustable Arms SD-1207A
- Specifications

  Suggested HS code   82055990909
  MOQ with laser marking   40 sets
  MOQ without laser marking   20 sets
  Laser marking cost   + TWD 3 on each piece
  Not for sale in
  China and Taiwan


Related Products

Brake Pressure Bleeder Adapter Set (6 pcs)

SD-1209

Brake Pressure Bleeder Adapter Set for Tesla All Models

SD-1209T

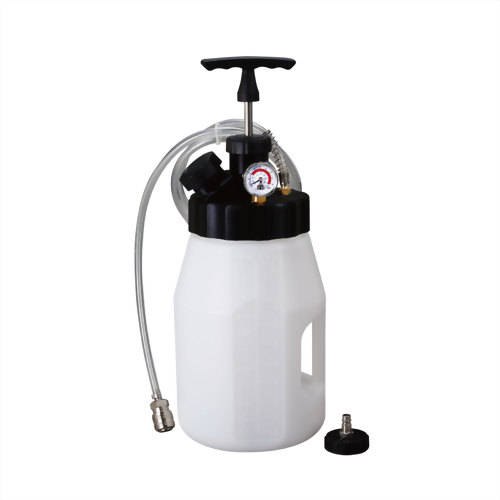

Brake Pressure Bleeder Set with a 5-Liter Tank and a European Standard Threaded Adapter
