• Heavy duty coil spring compressor
  • spring compressor for commercial vehicles

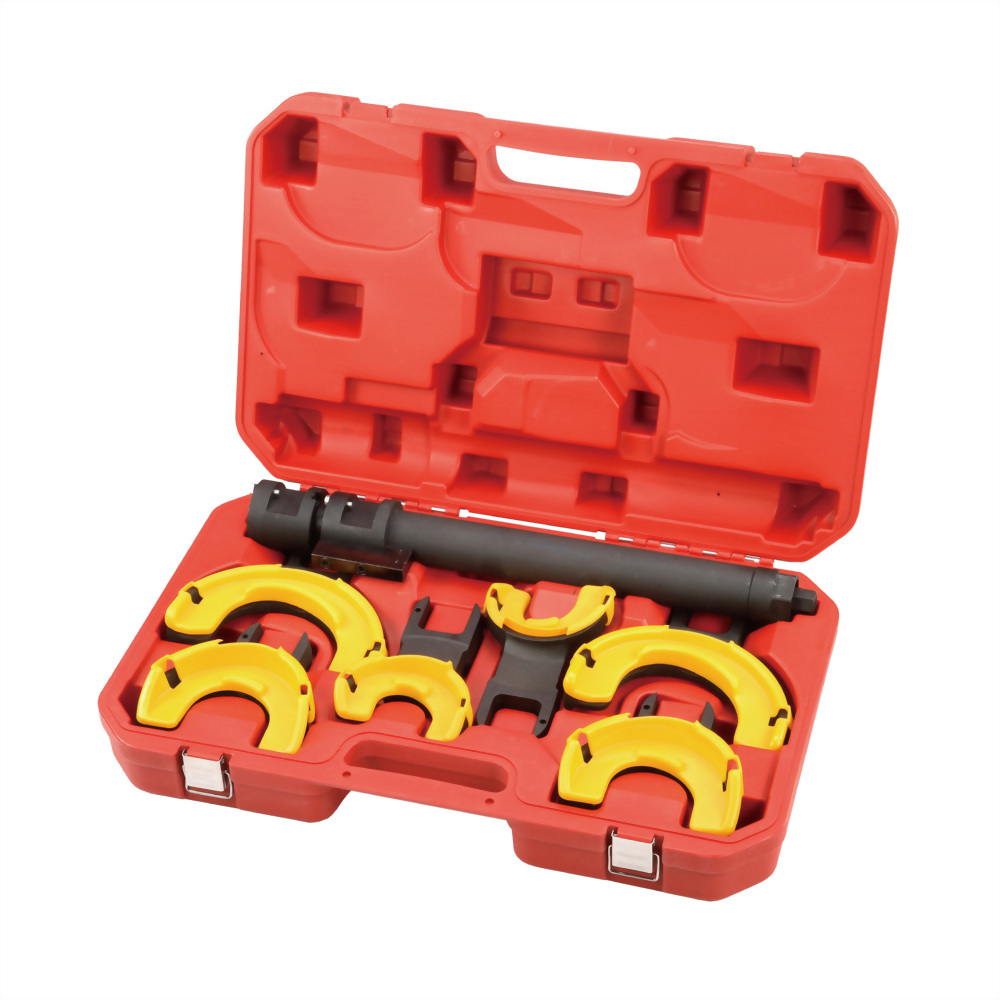

Heavy Duty MacPherson Spring Compressor

Model No.: SD-1002
• Set for heavy duty MacPherson shock absorber springs

• Suitable for air/impact wrench operation

• Provided with Nylon 6-6 jaw covers to protect coil spring paint

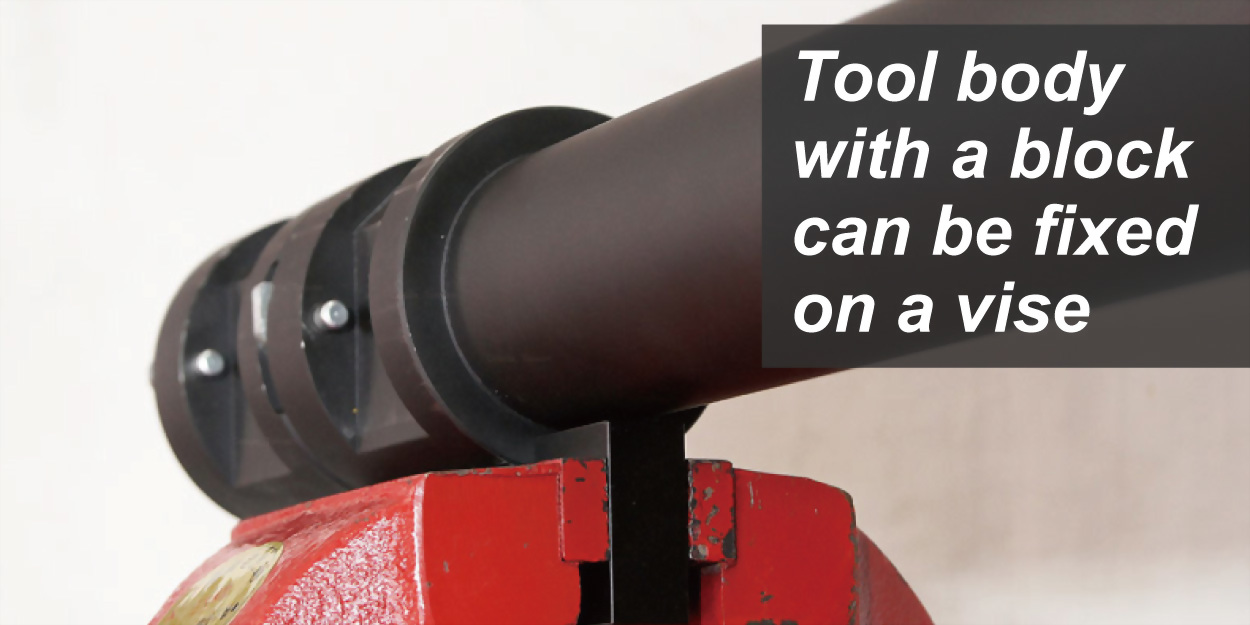

• Provided with a rectangle block that can be attached to main body for being fixed on a vise

• Break point: 6,820 kgf (ca. 66,836 N)

• Max. load: 2,728 kgf (ca. 26,000 N)

• Provided with Product Liability Insurance

auto repair tool manufacturer


special tool manufacturer taiwan


innovative auto tool for repair


auto repair tool manufacturer


car repair tool maker


car tool for repair and maintenance maker


professional mechanic tool manufacturer


  Package   Blow molded case (red)
  Packing   1 set in a master carton
  Weight per set   28.5 kg   62.7 lbs
  Net weight per carton   28.5 kg   62.7 lbs
  Gross weight per carton   29.5 kg   64.9 lbs

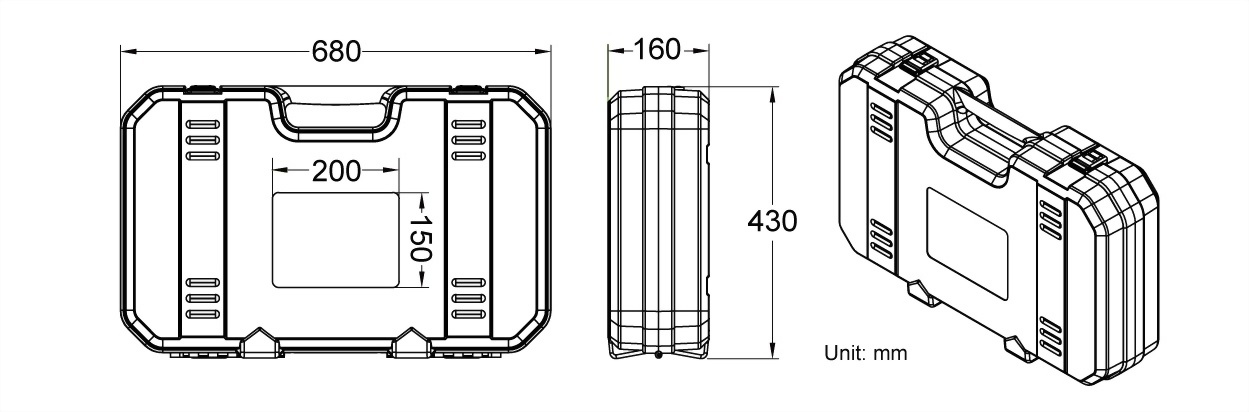

  Size per set   68.0 × 43.0 × 16.0 cm   26.7 × 16.9 × 6.3 inch
  Size per carton   70.0 × 45.0 × 18.0 cm   27.5 × 17.7 × 7.0 inch
  Volume per carton   0.06 CBM   2.0 CUFT
  Size size  14.8 × 19.8 cm    7.8 × 5.8 inch


  Suggested HS Code   82055990909
  MOQ with laser marking   10 sets
  MOQ without laser marking   2 sets
  Laser marking cost   + TWD 5 on each jaw


Certificates of Product Liability Insurance and CE certificate are shown below
