• Diesel Injector Seat Cutter Reamer Set
  • Diesel Injector Seat Cutter Reamer Set Universal Reface Tool Kit
  • Universal Injector Re-Face Reamer Tool Set
  • Injector Seat Cutter Removal Tool Flat Reamer Pilot

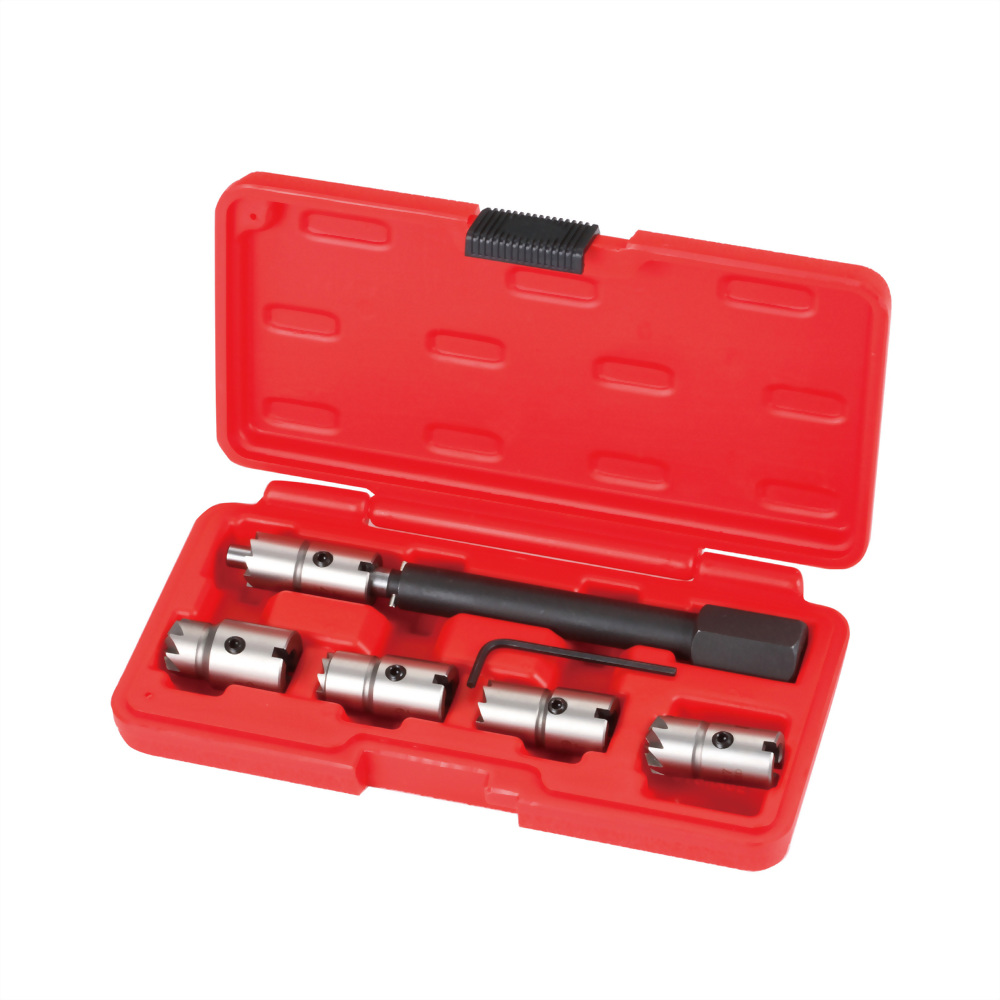

Diesel Injector Seat Cutter Set (7 pcs)

Model No.: SD-1081A

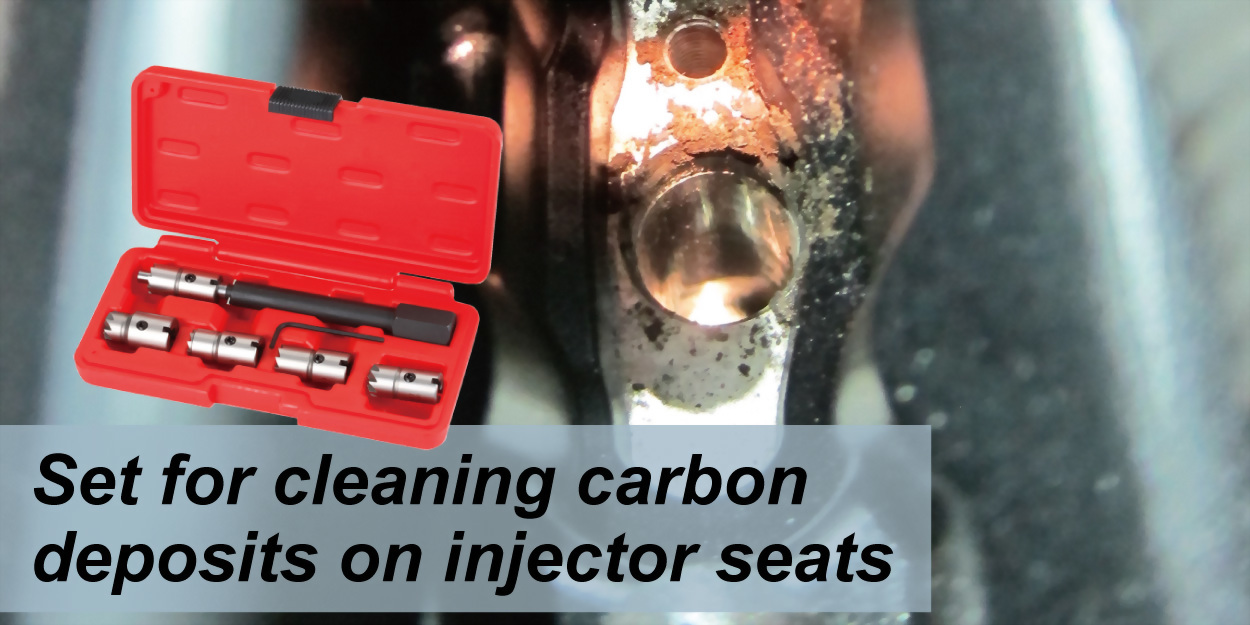

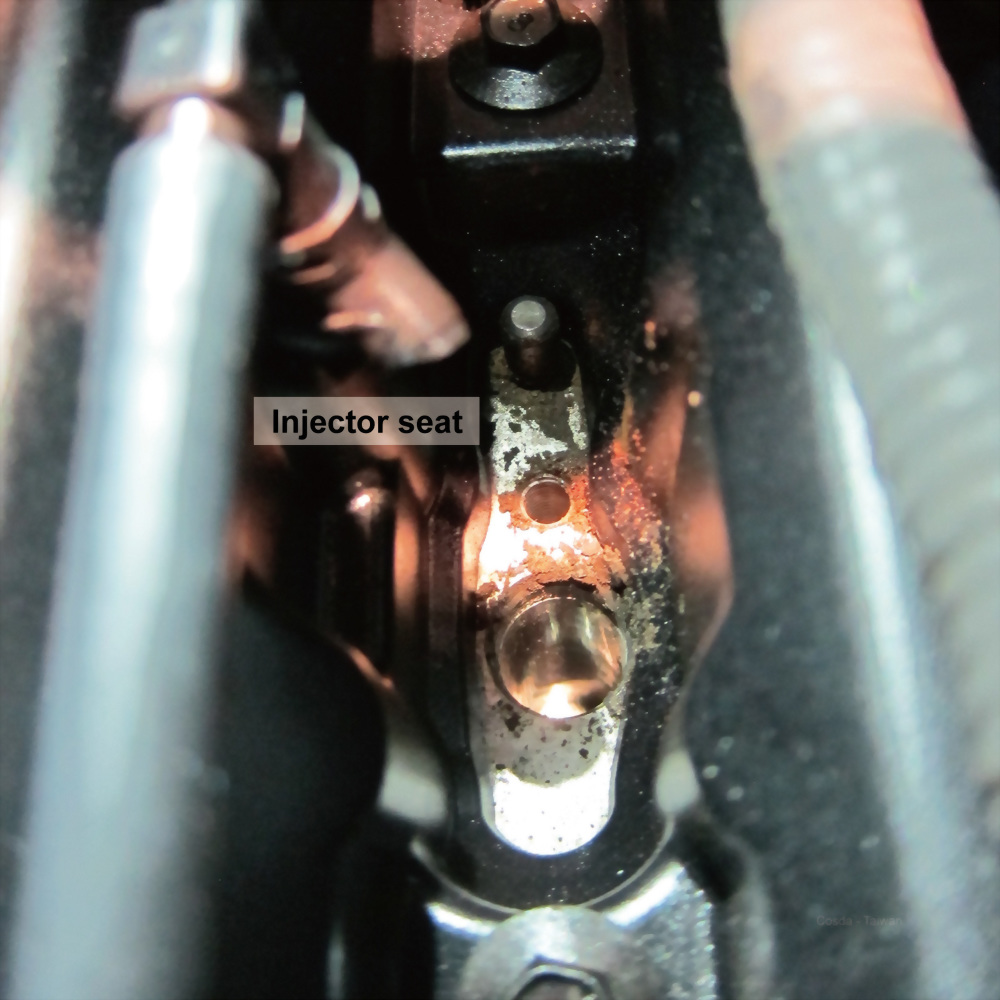

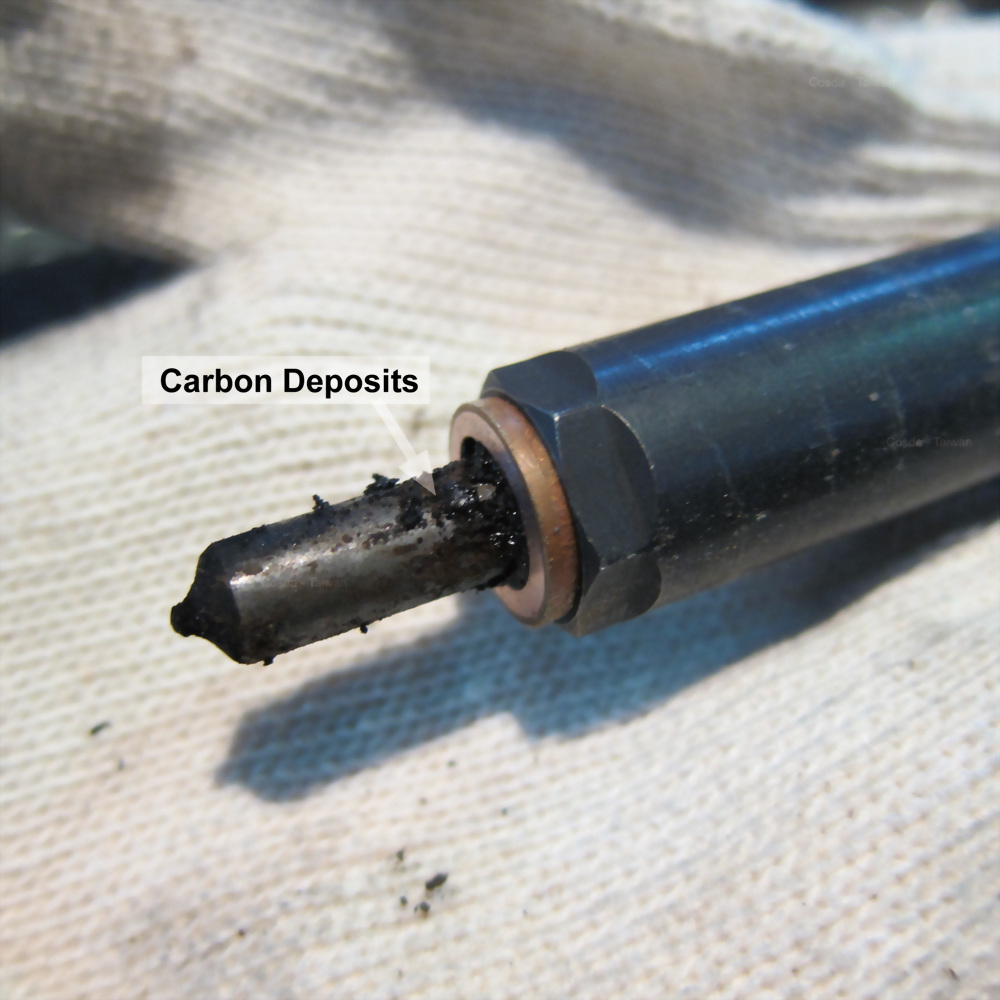

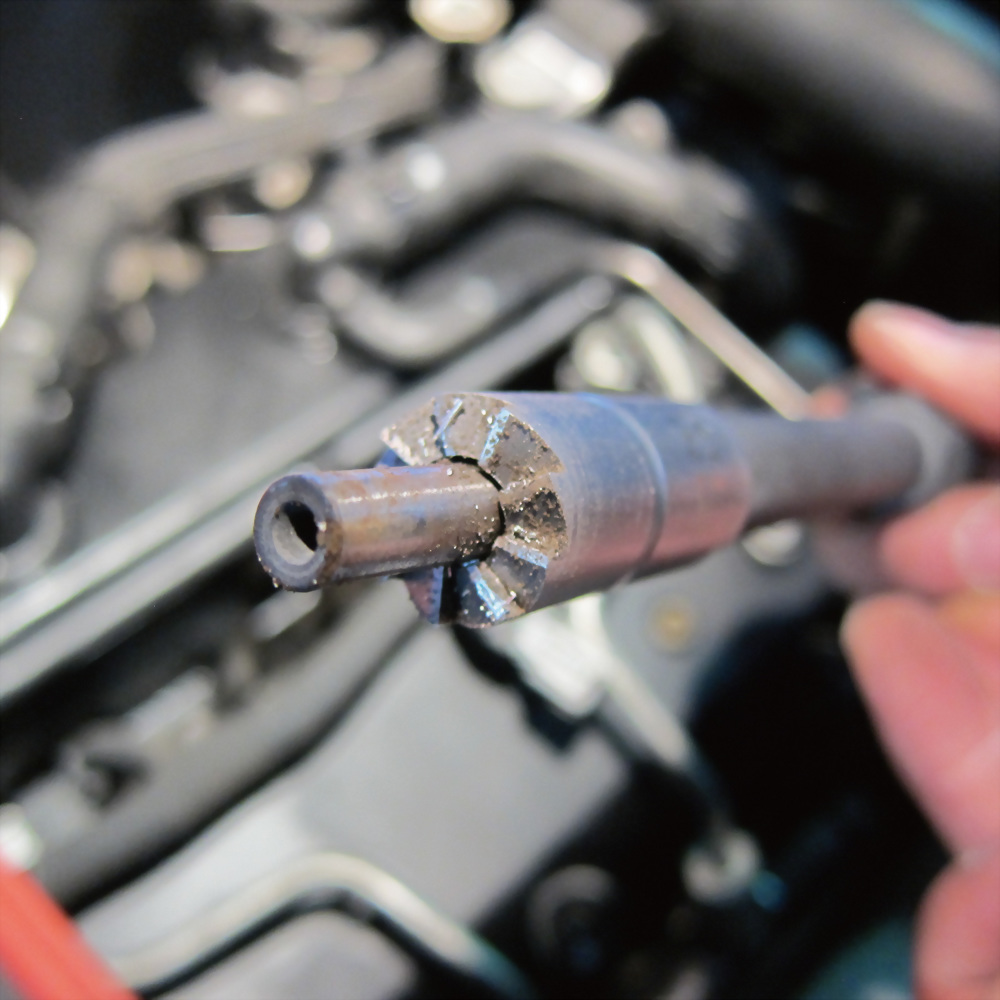

• To re-face diesel injector seats for fitting new or reconditioned injectors by cleaning carbon deposits on injector seats

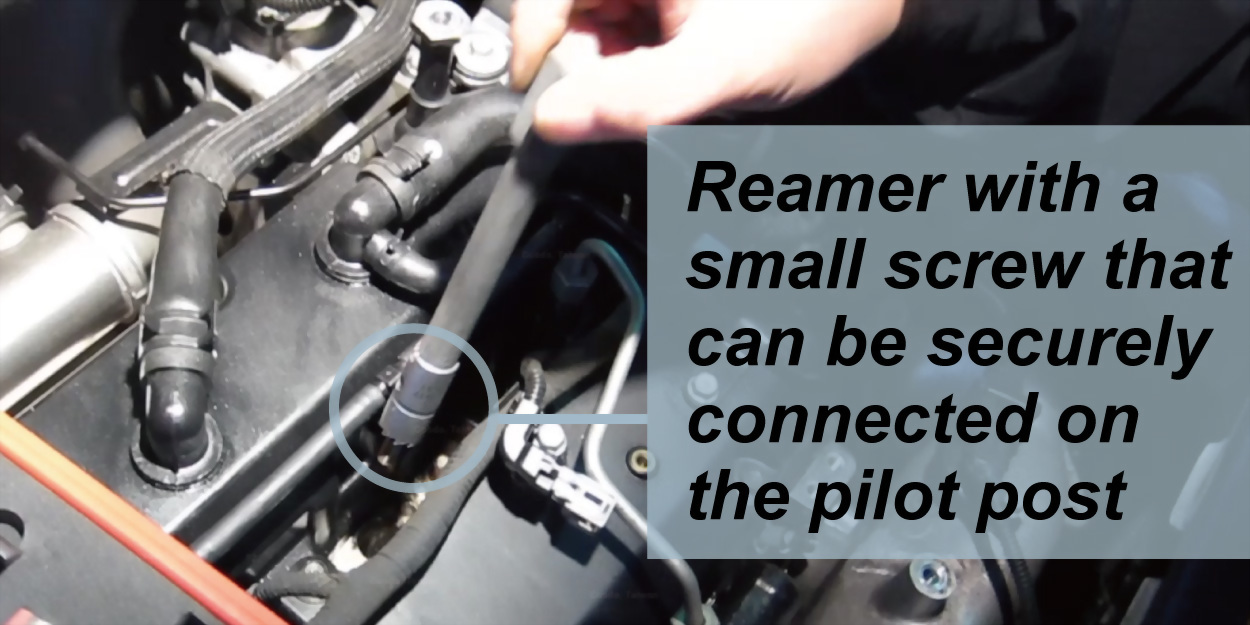

• Unique double lock design provides safer works and better results

• Sizes - 17 × 17mm flat reamer, 15 × 19mm flat reamer, 17 × 19mm flat reamer, 17 × 21mm flat reamer, 17 × 17mm angled reamer

• Helps avoid potential risks of blow-by gases

Diesel Injector Seat Cutter Set Injector Re-Face Tool Flat Angled Reamer


Injector Seat Cleaning Reamer Set


Reamer of Seats of Injectors Diesel


Diesel Injector Seat Cutter Cleaner Universal Injector Re-Face Reamer



  Package   Blow molded case (red)
  Packing   20 sets in a master carton
  Weight per set   610 g   1.3 lbs
  Net weight per carton   12.2 kg   26.8 lbs
  Gross weight per carton   13.2 kg   29.0 lbs
  Size per set   20.0 × 11.0 × 3.0 cm   7.9 × 4.3 × 1.2 inch
  Size per carton   44.0 × 21.0 × 18.0 cm   17.3 × 8.3 × 7.1 inch
  Volume per carton   0.017 CBM   0.6 CUFT
  Case label size   8.5 × 3.5 cm   3.3 × 1.4 inch

No. Image Cosda No. Description
1 Pilot Post SD-1081_BODY MorePilot Post
- Specifications

  Dimension              1.9 × 1.9 × 17.7 cm
  Weight   203 g


2 Allen Wrench 2.5mm SD-1081-02 MoreAllen Wrench 2.5mm
- Specifications

  Dimension              5.7 × 2.0 × 0.3 cm
  Weight   2.8 g


3 17 × 17 mm Flat Reamer SD-1081-3A More17 × 17 mm Flat Reamer
- Specifications

  Dimension              1.7 × 1.7 × 3.8 cm
  Weight   47 g


4 15 × 19 mm Flat Reamer SD-1081-4A More15 × 19 mm Flat Reamer
- Specifications

  Dimension              1.9 × 1.9 × 3.8 cm
  Weight   53 g


5 17 × 19 mm Flat Reamer SD-1081-5A More17 × 19 mm Flat Reamer
- Specifications

  Dimension              1.9 × 1.9 × 3.8 cm
  Weight   52 g


6 17 × 21 mm Angled Reamer SD-1081-6A More17 × 21 mm Angled Reamer
- Specifications

  Dimension              2.1 × 2.1 × 3.8 cm
  Weight   63 g


7 17 × 17 mm Angled Reamer SD-1081-7A More17 × 17 mm Angled Reamer
- Specifications

  Dimension              1.7 × 1.7 × 3.8 cm
  Weight   42 g


  Suggested HS code   82059000008
  MOQ with laser marking   40 sets
  MOQ without laser marking   20 sets
  Laser marking cost   + TWD 2 on each piece

Diesel-Einspritzdüsen-Sitzreiniger, Diesel verstuiver zitting reiniger, Frézy na úpravu sedel diesel vstřikovačů, очиститель сидений дизельного инжектора, SADA FRÉZ NA SEDLÁ VSTREKOVAČOV
