Cooling System Vacuum Purge and Refill Kit

Model No.: SD-1012

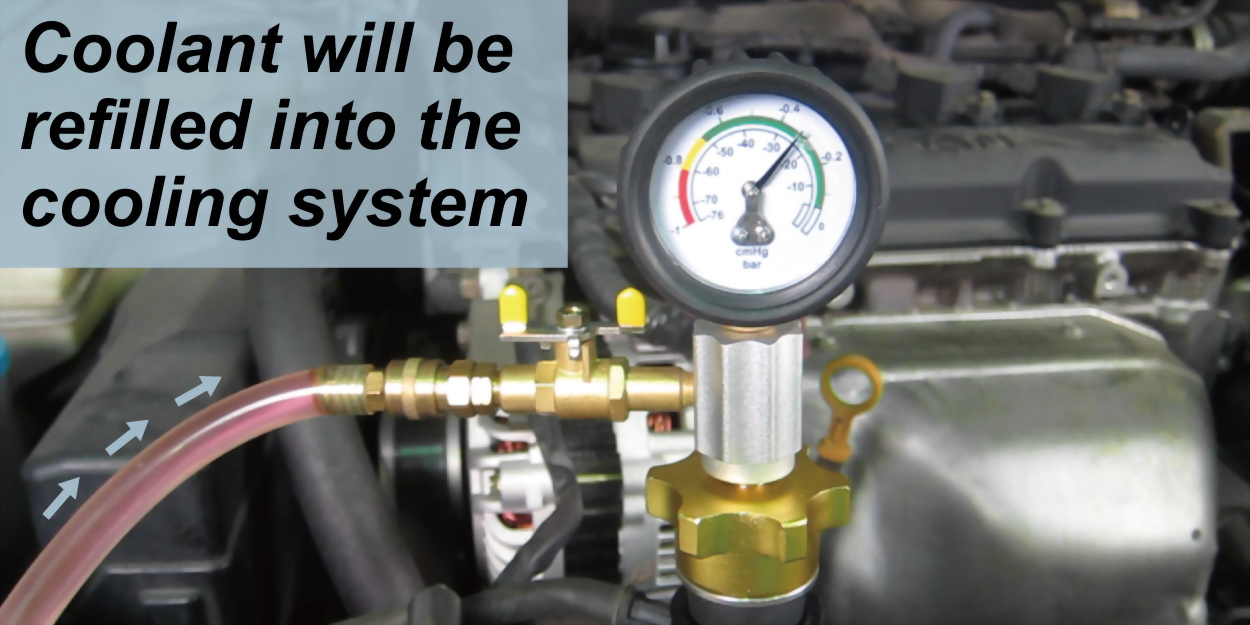

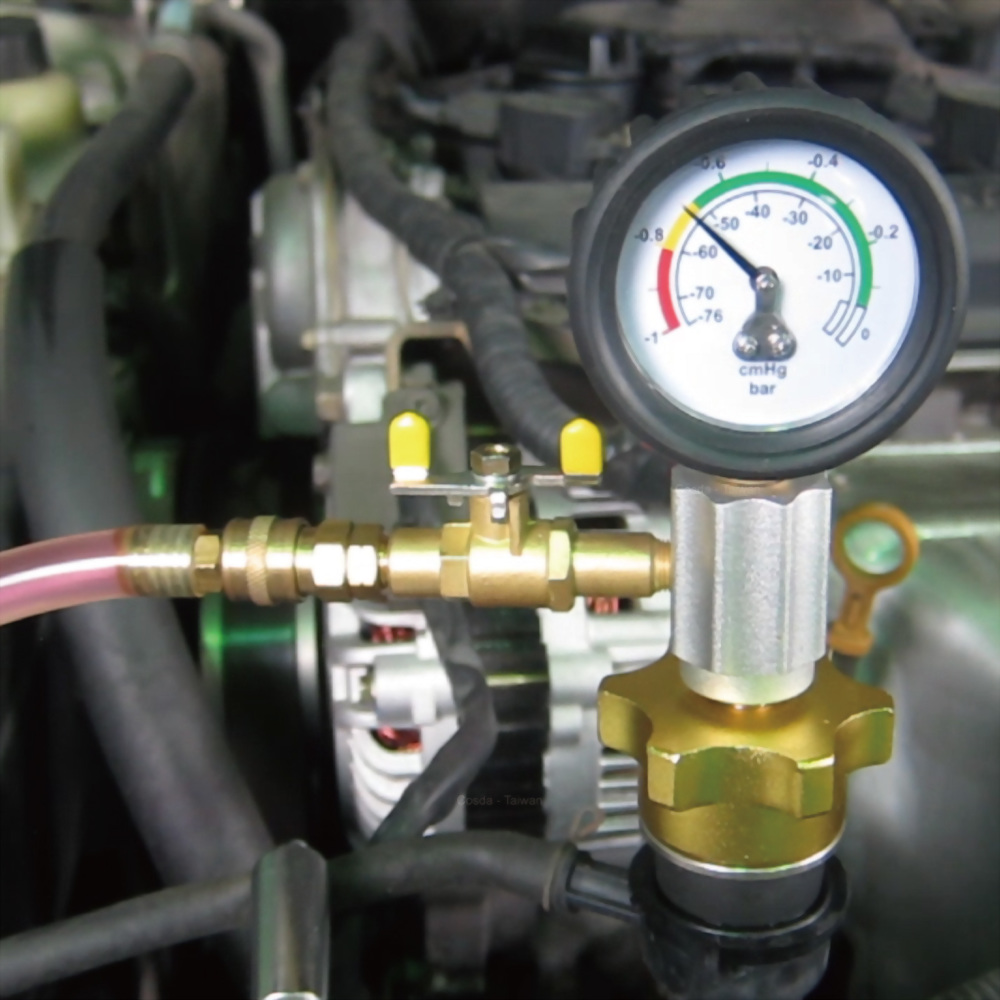

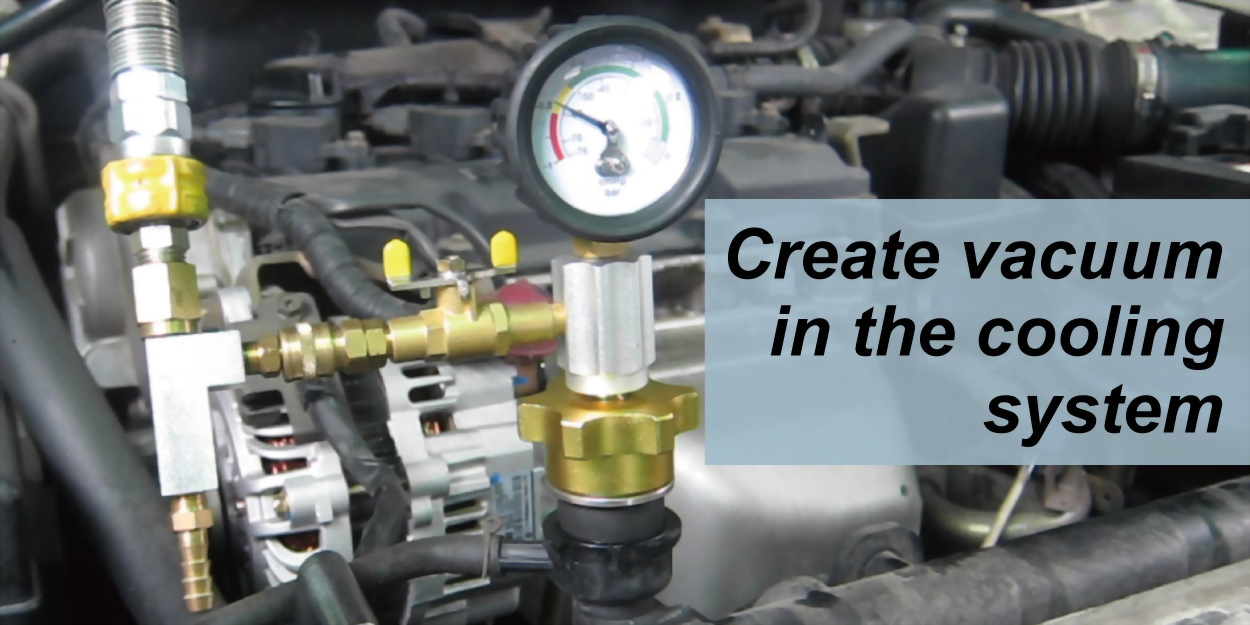

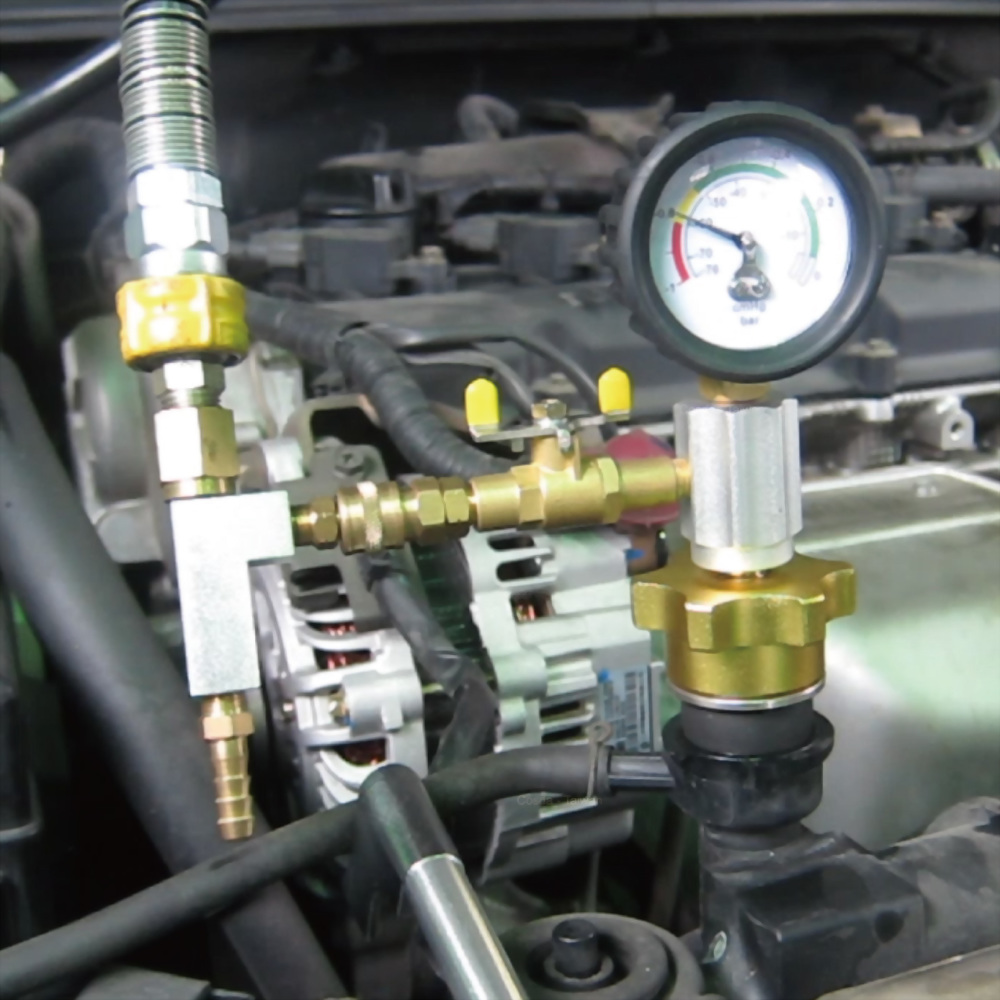

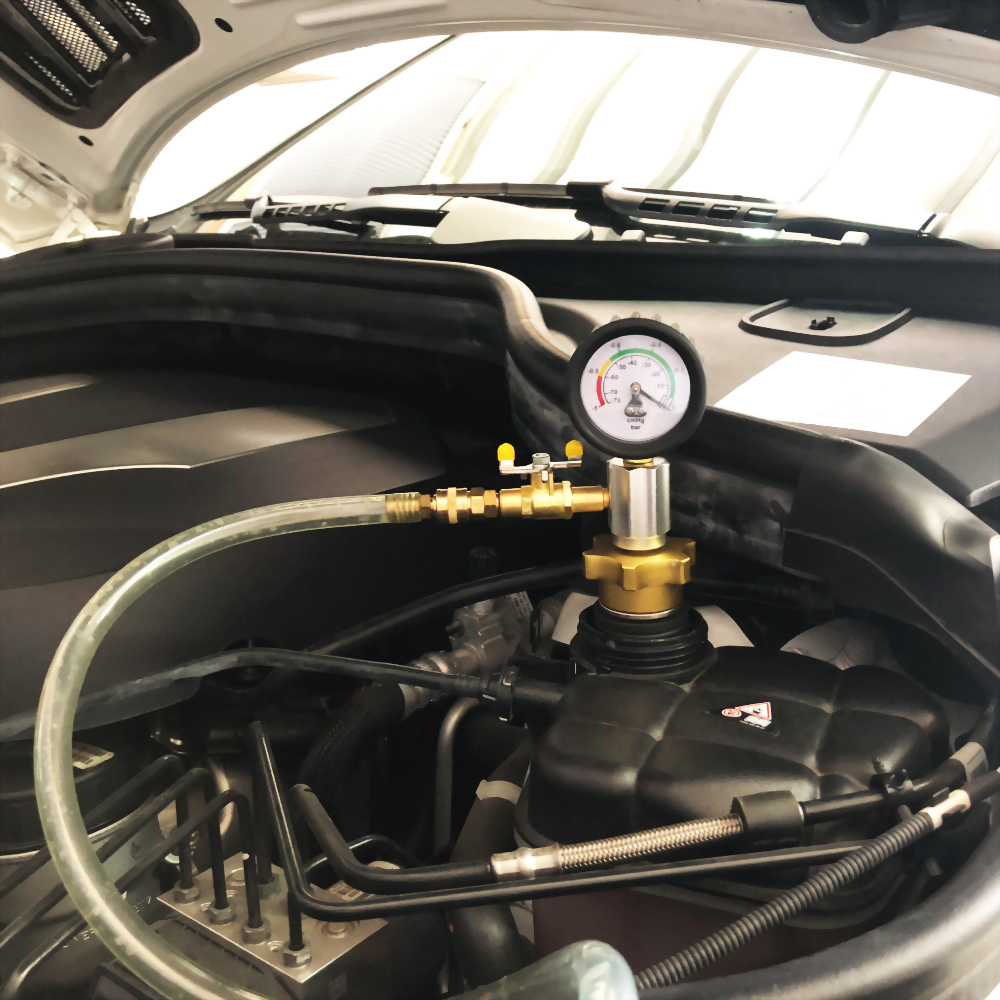

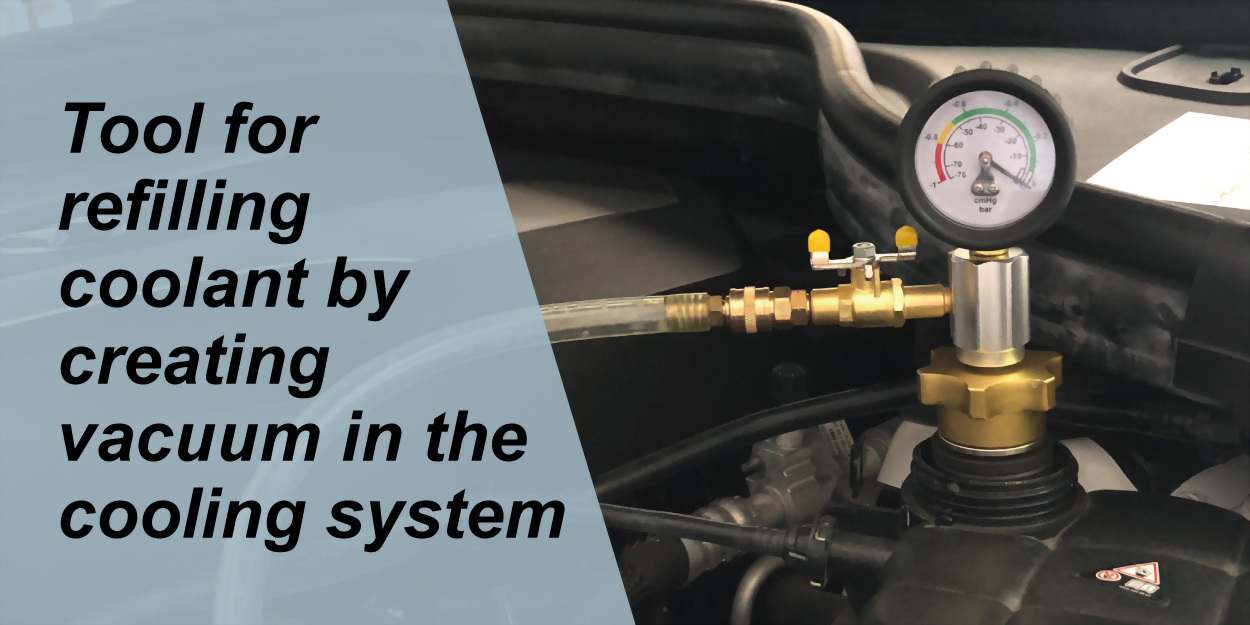

• Set for refilling new coolant by creating a vacuum in cooling system

• No need to undergo the time-consuming air bleeding after refilling new coolant

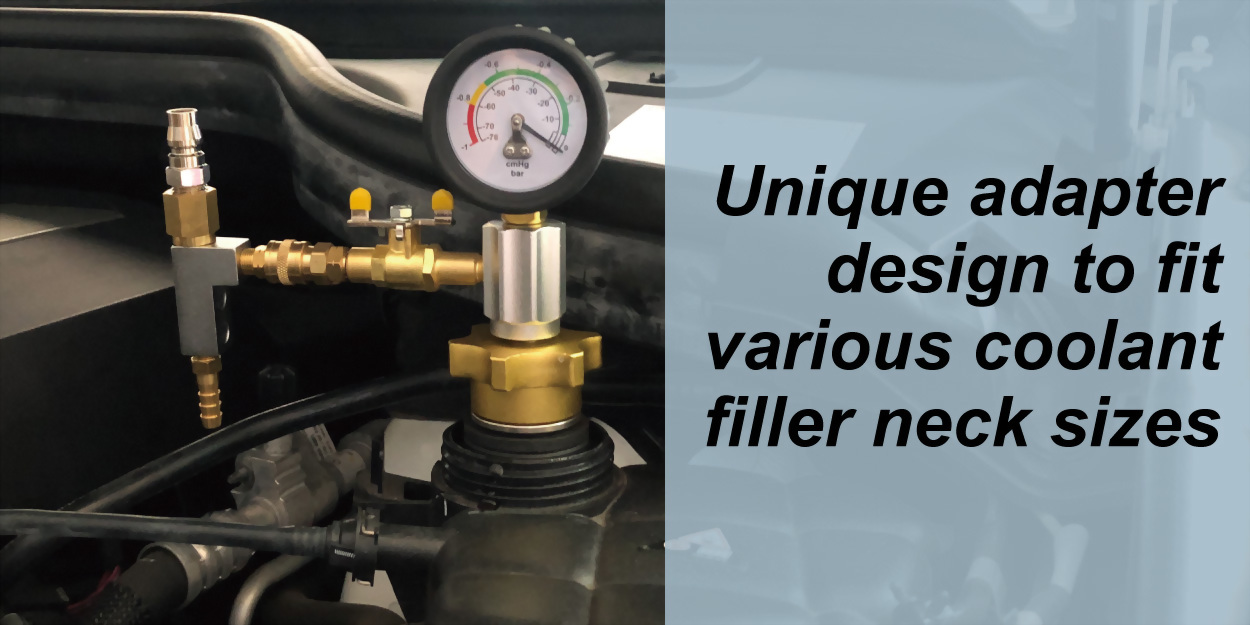

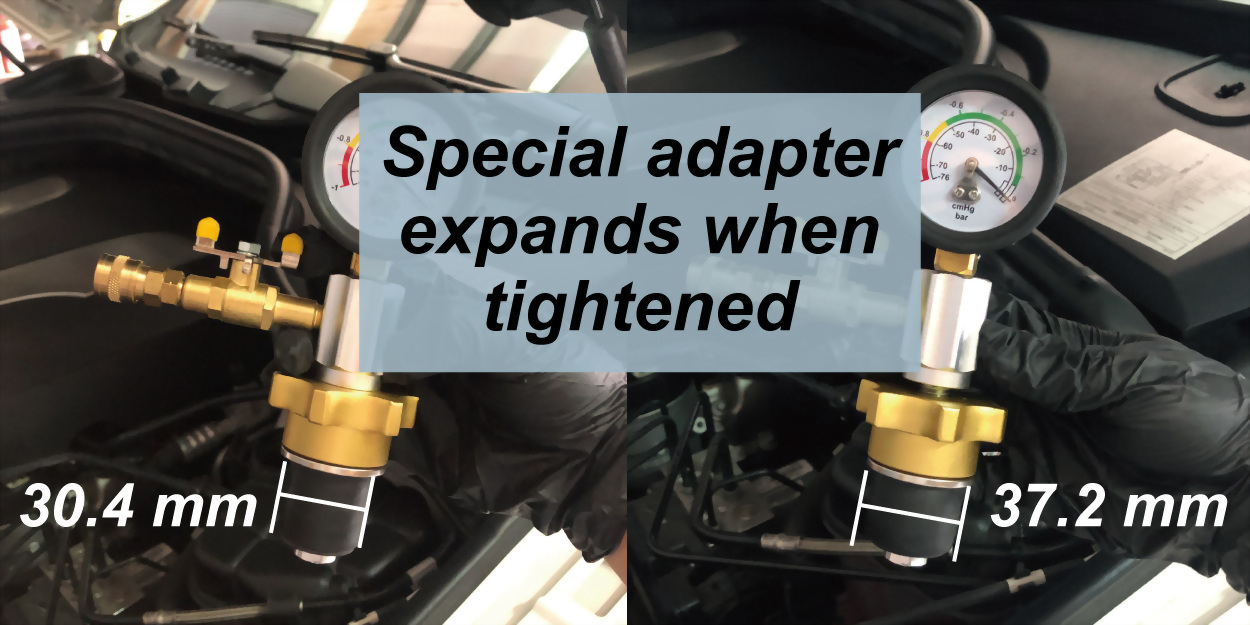

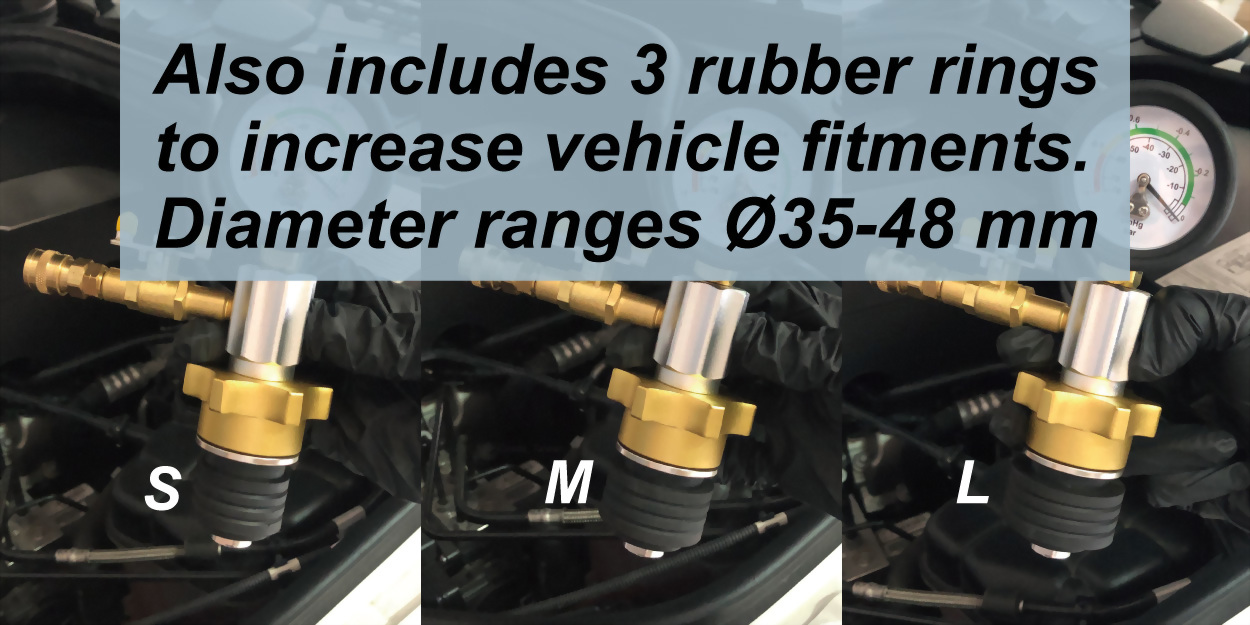

• Golden rotor with expansion rubber and three rubber rings offer a wide application to different radiator filler necks

coolant can be refilled in minutes


How to Bleed Your Car's Cooling System


Why do you need to bleed a coolant system


Coolant Replacement & Bleeding


coolant refill vacuum type for BMW, Mercedes-Benz


coolant refill vacuum type for Volkswagen, Audi, Skoda, and Porsche


coolant refill vacuum type for opel, vauxhall and Fiat


Vacuum Type Cooling System Refill Kit


Coolant refill for Renault



innovative auto tool manufacturer

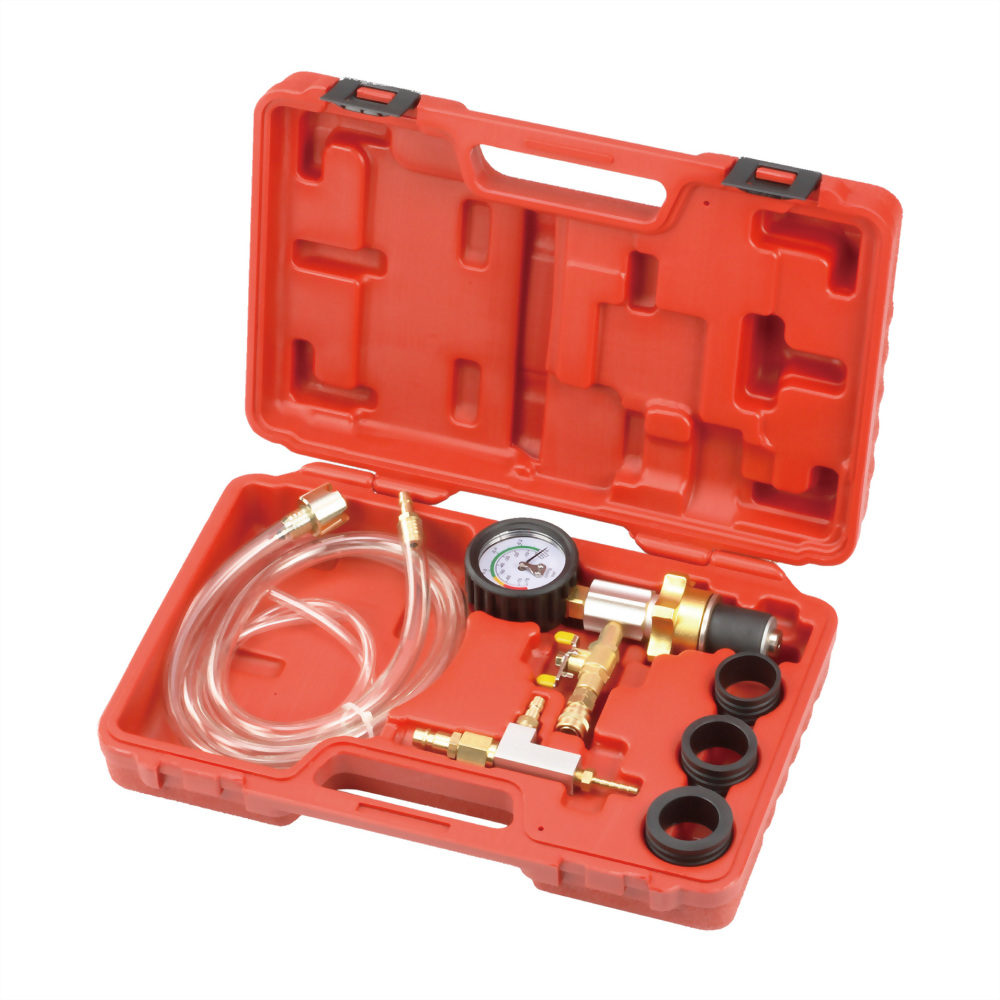

  Package   Blow molded case (red)
  Packing   10 sets in a master carton
  Weight per set   1.5 kg   3.2 lbs
  Net weight per carton   14.7 kg   32.3 lbs
  Gross weight per carton   15.7 kg   34.5 lbs
  Size per set   35.0 × 24.0 × 8.6 cm   13.8 × 9.4 × 3.4 in
  Size per carton   49.5 × 44.5 × 36.5 cm   19.5 × 17.5 × 14.4 in
  Volume per carton   0.08 CBM   2.8 CUFT
  Case label size        20.0 × 7.0 cm        7.9 × 2.8 in


No. Image Cosda No. Description

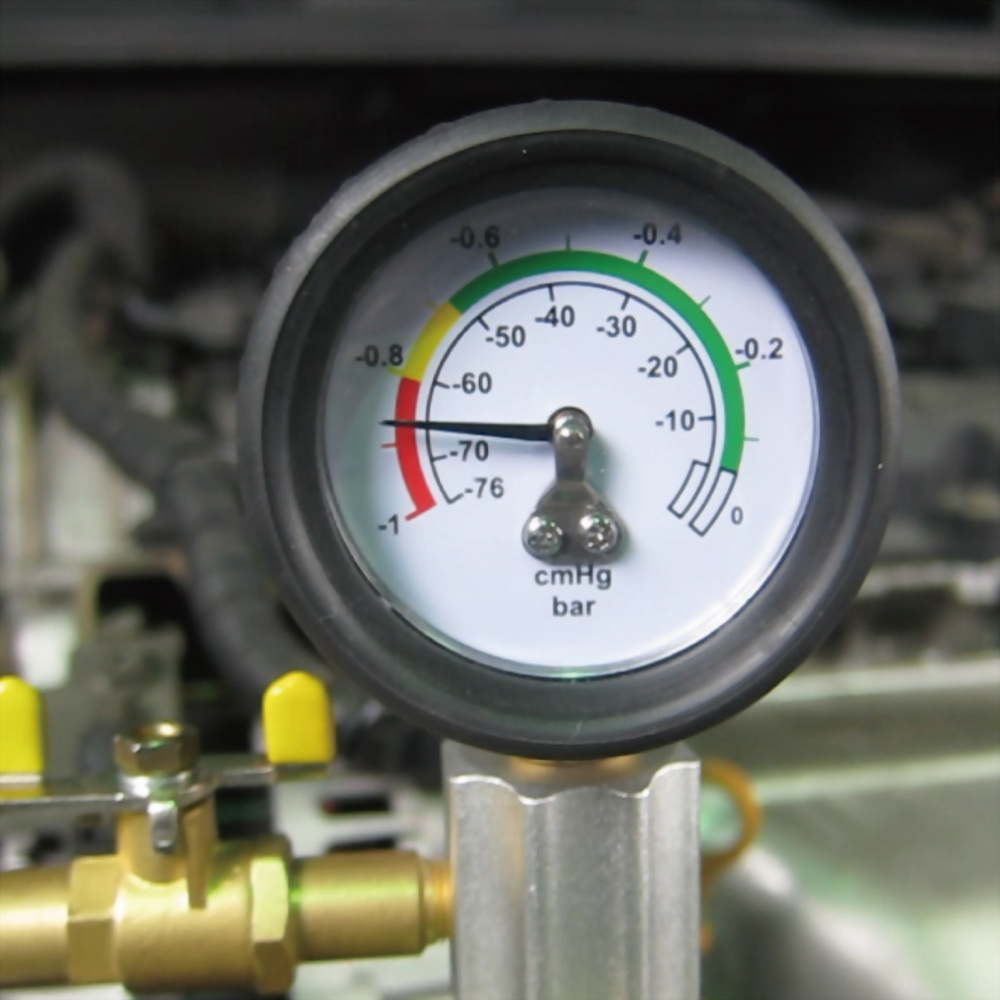

1 Vacuum Gauge with a Universal Adapter SD-1012-1
- Specifications

  Dimension              12.8 × 17.5 × 5.2 cm
  Weight   433 g



2 Vacuum Pump SD-1012-2
- Specifications

  Dimension              12.2 × 5.3 × 2.0 cm
  Weight   105 g



3 OD35 × ID30 Rubber Ring SD-1012-02-01
- Specifications

  Dimension              3.5 × 3.5 × 2.0 cm
  Weight   5.6 g



4 OD39.5 × ID30 Rubber Ring SD-1012-02-02
- Specifications

  Dimension              4.0 × 4.0 × 2.0 cm
  Weight   13 g



5 OD44 × ID30 Rubber Ring SD-1012-02-03
- Specifications

  Dimension              4.4 × 4.4 × 2.0 cm
  Weight   20 g



6 Coolant Hose with a One-way Valve SD-1012-3
- Specifications

  Overall Length   1200 mm
  Weight   137 g



7 Drain Hose SD-1013-P05
- Specifications

  Dimension              Ø8 × 12 × 600 mm
  Weight   49 g


  Suggested HS code   84818090006
  MOQ with laser marking   20 sets
  MOQ without laser marking   10 sets
  Laser marking cost   + TWD 3 on golden rotor
