• Chevrolet GMC Pontiac Buick Cap 15075118 coolant refill tool set
  • Nissan Renault Cap 8200048024 coolant refill tool set
  • Opel 96629108 coolant refill tool set
  • Porsche Tank 991 106 570 Coolant Refill Tool Set

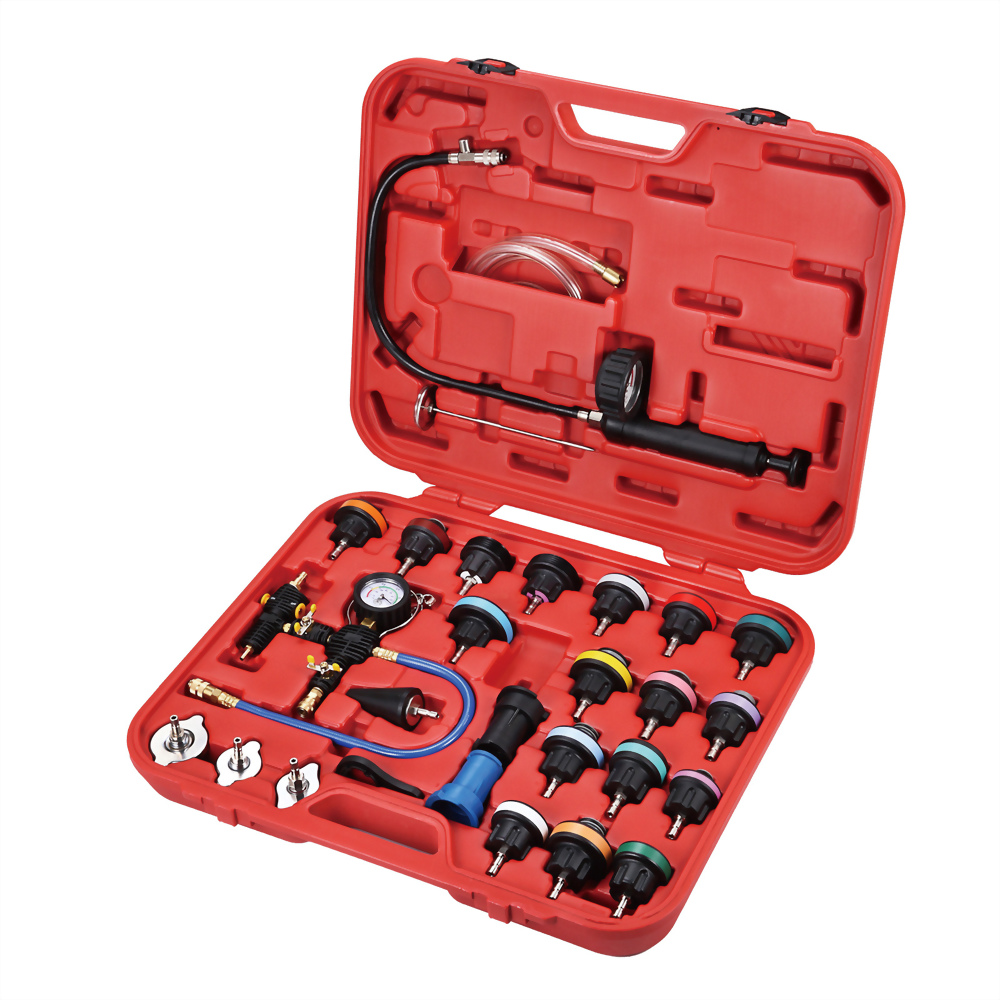

Cooling System Leakage Tester and Vacuum-Type Coolant Refilling Kit (29 pcs)

Model No.: SD-1019C
• Set for testing leaks in automotive cooling system and refill new coolant by creating a vacuum in cooling system

• Includes 20 adapters (No. 3 - 22) for major car makes on the market

• Adapters and pump are made of light weight nylon 6-6

• Connectors (blue and black) are for testing pressure caps

Mercedes-Benz TANK A 163 500 03 4 tool cooling system service


cooling system Cap 17 11 7 639 024 BMW coolant refill pressure test


Ford Fiesta Focus KA Puma Mondeo Cap 1230968 pressure test coolant refill


Ford F-150 F-250 F-350 Fusion Ranger Cap 1F7115205 coolant refill pressure test tool


Toyota 16401 cooling system coolant refill pressure test set


Ford Contour Cougar Cap F8RZ-8100-AA coolant refill pressure test



cooling system repair tool manufacturer


  Package   Blow molded case (red)
  Packing   2 sets in a master carton
  Weight per set   5.6 kg   12.2 lbs
  Net weight per carton   11.5 kg   25.3 lbs
  Gross weight per carton   12.1 kg   27.5 lbs
  Size per set   60.4 × 50 × 10.6 cm   23.8 × 19.7 × 4.2 in
  Size per carton   61.5 × 22.4 × 52.4 cm   24.2 × 8.8 × 20.6 in
  Volume per carton   0.072 CBM   2.5 CUFT
  Case label size        24.0 × 10.0 cm        9.4 × 3.9 in

No. Image Cosda No. Description

1 Cooling System Pressure Pump with Nylon Tube SD-1017-1
- Specifications

  Dimension              Not measurable
  Weight   453 g



2 Vacuum Pump and Refiller SD-1013-1
- Specifications

  Dimension              Not measurable
  Weight   610 g



3 No. 3 Test Cap SD-1018-3
- Specifications

  Dimension              7.9 × 6.0 × 6.2 cm
  Weight   106 g



4 No. 4 Test Cap SD-1018-4
- Specifications

  Dimension              6.2 × 4.5 × 6.5 cm
  Weight   81 g



5 No. 5 Test Cap SD-1018-5
- Specifications

6 No. 6 Test Cap SD-1017A-6
- Specifications

  Dimension              6.2 × 6.2 × 7.2 cm
  Weight   62 g



7 No. 7 Test Cap SD-1017A-7
- Specifications

  Dimension              5.5 × 5.5 × 8.8 cm
  Weight   68 g



8 No. 8 Test Cap SD-1017A-8
- Specifications

  Dimension              5.7 × 5.7 × 7.2 cm
  Weight   70 g



9 No. 9 Test Cap SD-1017A-9
- Specifications

  Dimension              6.2 × 6.2 × 7.1 cm
  Weight   75 g



10 No. 10 Test Cap SD-1017A-10
- Specifications

  Dimension              6.1 × 6.1 × 8.8 cm
  Weight   83 g



11 No. 11 Test Cap SD-1017A-11
- Specifications

  Dimension              5.7 × 5.7 × 7.2 cm
  Weight   57 g



12 No. 12 Test Cap SD-1017A-12
- Specifications

  Dimension              6.2 × 6.2 × 8.5 cm
  Weight   88 g



13 No. 13 Test Cap SD-1017A-13
- Specifications

  Dimension              7.0 × 7.0 × 8.2 cm
  Weight   90 g



14 No. 14 Test Cap SD-1017A-14
- Specifications

  Dimension              6.5 × 6.5 × 9.1 cm
  Weight   94 g



15 No. 15 Test Cap SD-1017A-15
- Specifications

  Dimension              5.7 × 5.7 × 8.9 cm
  Weight   76 g



16 No. 16 Test Cap SD-1017A-16
- Specifications

  Dimension              5.4 × 5.4 × 8.8 cm
  Weight   70 g



17 No. 17 Test Cap SD-1017A-17
- Specifications

  Dimension              6.2 × 6.2 × 9.4 cm
  Weight   86 g



18 No. 18 Test Cap SD-1017A-18
- Specifications

  Dimension              5.5 × 5.5 × 8.0 cm
  Weight   66 g



19 No. 19 Test Cap SD-1017A-19
- Specifications

  Dimension              5.1 × 5.1 × 8.2 cm
  Weight   51 g



20 No. 20 Test Cap SD-1017A-20
- Specifications

  Dimension              5.5 × 5.5 × 7.0 cm
  Weight   54 g



21 No. 21 Test Cap SD-1017A-21
- Specifications

  Dimension              6.2 × 6.2 × 9.4 cm
  Weight   87 g



22 No. 22 Test Cap SD-1017A-22
- Specifications

  Dimension              5.4 × 5.4 × 7.0 cm
  Weight   49 g



23 Conical Rubber Adapter SD-1013-2
- Specifications

  Dimension              4.5 × 4.5 × 10.4 cm
  Weight   90 g



24 Black Radiator Cap Tester SD-1018B-2A
- Specifications

  Dimension              7.4 × 5.7 × 5.7 cm
  Weight   45 g



25 Blue Radiator Cap Tester SD-1018B-2B
- Specifications

  Dimension              7.4 × 5.7 × 5.7 cm
  Weight   45 g



26 Radiator Test Cap Wrench SD-1017-HAND
- Specifications

  Dimension              9.5 × 5.7 × 1.4 cm
  Weight   15 g



27 Coolant Hose SD-1013-3
- Specifications

  Overall Length   1200 mm
  Weight   137 g



28 Drain Hose SD-1013-P05
- Specifications

  Dimension              Ø8 × 12 × 600 mm
  Weight   49 g



29 Thermometer SD-1018-0
- Specifications

  Dimension              21.0 × 5.3 × 5.3 cm
  Weight   26.5 g


  Suggested HS code   84818090006
  MOQ with laser marking   10 sets
  MOQ without laser marking   2 sets
  Laser marking cost   + TWD 3 on No. 3, 4, or 5 radiator test cap
  Logo printing cost
  + TWD 3 on nylon pump with TWD 2,000 printing tooling cost
  Logo printing MOQ   100 sets
  Not for sale in
  China
