Combustion Gas Leak Tester Kit with Horizontal Chambers

Model No.: SD-1024A

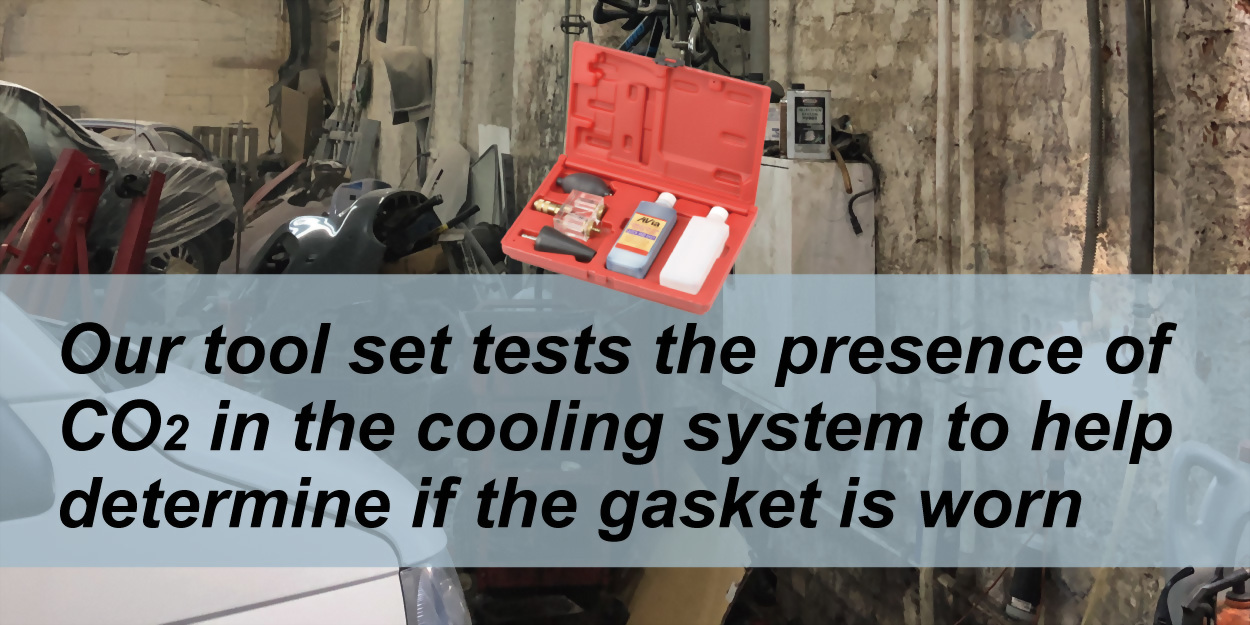

• Set for testing leaks in head gasket without removing engine cylinder head by testing presence of CO2 in cooling system

• Includes US-made CO2 tester fluid

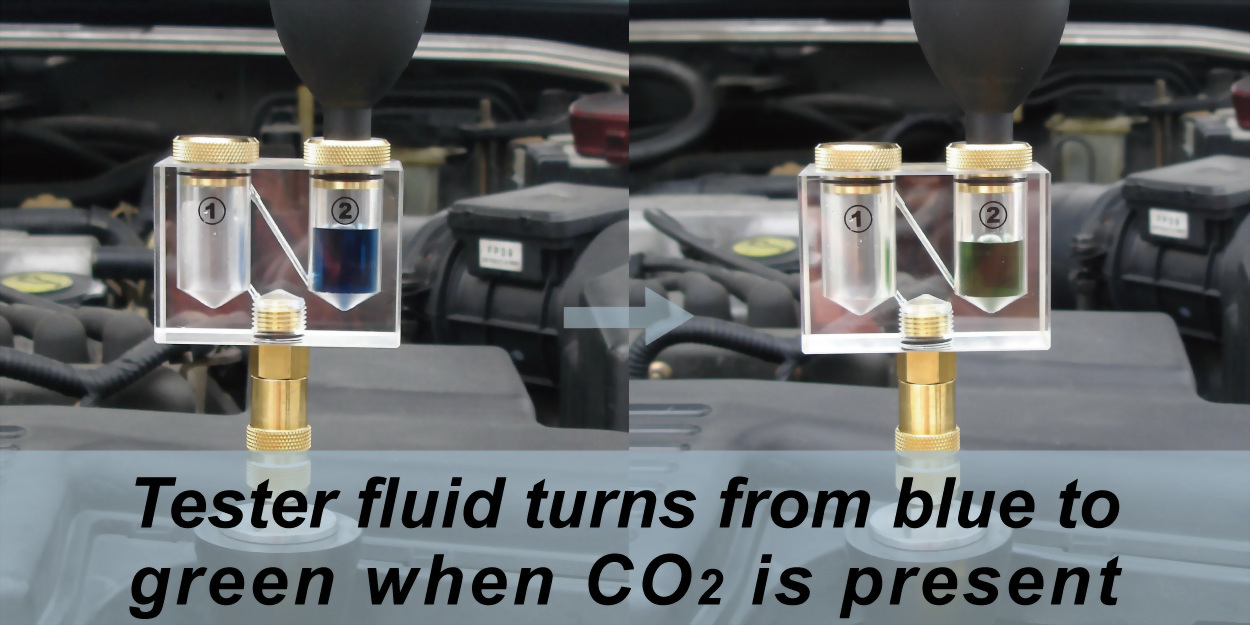

• Tester fluid changes from blue to green or yellow if CO2 is present in coolant

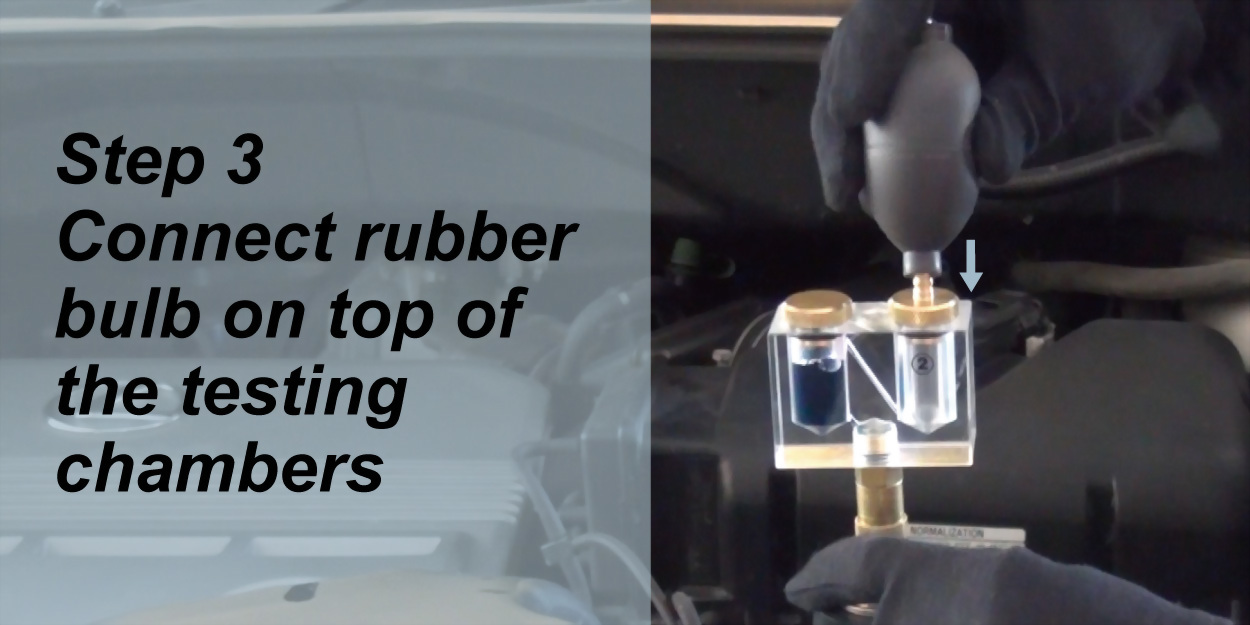

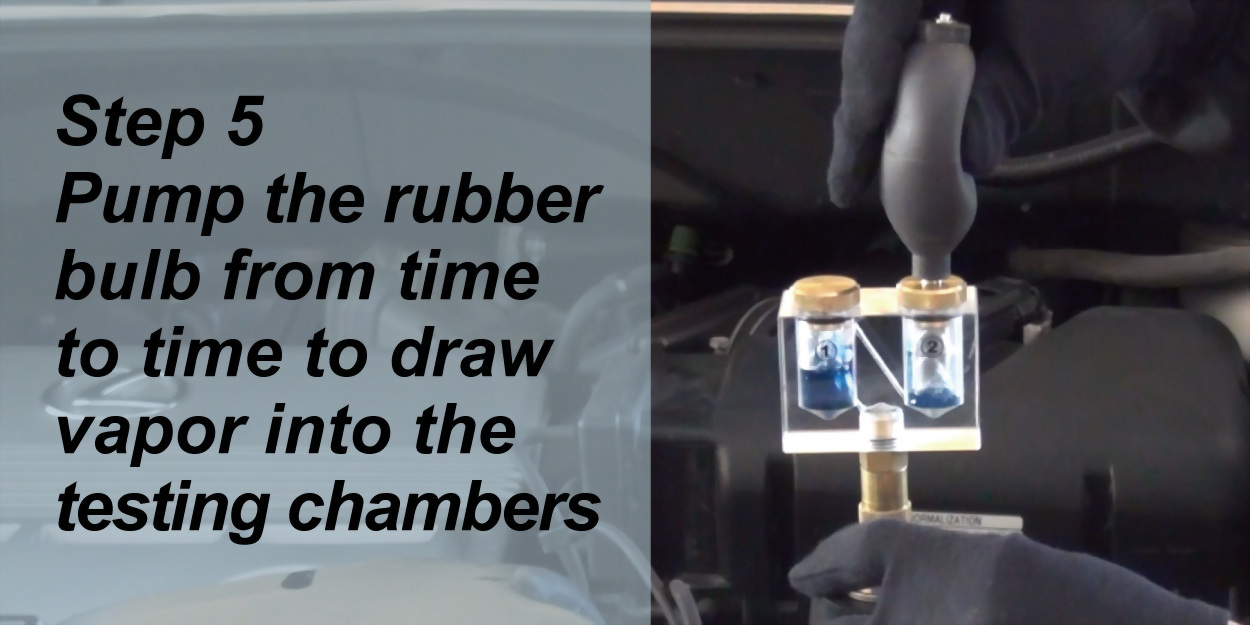

• Rubber bulb helps draw vapor from radiator into test chambers

• Tester fluid with MSDS and SVHC compliance



















  Package   Blow molded case (red)
  Packing   10 sets in a master carton
  Weight per set   1.0 kg   2.2 lbs
  Net weight per carton   10.0 kg   22.0 lbs
  Gross weight per carton   11.0 kg   24.2 lbs
  Size per set   29.4 × 19.3 × 5.9 cm   11.6 × 7.6 × 2.3 inch
  Size per carton   39.0 × 32.0 × 31.5 cm   15.4 × 12.6 × 12.4 inch
  Volume per carton   0.039 CBM   1.4 CUFT
  Case label size        10.3 × 4.1 cm       4.0 × 1.6 inch

No. Image Cosda No. Description

1 Horizontal Test Chambers SD-1024A-1
- Specifications

  Dimension              6.0 × 6.2 × 2.8 cm
  Weight   185 g



2 Rubber Bulb Pump SD-1025-3
- Specifications

  Dimension              4.0 × 4.0 × 8.1 cm
  Weight   32.6 g

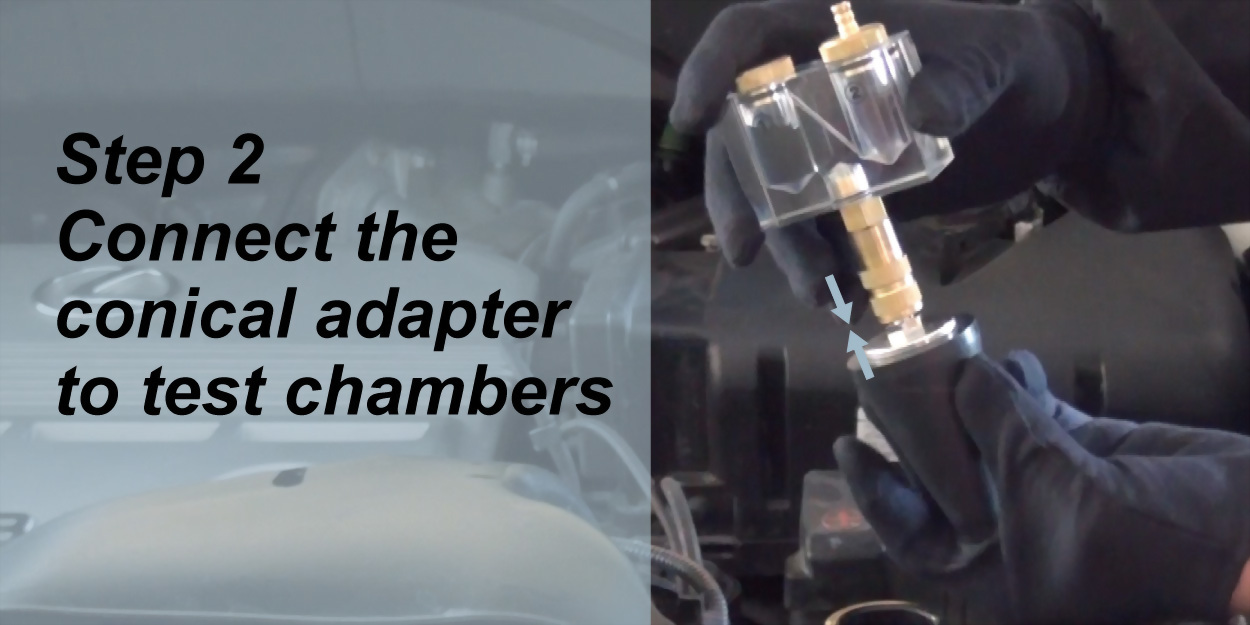

3 Conical Rubber Adapter SD-1013-2
- Specifications

  Dimension              4.5 × 4.5 × 10.4 cm
  Weight   90 g



4 CO2 Tester Fluid (250 ml) SD-1025-4
- Specifications

  Dimension              5.0 × 3.8 × 15.2 cm
  Weight   245 g



5 Empty Bottle (250 ml) SD-1025-05
- Specifications

  Dimension              5.0 × 3.8 × 15.2 cm
  Weight   25 g


  Suggested HS code   90318000909
  MOQ with logo printing   100 sets
  MOQ without logo printing   50 sets
  Logo printing cost   + TWD 8 on acrylic block
  Logo printing tooling cost
  + TWD 2,000 printing tooling cost
