Blind Hole Bearing Puller and Slide Hammer Set (11 pcs)

Model No.: SD-1029
• Set for pulling blind hole bearings off in an energy saving way

• Includes a slide hammer and a puller

• Provided with adapters that can be expanded within the blind hole for stronger connection

Inner Internal Bearing Blind Hole Slide Hammer Kit


bearing remove tool internal kit


slide hammer internal bearing removal tool


Inner Bearing Puller Set Remover Slide Hammer



slide hammer manufacturer

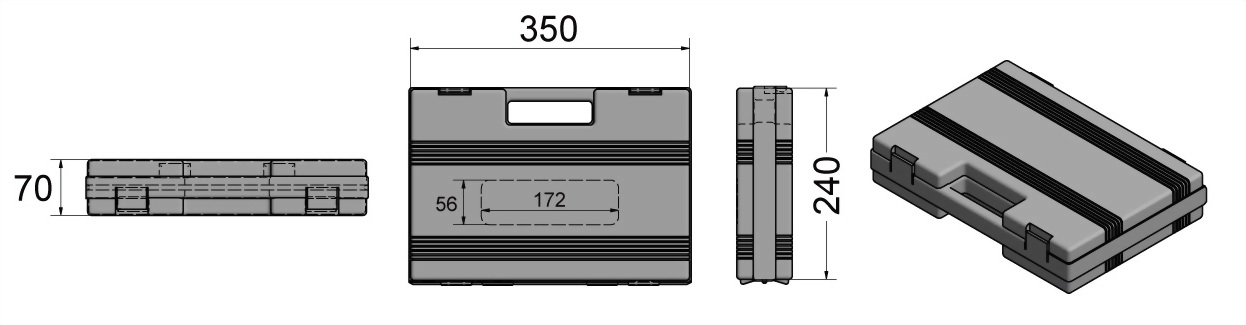

  Package   Blow molded case (blue)
  Packing   5 sets in a master carton
  Weight per set   3.3 kg   7.3 lbs
  Net weight per carton   16.5 kg   36.3 lbs
  Gross weight per carton   17.5 kg   38.5 lbs
  Size per set   35.0 × 24.0 × 7.0 cm   13.8 × 9.4 × 2.8 inch
  Size per carton   38.8 × 36.0 × 27.0 cm   15.3 × 14.2 × 10.6 inch
  Volume per carton   0.038 CBM   1.3 CUFT
  Case label size   17.2 × 5.6 cm   6.8 × 2.2 inch

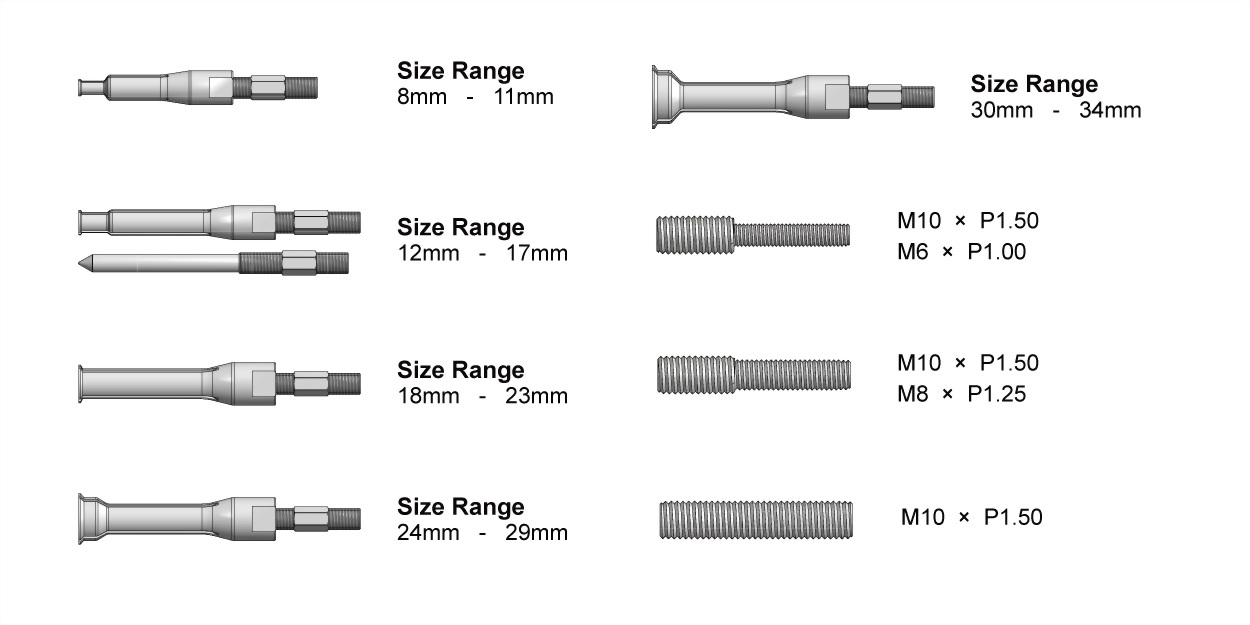

No. Image Cosda No. Description

1 Puller SD-1029-1
- Specifications

  Dimension              19.0 × 9.0 × 3.2 cm
  Weight   670 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



2 Slide Hammer SD-1029-2
- Specifications

  Dimension              28.4 × 8.2 × 4.7 cm
  Weight   1,360 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



3 M8-11 Collet SD-1029-3A
- Specifications

  Dimension              11.0 × 1.5 × 1.5 cm
  Weight   83 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



4 M12-17 Collet SD-1029-3B
- Specifications

  Dimension              13.3 × 1.7 × 1.7 cm
  Weight   98 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



5 Ø8-12mm Stick SD-1029-19
- Specifications

  Dimension              12.5 × 1.2 × 1.2 cm
  Weight   56 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



6 M18-23 Collet SD-1029-3C
- Specifications

  Dimension              13.2 × 2.0 × 2.0 cm
  Weight   144 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



7 M24-29 Collet SD-1029-3D
- Specifications

  Dimension              13.2 × 2.4 × 2.4 cm
  Weight   156 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



8 M30-34 Collet SD-1029-3E
- Specifications

  Dimension              13.2 × 2.9 × 2.9 cm
  Weight   176 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



9 M10 connector SD-1029-20
- Specifications

  Dimension              5.0 × 1.0 × 1.0 cm
  Weight   23 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



10 M8 Connector SD-1029-21
- Specifications

  Dimension              5.0 × 1.0 × 1.0 cm
  Weight   18 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)



11 M6 Connector SD-1029-22
- Specifications

  Dimension              5.0 × 1.0 × 1.0 cm
  Weight   14 g
  Used in (product 1)   SD-1029 (1 pc)
  Used in (product 2)   SD-1029A (1 pc)


  Suggested HS code   82055990909
  MOQ with laser marking   20 sets
  MOQ without laser marking   5 sets
  Laser marking cost   + TWD 6 on slide hammer and puller, + TWD 3 on adapters
