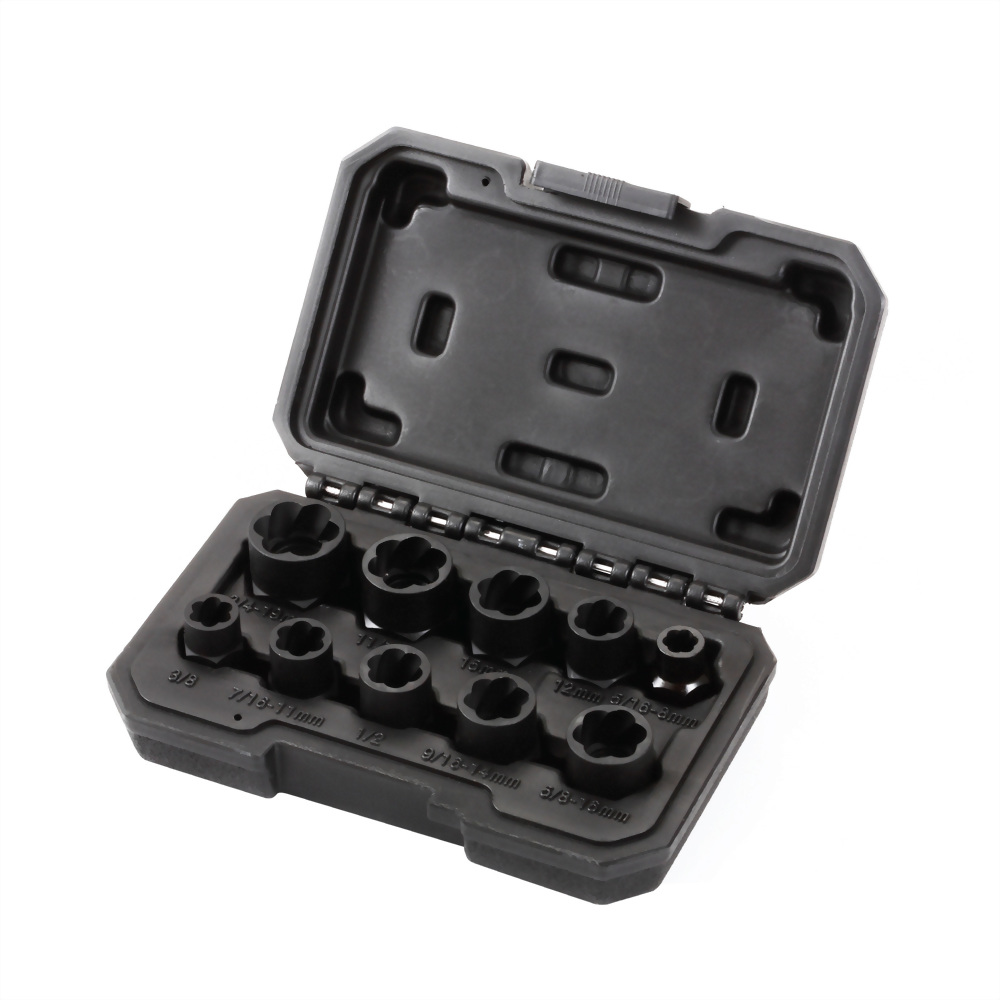

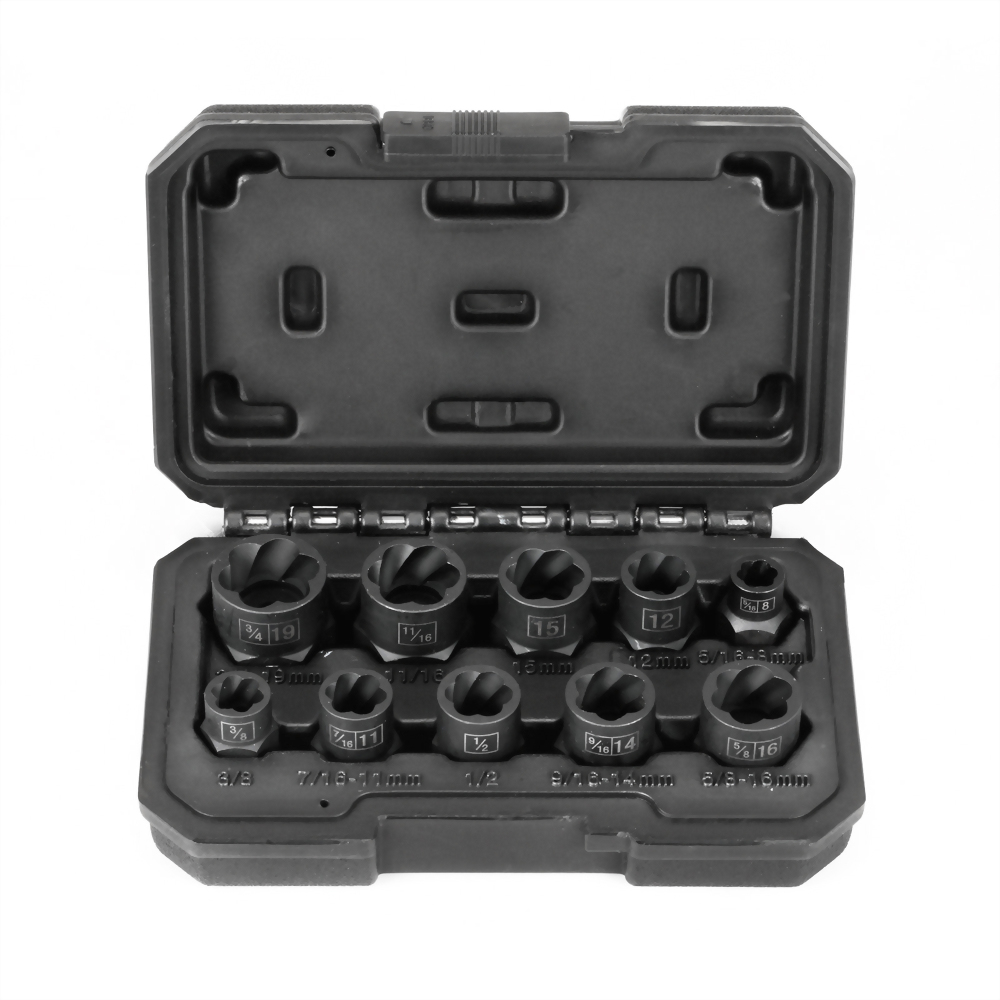

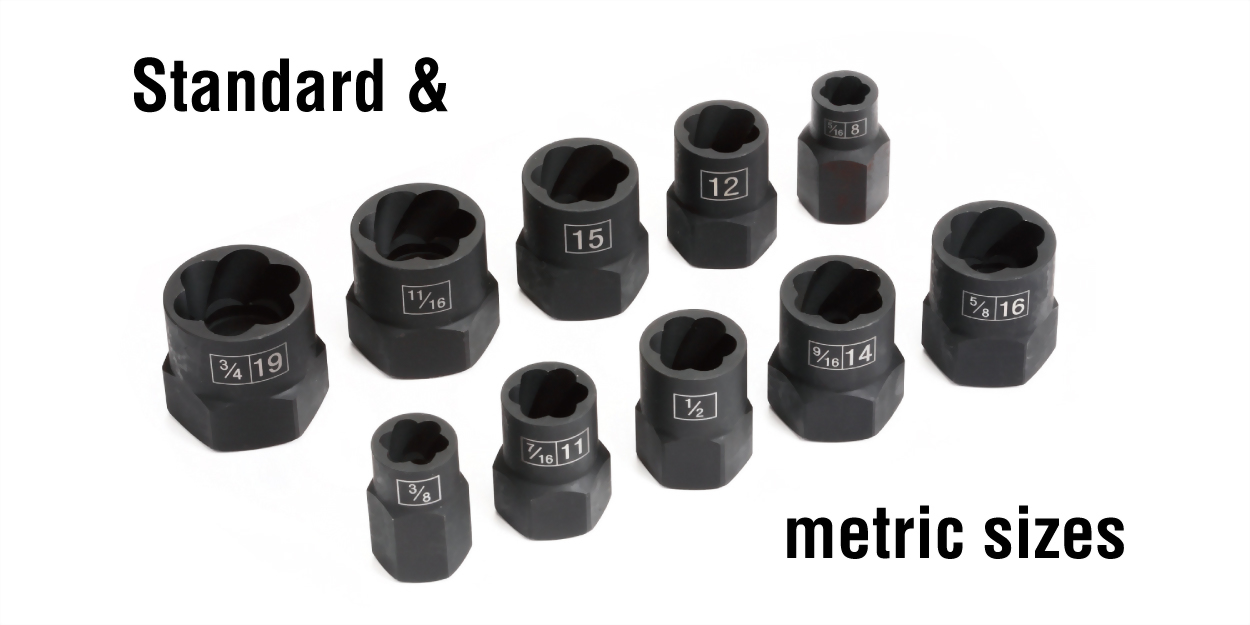

Twist Extractor Set 3/8" Drive SAE / Metric Sizes (10 pcs)

Model No.: SD-1030W

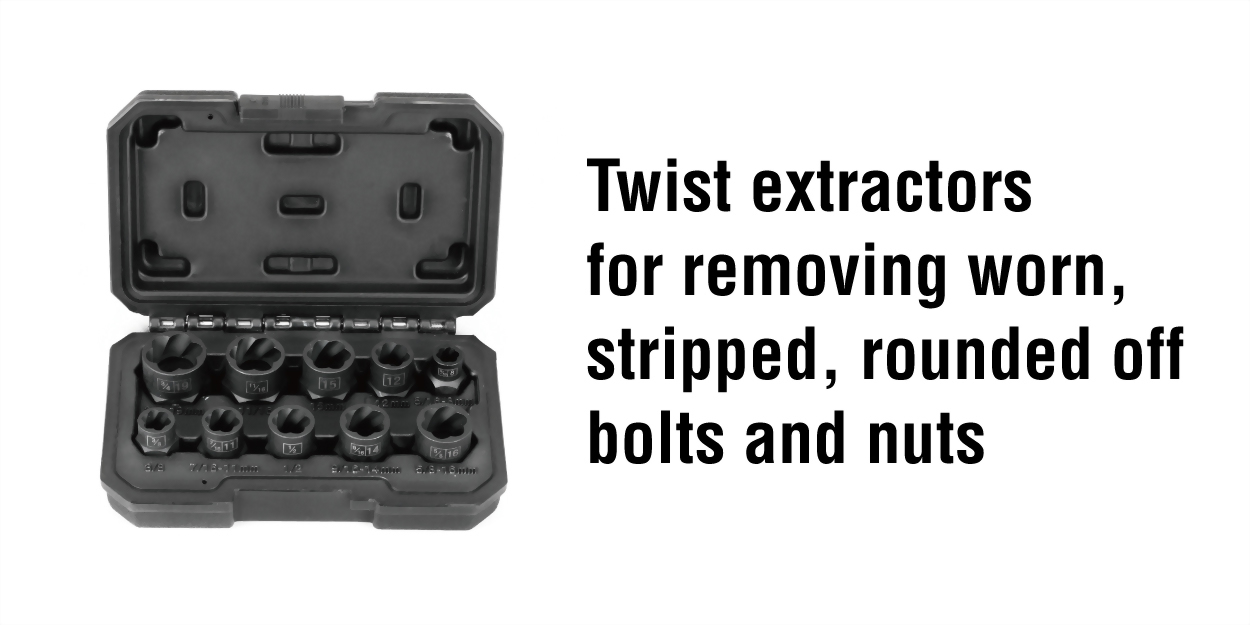

• Twist extractor socket for removing worn, stripped, or rounded off bolts and nuts

• Sockets with 6 point twist, 3/8" square drive and external hex

• Length 27.2 mm

• For removal only, not for installing bolts and nuts

pulgada Juego de Dados Extractores 3/8


Set 13 Dados Extractor Removedor Tornillo Birlos con estuche3/8 5/16 7/16 1/2 9/16 extractor tool to remove exposed stud nut


  Package   Blow molded case (black)
  Packing   20 sets in a master carton
  Weight per set   610 g   1.34 lbs
  Net weight per carton   12.2 kg   26.8 lbs
  Gross weight per carton   13.2 kg   29.0 lbs

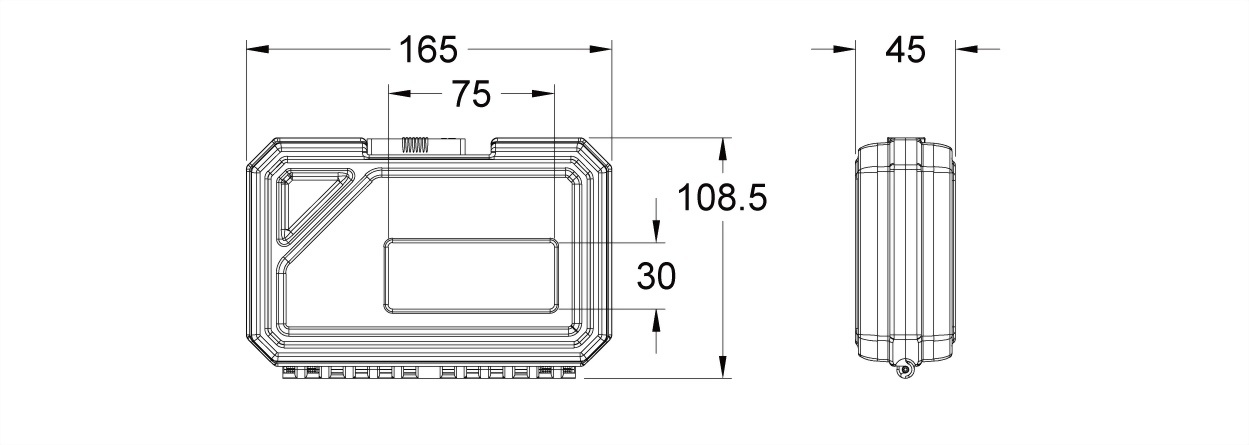

  Size per set   16.5 × 10.9 × 4.5 cm   6.5 × 4.3 × 1.8 inch
  Size per carton   46.1 × 17.9 × 24.2 cm    18.1 × 7.0 × 9.5 inch
  Volume per carton   0.01 CBM   0.7 CUFT
  Case label size        7.3 × 2.8 cm        2.7 × 1.1 inch

No. Image Cosda No. Description
1 Twist Extractor Socket 5/16" SD-1030W-5_16 MoreTwist Extractor Socket 5/16"
- Specifications

  Dimension              1.8 × 1.8 × 2.8 cm
  Weight    24 g

2 Go-through Twist Extractor Socket 3/8" SD-1030W-3_8 MoreGo-through Twist Extractor Socket 3/8"
- Specifications

  Dimension              1.8 × 1.8 × 2.8 cm
  Weight   23 g


3 Twist Extractor Socket 7/16" SD-1030W-7_16 MoreTwist Extractor Socket 7/16"
- Specifications

  Dimension              2.2 × 2.2 × 2.8 cm
  Weight   33 g


4 Twist Extractor Socket 12 mm SD-1030W-12 MoreTwist Extractor Socket 12 mm
- Specifications

  Dimension              2.2 × 2.2 × 2.8 cm
  Weight

  36 g


5 Twist Extractor Socket 1/2" SD-1030W-1_2 MoreTwist Extractor Socket 1/2"
- Specifications

  Dimension              2.6 × 2.6 × 2.8 cm
  Weight   40 g


6 Twist Extractor Socket 9/16" SD-1030W-9_16 MoreTwist Extractor Socket 9/16"
- Specifications

  Dimension              2.6 × 2.6 × 2.8 cm
  Weight   52 g


7 Twist Extractor Socket 15 mm SD-1030W-15 MoreTwist Extractor Socket 15 mm
- Specifications

  Dimension              2.6 × 2.6 × 2.8 cm
  Weight   55 g


8 Twist Extractor Socket 5/8" SD-1030W-5_8 MoreTwist Extractor Socket 5/8"
- Specifications

  Dimension              2.6 × 2.6 × 2.8 cm
  Weight   54 g


9 Twist Extractor Socket 11/16" SD-1030W-11_16 MoreTwist Extractor Socket 11/16"
- Specifications

  Dimension              2.9 × 2.9 × 2.8 cm
  Weight   72 g


10 Twist Extractor Socket 3/4" SD-1030W-3_4 MoreTwist Extractor Socket 3/4"
- Specifications

  Dimension              3.1 × 3.1 × 2.8 cm
  Weight   84 g


  Suggested HS code   82042000004
  MOQ with laser marking   420 sets
  MOQ without laser marking   20 sets
  Laser marking cost   + TWD 3 on each piece
