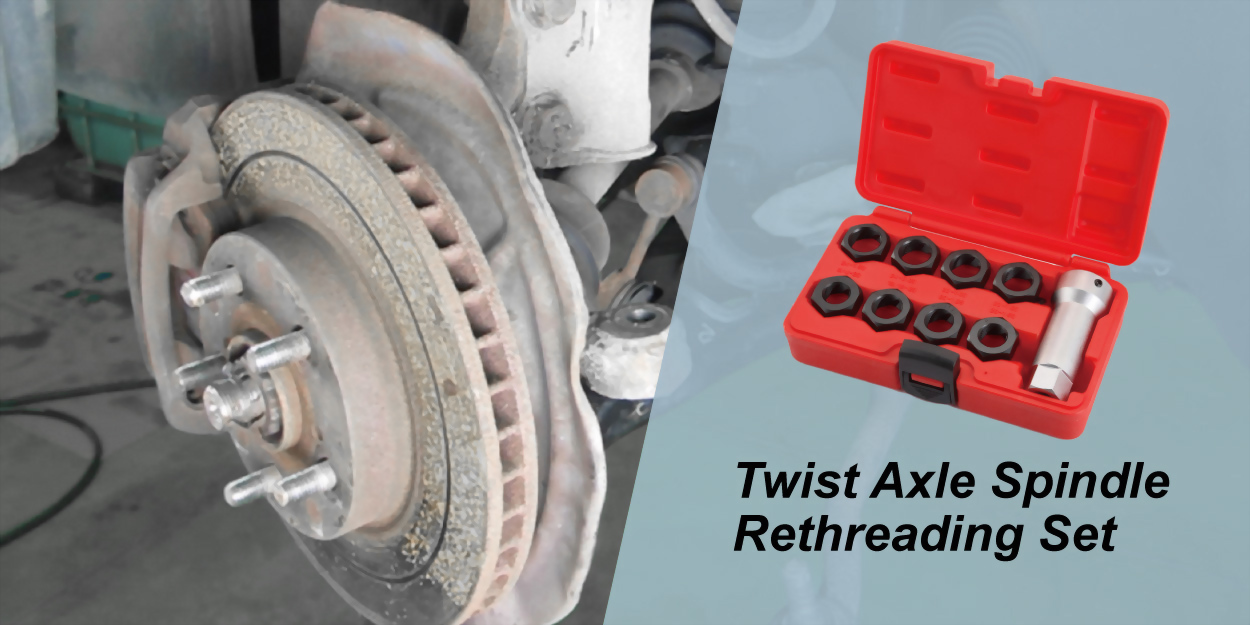

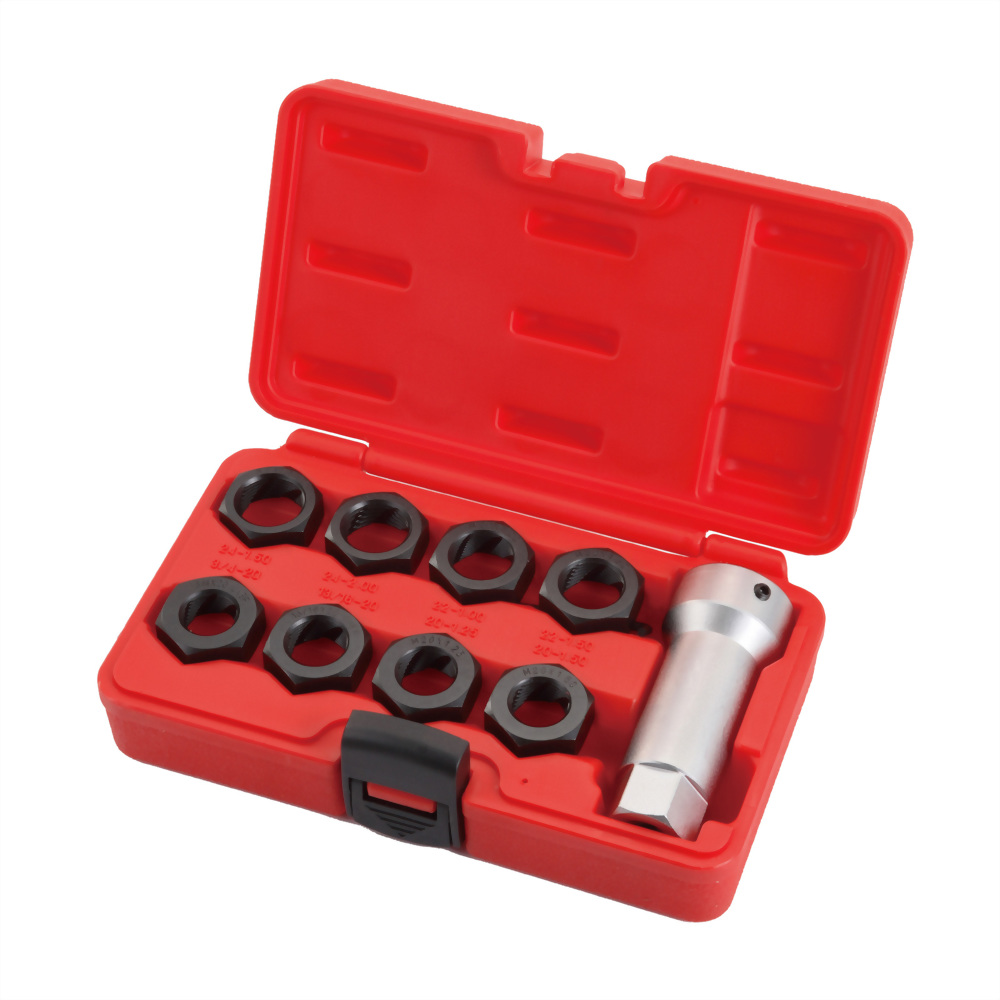

Twist Axle Spindle Rethreading Set (9 pcs)

Model No.: SD-1130A
• Set for rethreading damaged or rusted threads on axle spindles

• Twist shape on inner rings of the dies offers better rethreading results

• Eight dies cover the most commonly used sizes for axle spindles on market

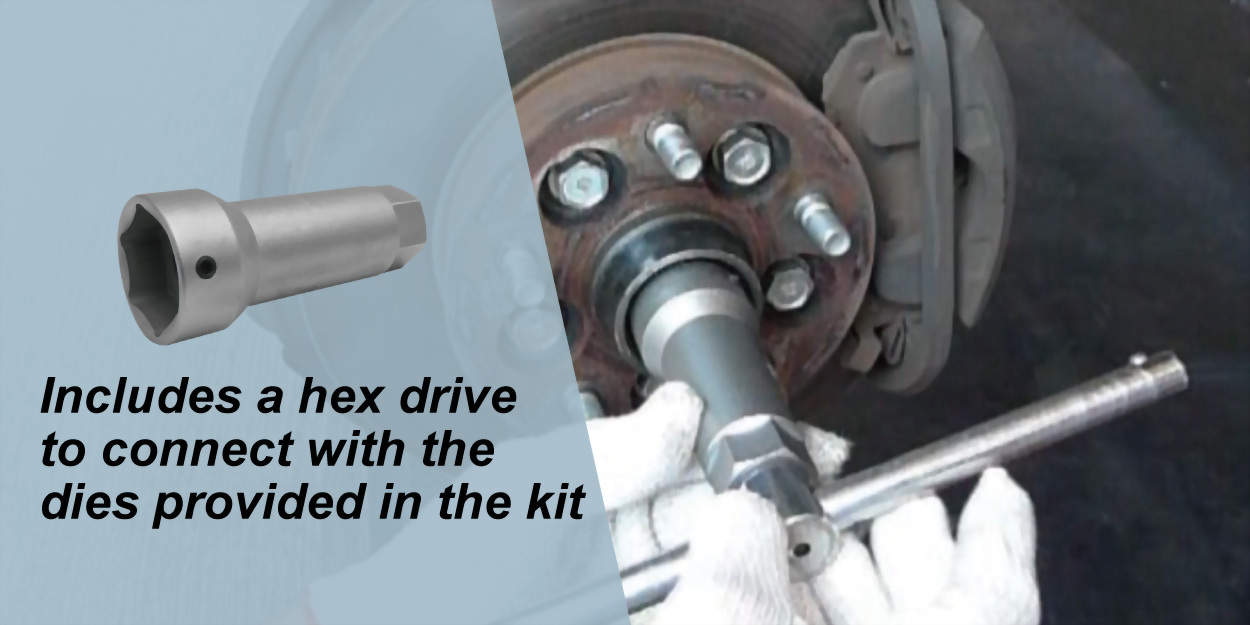

• Includes a 32mm internal hex wrench with a 27mm external hex for dies

Thread Restorer Tap and Die kit


Axle Shaft Thread Repair Tool Kit


How To Fix Repair Threads


re-threading axle shaft spindle


auto repair tool maker in Taiwan


  Package   Blow molded case (red)
  Packing   10 sets in a master carton
  Weight per set   970 g   2.1 lbs
  Net weight per carton   9.7 kg   21.3 lbs
  Gross weight per carton   10.2 kg   22.4 lbs
  Size per set   22.5 × 13.5 × 5.5 cm   8.9 × 5.3 × 2.2 in
  Size per carton   30.0 × 30.0 × 23.5 cm   11.8 × 11.8 × 9.3 in
  Volume per carton   0.021 CBM   0.7 CUFT
  Case label size        10.0 × 4.5 cm        3.9 × 1.8 in


No. Image Cosda No. Description
1 27 mm Hex Drive SD-1130-20 More27 mm Hex Drive
- Specifications

  Dimension              4.2 × 4.2 × 10.0 cm
  Weight   290 g


2 M3 Allen Wrench SD-1130-20-01 MoreM3 Allen Wrench
- Specifications

  Dimension              6.4 × 2.2 × 0.3 cm
  Weight   12 g


3 3/4" × 20 Rethreading Nut SD-1130-01 More3/4" × 20 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   60 g


4 13/16" × 20 Rethreading Nut SD-1130-02 More13/16" × 20 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   55 g


5 M20 × P1.25 Rethreading Nut SD-1130-03 MoreM20 × P1.25 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   58 g


6 M20 × P1.5 Rethreading Nut SD-1130-04 MoreM20 × P1.5 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   58 g


7 M22 × P1.0 Rethreading Nut SD-1130-05 MoreM22 × P1.0 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   50 g


8 M22 × P1.5 Rethreading Nut SD-1130-06 MoreM22 × P1.5 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   51 g


9 M24 × P1.5 Rethreading Nut SD-1130-07 MoreM24 × P1.5 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   44 g


10 M24 × P2.0 Rethreading Nut SD-1130-08 MoreM24 × P2.0 Rethreading Nut
- Specifications

  Dimension              3.2 × 3.2 × 1.4 cm
  Weight   45 g


  Suggested HS code   82059000008
  MOQ with laser marking   40 sets
  MOQ without laser marking   20 sets
  Laser marking cost   + TWD 2 on each piece
