Sleeve Socket Set (20 pcs)
Model No.:
SD-1105
• For removing and installing bushings and bearings
• An accessory set for SD-1101, SD-1102 and SD-1104
• Sizes: 62-80 mm (ID) and 70-88 mm (OD)
• Long sleeves are 110 mm in length and short sleeves are 40 mm in length
• Suitable for heavy-duty, light trucks, and SUV ... etc
• An accessory set for SD-1101, SD-1102 and SD-1104
• Sizes: 62-80 mm (ID) and 70-88 mm (OD)
• Long sleeves are 110 mm in length and short sleeves are 40 mm in length
• Suitable for heavy-duty, light trucks, and SUV ... etc
| Package | Blow molded case (red) | |
| Packing | 1 set in a master carton | |
| Weight per set | 18.0 kg | 39.6 lbs |
| Net weight per carton | 19.0 kg | 41.8 lbs |
| Gross weight per carton | 18.0 kg | 39.6 lbs |

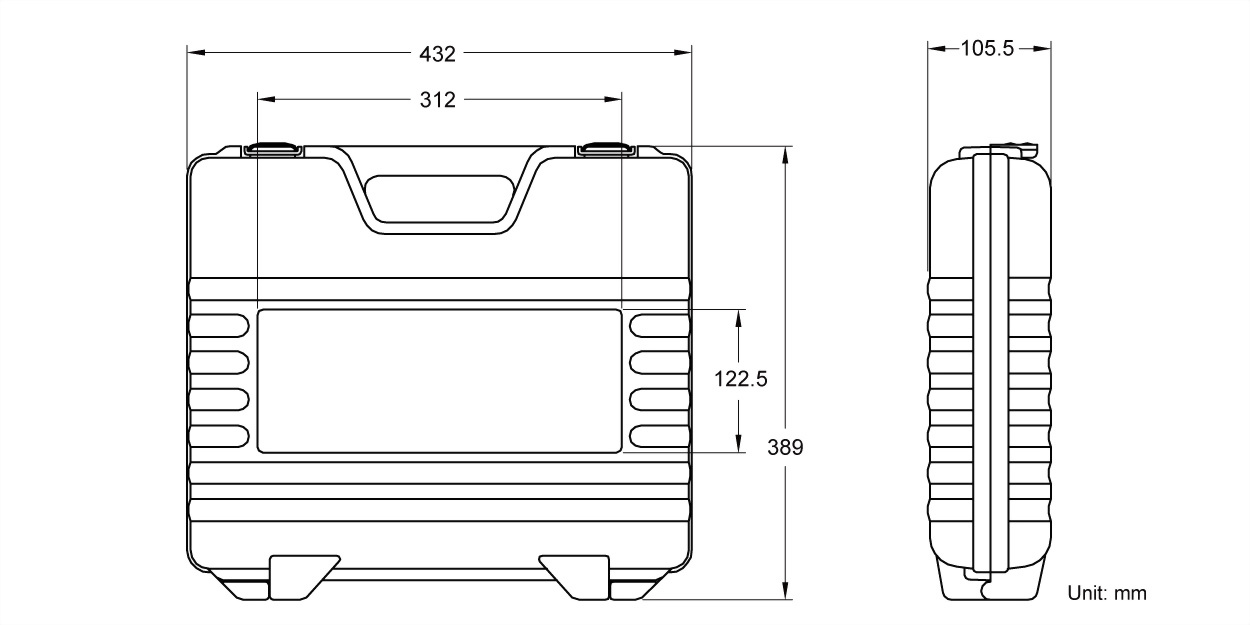

| Size per set | 43.2 × 38.9 × 10.6 cm | 17.0 × 15.3 × 4.1 inch |
| Size per carton | 45.0 × 42.0 × 12.0 cm | 17.7 × 16.5 × 4.7 inch |
| Volume per carton | 0.02 CBM | 0.88 CUFT |
| Case label size | 31.0 × 12.0 cm | 12.2 × 4.7 inch |
| Suggested HS Code |
82055990909 |
| MOQ with laser marking | 10 sets |
| MOQ without laser marking | 2 sets |
| Laser marking cost | + TWD 4 on each socket |
| Change BMC color to other colors | MOQ 300 sets |
