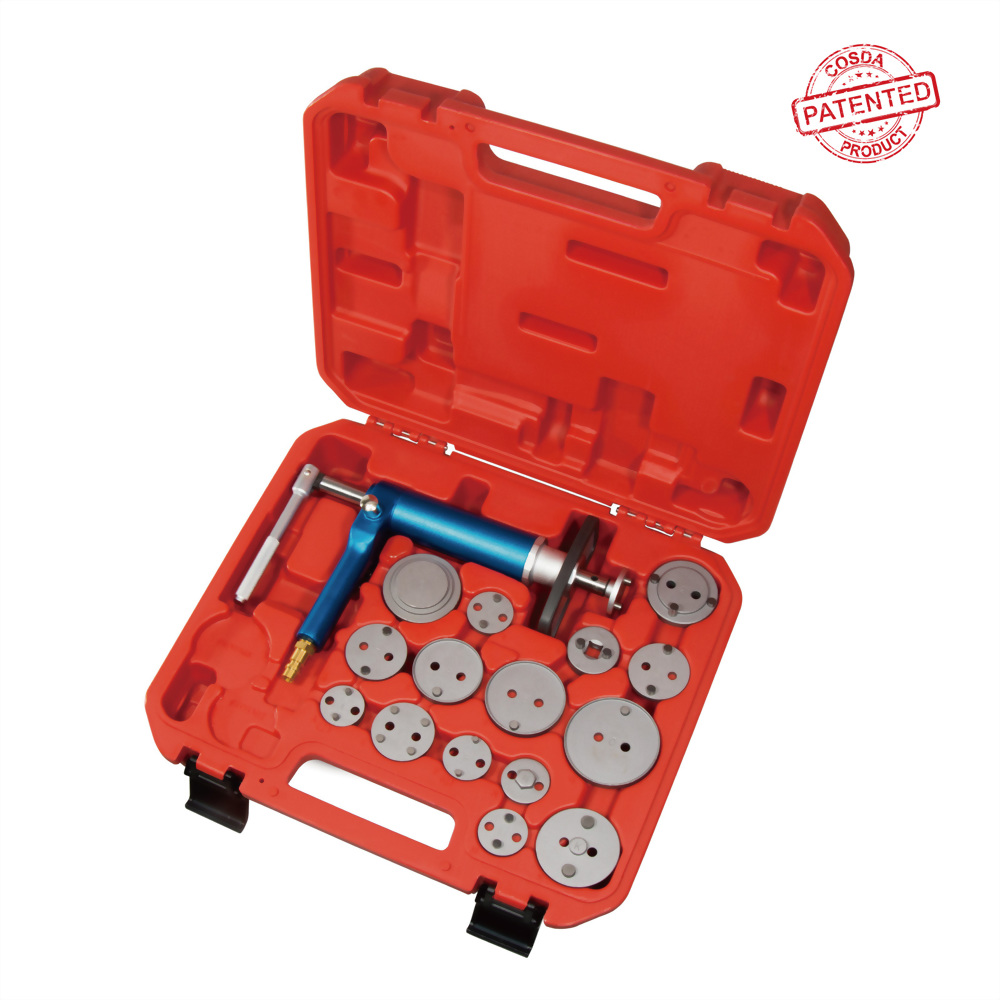

Pneumatic Brake Caliper Wind Back Tool Set (16 pcs)

Model No.: SD-1050
• Designed to make disc brake services faster and energy saving

• Tool can be turned left- and right-ward - suitable for regular and reverse-threaded pistons

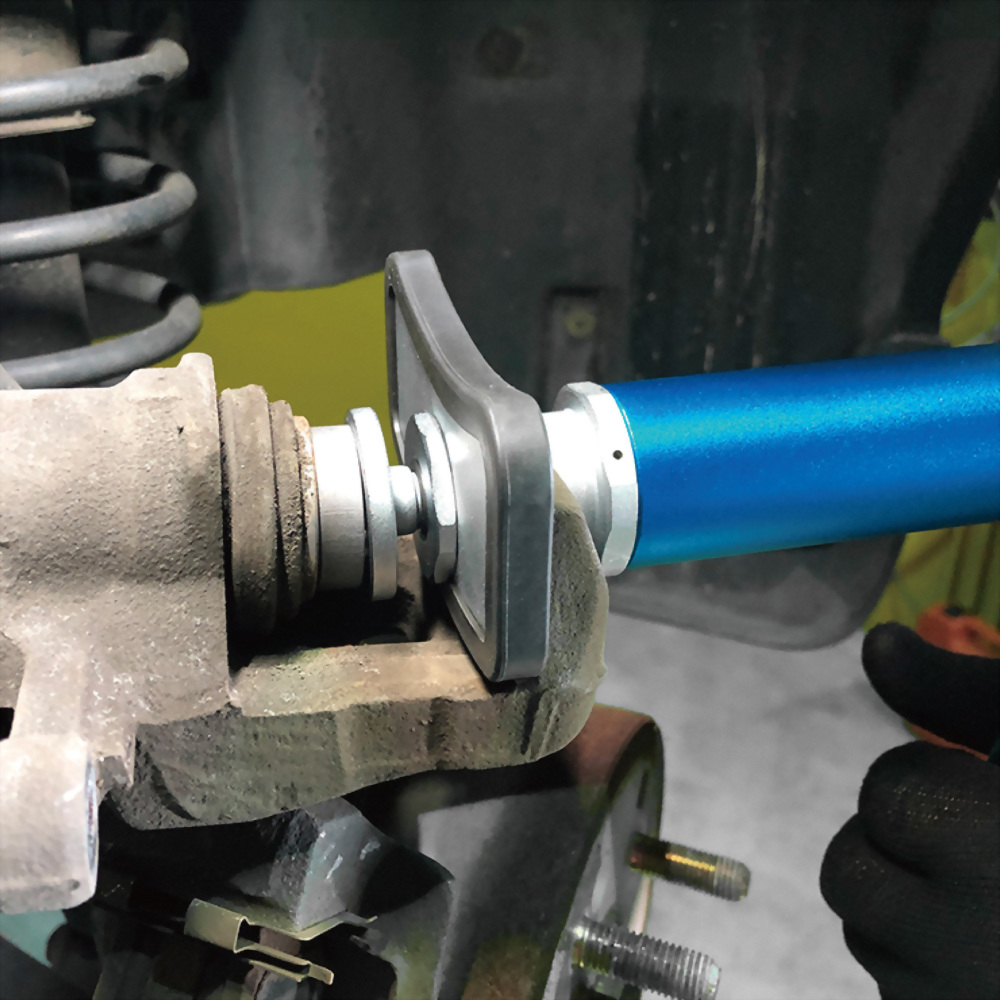

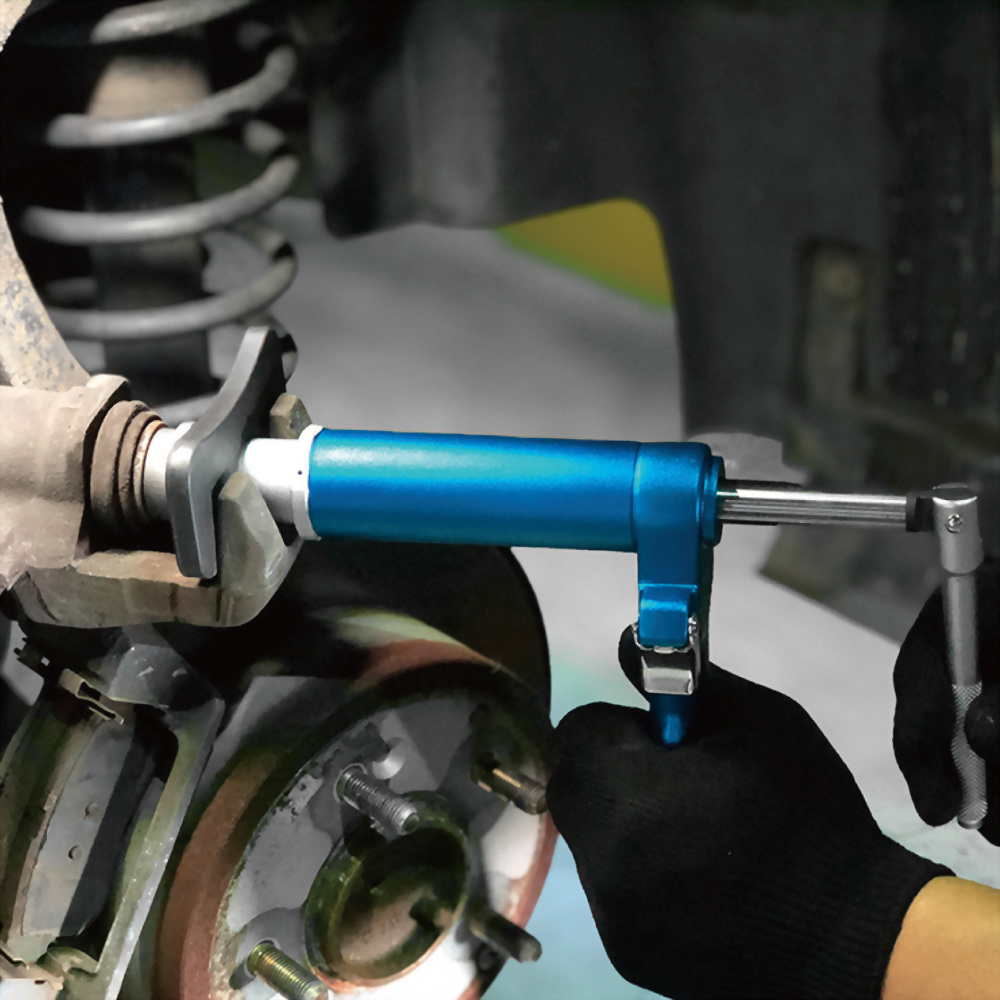

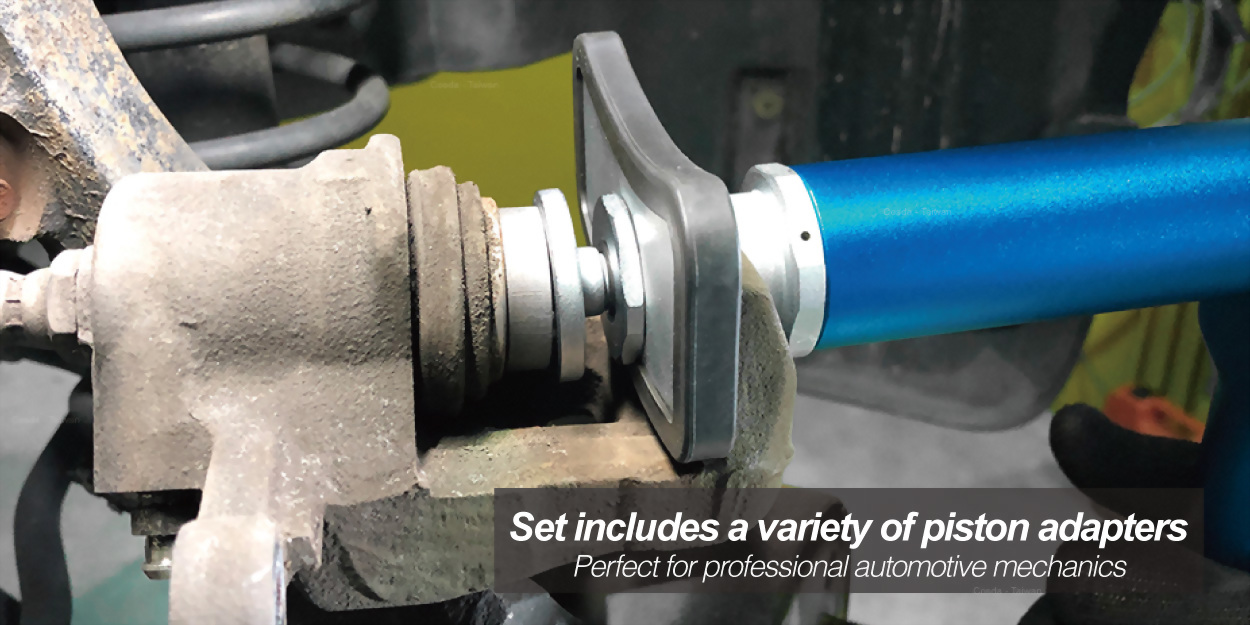

• Pneumatic powered tool is able to wind pistons back simply pressing a button

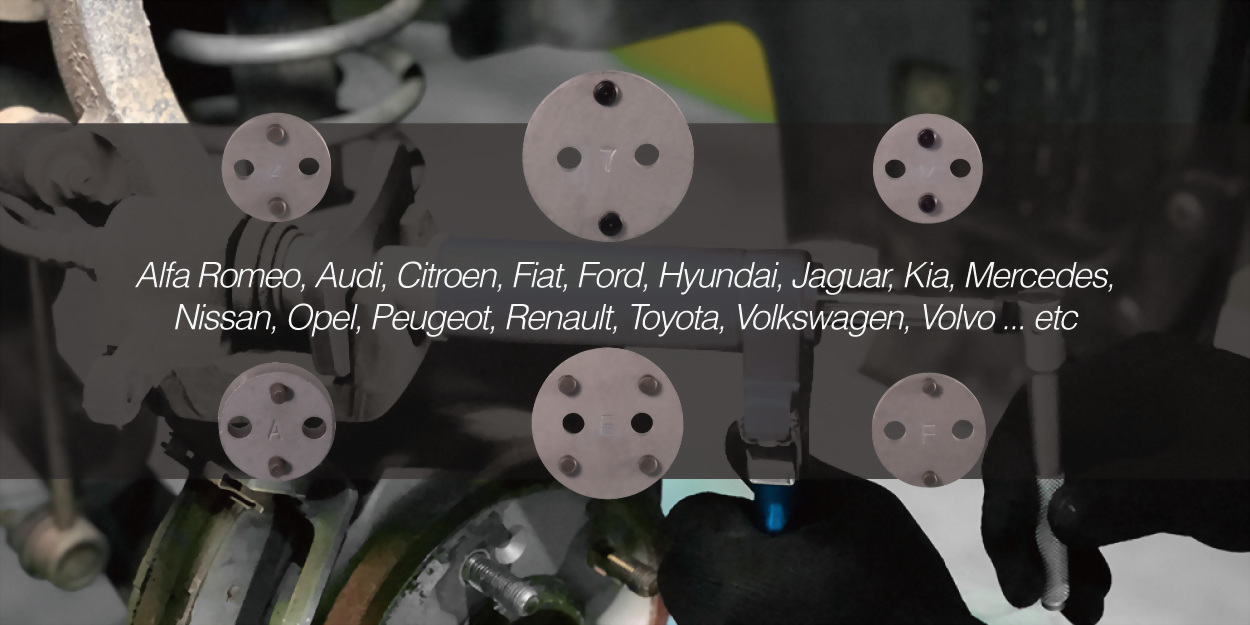

• Includes 15 adapters, fitting a wide range of vehicles












  Package   Blow molded case (red)
  Packing   5 sets in a master carton
  Weight per set   3.0 kg   6.7 lbs
  Net weight per carton   15.2 kg   33.4 lbs
  Gross weight per carton   16.2 kg   35.6 lbs

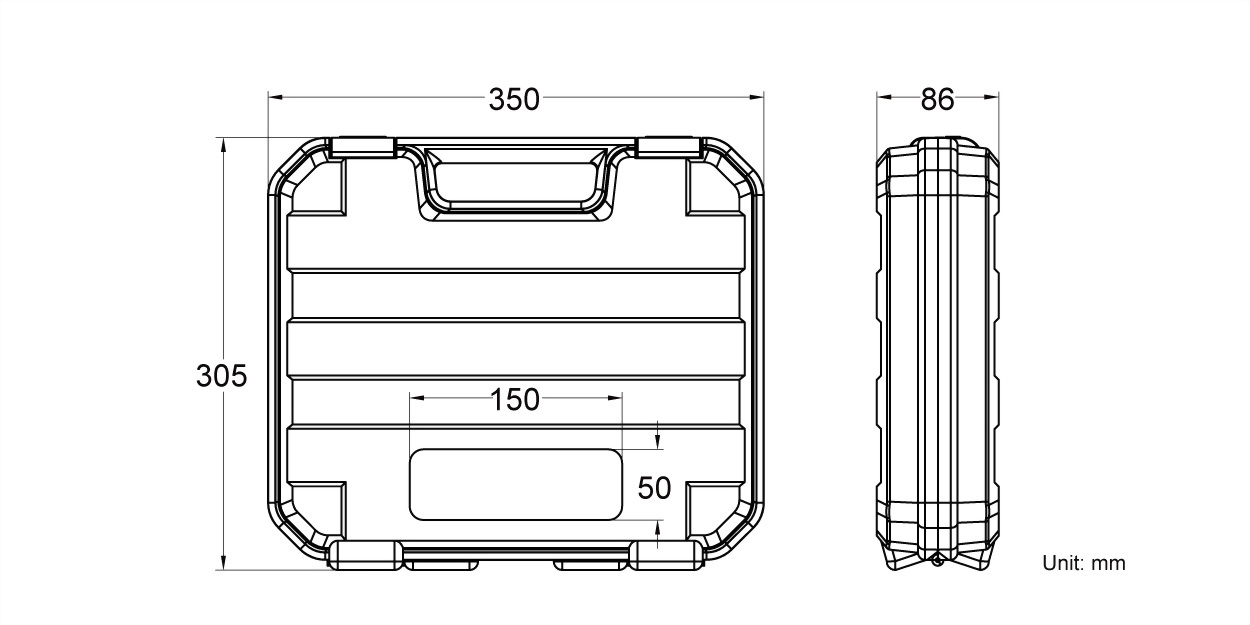

  Size per set   35.0 × 30.5 × 8.6 cm   13.8 × 12.0 × 3.4 in
  Size per carton   47.0 × 36.5 × 33.0 cm   18.5 × 14.4 × 13.0 in
  Volume per carton   0.057 CBM   2.0 CUFT
  Case label size        15.0 × 5.0 cm        5.9 × 2.0 in


No. Image Cosda No. Description
1 Pneumatic Powered Brake Caliper Wind Back Tool SD-1050-01 MorePneumatic Powered Brake Caliper Wind Back Tool
- Specifications
2 Brake Disc No. 0 SD-1050-0 MoreBrake Disc No. 0
- Specifications

  Dimension              6.4 × 6.4 × 0.8 cm
  Weight   113 g


3 Brake Disc No. 2 SD-1050-02 MoreBrake Disc No. 2
- Specifications

  Dimension              5.1 × 5.1 × 1.6 cm
  Weight   126 g


4 Brake Disc No. 3 SD-1050-03 MoreBrake Disc No. 3
- Specifications

  Dimension              5.5 × 5.5 × 1.4 cm
  Weight   141 g


5 Brake Disc No. 4 SD-1050-04 MoreBrake Disc No. 4
- Specifications

  Dimension              3.2 × 3.2 × 0.7 cm
  Weight   28 g


6 Brake Disc No. 5 SD-1050-05 MoreBrake Disc No. 5
- Specifications

  Dimension              3.6 × 3.6 × 1.1 cm
  Weight   39 g


7 Brake Disc No. 6 SD-1050-06 MoreBrake Disc No. 6
- Specifications

  Dimension              4.2 × 4.2 × 0.7 cm
  Weight   48 g


8 Brake Disc No. 7 SD-1050-07 MoreBrake Disc No. 7
- Specifications

  Dimension              4.2 × 4.2 × 0.7 cm
  Weight   48 g


9 Brake Disc No. 8 SD-1050-08 MoreBrake Disc No. 8
- Specifications

  Dimension              4.8 × 4.8 × 0.7 cm
  Weight   64 g


10 Brake Disc No. 9 SD-1050-09 MoreBrake Disc No. 9
- Specifications

  Dimension              5.3 × 5.3 × 0.8 cm
  Weight   83 g


11 Brake Disc A (Z) SD-1050-A MoreBrake Disc A (Z)
- Specifications

  Dimension              3.0 × 3.0 × 1.3 cm
  Weight   40.5 g


12 Brake Disc E SD-1050-E MoreBrake Disc E
- Specifications

  Dimension              4.2 × 4.2 × 0.7 cm
  Weight   49 g


13 Brake Disc F (G) SD-1050-F MoreBrake Disc F (G)
- Specifications

  Dimension              3.2 × 3.2 × 0.9 cm
  Weight   31 g


14 Brake Disc K SD-1050-K MoreBrake Disc K
- Specifications

  Dimension              5.4 × 5.4 × 0.9 cm
  Weight   84 g


15 Brake Disc M SD-1050-M MoreBrake Disc M
- Specifications

  Dimension              3.2 × 3.2 × 0.9 cm
  Weight   28 g


16 Brake Disc N SD-1050-N MoreBrake Disc N
- Specifications

  Dimension              3.2 × 3.2 × 1.0 cm
  Weight   29 g


  Suggested HS code   82055990909
  MOQ with laser marking   10 sets
  MOQ without laser marking   5 sets
  Laser marking cost   + TWD 5 on pneumatic tool, +TWD 2 on brake discs

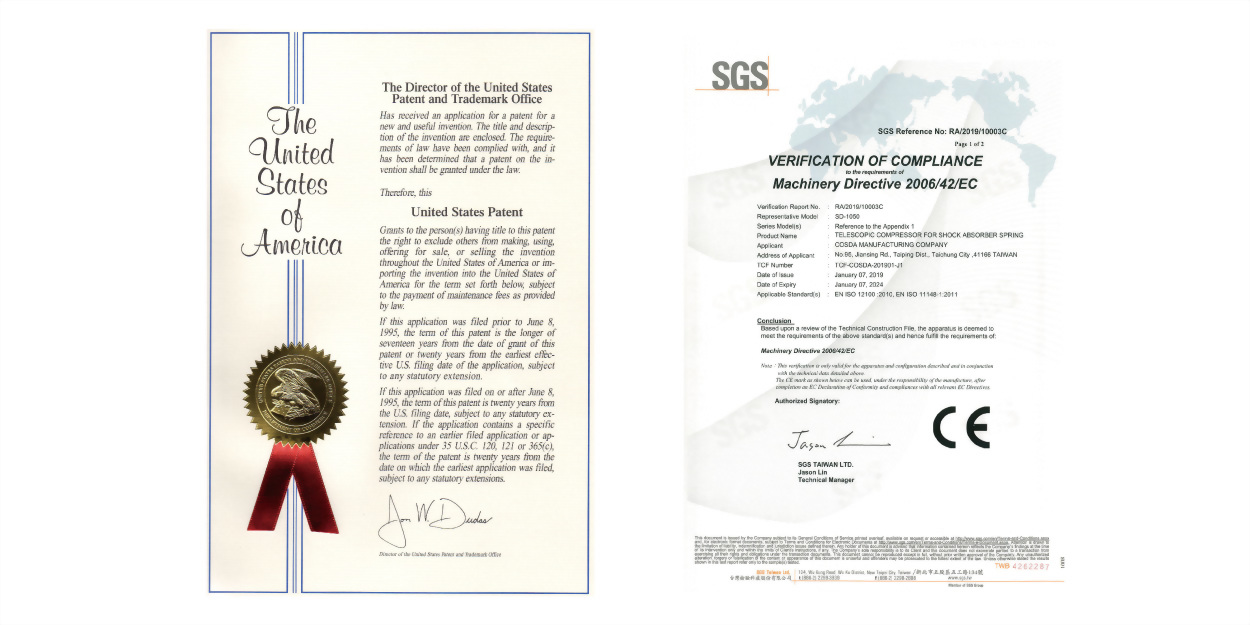

This product holds patents and CE certificate, tested by SGS
