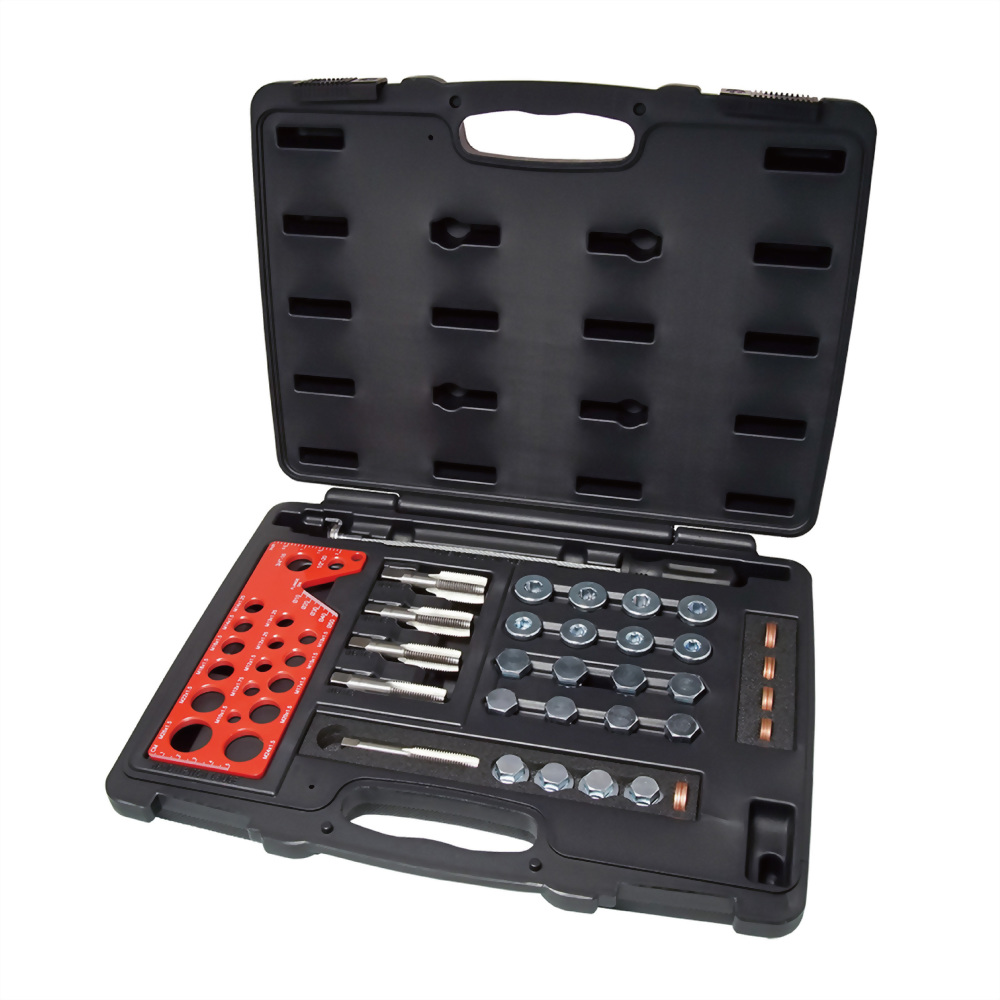

Master Oil Service Kit (47 pcs)

Model No.: SD-1060C
• Kit includes useful tools when working on oil exchange services:

- Drain plug repair tool sets in
M11 × 1.5, M13 × 1.5, M15 × 1.5, M17 × 1.5, M20 × 1.5
Repairs stripped or worn drain plug holes on oil or transmission pan by enlarging the holes and fit with new drain plugs and washers

- Magnetic drain plug tool
Helps mechanics drain hot and dirty engine oil without having a direct physical contact to the oil.
Special magnet with strong attraction force and high temperature resistant (up to 120ºC / 248ºF)

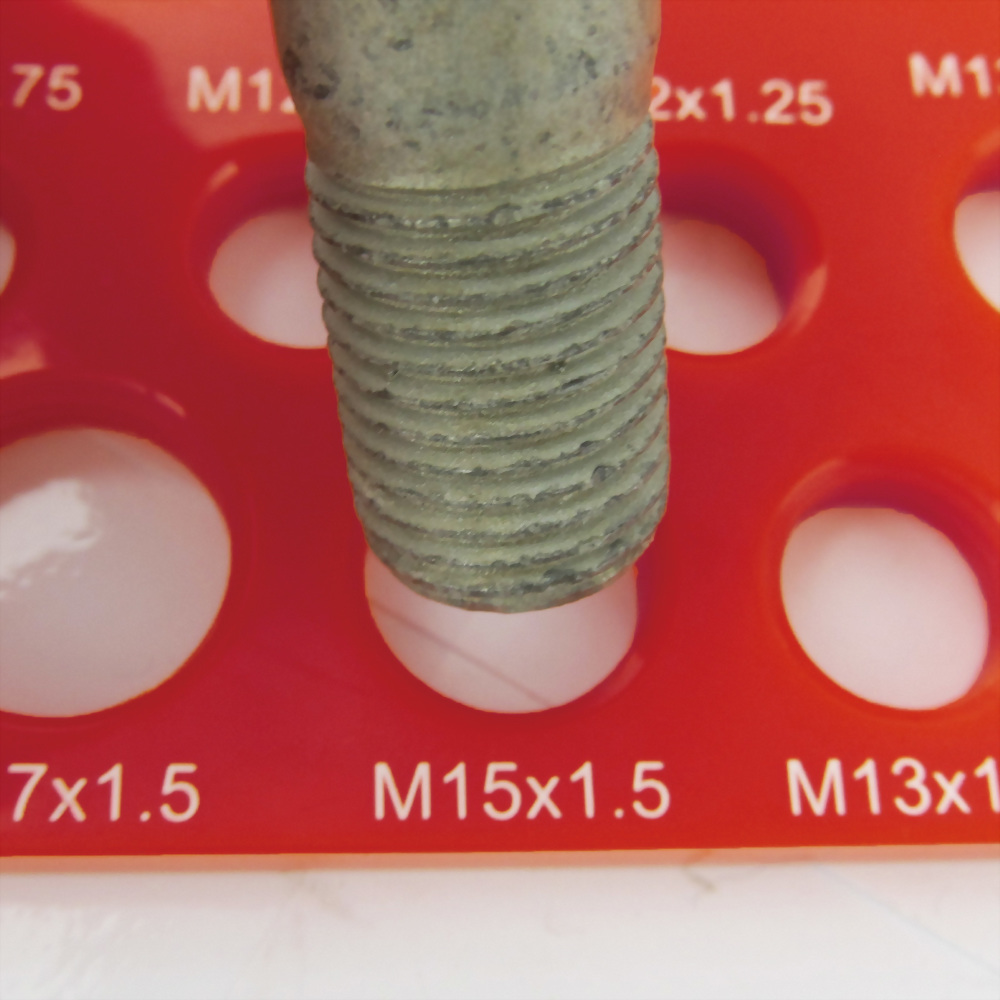

- Pitch gauge
Helps mechanics determine a fastener’s diameter,
pitch and length with most common sizes without
needing several tools at hand.

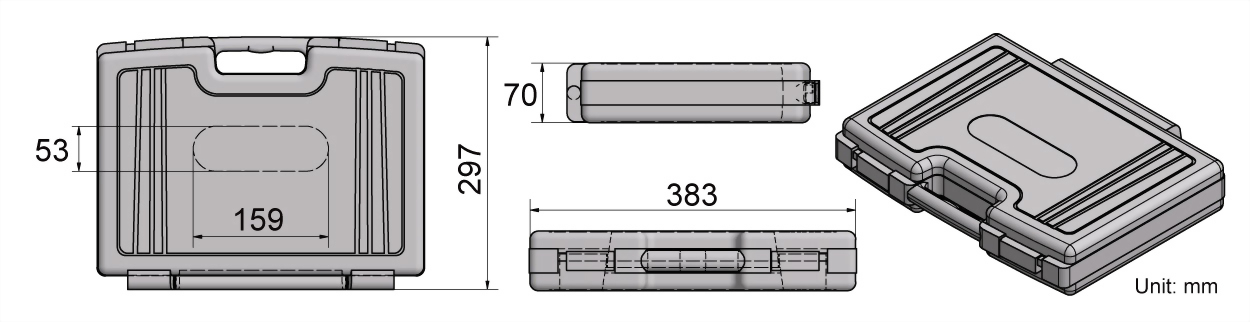

  Package   Blow molded case (black)
  Packing   10 sets in a master carton
  Weight per set   1.9 kg   4.2 lbs
  Net weight per carton   19.0 kg   41.8 lbs
  Gross weight per carton   20.0 kg   44.0 lbs
  Size per set   38.4 × 28.5 × 6.5 cm   15.1 × 11.2 × 2.6 in
  Size per carton   74.8 × 40.0 × 31.8 cm   29.4 × 15.7 × 12.5 in
  Volume per carton   0.095 CBM   3.4 CUFT
  Case label size        15.5 × 5.3 cm        6.1 × 2.1 in


No. Image Cosda No. Description
1 Magnetic Oil Drain Pliers (Length: 294 mm) SD-1060H MoreMagnetic Oil Drain Pliers (Length: 294 mm)
- Specifications
2 Handy Pitch Gauge SD-9210 MoreHandy Pitch Gauge
- Specifications
3 M11 × P1.5 Tap SD-1061-11 MoreM11 × P1.5 Tap
- Specifications

  Dimension              1.1 × 1.1 × 8.0 cm
  Weight   29.5 g
  Used in   SD-1061K (1 pc)


4 M13 × P1.5 Tap SD-1061-13A(L) MoreM13 × P1.5 Tap
- Specifications

  Dimension              1.3 × 1.3 × 7.0 cm
  Weight   43 g
  Used in (product 1)   SD-1061A (1 pc)
  Used in (product 2)   SD-1061F (1 pc)
  Used in (product 3)   SD-1061F_A (1 pc)
  Used in (product 4)   SD-1061G (1 pc)
  Used in (product 5)
   SD-1061G_A (1 pc)


5 M15 × P1.5 Tap SD-1061-15A(L) MoreM15 × P1.5 Tap
- Specifications

  Dimension              1.5 × 1.5 × 7.1 cm
  Weight   47.5 g
  Used in (product 1)   SD-1061B (1 pc)
  Used in (product 2)   SD-1061F (1 pc)
  Used in (product 3)   SD-1061F_A (1 pc)
  Used in (product 4)   SD-1061G (1 pc)
  Used in (product 5)
   SD-1061G_A (1 pc)


6 M17 × P1.5 Tap SD-1061-17A(L) MoreM17 × P1.5 Tap
- Specifications

  Dimension              1.7 × 1.7 × 7.0 cm
  Weight   56 g
  Used in (product 1)   SD-1061C (1 pc)
  Used in (product 2)   SD-1061F (1 pc)
  Used in (product 3)   SD-1061F_A (1 pc)
  Used in (product 4)   SD-1061G (1 pc)
  Used in (product 5)
   SD-1061G_A (1 pc)


7 M20 × P1.5 Tap SD-1061-20A(L) MoreM20 × P1.5 Tap
- Specifications

  Dimension              2.0 × 2.0 × 7.0 cm
  Weight   69 g
  Used in (product 1)   SD-1061D (1 pc)
  Used in (product 2)   SD-1061F (1 pc)
  Used in (product 3)   SD-1061F_A (1 pc)
  Used in (product 4)   SD-1061G (1 pc)
  Used in (product 5)
   SD-1061G_A (1 pc)


8 M11 × P1.5 Drain Plug SD-1061-11-01 MoreM11 × P1.5 Drain Plug
- Specifications

  Dimension              2.2 × 2.2 × 2.0 cm
  Weight   21.5 g
  Used in   SD-1061K (6 pcs)


9 M13 × P1.5 Drain Plug SD-1061-13A-01 MoreM13 × P1.5 Drain Plug
- Specifications

  Dimension              1.7 × 1.7 × 2.0 cm
  Weight   24 g
  Used in (product 1)   SD-1061A (6 pcs)
  Used in (product 2)   SD-1061F (5 pcs)
  Used in (product 3)   SD-1061F_A (5 pcs)
  Used in (product 4)   SD-1061G (5 pcs)
  Used in (product 5)
   SD-1061G_A (5 pcs)


10 M15 × P1.5 Drain Plug SD-1061-15A-01 MoreM15 × P1.5 Drain Plug
- Specifications

  Dimension              1.9 × 1.9 × 2.0 cm
  Weight   31.2 g
  Used in (product 1)   SD-1061B (6 pcs)
  Used in (product 2)   SD-1061F (5 pcs)
  Used in (product 3)   SD-1061F_A (5 pcs)
  Used in (product 4)   SD-1061G (5 pcs)
  Used in (product 5)
   SD-1061G_A (5 pcs)


11 M17 × P1.5 Drain Plug SD-1061-17A-01 MoreM17 × P1.5 Drain Plug
- Specifications

  Dimension              2.3 × 2.3 × 1.7 cm
  Weight   27.5 g
  Used in (product 1)   SD-1061C (6 pcs)
  Used in (product 2)   SD-1061F (5 pcs)
  Used in (product 3)   SD-1061F_A (5 pcs)
  Used in (product 4)   SD-1061G (5 pcs)
  Used in (product 5)
   SD-1061G_A (5 pcs)


12 M20 × P1.5 Drain Plug SD-1061-20A-01 MoreM20 × P1.5 Drain Plug
- Specifications

  Dimension              2.5 × 2.5 × 1.8 cm
  Weight   38 g
  Used in (product 1)   SD-1061D (6 pcs)
  Used in (product 2)   SD-1061F (5 pcs)
  Used in (product 3)   SD-1061F_A (5 pcs)
  Used in (product 4)   SD-1061G (5 pcs)
  Used in (product 5)
   SD-1061G_A (5 pcs)


13 M11 Washer SD-1061-11-02 MoreM11 Washer
- Specifications

  Dimension              2.1 × 2.1 × 0.2 cm
  Weight   3.2 g
  Used in   SD-1061K (12 pcs)


14 M13 Washer SD-1061-13A-02 MoreM13 Washer
- Specifications

  Dimension              1.7 × 1.7 × 0.2 cm
  Weight   0.4 g
  Used in (product 1)   SD-1061A (12 pcs)
  Used in (product 2)   SD-1061A-1 (12 pcs)
  Used in (product 3)   SD-1061F (10 pcs)
  Used in (product 4)   SD-1061G (24 pcs)


15 M15 Washer SD-1061-15A-02 MoreM15 Washer
- Specifications

  Dimension              1.9 × 1.9 × 0.2 cm
  Weight   1.2 g
  Used in (product 1)   SD-1061B (12 pcs)
  Used in (product 2)   SD-1061F (10 pcs)
  Used in (product 3)   SD-1061G (12 pcs)


16 M17 Washer SD-1061-17A-02 MoreM17 Washer
- Specifications

  Dimension              2.1 × 2.1 × 0.2 cm
  Weight   1.2 g
  Used in (product 1)   SD-1061C (12 pcs)
  Used in (product 2)   SD-1061F (10 pcs)
  Used in (product 3)   SD-1061G (12 pcs)


17 M20 Washer SD-1061-20A-02 MoreM20 Washer
- Specifications

  Dimension              2.4 × 2.4 × 0.2 cm
  Weight   1.4 g
  Used in (product 1)   SD-1061D (12 pcs)
  Used in (product 2)   SD-1061F (10 pcs)
  Used in (product 3)   SD-1061G (12 pcs)


  Suggested HS code   82055990909
  MOQ with laser marking   20 sets
  MOQ without laser marking   10 sets
  Laser marking cost   + TWD 2 on each piece
  Not for sale in   China and USA
