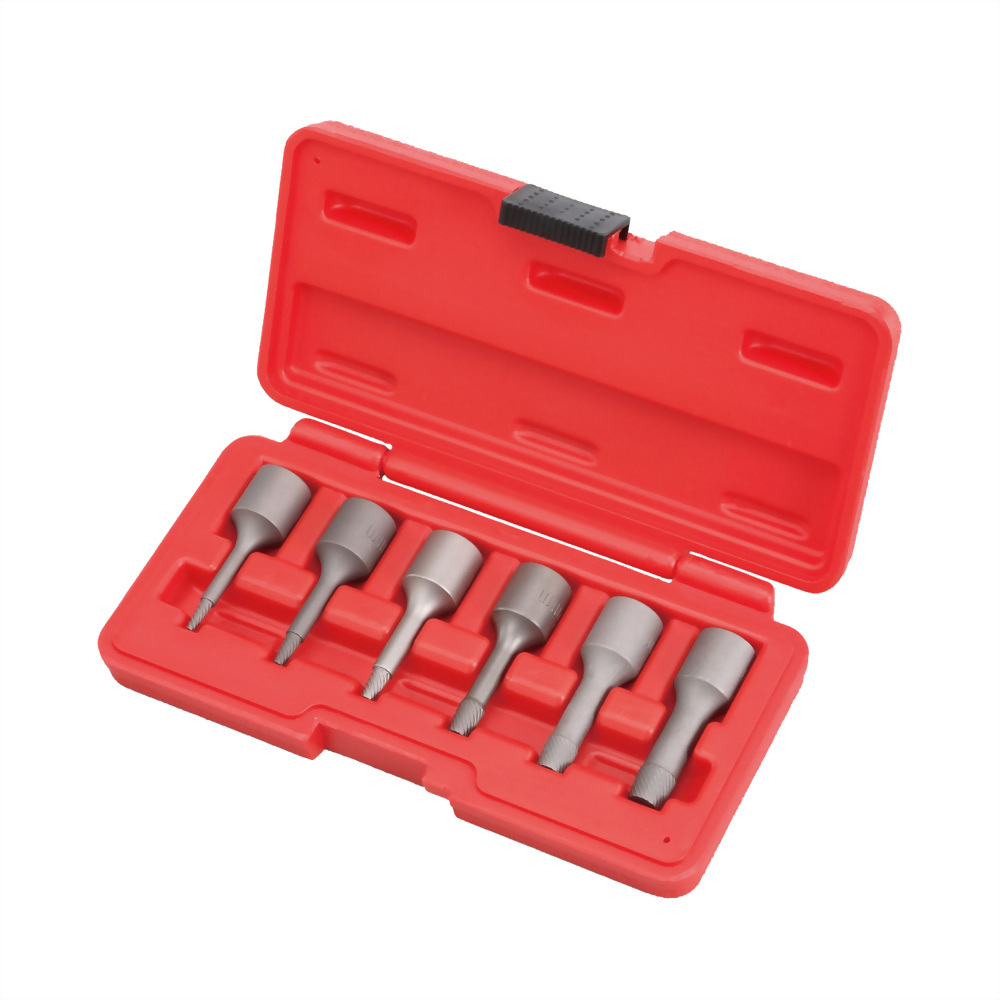

3/8"DR Bolt Extractor Set (6 pcs)
Model No.:
SD-1036
• Sizes: 2mm, 3mm, 4mm, 6mm, 8mm, 10mm

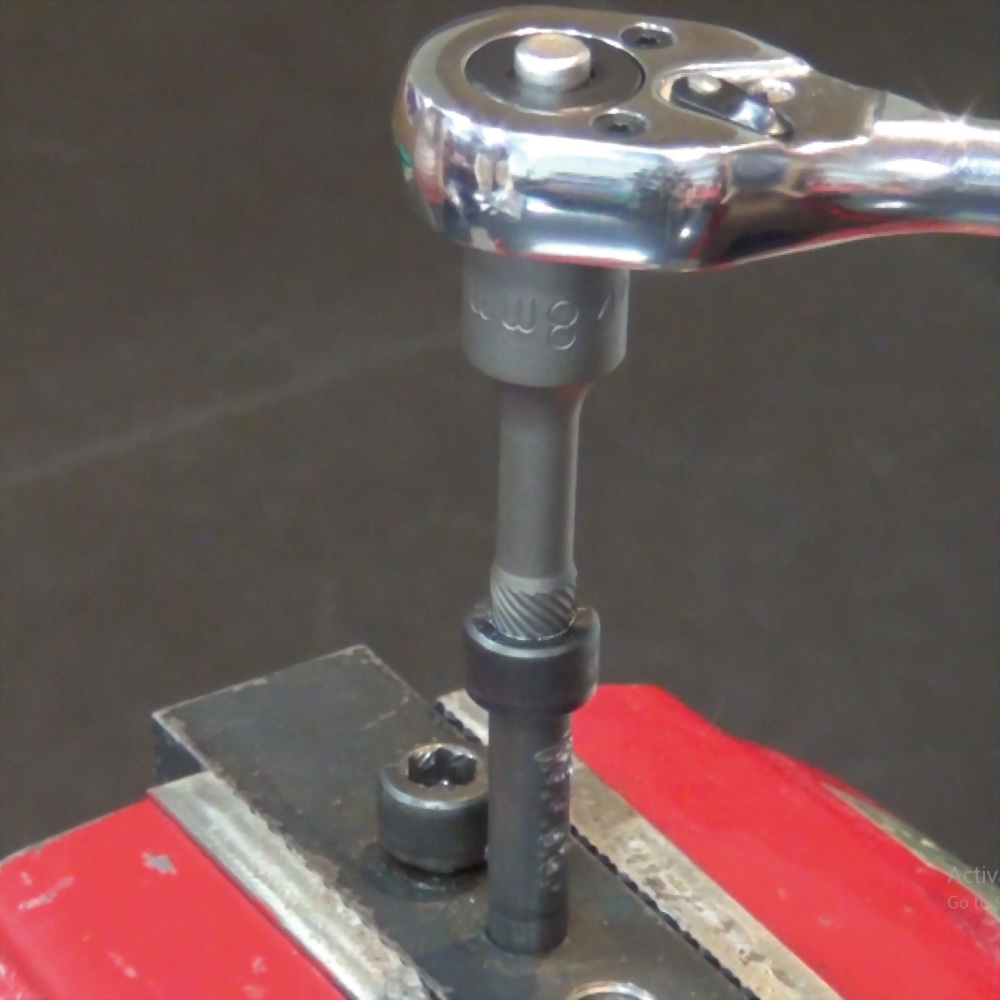

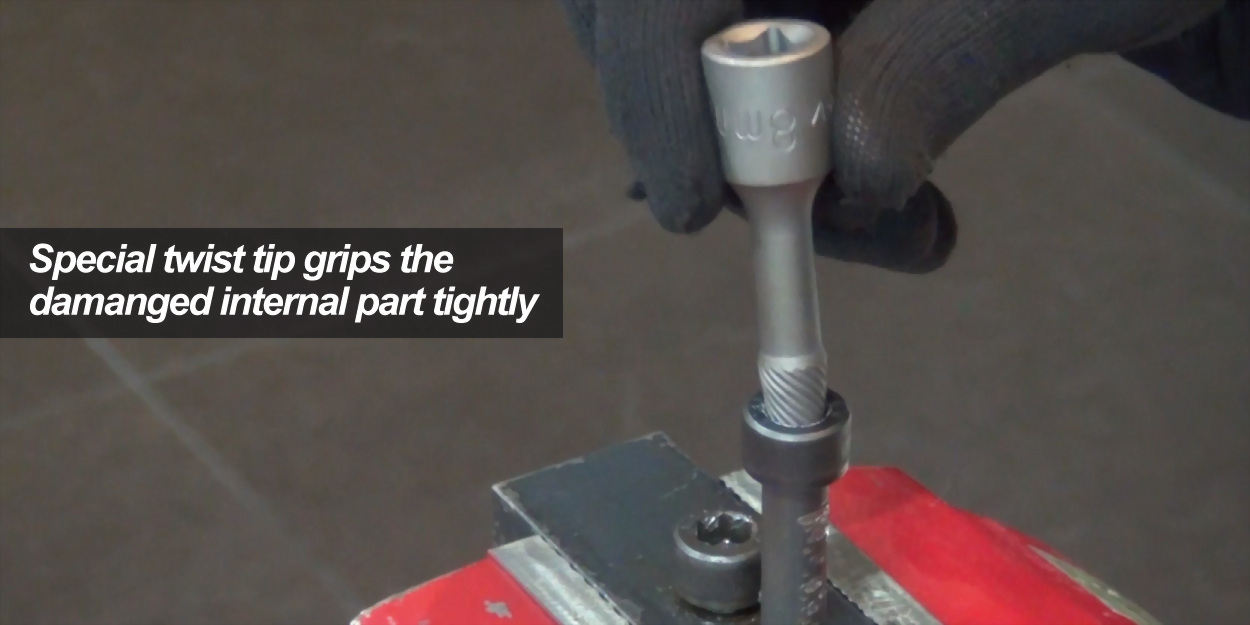

• Set for removing worn or rusty inner hex bolt by drilling a hole

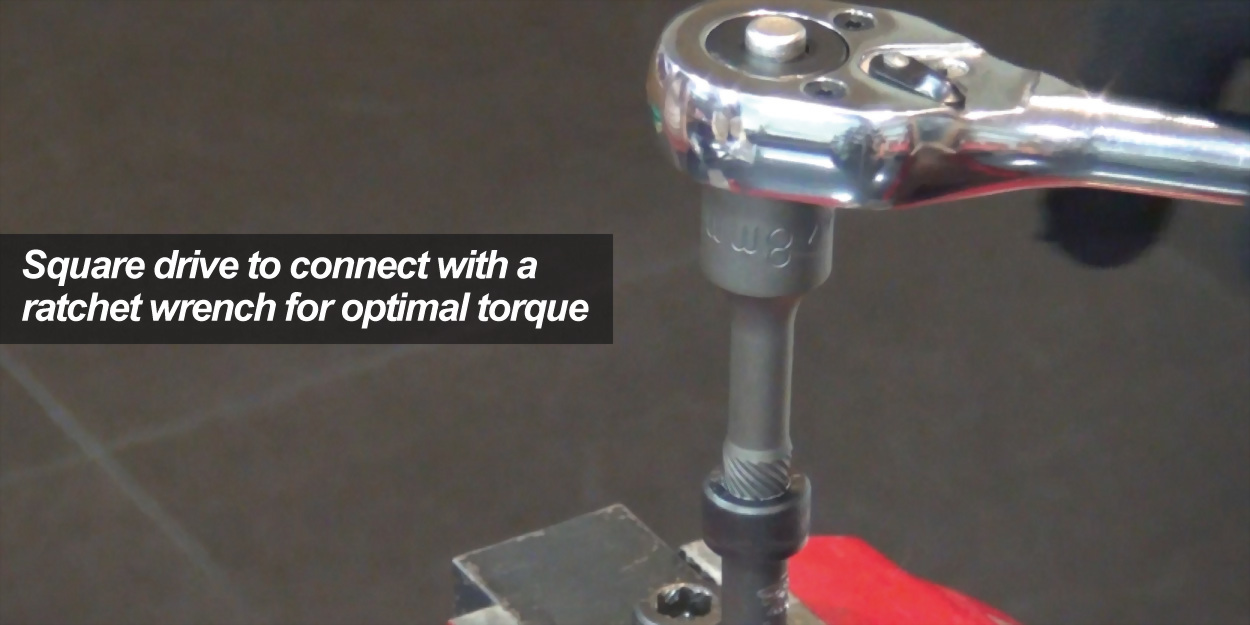

• Tool with 3/8”Dr to work with a ratchet wrench for additional torque
• Product NOT designed for air/impact wrench operation
• Set for removing worn or rusty inner hex bolt by drilling a hole
• Tool with 3/8”Dr to work with a ratchet wrench for additional torque
• Product NOT designed for air/impact wrench operation
| Package | Blow molded case (red) | |
| Packing | 20 sets in a master carton | |
| Weight per set | 425 g | 0.9 lbs |
| Net weight per carton | 8.5 kg | 18.7 lbs |
| Gross weight per carton | 9.5 kg | 20.9 lbs |
| Size per set | 20.0 × 11.0 × 3.0 cm | 7.9 × 4.3 × 1.2 in |
| Size per carton | 44.0 × 21.0 × 18.0 cm | 17.3 × 8.3 × 7.1 in |
| Volume per carton | 0.017 CBM | 0.6 CUFT |
| Case label size | 8.5 × 3.5 cm | 3.3 × 1.4 in |
| No. | Image | Cosda No. | Description | |||||
|---|---|---|---|---|---|---|---|---|
| 1 |  |
SD-1036-02 | Screw Extractor 3/8" - 2 mm - 60L | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 2 |  |
SD-1036-03 | Screw Extractor 3/8" - 3 mm - 60L | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 3 |  |
SD-1036-04 | Screw Extractor 3/8" - 4 mm - 60L | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 4 |  |
SD-1036-06 | Screw Extractor 3/8" - 6 mm - 60L | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 5 |  |
SD-1036-08 | Screw Extractor 3/8" - 8 mm - 60L | More |
||||
|
- Specifications
|
||||||||
|
|
||||||||
| 6 |  |
SD-1036-10 | Screw Extractor 3/8" - 10 mm - 60L | More |
||||
|
- Specifications
|
||||||||
| Suggested HS code |
82059000008 |
| MOQ with laser marking | 40 sets |
| MOQ without laser marking | 20 sets |
| Laser marking cost | + TWD 2 on each piece |
