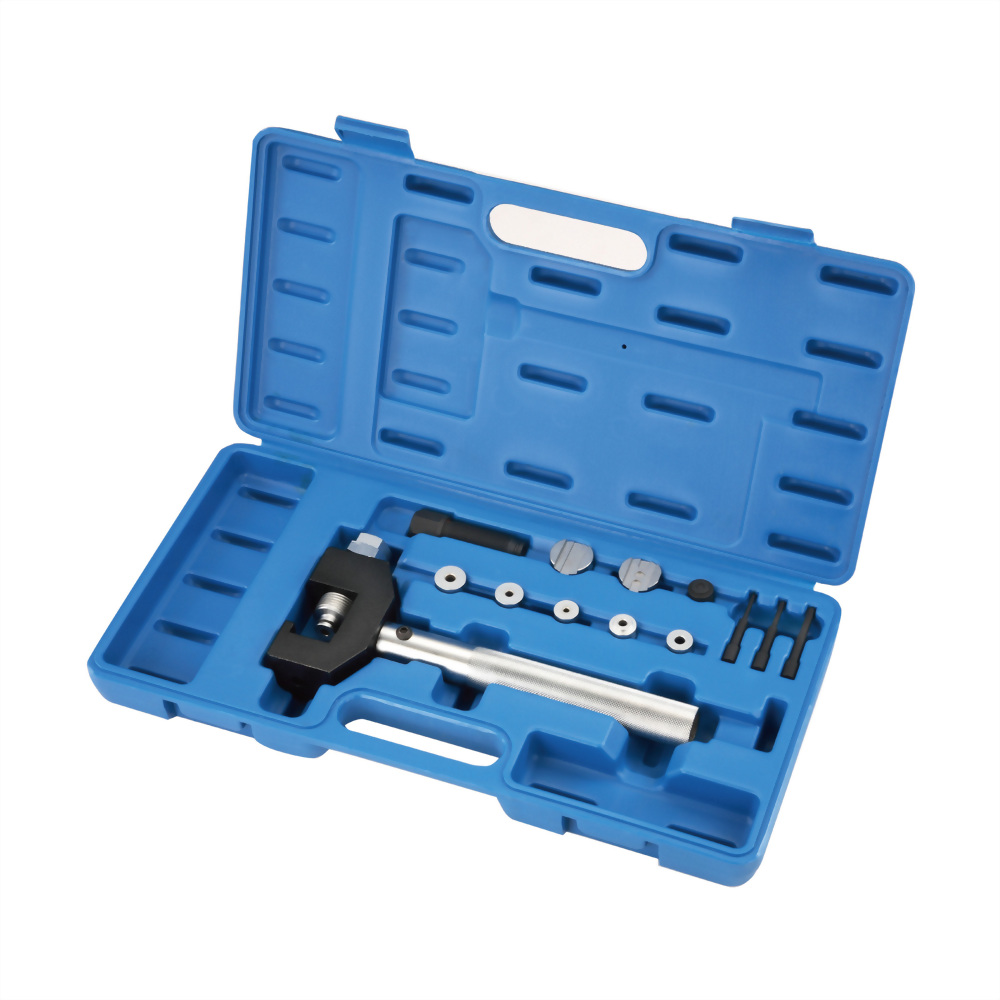

• Timing Chain Remover Riveting Tool

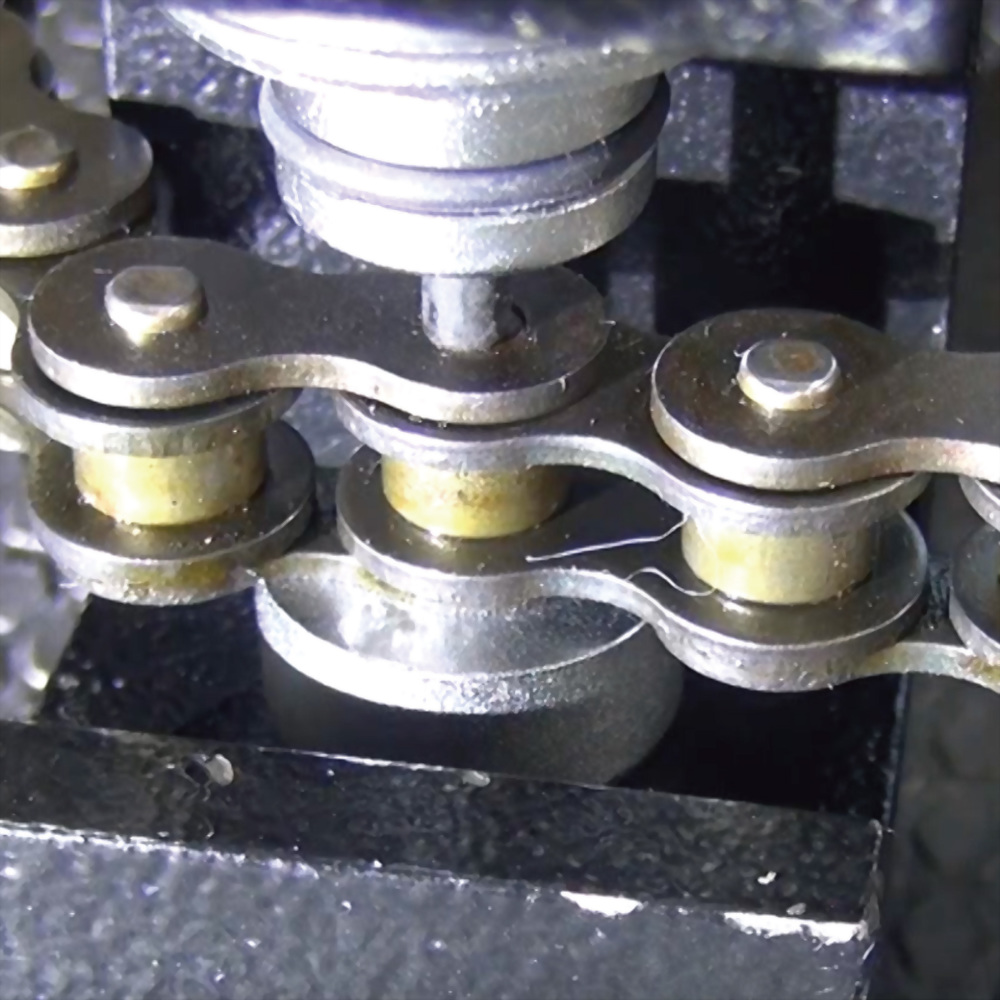

  • Timing Chain Rivet Press Tool Set

Chain Breaker and Riveting Tool Set

Model No.: SD-1180
• Set for breaking and riveting chains

• Includes push rods and holder seats with different sizes, fitting most chain sizes

• Available for single chains only; not suitable for double chains

• Suitable for motorcycle, bicycles and timing chains:
415E, 415H, 420, 420H, 425, 428, 428H, 520, 520H, 525, 525H, 530, 530H

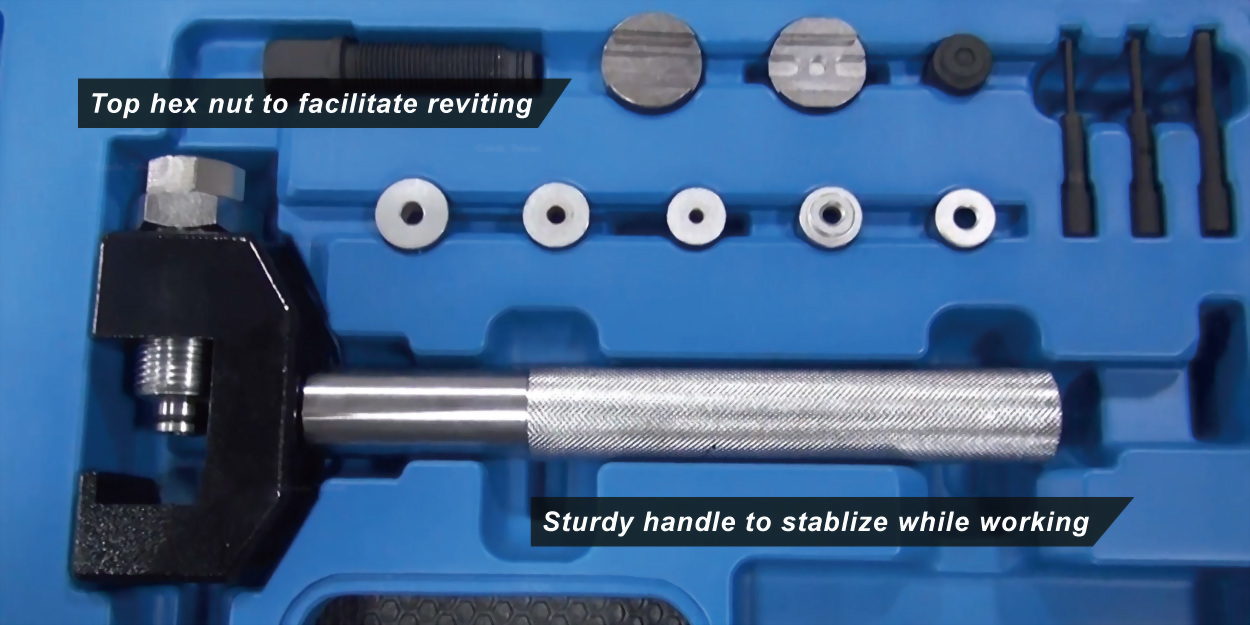

Tools Motorcycle/Engine Timing Chain Link Extractor & Riveter

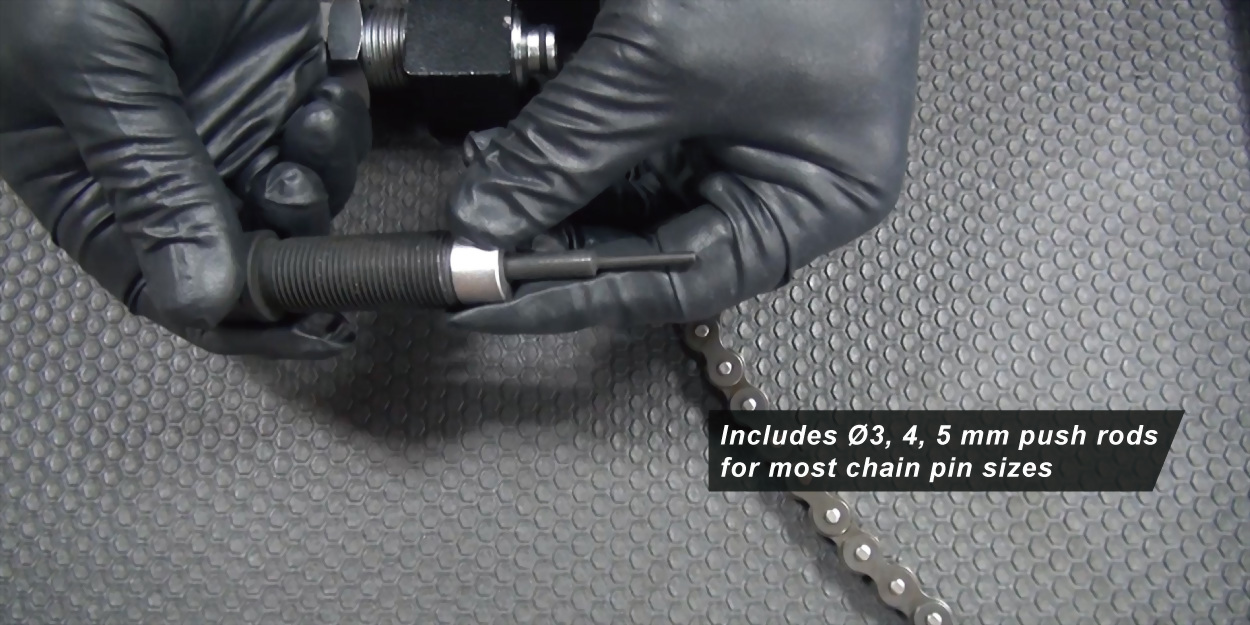

How to install a new motorcycle chain and how to rivet the chain


Chain Breaker and Riveting Tool



auto repair tool manufacturer in Taiwan


  Package   Blow molded case (blue)
  Packing   5 sets in a master carton
  Weight per set   2.5 kg   5.5 lbs
  Net weight per carton   12.5 kg   27.5 lbs
  Gross weight per carton   13.5 kg   29.7 lbs

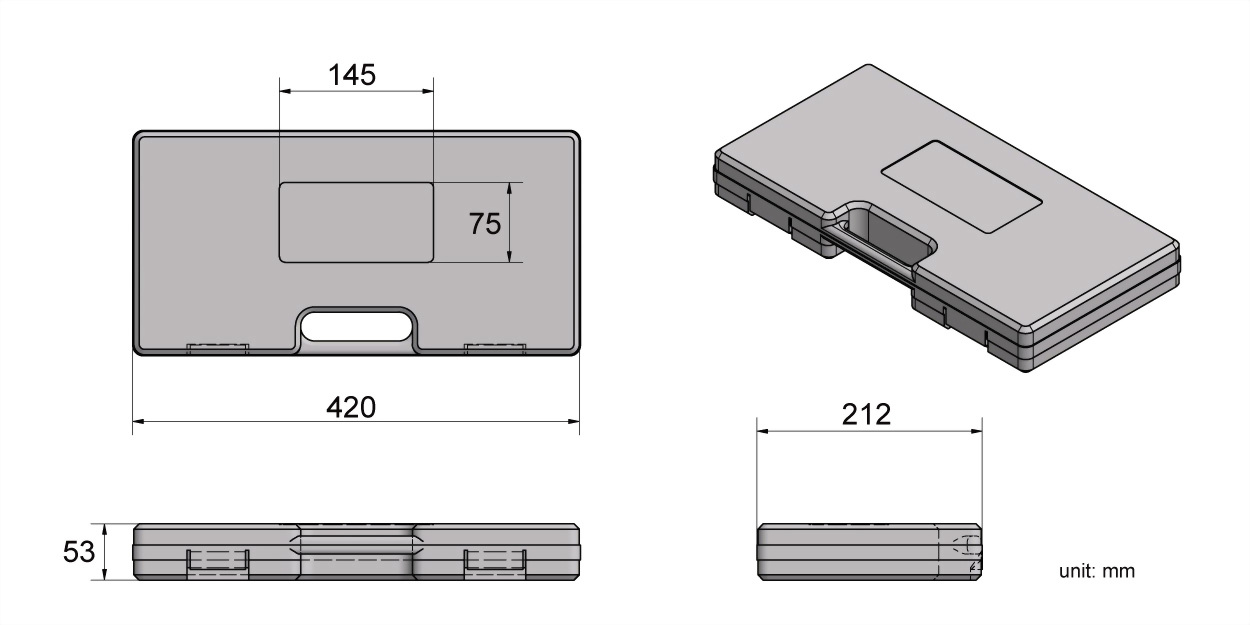

  Size per set   42.0 × 21.2 × 5.3 cm   16.5 × 8.5 × 2.1 inch
  Size per carton   43.0 × 22.4 × 28.5 cm   16.9 × 8.8 × 11.2 inch
  Volume per carton   0.03 CBM   0.98 CUFT
  Sticker size   14.5 × 7.5 cm    5.7 × 2.9 inch


  Suggested HS code   82055990909
  MOQ with laser marking   10 sets
  MOQ without laser marking   5 sets
  Laser marking cost   + TWD 10 on tool body
